Amana
Range/Microwave Combo

Model # 3021.000 Official Amana microwave/range

Here are the diagrams and repair parts for Official Amana 3021000 microwave/range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

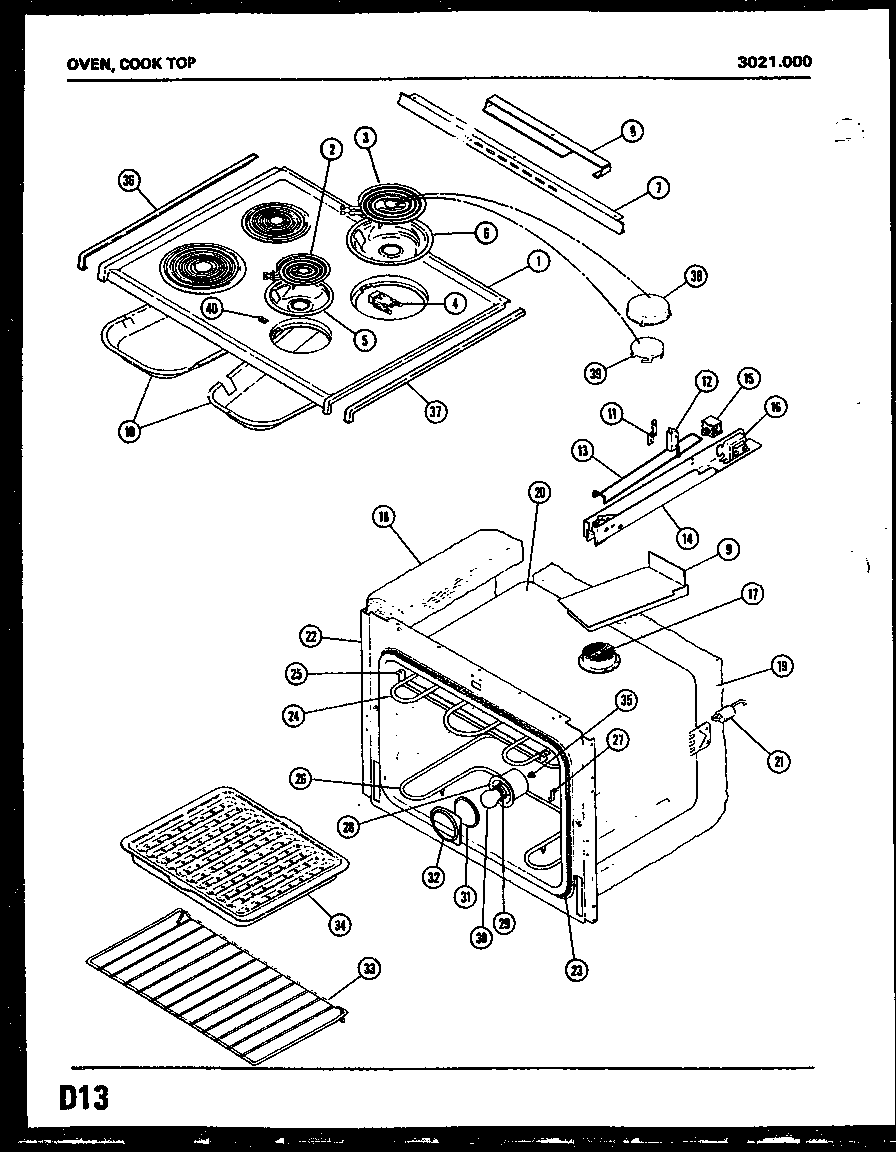

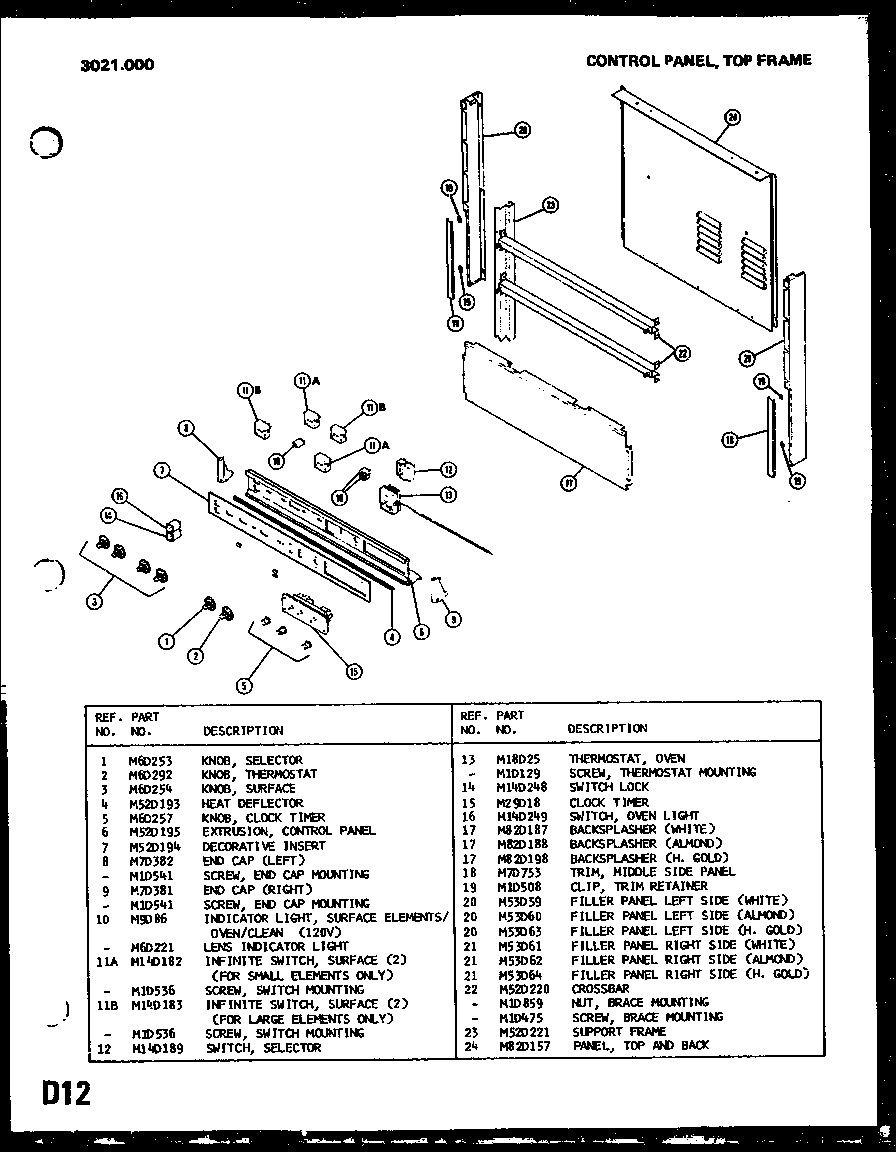

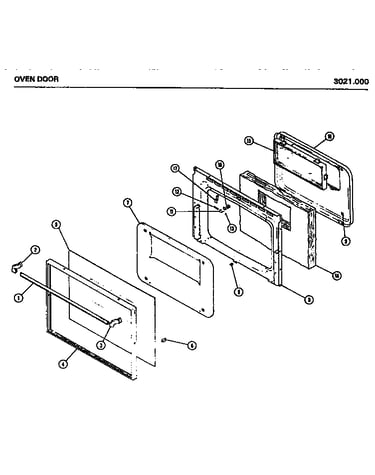

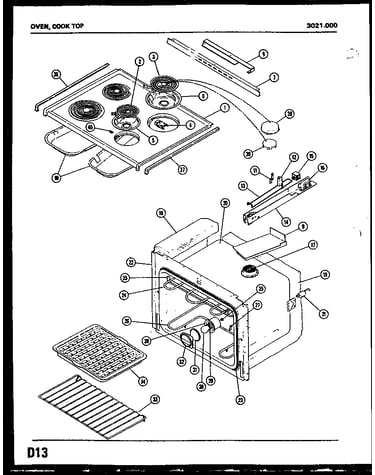

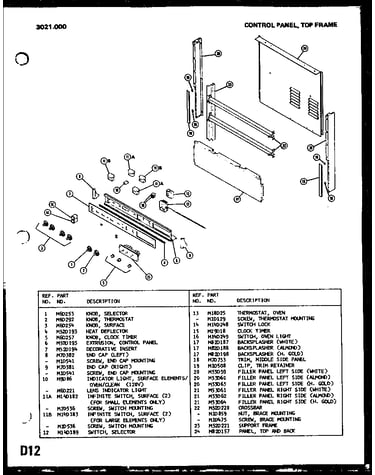

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 301 parts  |
Low-voltage Transformer M60D117
#39A

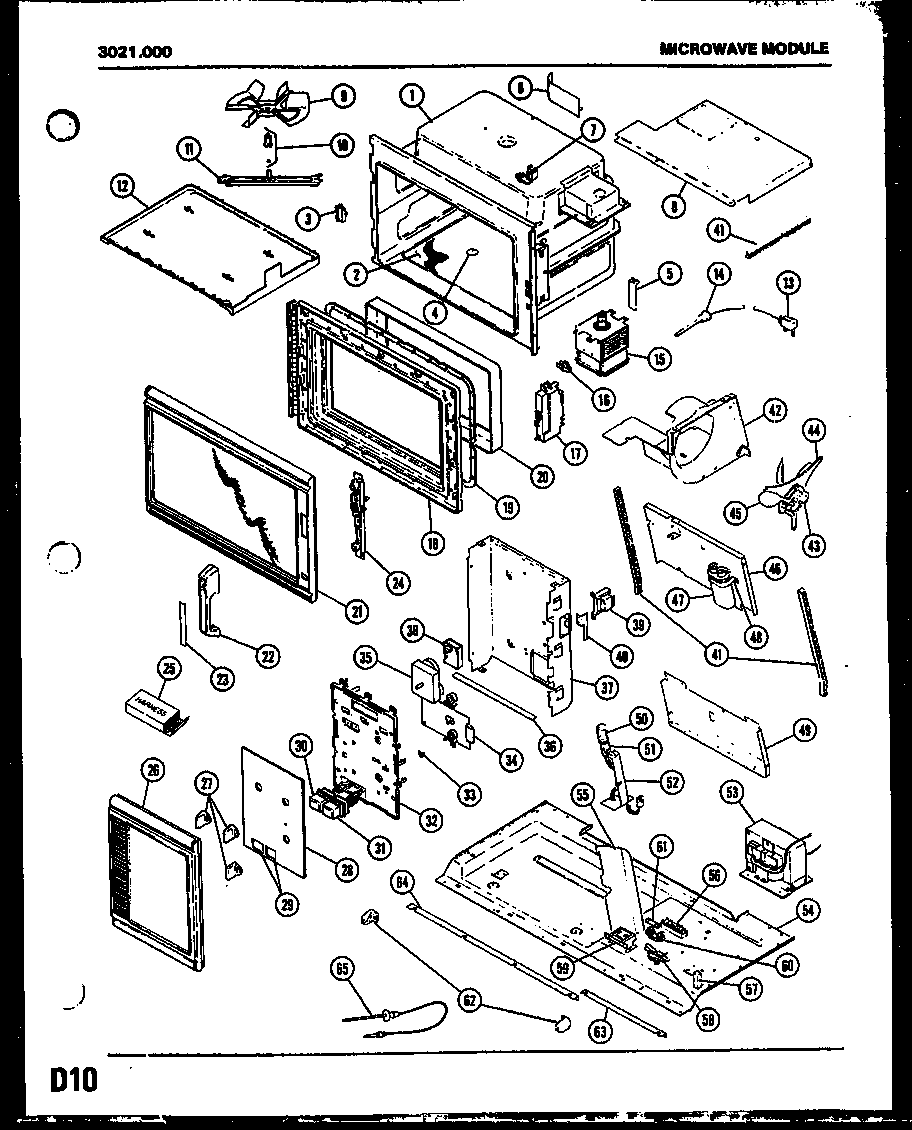

Microwave module diagram

Low-voltage transformer

Part #M60D117

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel M35D33
#20

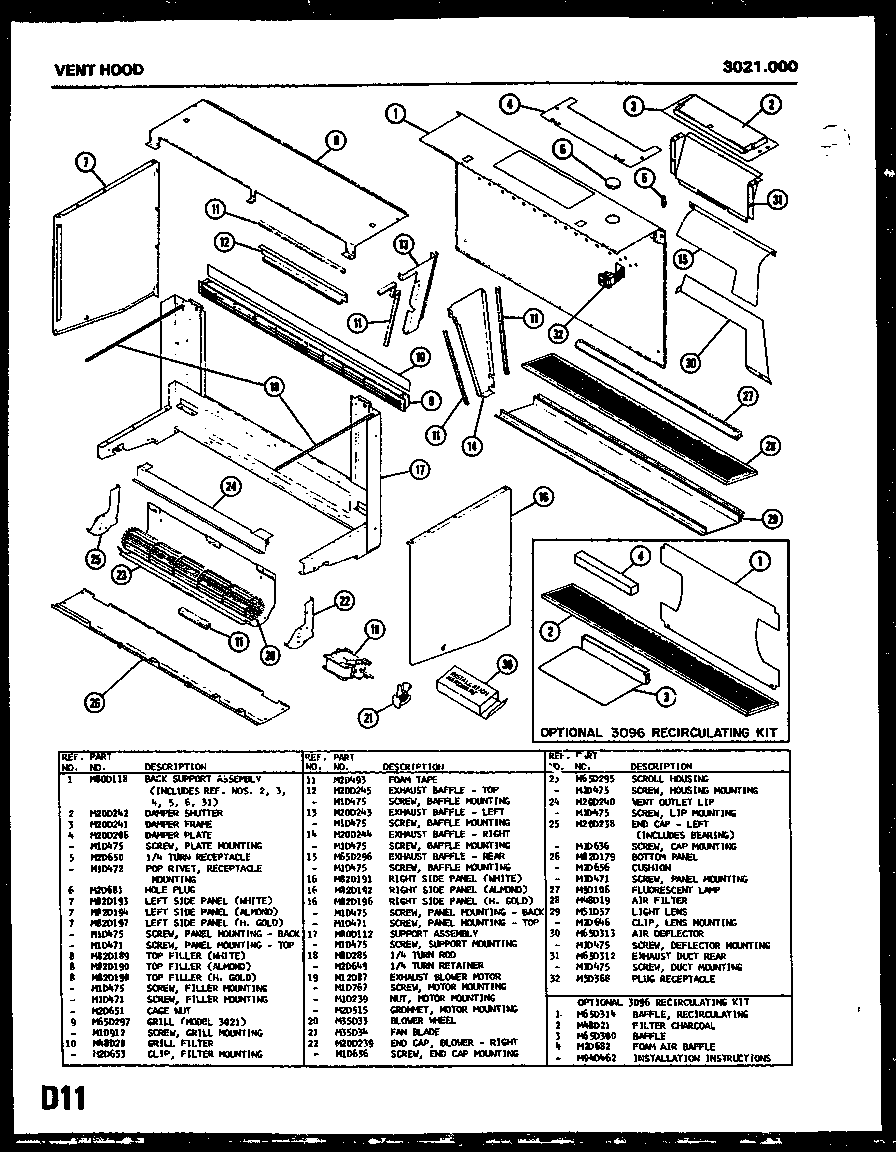

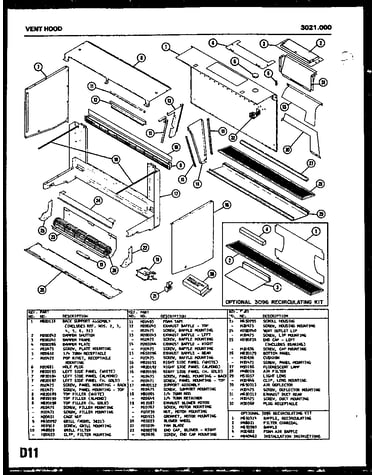

Eventhood diagram

Blower wheel

Part #M35D33

The manufacturer no longer makes this part, and there's no substitute part

Screw - Bracket Mtg. M1D9
#57C

Microwave module diagram

Screw - bracket mtg.

Part #M1D9

The manufacturer no longer makes this part, and there's no substitute part

Air Deflector M8D286
#5A

Microwave module diagram

Air deflector

Part #M8D286

The manufacturer no longer makes this part, and there's no substitute part

Screw, Clock Mtg M1D129
Screw, clock mtg

Part #M1D129

The manufacturer no longer makes this part, and there's no substitute part

Washer, Channel Mounting M1D531
Washer, channel mounting

Part #M1D531

The manufacturer no longer makes this part, and there's no substitute part

Capacitor (.19 Mfd) M10D100
#47

Microwave module diagram

Capacitor (.19 mfd)

Part #M10D100

The manufacturer no longer makes this part, and there's no substitute part

Right Side Panel (h. Gold) M82D196
#16C

Eventhood diagram

Right side panel (h. gold)

Part #M82D196

The manufacturer no longer makes this part, and there's no substitute part

Lamp Slide M8D282
#52A

Microwave module diagram

Lamp slide

Part #M8D282

The manufacturer no longer makes this part, and there's no substitute part

Retainer Stud Mtg M1D511
#4C

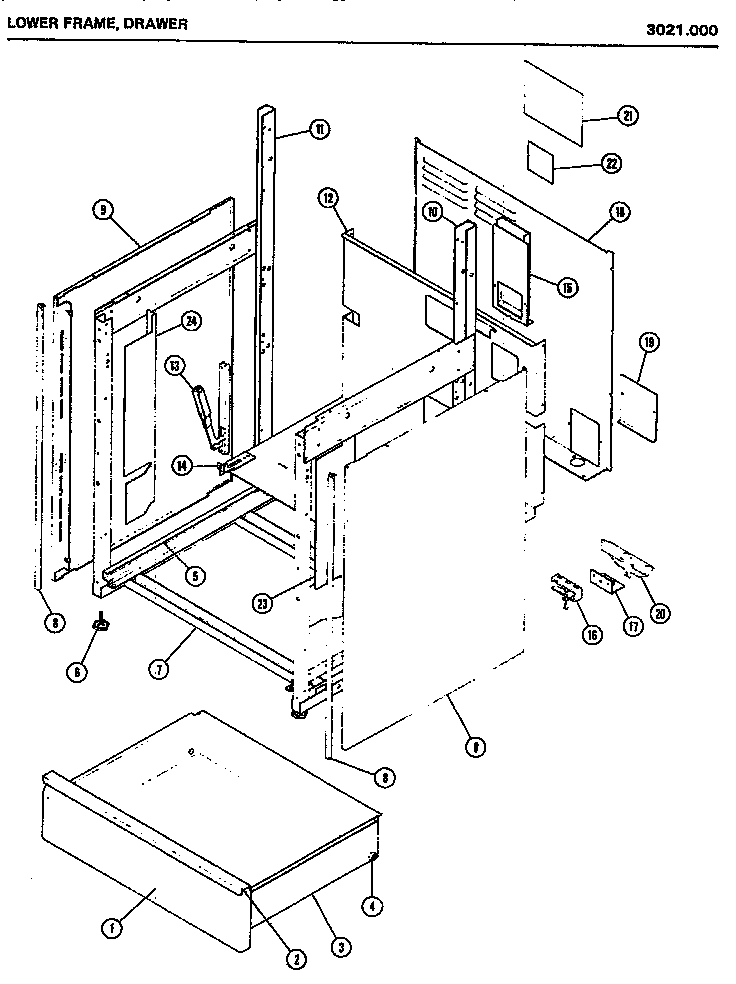

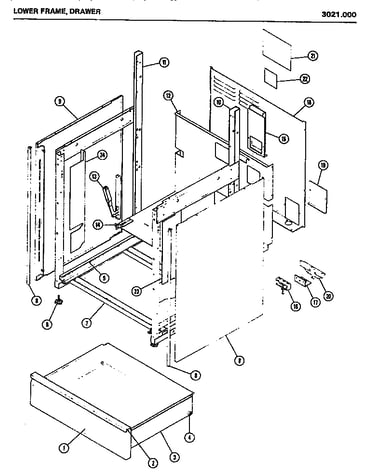

Lower frame diagram

Retainer stud mtg

Part #M1D511

The manufacturer no longer makes this part, and there's no substitute part
