Model # SNK26CB0/P1142989N Official Amana 30" gas range

Here are the diagrams and repair parts for Official Amana SNK26CB0-P1142989N 30" gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

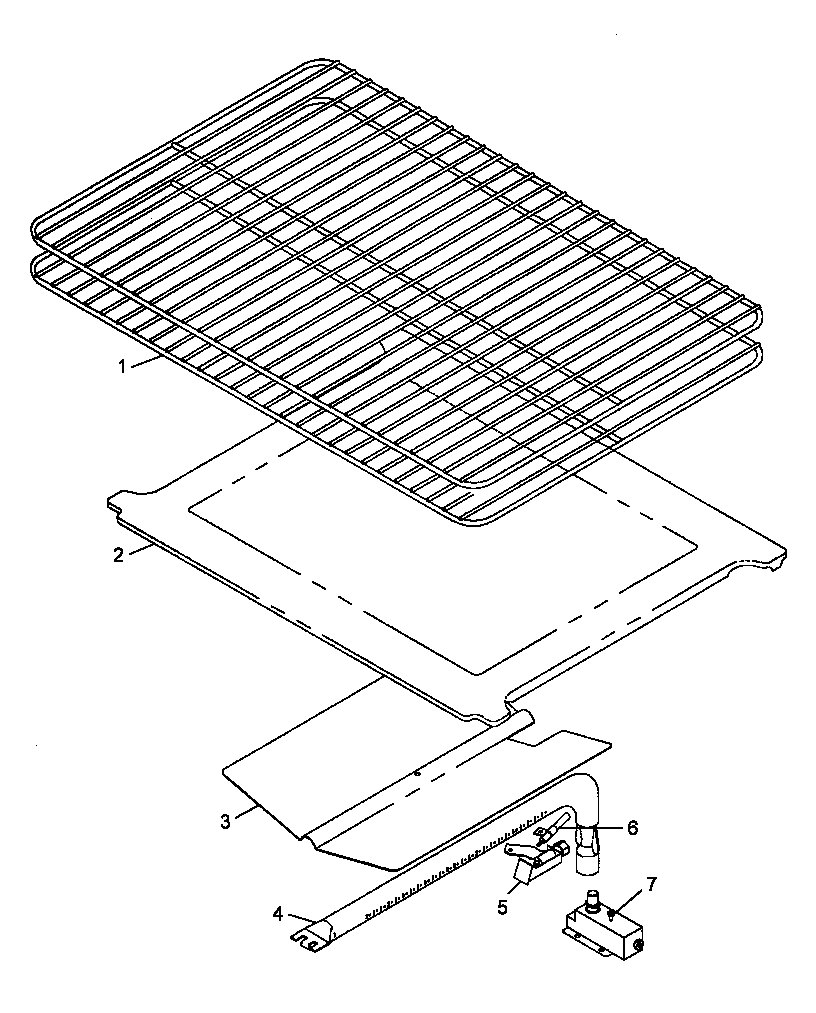

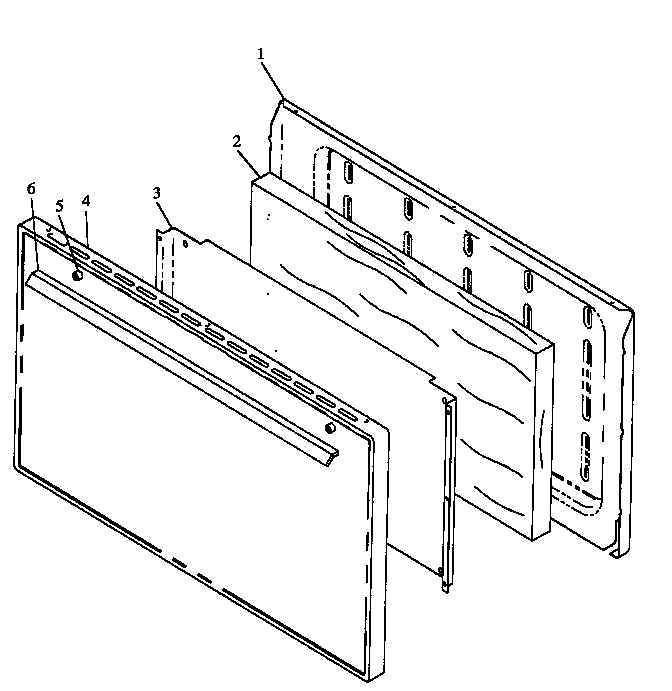

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Lamp A0282806
#21

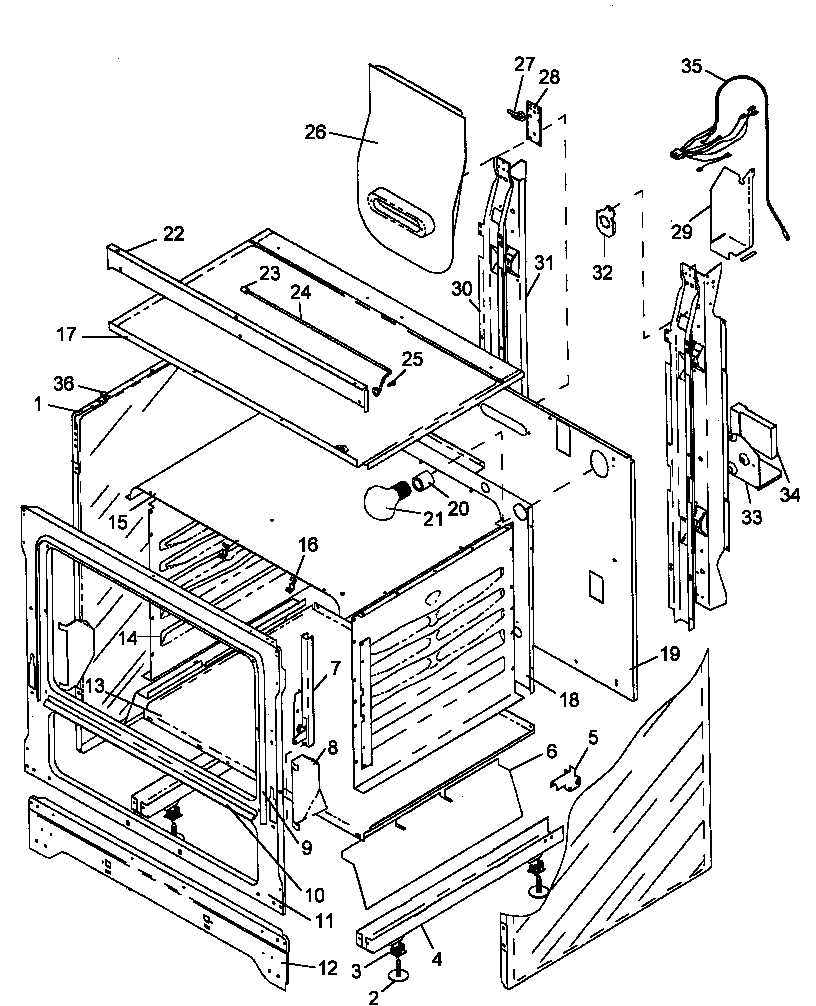

Cabinet assembly diagram

Lamp

Part #A0282806

Replaced by #40A15

?
Manufacturer substitution
This part replaces A0282806. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Door Handle Mounting Screw 0311884

#NI

All parts diagram

Door handle mounting screw

Part #0311884

The manufacturer no longer makes this part, and there's no substitute part

Broiler Door Panel, White 311812W
#9C

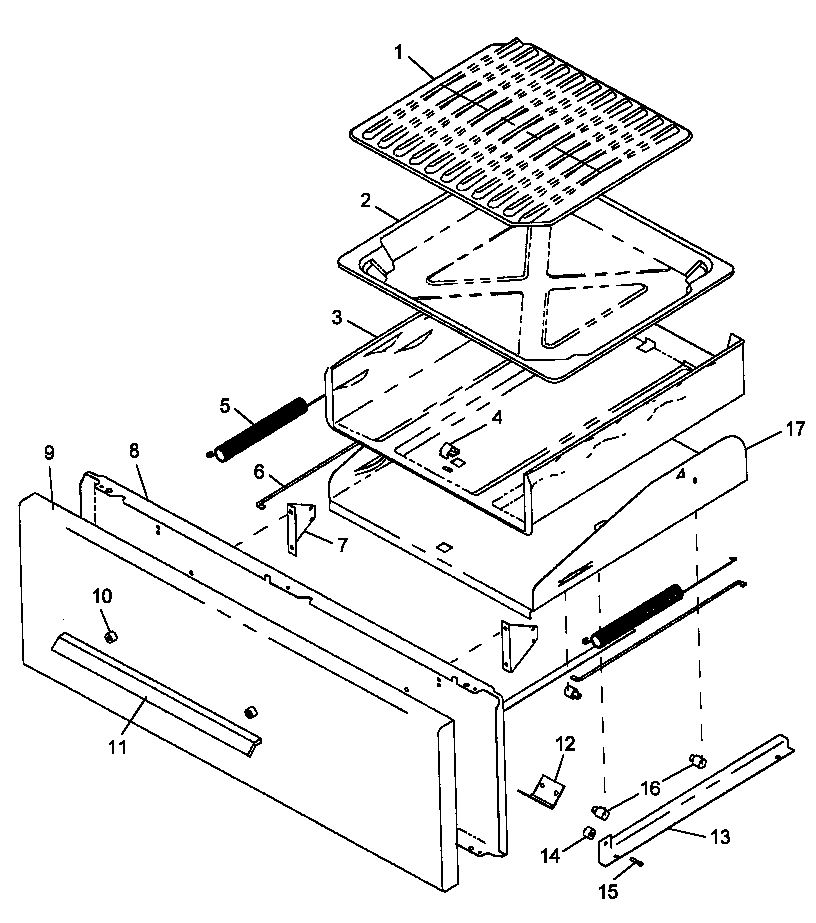

Broiler drawer assembly diagram

Broiler door panel, white

Part #311812W

The manufacturer no longer makes this part, and there's no substitute part

Clip, Thermostat Bulb 0088050
#16

Cabinet assembly diagram

Clip, thermostat bulb

Part #0088050

The manufacturer no longer makes this part, and there's no substitute part

Liner, Oven Top 06470802E
#15

Cabinet assembly diagram

Liner, oven top

Part #06470802E

The manufacturer no longer makes this part, and there's no substitute part

Top Burner Support 06561400
#25

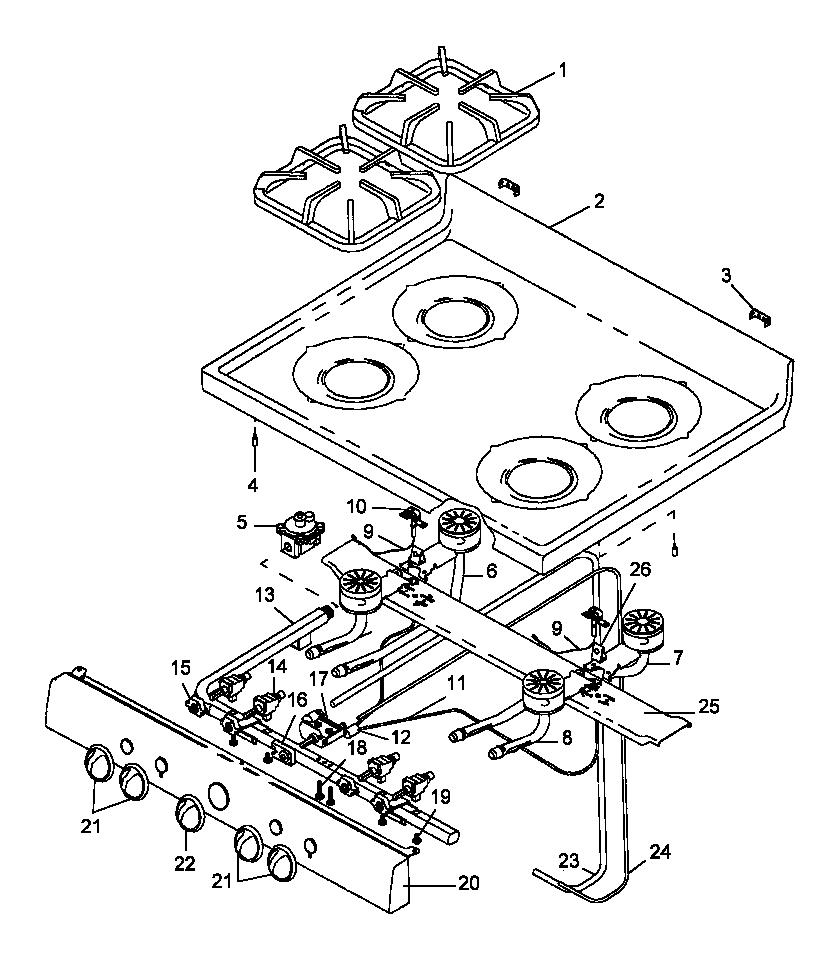

Open top burner assembly (snk26aa0/p1142988n) (snk26aa5/p1142988n) (snk26cb0/p1142989n) (snk26cb5/p1142989n) (snp26aa0/p1142991n) (snp26aa5/p1142991n) (snp26ah0/p1143160n) (snp26cb0/p1142992n) (snp26cb5/p1142992n) (snp26zz0/p1142993n) diagram

Top burner support

Part #06561400

The manufacturer no longer makes this part, and there's no substitute part

Front Frame 06567100E
#11

Cabinet assembly diagram

Front frame

Part #06567100E

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Base 06467101
#13

Cabinet assembly diagram

Baffle, base

Part #06467101

The manufacturer no longer makes this part, and there's no substitute part

Glass, Door - Black - Window 07707300
#6A

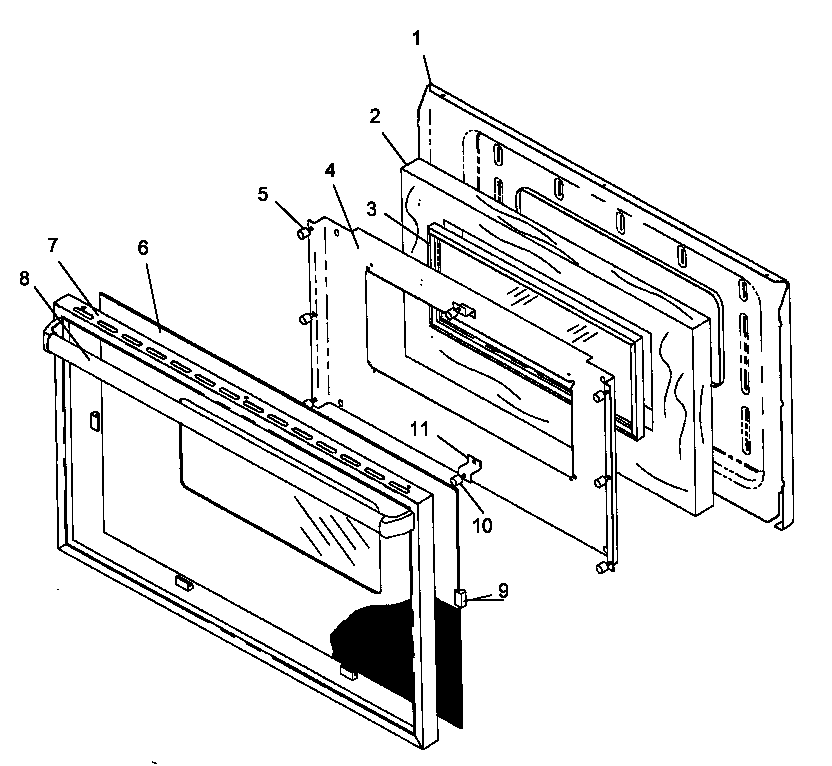

Glass window oven door assembly (snk26cb0/p1142989n) (snk26cb5/p1142989n) (snk26fs0/p1142990n) (snk26fs5/p1142990n) (snp26cb0/p1142992n) (snp26cb5/p1142992n) diagram

Glass, door - black - window

Part #07707300

The manufacturer no longer makes this part, and there's no substitute part

Radiation Shield, Broiler 0310816
#6

Cabinet assembly diagram

Radiation shield, broiler

Part #0310816

The manufacturer no longer makes this part, and there's no substitute part
