Kenmore
Microwave/Hood Combo

Model # 72180599402 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72180599402 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

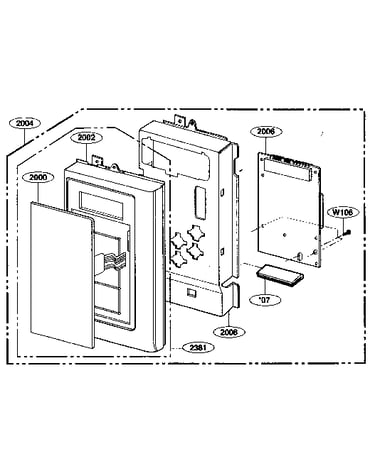

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Magnetron 2B71165P
#5009

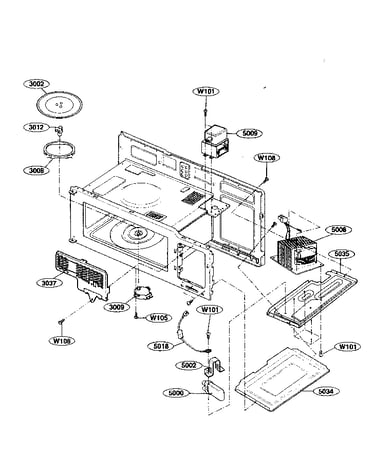

Interior parts 1 diagram

Magnetron

Part #2B71165P

The manufacturer no longer makes this part, and there's no substitute part

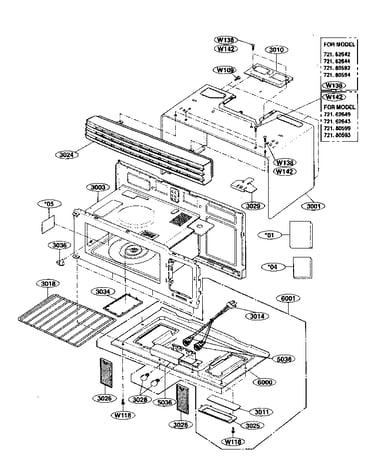

Microwave Glass Turntable Tray 1B71961E
#3002

Interior parts 1 diagram

Microwave glass turntable tray

Part #1B71961E

Replaced by #1B71961H

?
Manufacturer substitution
This part replaces 1B71961E. Substitute parts can look different from the original.
BEST SELLER
$32.53 |
16% OFF Phone Price : $38.53
In Stock
Thermostat 6930W1A002K
#5016

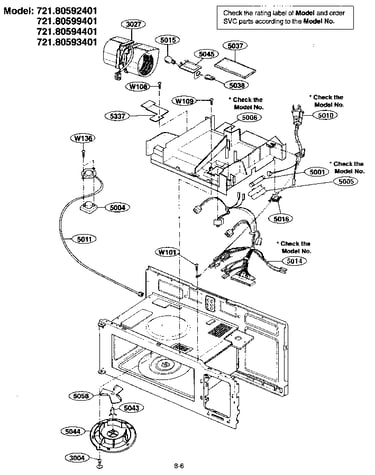

Interior parts 2 diagram

Thermostat

Part #6930W1A002K

Replaced by #6930W1A003J

?
Manufacturer substitution
This part replaces 6930W1A002K. Substitute parts can look different from the original.
BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Latch Body Assembly (replaces 3501w1a019p) 3501W1A019C
#4001

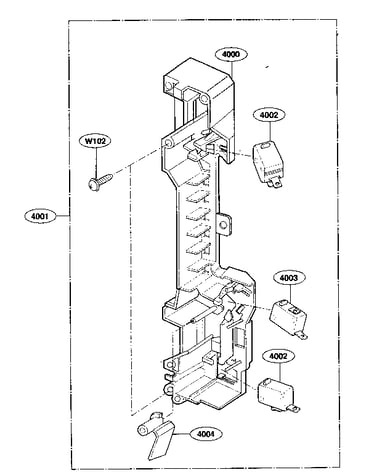

Latch board parts diagram

Microwave latch body assembly (replaces 3501w1a019p)

Part #3501W1A019C

Replaced by #AEJ75540901

?
Manufacturer substitution
This part replaces 3501W1A019C. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Door Latch Hook 4026W2A015A
#1006

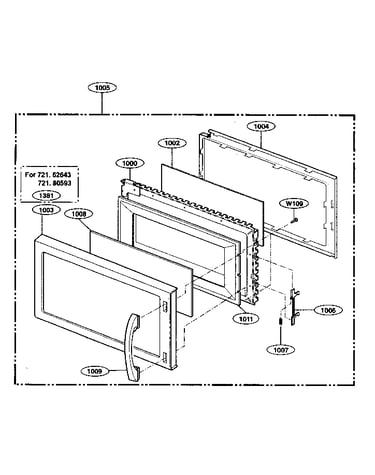

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Charcoal Filter 5230W1A002A
#5037

Interior parts 2 diagram

Charcoal filter

Part #5230W1A002A

Replaced by #5230W1A011B

?
Manufacturer substitution
This part replaces 5230W1A002A. Substitute parts can look different from the original.
BEST SELLER
$13.07 |
13% OFF Phone Price : $15.07
In Stock
Stirrer Cover 3550W1A126A
#5044

Interior parts 2 diagram

Stirrer cover

Part #3550W1A126A

Replaced by #3550W1A126D

?
Manufacturer substitution
This part replaces 3550W1A126A. Substitute parts can look different from the original.
BEST SELLER
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#6010

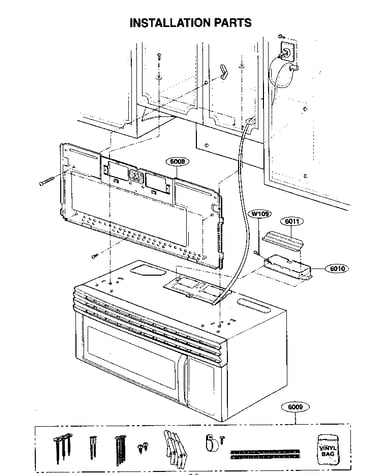

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Microwave Turntable Motor Coupler 3B72373A
#3012

Interior parts 1 diagram

Microwave turntable motor coupler

Part #3B72373A

Replaced by #4370W1A006B

?
Manufacturer substitution
This part replaces 3B72373A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#3004

Interior parts 2 diagram

Microwave waveguide cover rivet

Part #4051W3A001A

This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
