Model # SU180MXR1 Official White-Westinghouse dishwasher - lw33089010

Here are the diagrams and repair parts for Official White-Westinghouse SU180MXR1 dishwasher - lw33089010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

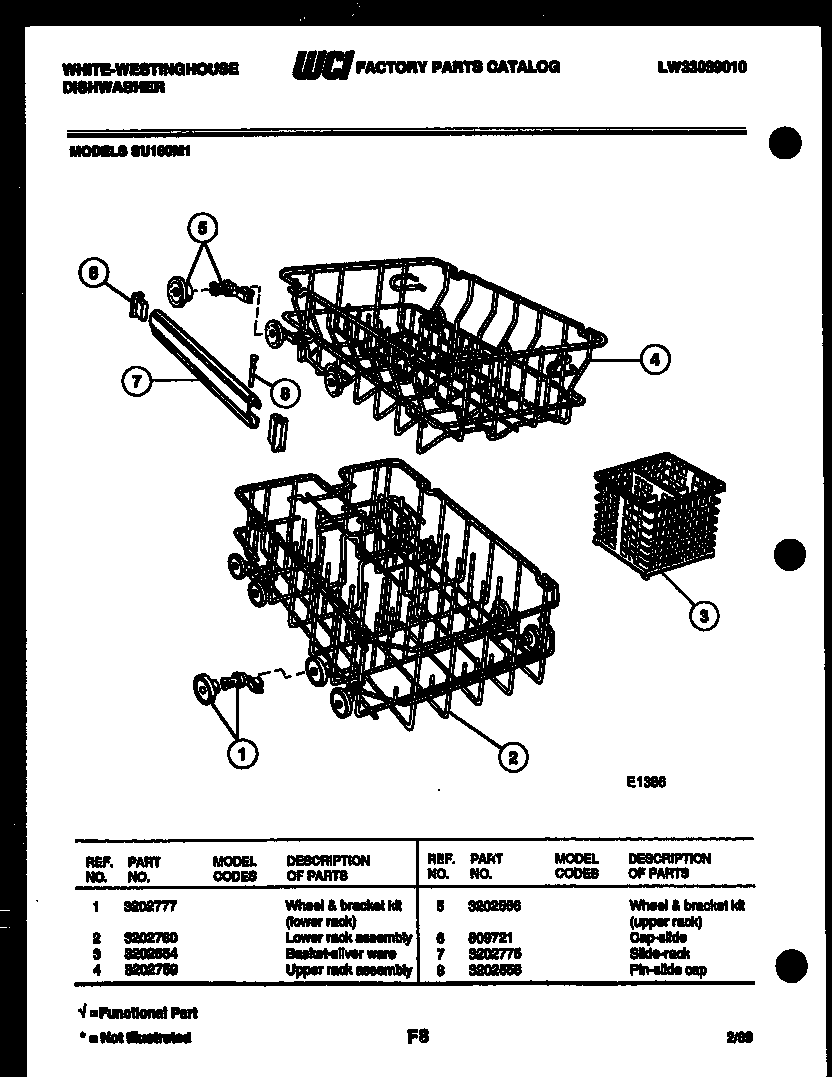

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Nut 3018118
#24

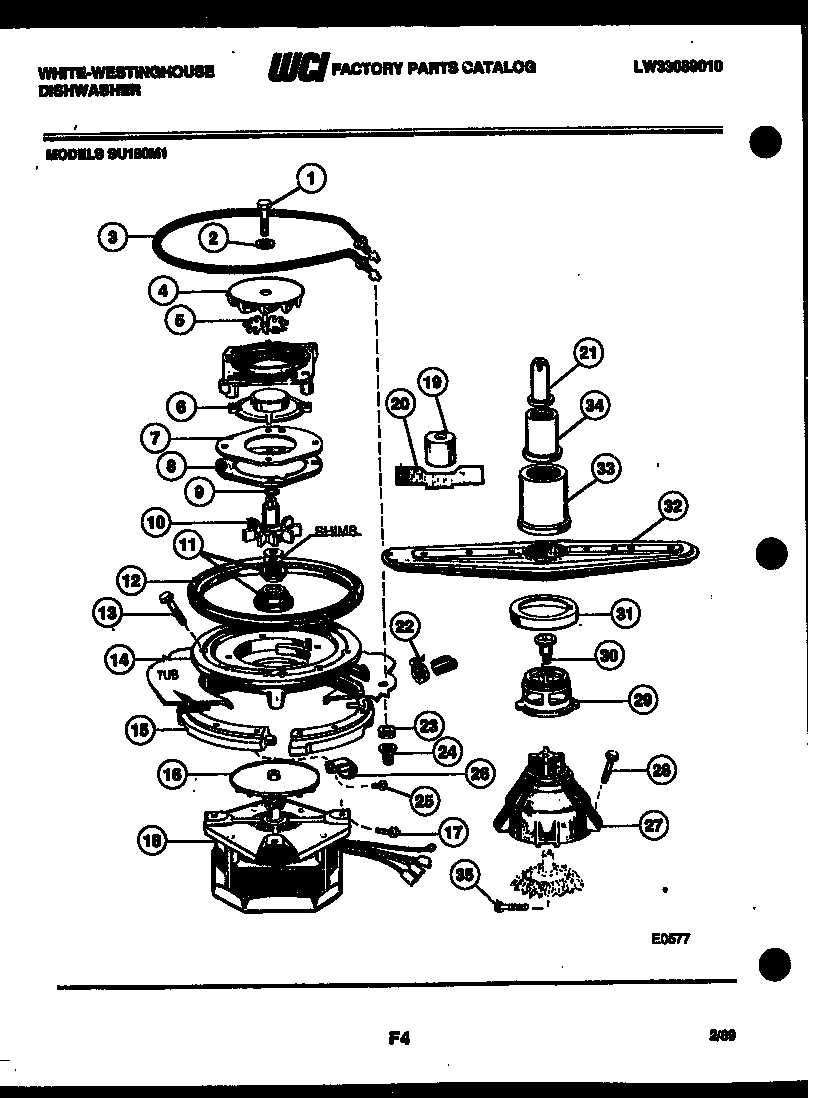

Motor pump parts diagram

Nut

Part #3018118

Replaced by #154106202

?
Manufacturer substitution
This part replaces 3018118. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Seal 3018096

#NI

All parts diagram

Seal

Part #3018096

Replaced by #5304469950

?
Manufacturer substitution
This part replaces 3018096. Substitute parts can look different from the original.
$86.64 |
6% OFF Phone Price : $92.64
In Stock
Screw 3018072
#7

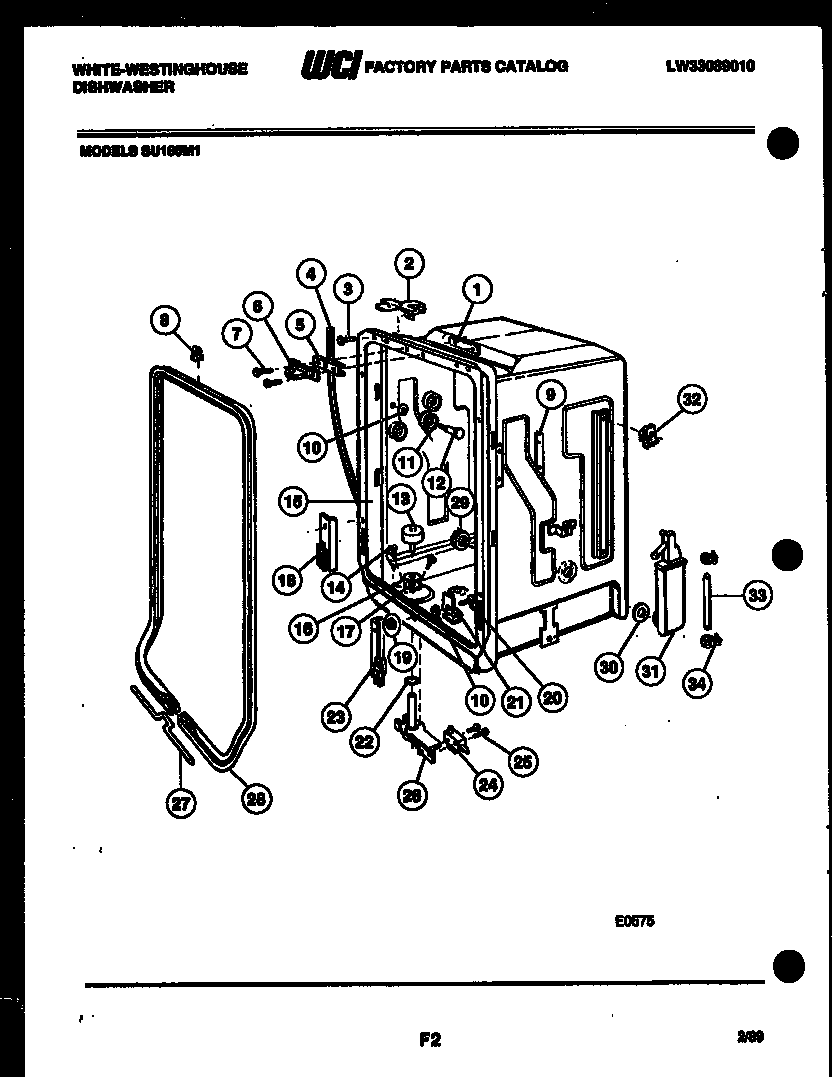

Tub and frame parts diagram

Screw

Part #3018072

Replaced by #131302901

?
Manufacturer substitution
This part replaces 3018072. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Screw 3018067
Screw

Part #3018067

Replaced by #154419403

?
Manufacturer substitution
This part replaces 3018067. Substitute parts can look different from the original.
$12.69
In Stock
Screw 3018062
#19

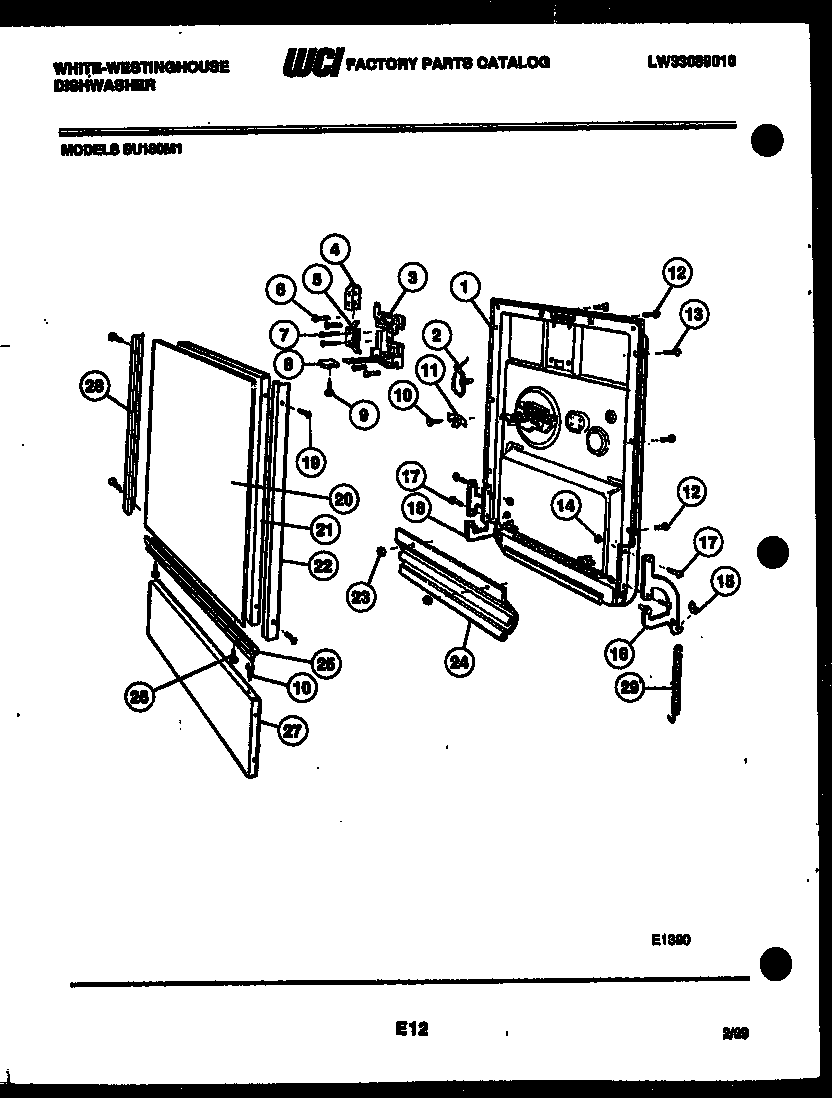

Door parts diagram

Screw

Part #3018062

This item is not returnable
$2.16
In Stock
Nut 3018143
#14

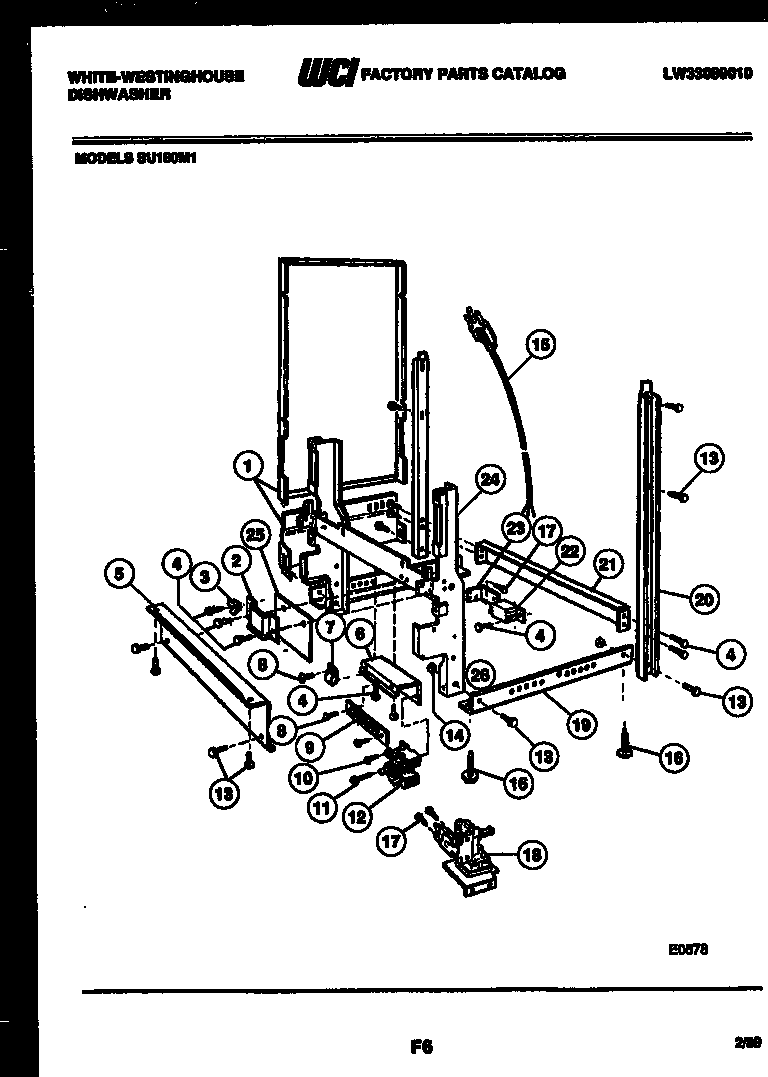

Power dry and motor parts diagram

Nut

Part #3018143

This item is not returnable
$2.49
In Stock
Screw 3018119
#25

Motor pump parts diagram

Screw

Part #3018119

Replaced by #5300807270

?
Manufacturer substitution
This part replaces 3018119. Substitute parts can look different from the original.
This item is not returnable
$4.67
In Stock
Clamp 3018030
#10

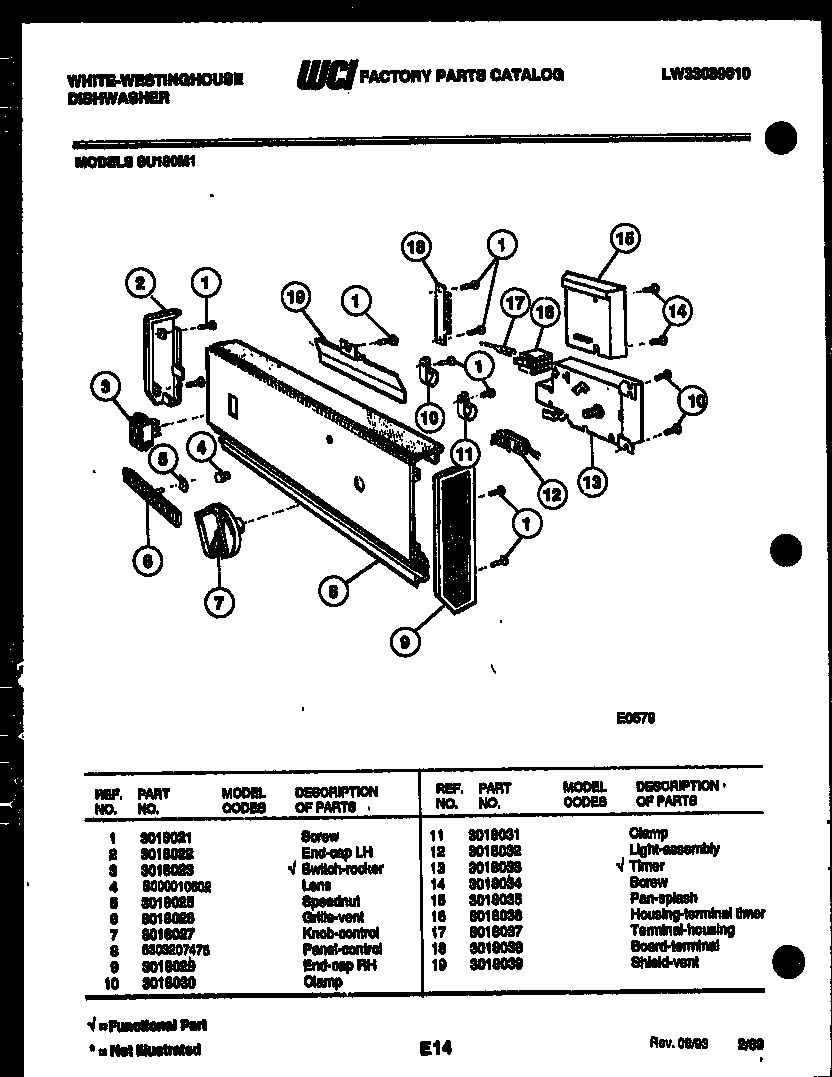

Console and control parts diagram

Clamp

Part #3018030

Replaced by #5300805584

?
Manufacturer substitution
This part replaces 3018030. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Spring 3014677
#4

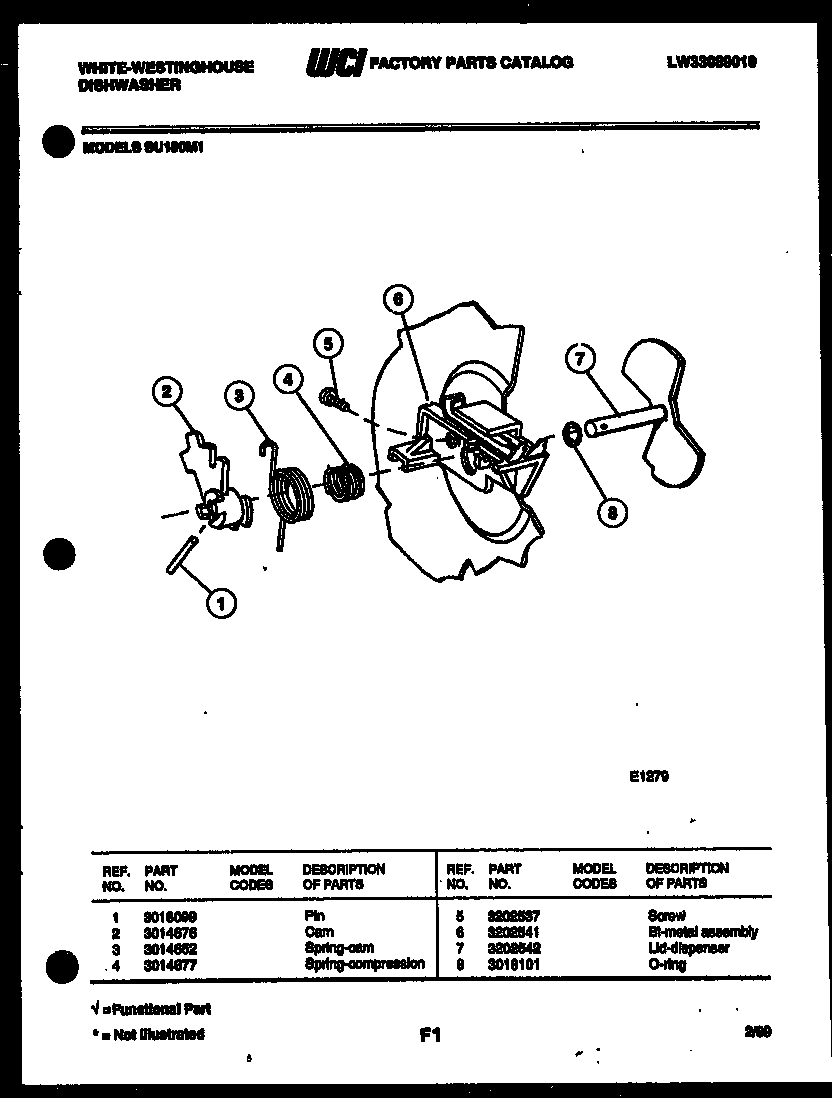

Cam diagram

Spring

Part #3014677

Replaced by #5300806567

?
Manufacturer substitution
This part replaces 3014677. Substitute parts can look different from the original.
$29.93
In Stock
Panel 3018066
#27

Door parts diagram

Panel

Part #3018066

Replaced by #5300809550

?
Manufacturer substitution
This part replaces 3018066. Substitute parts can look different from the original.
$19.99
In Stock
