Model # 535311430 Official Sears gamefisher bait casting reel

Here are the diagrams and repair parts for Official Sears 535311430 gamefisher bait casting reel, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Disc 74-23-0001-03
#24

Bait casting reel assembly diagram

Disc

Part #74-23-0001-03

The manufacturer no longer makes this part, and there's no substitute part

Bearing 74-04-0035-01
#8

Bait casting reel assembly diagram

Bearing

Part #74-04-0035-01

The manufacturer no longer makes this part, and there's no substitute part

Disc-brass 74-23-0008-01
#4

Bait casting reel assembly diagram

Disc-brass

Part #74-23-0008-01

The manufacturer no longer makes this part, and there's no substitute part

Bushing 74-09-0031-01
#16

Bait casting reel assembly diagram

Bushing

Part #74-09-0031-01

The manufacturer no longer makes this part, and there's no substitute part

Yoke Pin 74-45-0026-01
#26

Bait casting reel assembly diagram

Yoke pin

Part #74-45-0026-01

The manufacturer no longer makes this part, and there's no substitute part

Lever Spring 74-67-0046-01
#30

Bait casting reel assembly diagram

Lever spring

Part #74-67-0046-01

The manufacturer no longer makes this part, and there's no substitute part

Idler Gear 74-28-0020-01
#10

Bait casting reel assembly diagram

Idler gear

Part #74-28-0020-01

The manufacturer no longer makes this part, and there's no substitute part

Spring 74-67-0042-02
#3

Bait casting reel assembly diagram

Spring

Part #74-67-0042-02

The manufacturer no longer makes this part, and there's no substitute part

Pawl 74-43-0023-01
#18

Bait casting reel assembly diagram

Pawl

Part #74-43-0023-01

The manufacturer no longer makes this part, and there's no substitute part

Spring 74-67-0065-01
#42

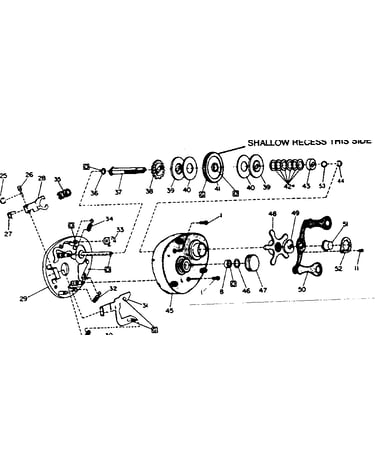

Head cap assembly diagram

Spring

Part #74-67-0065-01

The manufacturer no longer makes this part, and there's no substitute part
