Model # 1106514763 Official Kenmore washer
Here are the diagrams and repair parts for Official Kenmore 1106514763 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for1106514763 Washer
- #98

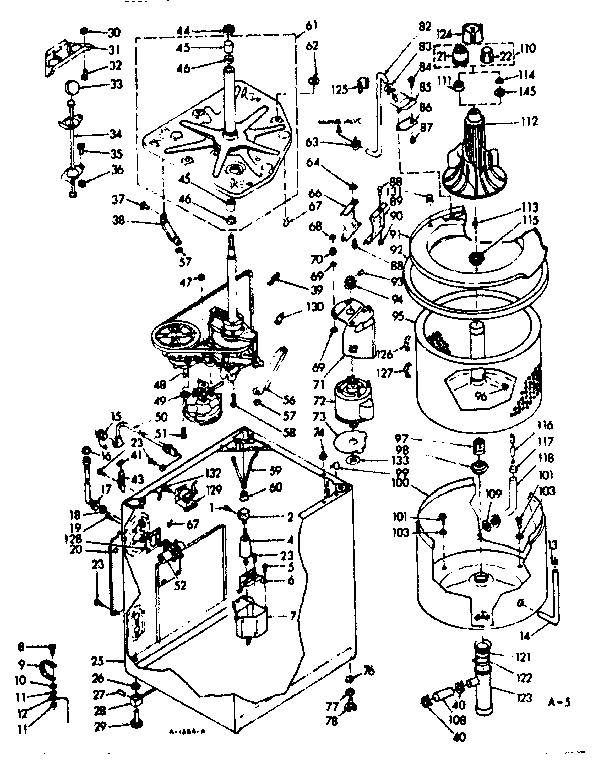

Machine sub-assembly diagram
GasketPart #96690
Replaced by #W10814296
?Manufacturer substitutionThis part replaces 96690. Substitute parts can look different from the original.This item is not returnable$3.69 |21% OFF Phone Price : $4.69In Stock - #116
Machine sub-assembly diagram
HosePart #91668
Replaced by #WP353244
?Manufacturer substitutionThis part replaces 91668. Substitute parts can look different from the original.$43.64 |12% OFF Phone Price : $49.64In Stock - #44
Machine sub-assembly diagram
SealPart #99404
Replaced by #WP8577376
?Manufacturer substitutionThis part replaces 99404. Substitute parts can look different from the original.$6.77 |28% OFF Was : $9.40In Stock - #6

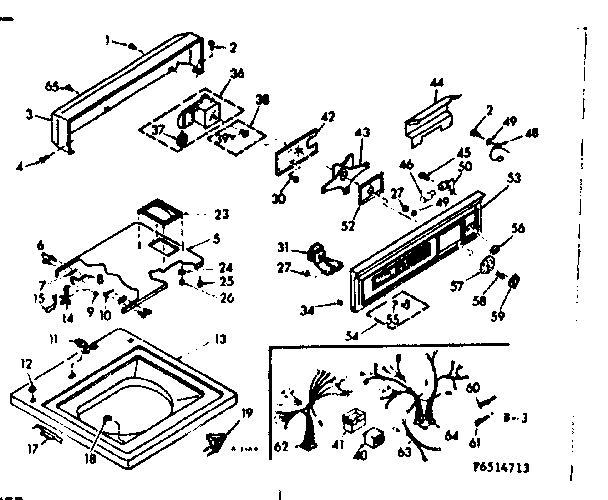

Top and console assembly diagram
Machine screwPart #21096
Replaced by #WPW10119828
?Manufacturer substitutionThis part replaces 21096. Substitute parts can look different from the original.This item is not returnable$3.58 |22% OFF Phone Price : $4.58In Stock - #22

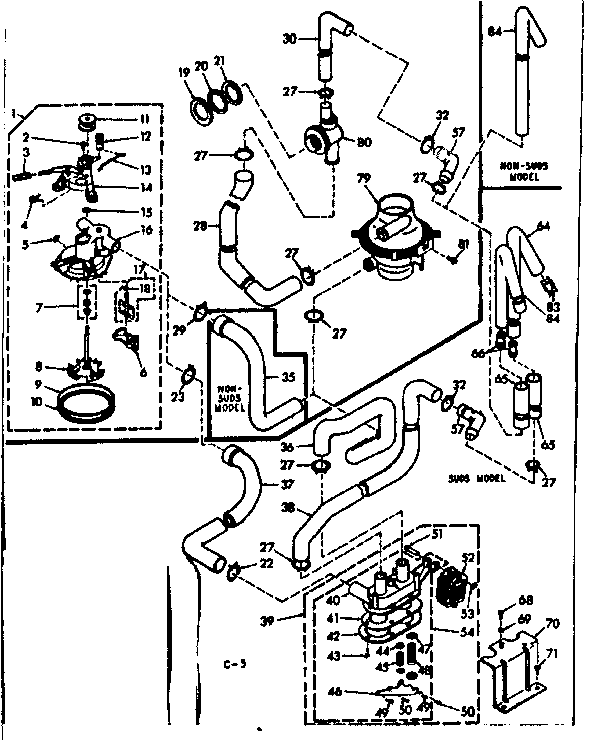

Water system diagram
Hose clampPart #96739
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 96739. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - Hose clamp
Part #272858
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 272858. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #17
Machine sub-assembly diagram
Washer fill hosePart #89503
Replaced by #WP89503
?Manufacturer substitutionThis part replaces 89503. Substitute parts can look different from the original.$13.63 |13% OFF Phone Price : $15.63In Stock - Screw
Part #98605
Replaced by #WP681414
?Manufacturer substitutionThis part replaces 98605. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #2
Water system diagram
ScrewPart #97787
Replaced by #WPW10109200
?Manufacturer substitutionThis part replaces 97787. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #18
Top and console assembly diagram
Washer lid hinge bearingPart #21258
Replaced by #WP21258
?Manufacturer substitutionThis part replaces 21258. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock
