Model # 706591751 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 706591751 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |

Channel 27609
#12

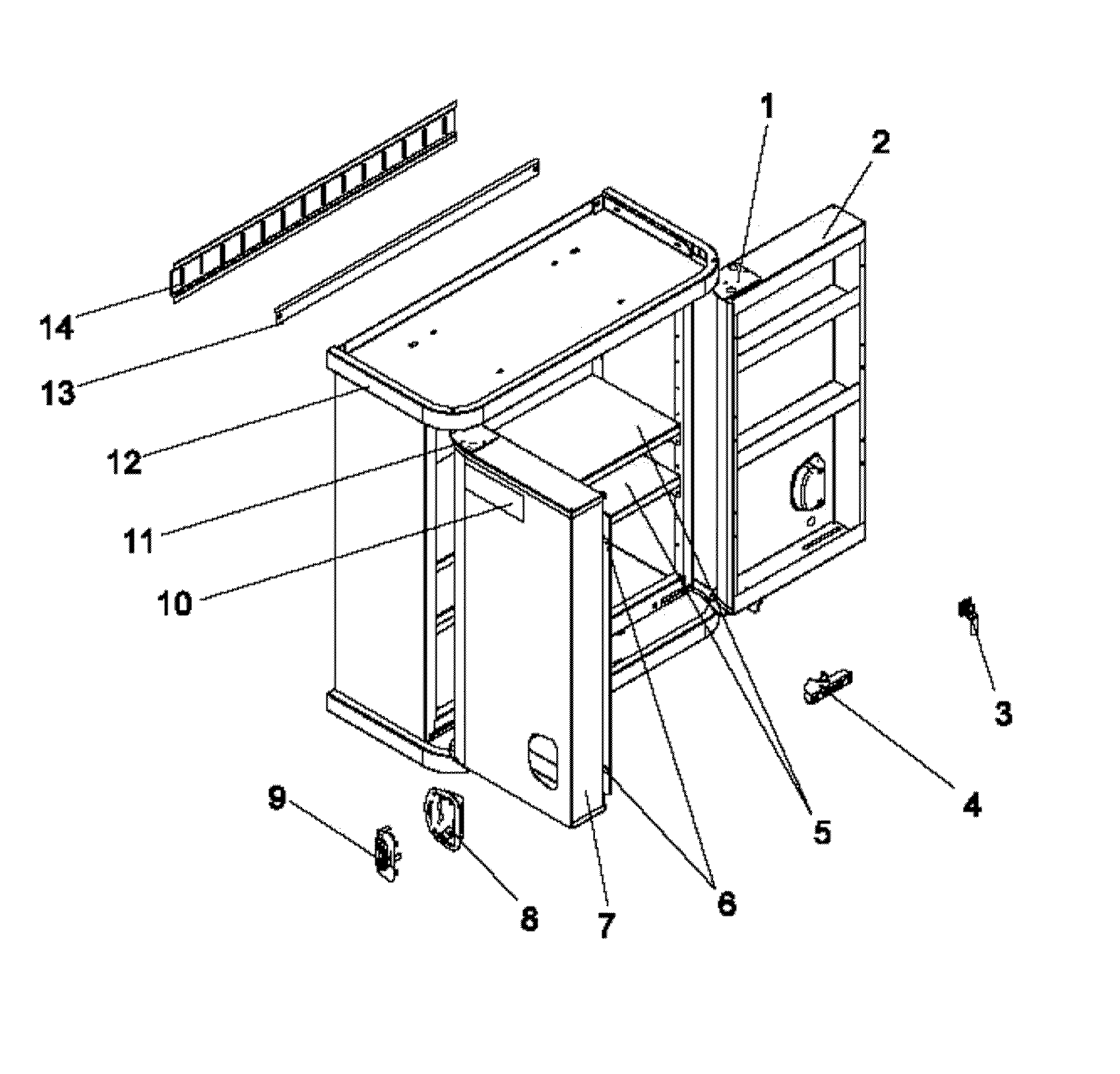

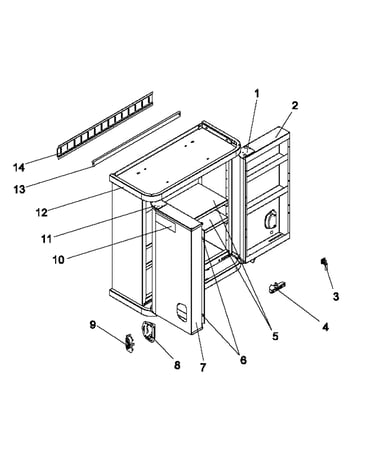

Tool chest parts diagram

Channel

Part #27609

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock M12918A38-SS
#3

Tool chest parts diagram

Tool chest lock

Part #M12918A38-SS

The manufacturer no longer makes this part, and there's no substitute part

Door L,pla 28040-DGE
#7

Tool chest parts diagram

Door l,pla

Part #28040-DGE

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Door, Right 28041-DGE
#2

Tool chest parts diagram

Tool chest door, right

Part #28041-DGE

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Bushing 15857A2
#NI

Tool chest parts diagram

Tool chest bushing

Part #15857A2

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Door Bumper 1000571
#6

Tool chest parts diagram

Tool chest door bumper

Part #1000571

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle M16012
#8

Tool chest parts diagram

Tool chest handle

Part #M16012

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Door Hinge (platinum) M16188-DGE
#1

Tool chest parts diagram

Tool chest door hinge (platinum)

Part #M16188-DGE

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Mnt Brkt 28459
#NI

Tool chest parts diagram

Craftsman mnt brkt

Part #28459

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle Insert M16011
#9

Tool chest parts diagram

Tool chest handle insert

Part #M16011

The manufacturer no longer makes this part, and there's no substitute part
