Roper
Electric Range

Model # 2496*1 Official Roper electric range

Here are the diagrams and repair parts for Official Roper 24961 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

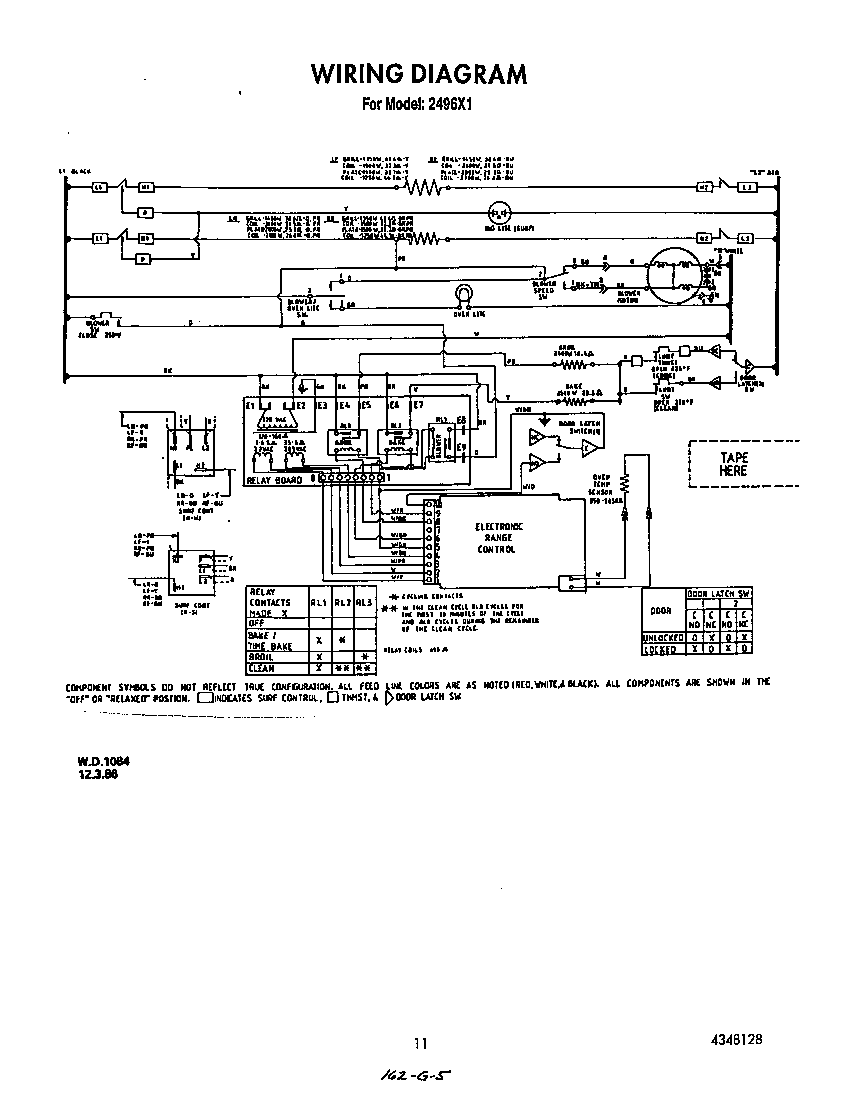

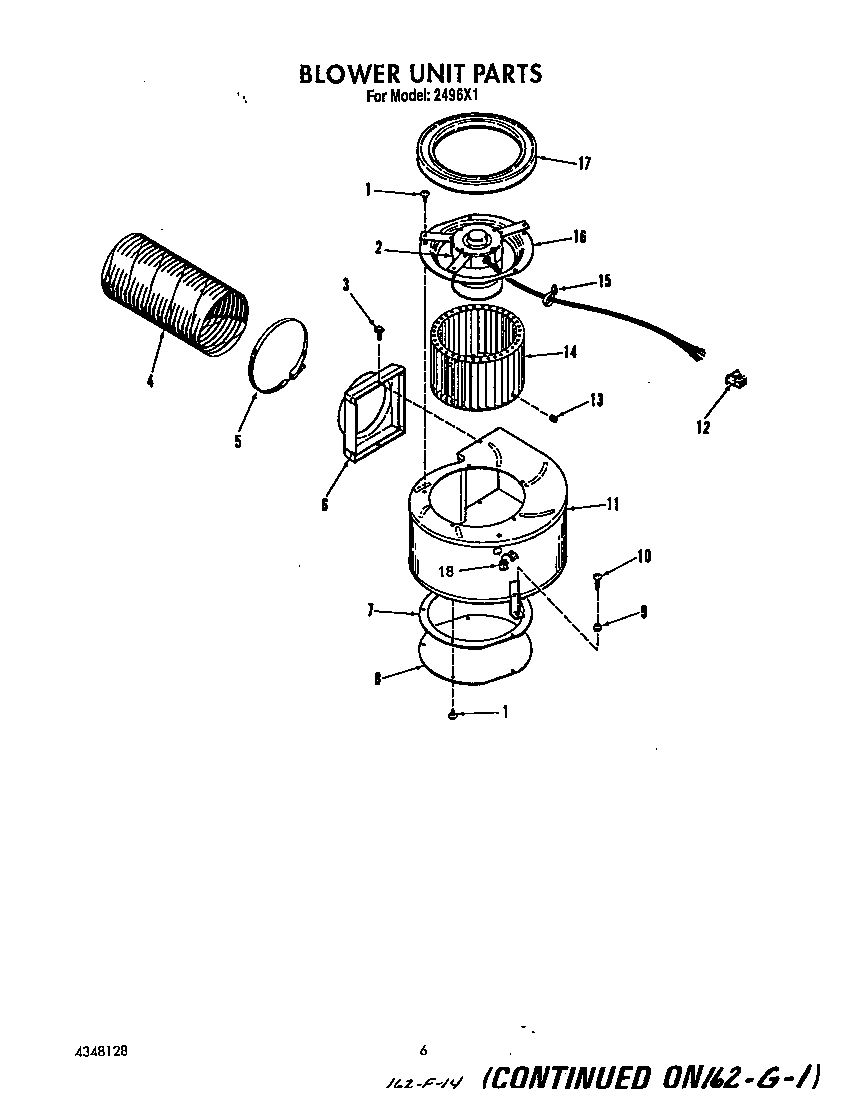

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Bulb-lamp 40 4324154
#57

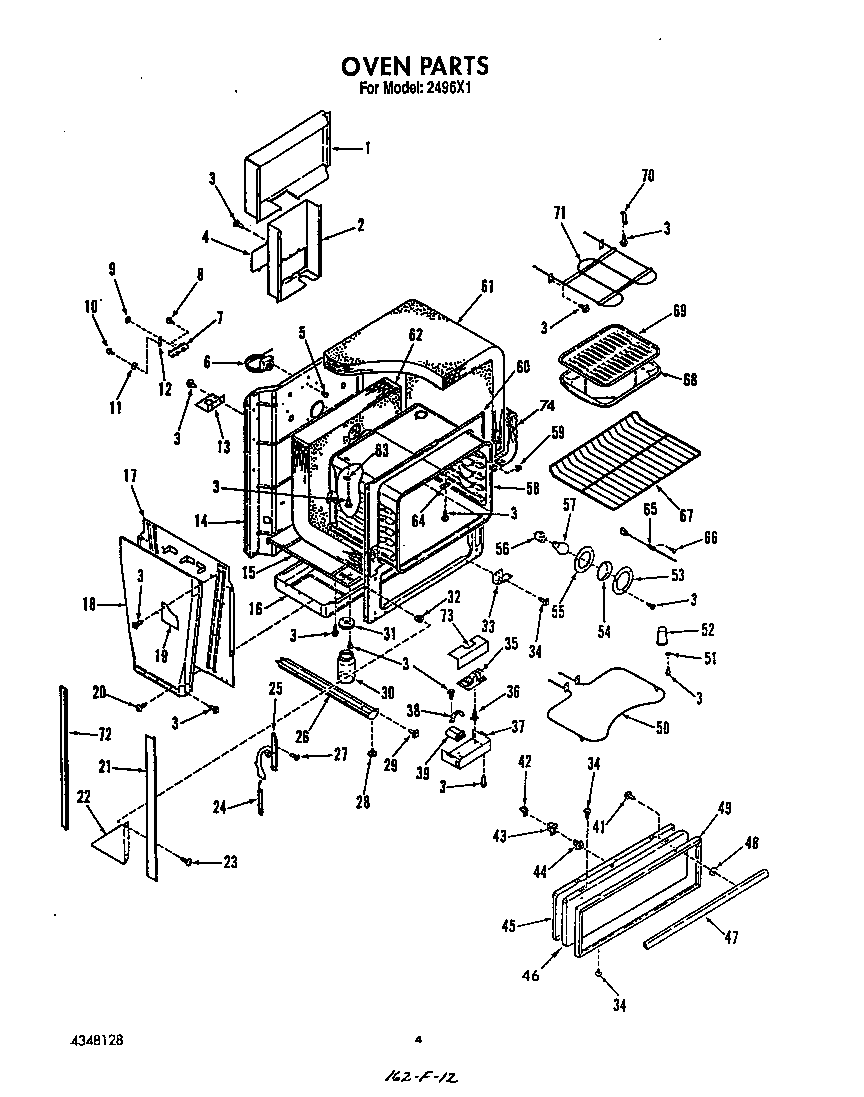

Oven diagram

Bulb-lamp 40

Part #4324154

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4324154. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Clip 4332752
#1

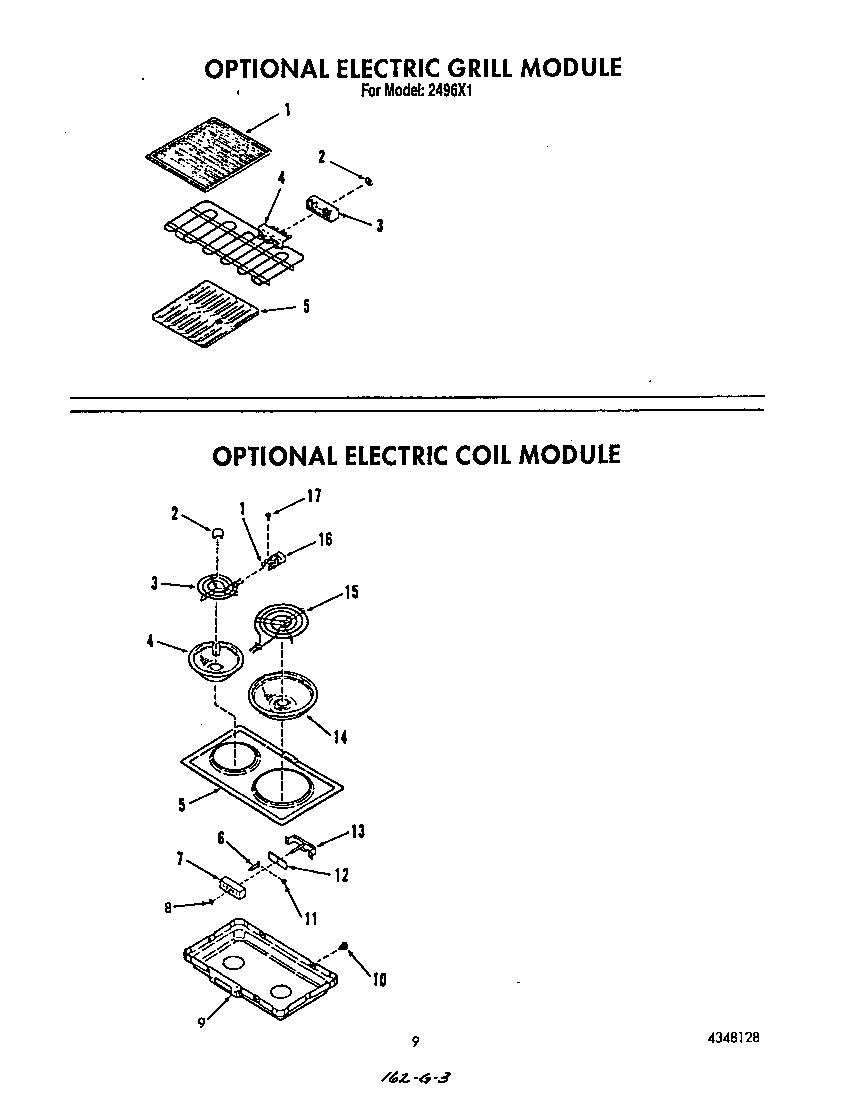

^electric grill module diagram

Clip

Part #4332752

Replaced by #WB17X211

?
Manufacturer substitution
This part replaces 4332752. Substitute parts can look different from the original.
$8.87 |
10% OFF Phone Price : $9.87
In Stock
Washer 4333871
#51

Oven diagram

Washer

Part #4333871

Replaced by #WB1K5117

?
Manufacturer substitution
This part replaces 4333871. Substitute parts can look different from the original.
$8.11
In Stock
Screw 7-32x5 4327985
#17

^electric grill module diagram

Screw 7-32x5

Part #4327985

Replaced by #WB1X1425

?
Manufacturer substitution
This part replaces 4327985. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Infinite Control Seal 4325524
#32

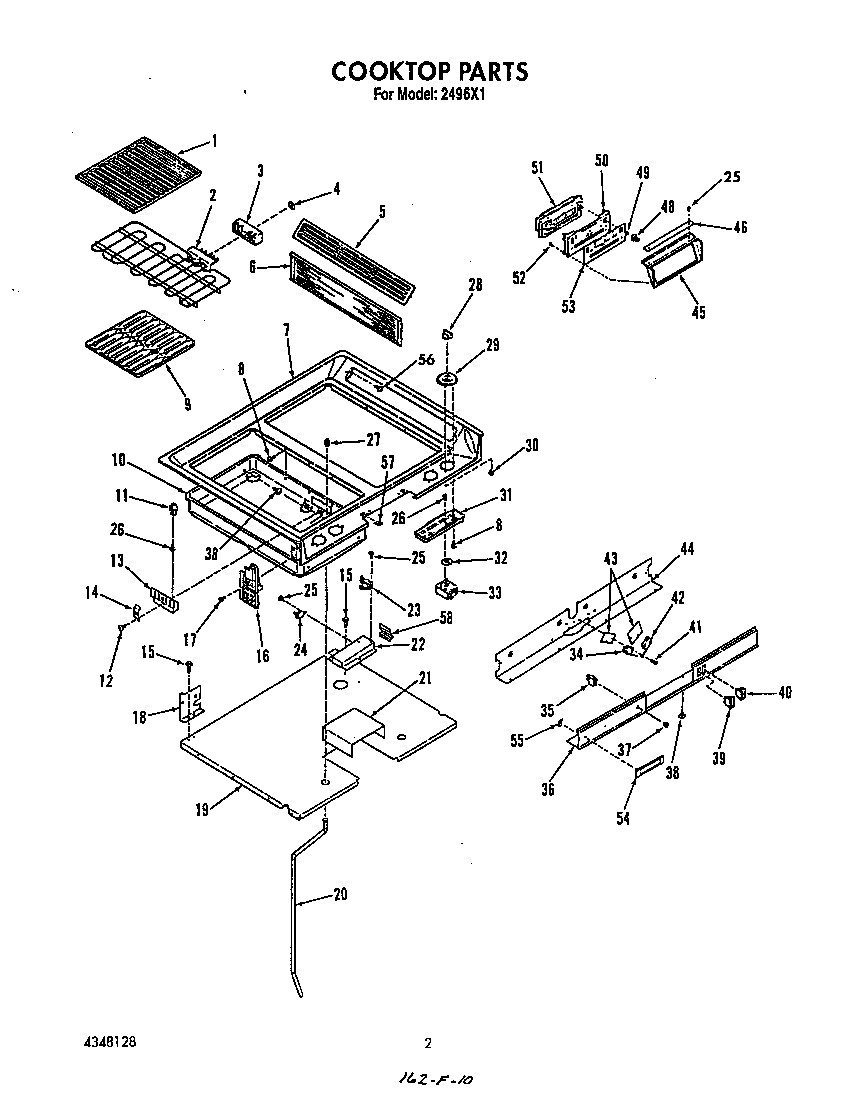

Cook top diagram

Infinite control seal

Part #4325524

Replaced by #WB6X3

?
Manufacturer substitution
This part replaces 4325524. Substitute parts can look different from the original.
$9.04 |
10% OFF Phone Price : $10.04
In Stock
Terminal-fla 4325033

#NI

All parts diagram

Terminal-fla

Part #4325033

This item is not returnable
$2.16
In Stock
Screw 6-20x3 4336048
#4

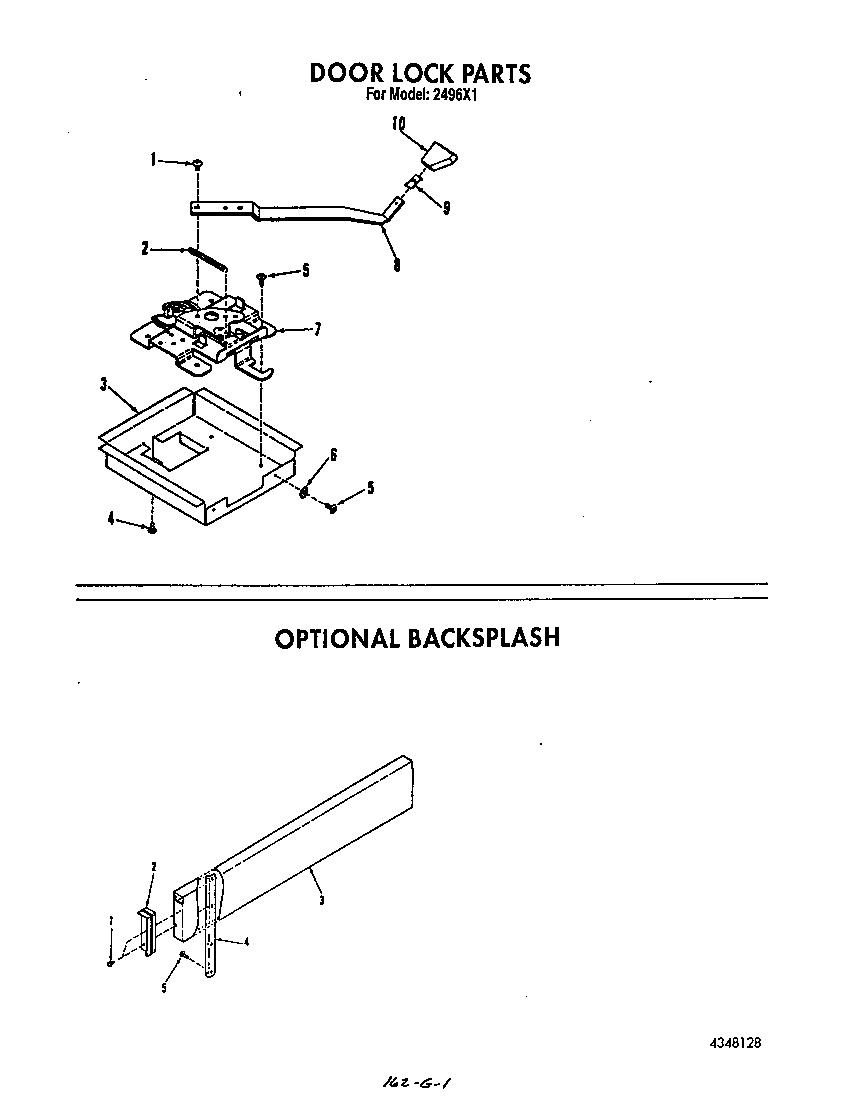

Door lock diagram

Screw 6-20x3

Part #4336048

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces 4336048. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Surf Unit-8" 4334589
#15

^electric grill module diagram

Surf unit-8"

Part #4334589

Replaced by #WB30X255

?
Manufacturer substitution
This part replaces 4334589. Substitute parts can look different from the original.
$67.24 |
8% OFF Phone Price : $73.24
In Stock
Screw 369 4335248
Screw 369

Part #4335248

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces 4335248. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Retainer Lens 4324482
#53

Oven diagram

Retainer lens

Part #4324482

Replaced by #WB2X9150

?
Manufacturer substitution
This part replaces 4324482. Substitute parts can look different from the original.
$35.99
In Stock
