Electric Range

Model # CFEF3012UWC Official Frigidaire free standing electric range

Here are the diagrams and repair parts for Official Frigidaire CFEF3012UWC free standing electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
CFEF3012UWC Ranges
Frigidaire Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

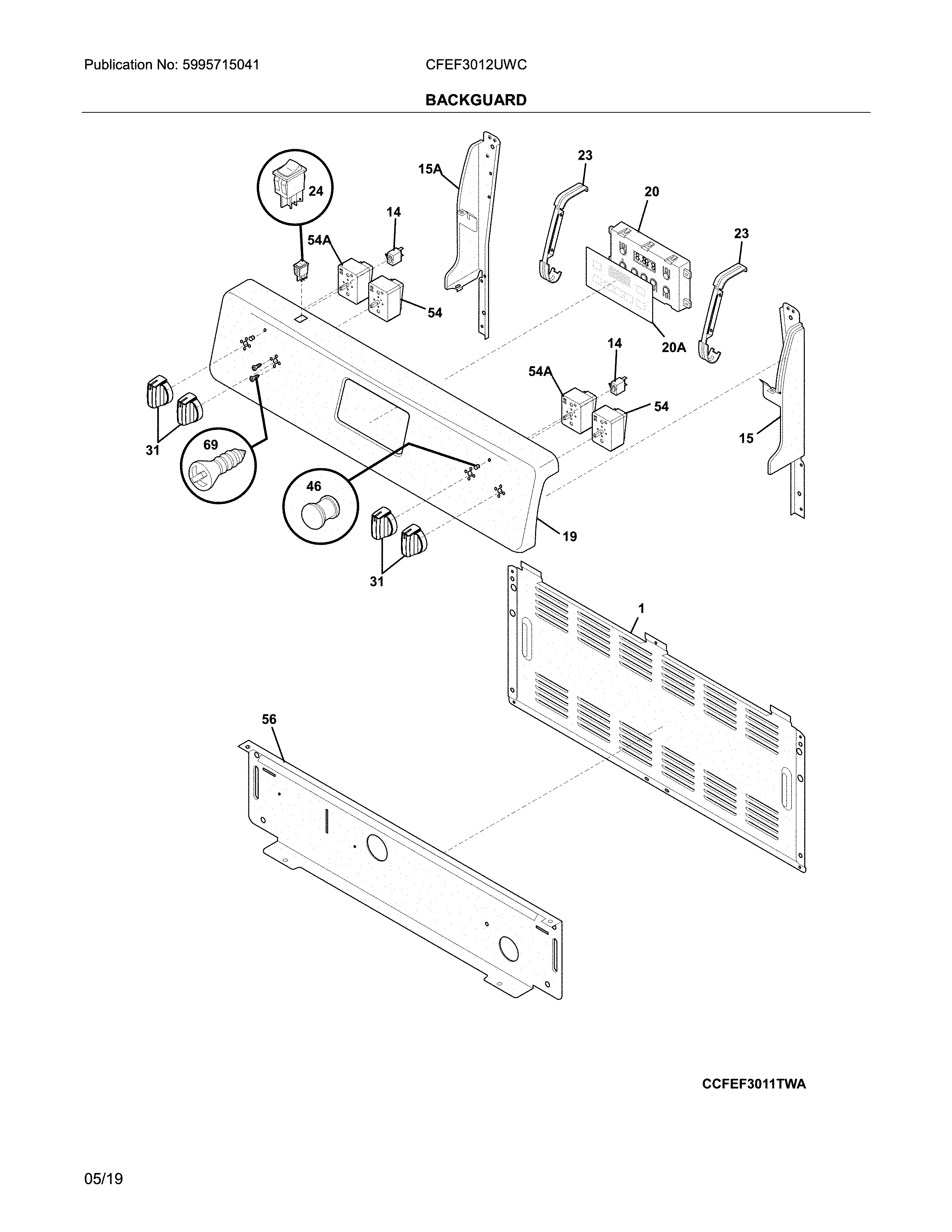

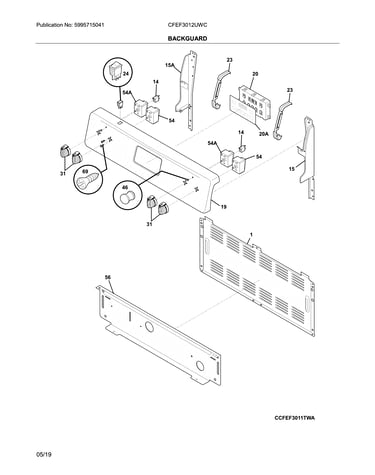

Backguard diagram

Frigidaire range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

4.55 (113)
BEST SELLER
$34.18 |
15% OFF Phone Price : $40.18
In Stock
Frigidaire Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Frigidaire range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

4.1 (30)
BEST SELLER
$48.48 |
11% OFF Phone Price : $54.48
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

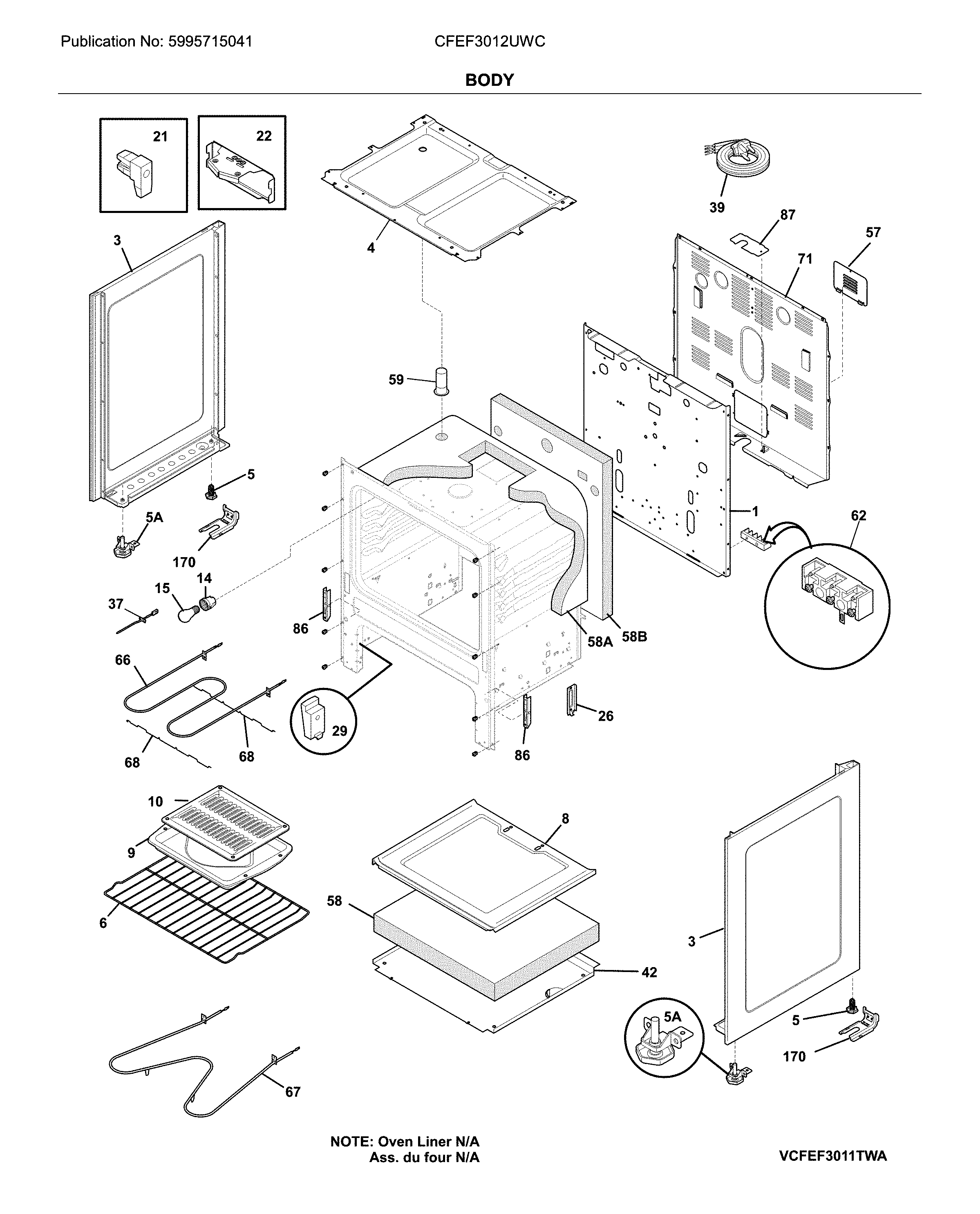

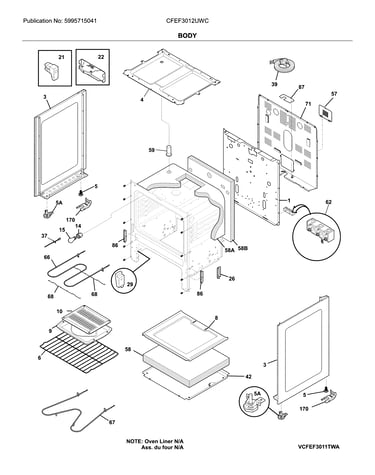

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
5 (2)
BEST SELLER
$16.96 |
11% OFF Phone Price : $18.96
In Stock
Frigidaire Range Oven Door Inner Glass (replaces 316117502, 316117503) 5304503232
#8

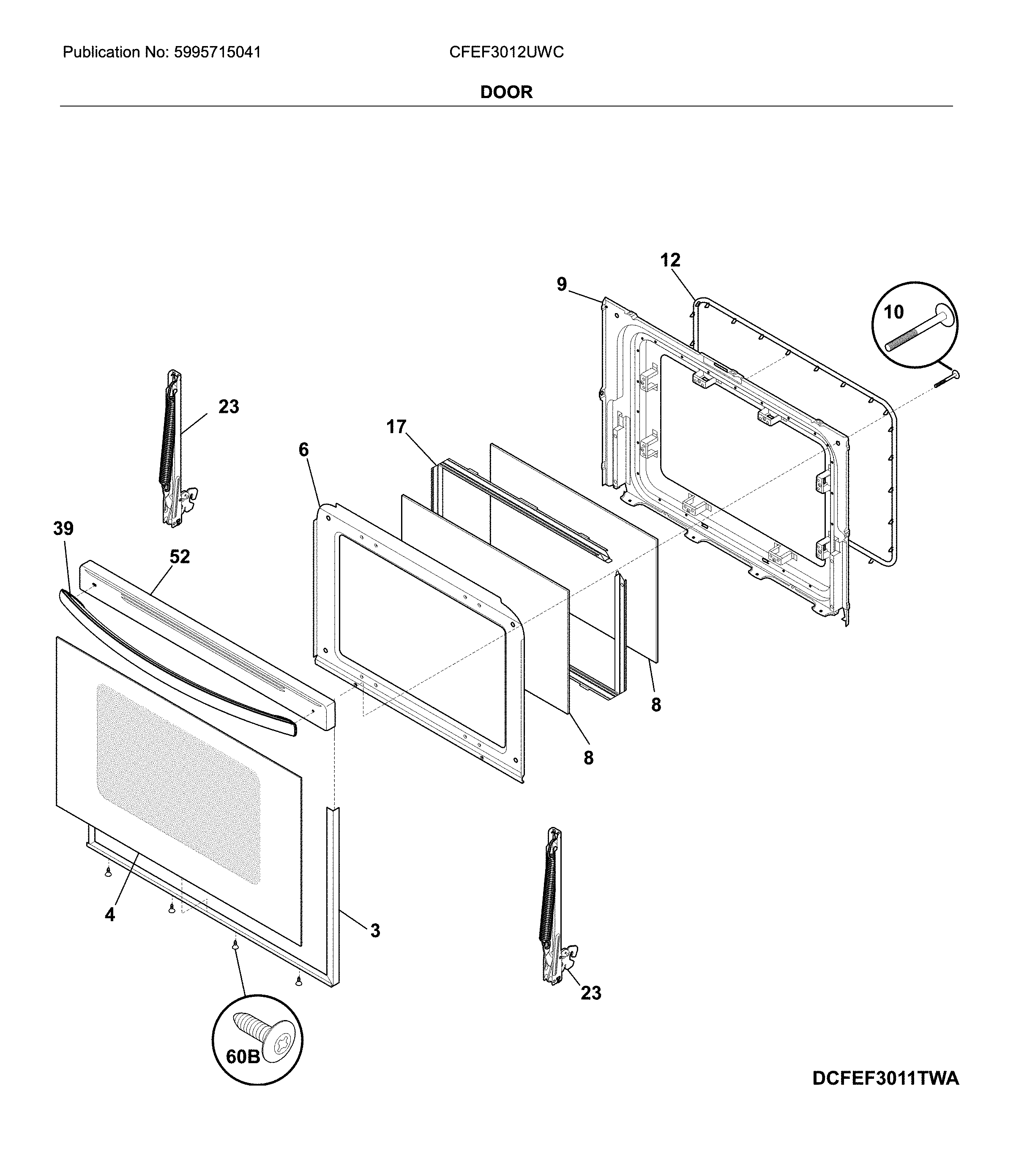

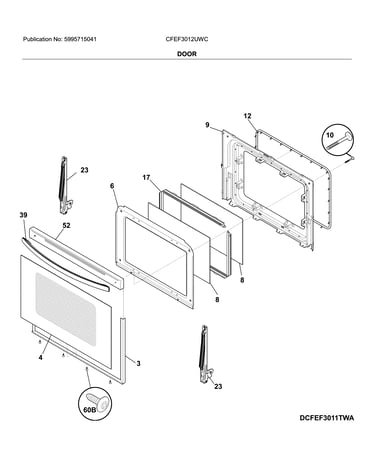

Door diagram

Frigidaire range oven door inner glass (replaces 316117502, 316117503)

Part #5304503232

5 (8)
BEST SELLER
$72.95 |
8% OFF Phone Price : $78.95
In Stock
Range Surface Burner Drip Pan, 8-in 318067075
#19

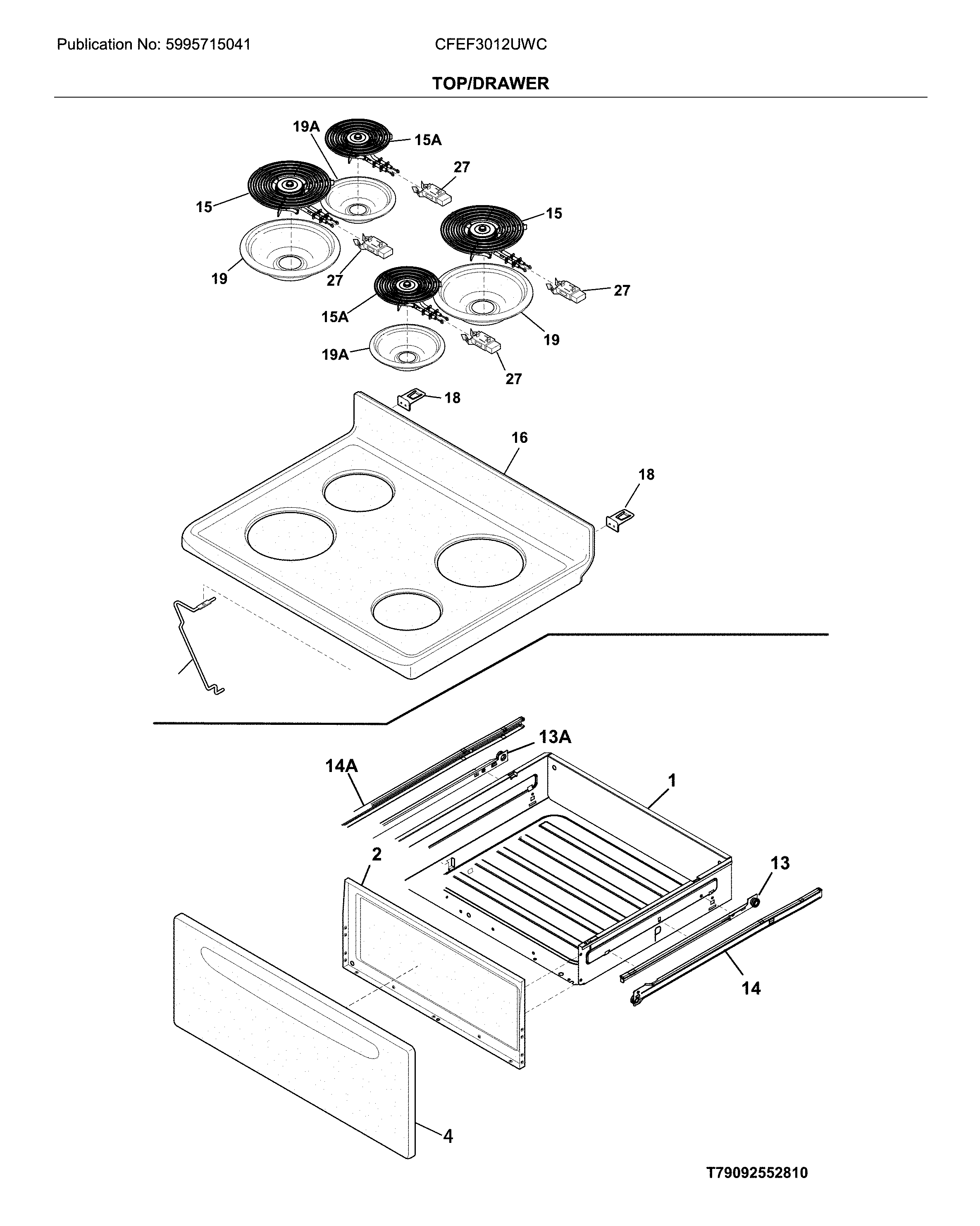

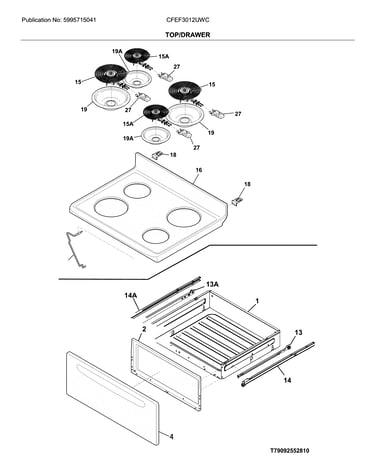

Top/drawer diagram

Range surface burner drip pan, 8-in

Part #318067075

Replaced by #A316222301

?
Manufacturer substitution
This part replaces 318067075. Substitute parts can look different from the original.
4.27 (15)
BEST SELLER
$12.80 |
14% OFF Phone Price : $14.80
In Stock
Frigidaire Range Oven Control Board (replaces 316455400) 5304518660
#20

Backguard diagram

Frigidaire range oven control board (replaces 316455400)

Part #5304518660

4.58 (19)
BEST SELLER
$86.71 |
6% OFF Phone Price : $92.71
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
4.5 (12)
BEST SELLER
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

5 (2)
BEST SELLER
$13.63 |
13% OFF Phone Price : $15.63
In Stock
Surface Pan 318067076
#19A

Top/drawer diagram

Surface pan

Part #318067076

Replaced by #A316222201

?
Manufacturer substitution
This part replaces 318067076. Substitute parts can look different from the original.
3.78 (9)
BEST SELLER
$10.96 |
15% OFF Phone Price : $12.96
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

4.33 (6)
BEST SELLER
$41.40 |
13% OFF Phone Price : $47.40
In Stock
