Amana
Countertop Microwave

Model # MVH-9T/P75409-5M Official Amana radarange counter saving microwave

Here are the diagrams and repair parts for Official Amana MVH-9T-P75409-5M radarange counter saving microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

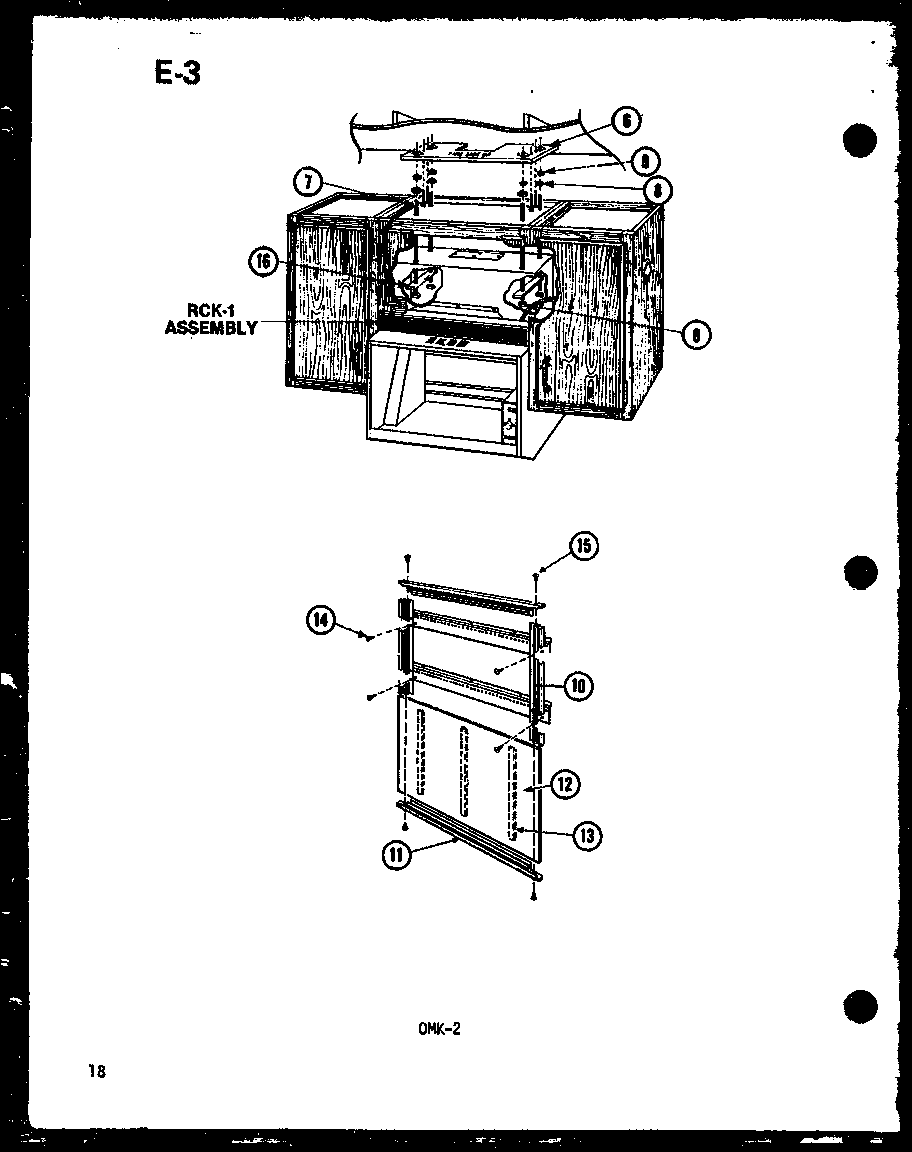

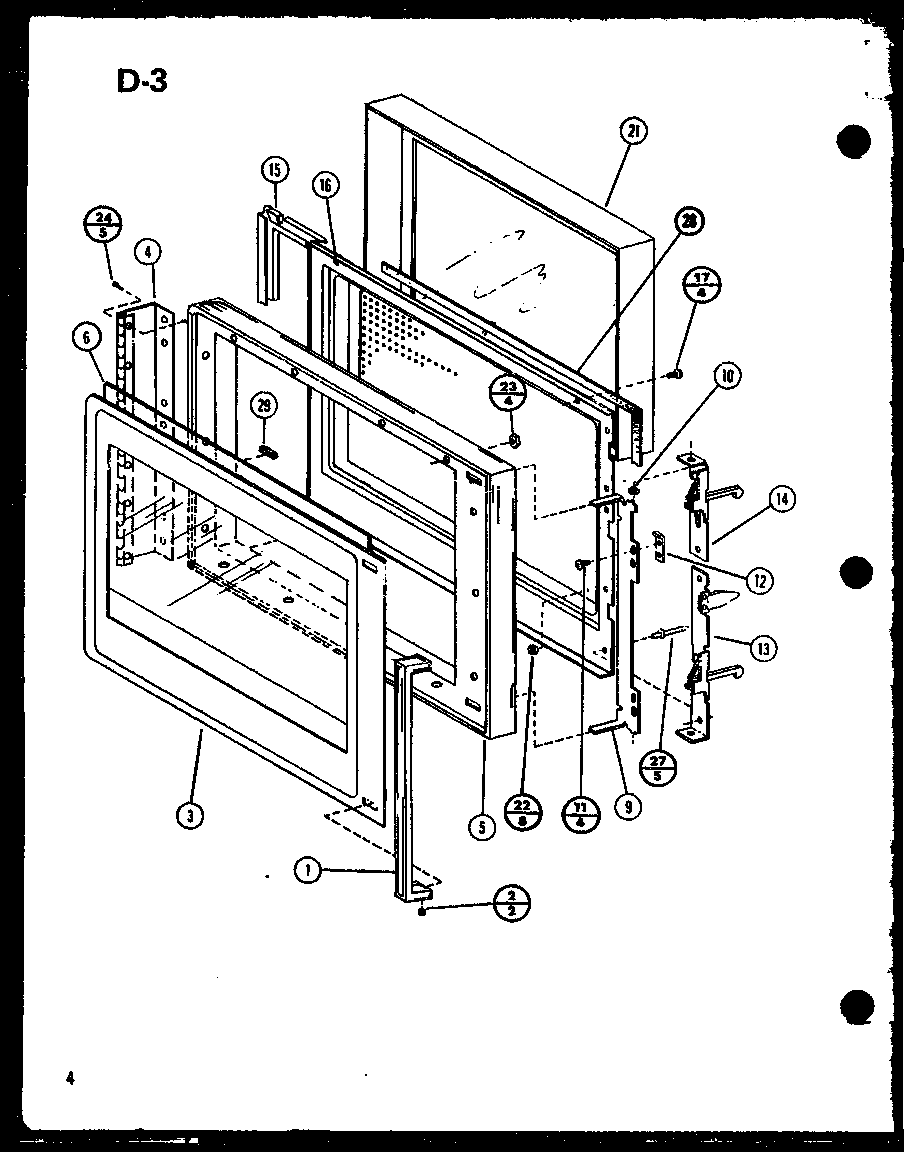

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Torx Screw M0216616
#19

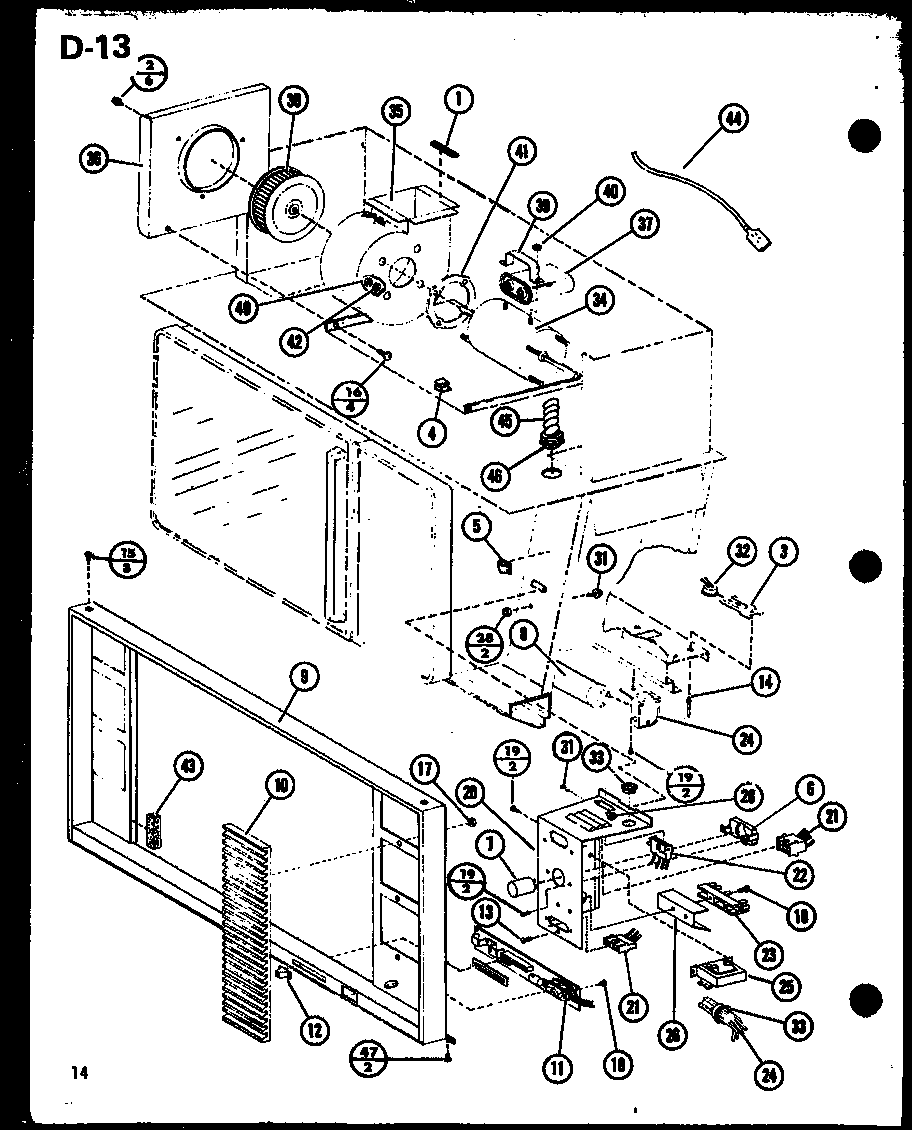

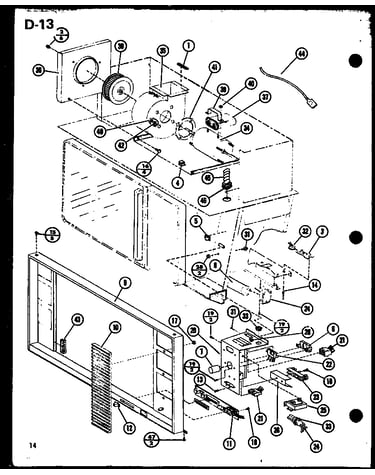

Wiring harness/capacitor/blower diagram

Torx screw

Part #M0216616

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0216616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Torx Screw M0234016
#7

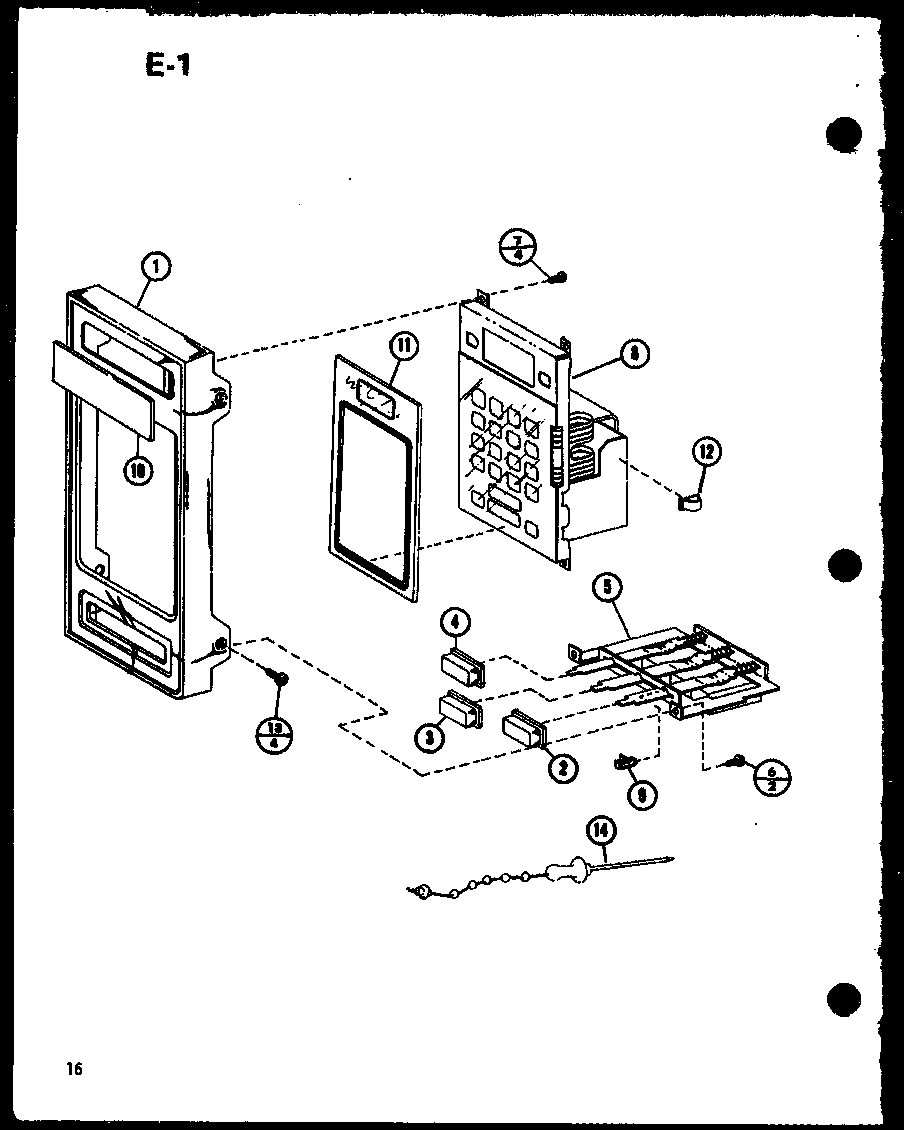

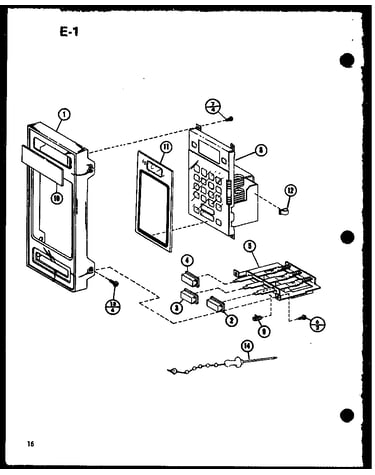

Control panel diagram

Torx screw

Part #M0234016

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0234016. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut M0282009
#17

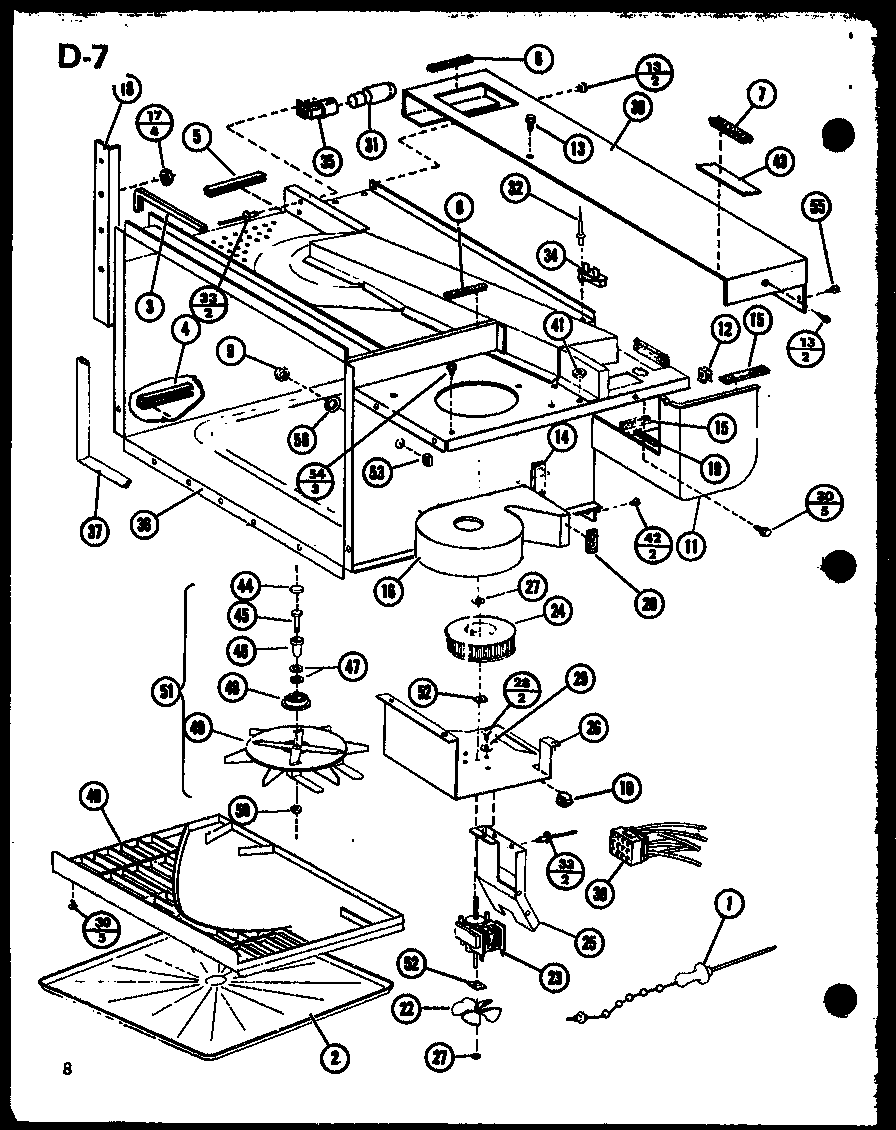

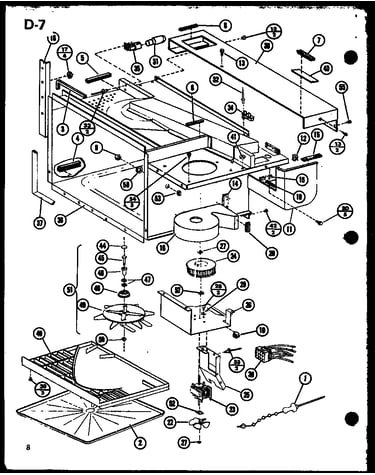

Blower/antenna diagram

Nut

Part #M0282009

$12.49
In Stock
Nut M0282005
Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw M0229916
#18

Wiring harness/capacitor/blower diagram

Screw

Part #M0229916

Replaced by #M0229916

?
Manufacturer substitution
This part replaces M0229916. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Capacitor D8547901
#5

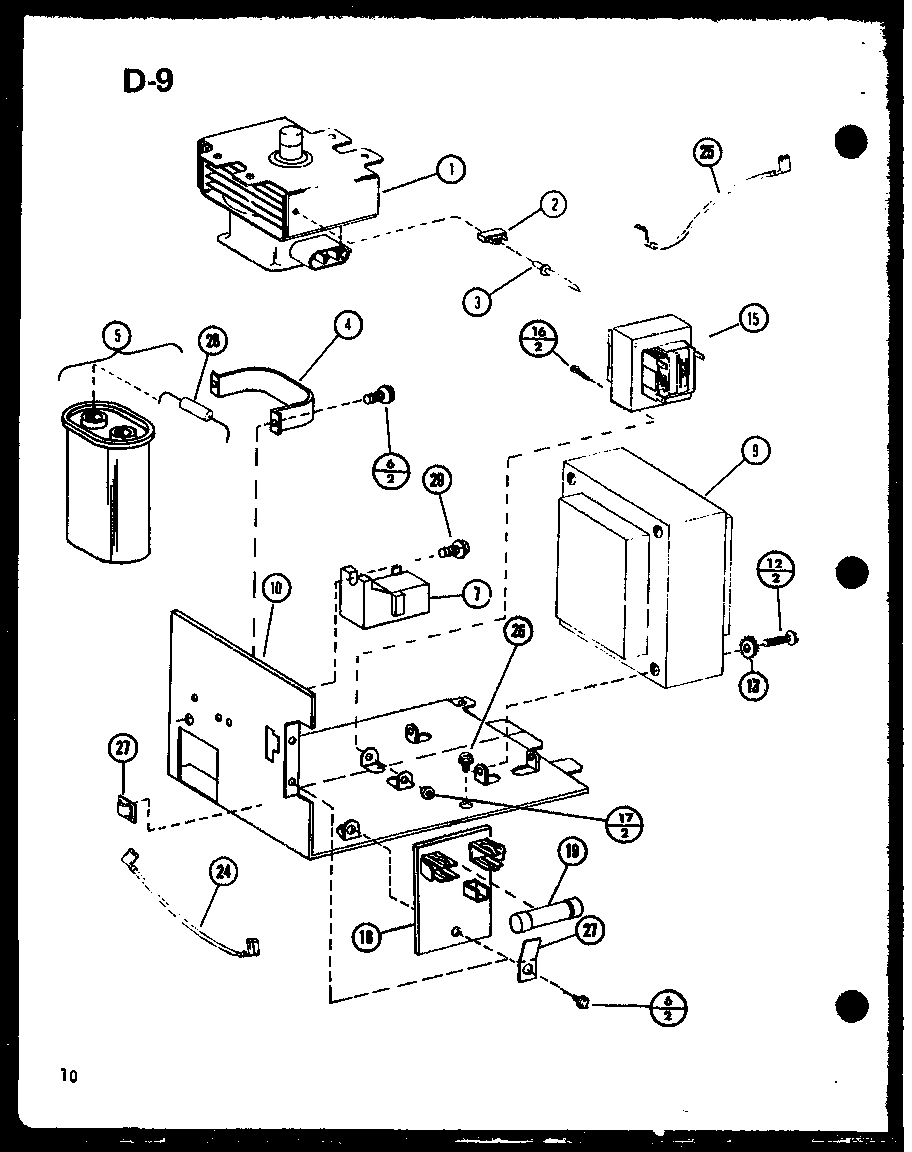

Transformer/magnetron diagram

Capacitor

Part #D8547901

Replaced by #D8547901

?
Manufacturer substitution
This part replaces D8547901. Substitute parts can look different from the original.
$31.49
In Stock
Light M0360302
#8

Wiring harness/capacitor/blower diagram

Light

Part #M0360302

Replaced by #WP95292

?
Manufacturer substitution
This part replaces M0360302. Substitute parts can look different from the original.
$60.36
In Stock
Fuse M0805102
#19

Transformer/magnetron diagram

Fuse

Part #M0805102

Replaced by #WPM0805102

?
Manufacturer substitution
This part replaces M0805102. Substitute parts can look different from the original.
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Washer M0270536
#56

Blower/antenna diagram

Washer

Part #M0270536

Replaced by #M0270536

?
Manufacturer substitution
This part replaces M0270536. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0234422
#12

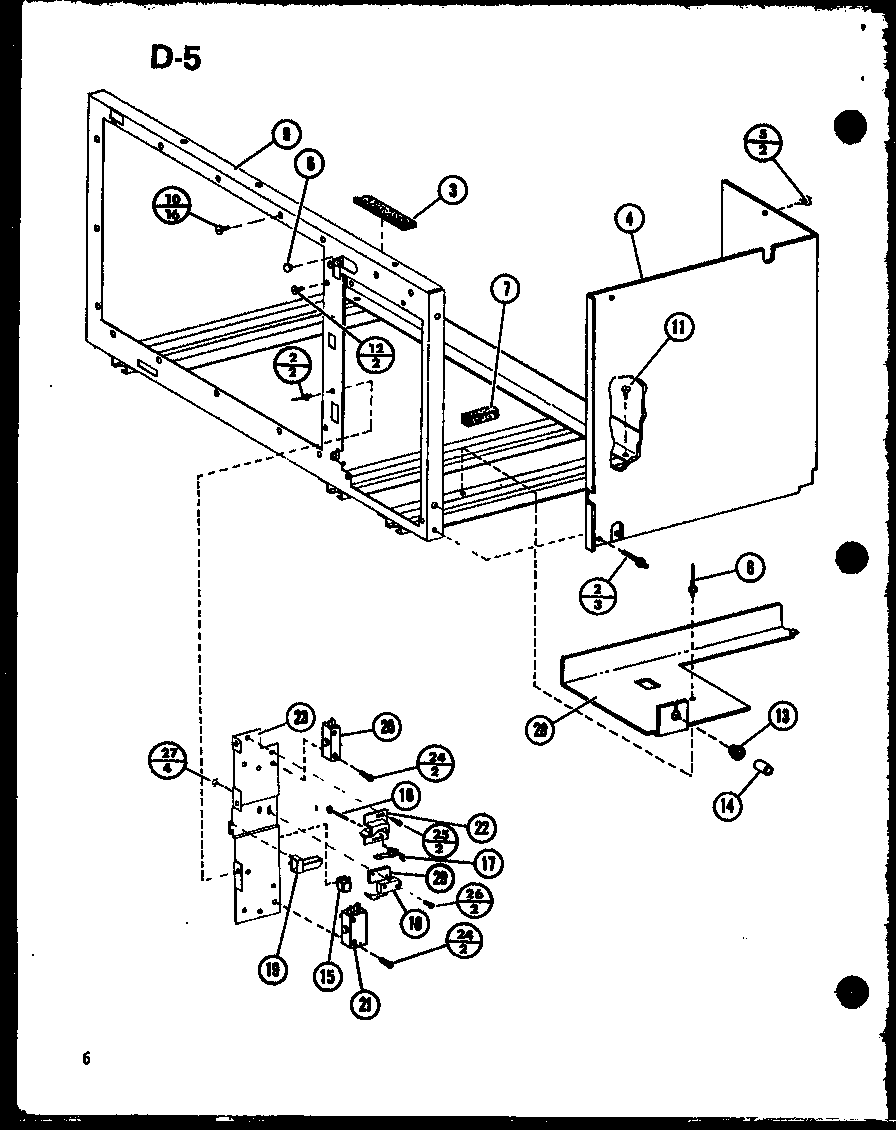

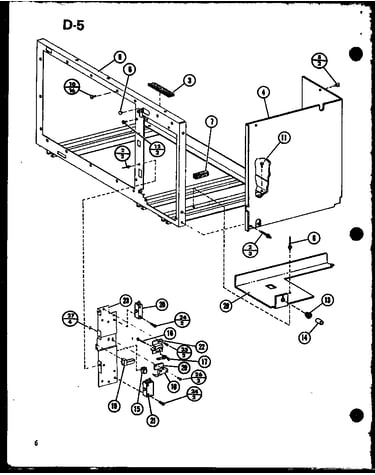

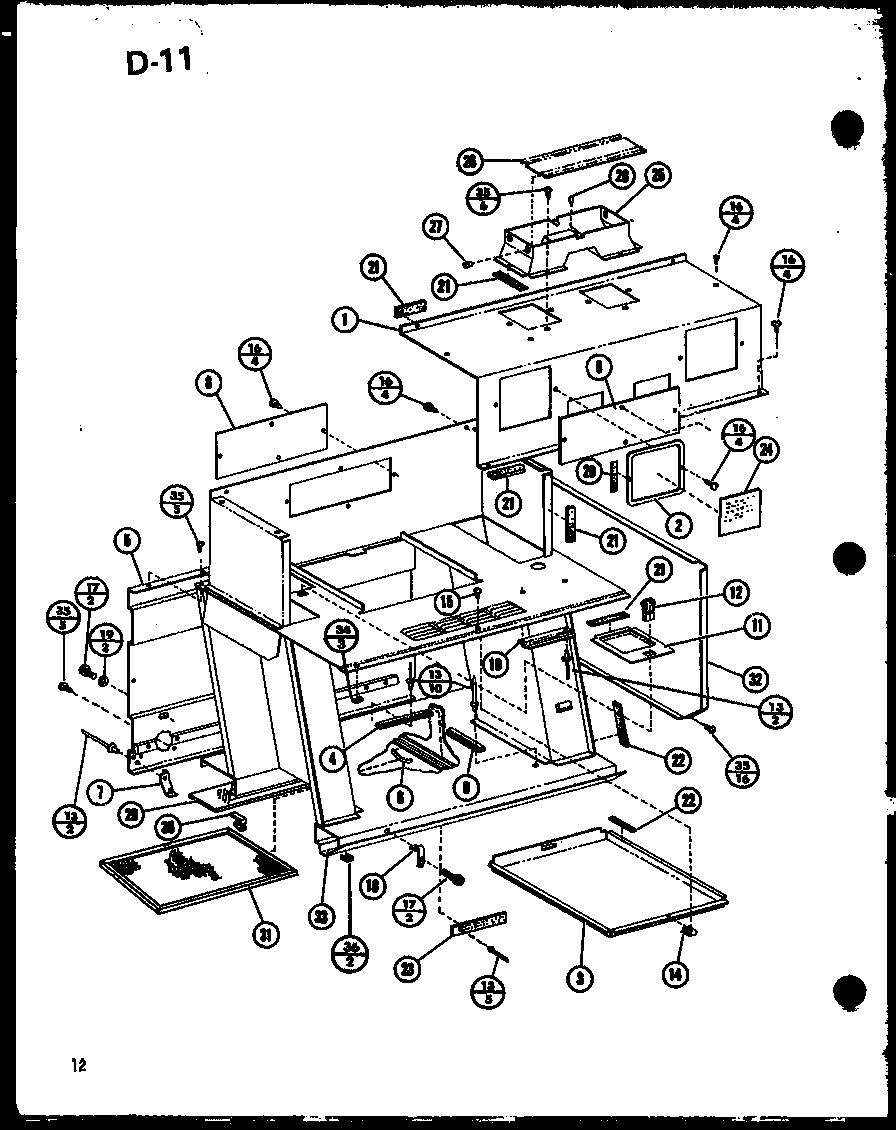

Outer cabinet diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
