Roper
Gas Range

Model # FGS395YW1 Official Roper gas range

Here are the diagrams and repair parts for Official Roper FGS395YW1 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Oven Igniter 816625
#6

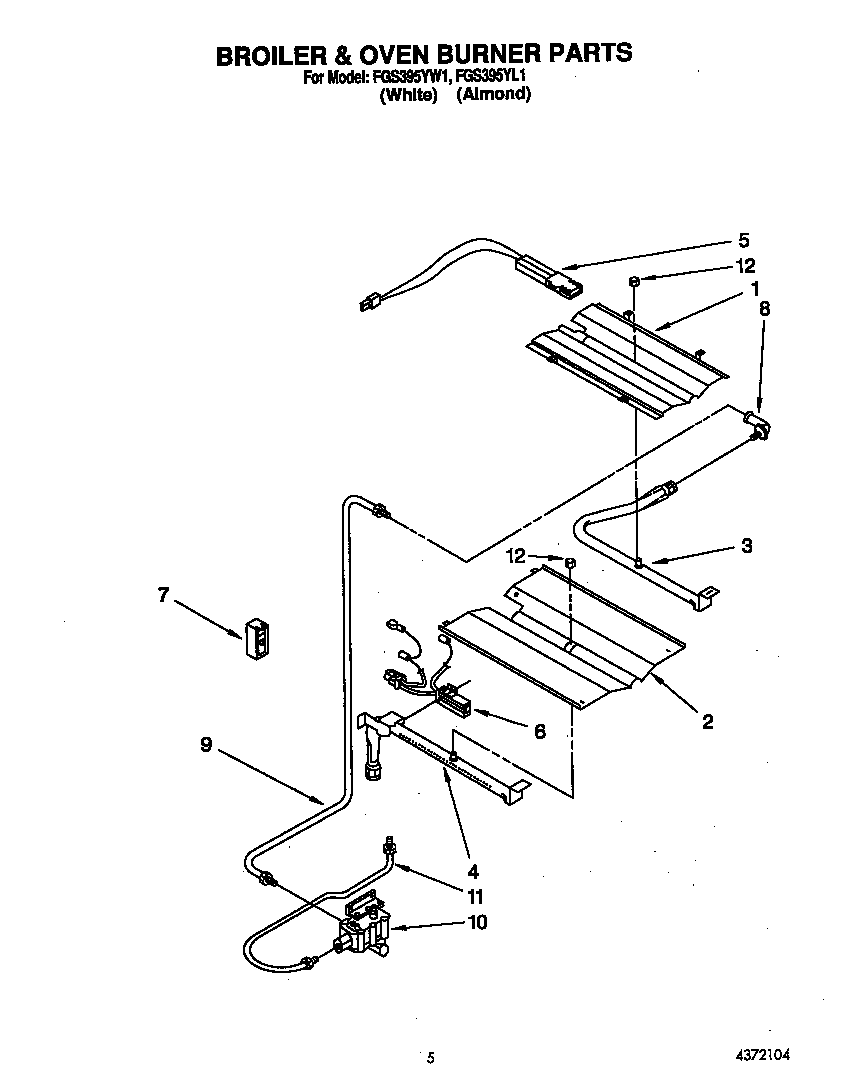

Broiler and oven burner diagram

Oven igniter

Part #816625

Replaced by #814269

?
Manufacturer substitution
This part replaces 816625. Substitute parts can look different from the original.
$98.19 |
11% OFF Phone Price : $110.19
In Stock
Light Switch 816703
#16

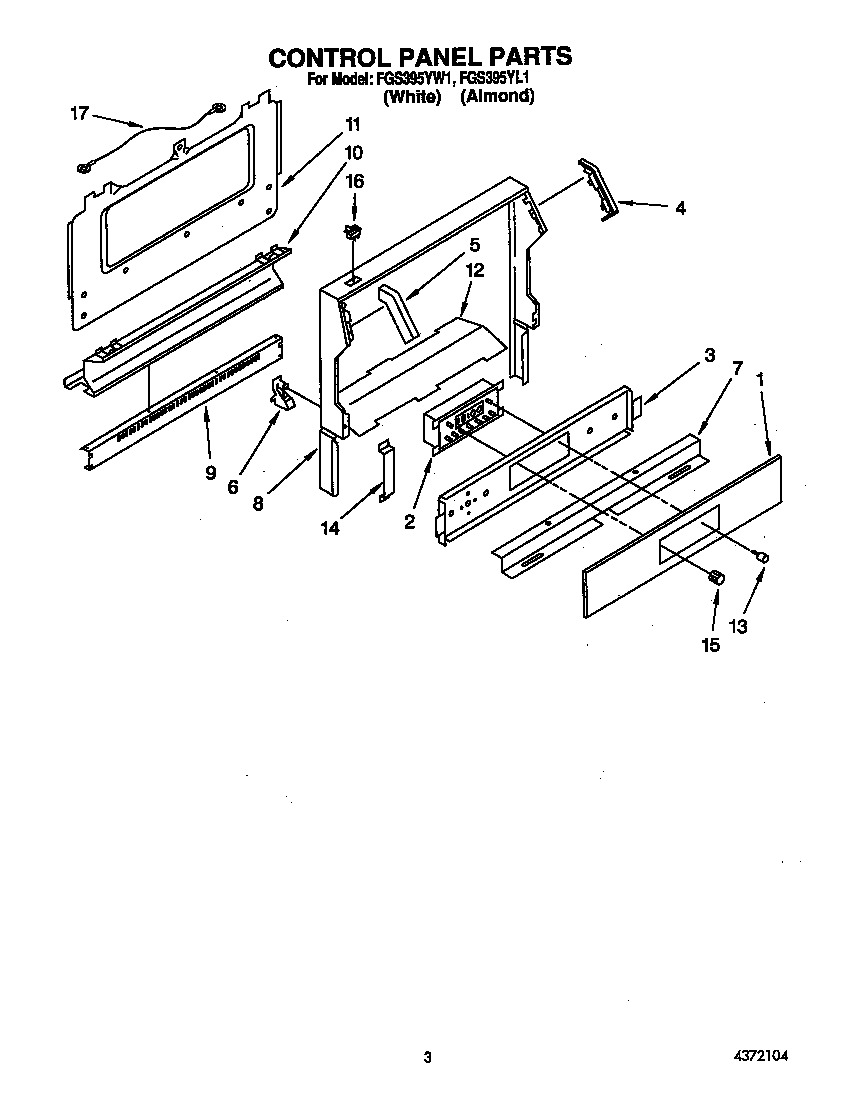

Control panel diagram

Light switch

Part #816703

Replaced by #WP4314961

?
Manufacturer substitution
This part replaces 816703. Substitute parts can look different from the original.
$35.52 |
14% OFF Phone Price : $41.52
In Stock
Cap, End, L.h. 4371317
#5

Control panel diagram

Cap, end, l.h.

Part #4371317

The manufacturer no longer makes this part, and there's no substitute part

Screw, Latch Hndl 4371664
#48

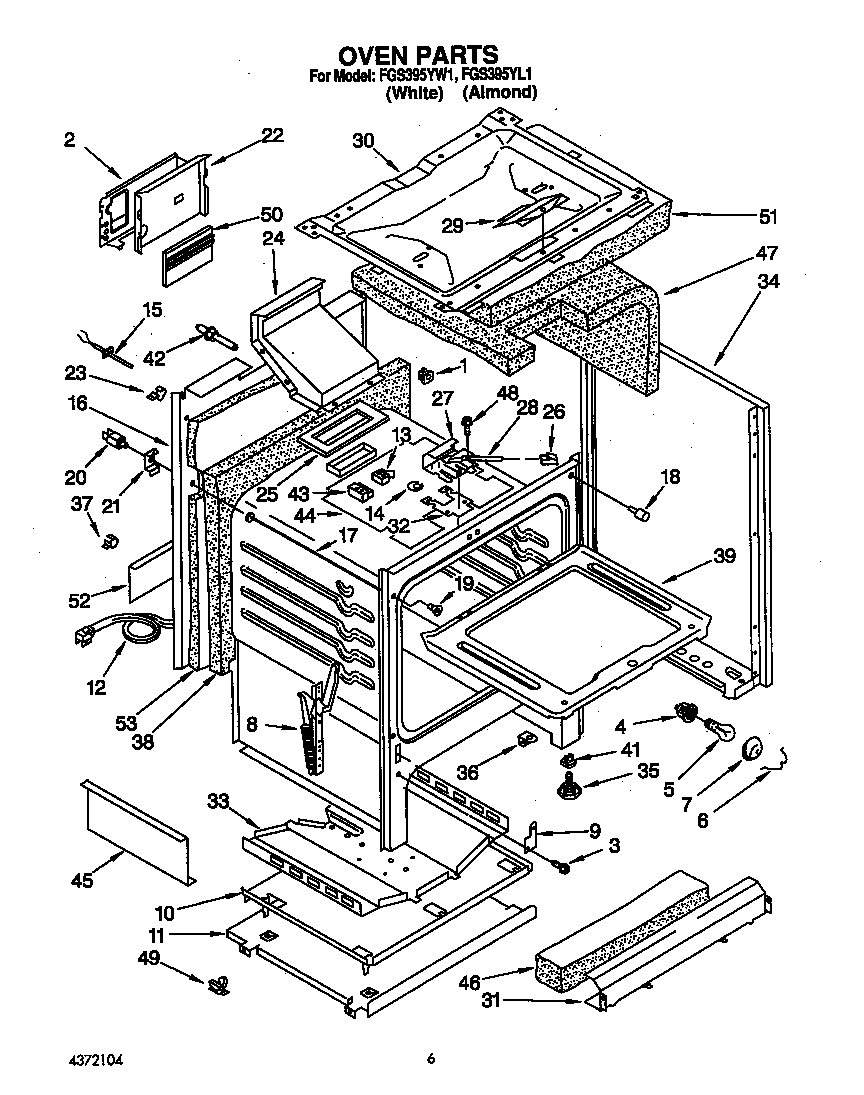

Oven diagram

Screw, latch hndl

Part #4371664

The manufacturer no longer makes this part, and there's no substitute part

Panel, Drawer, White 816754
#18A

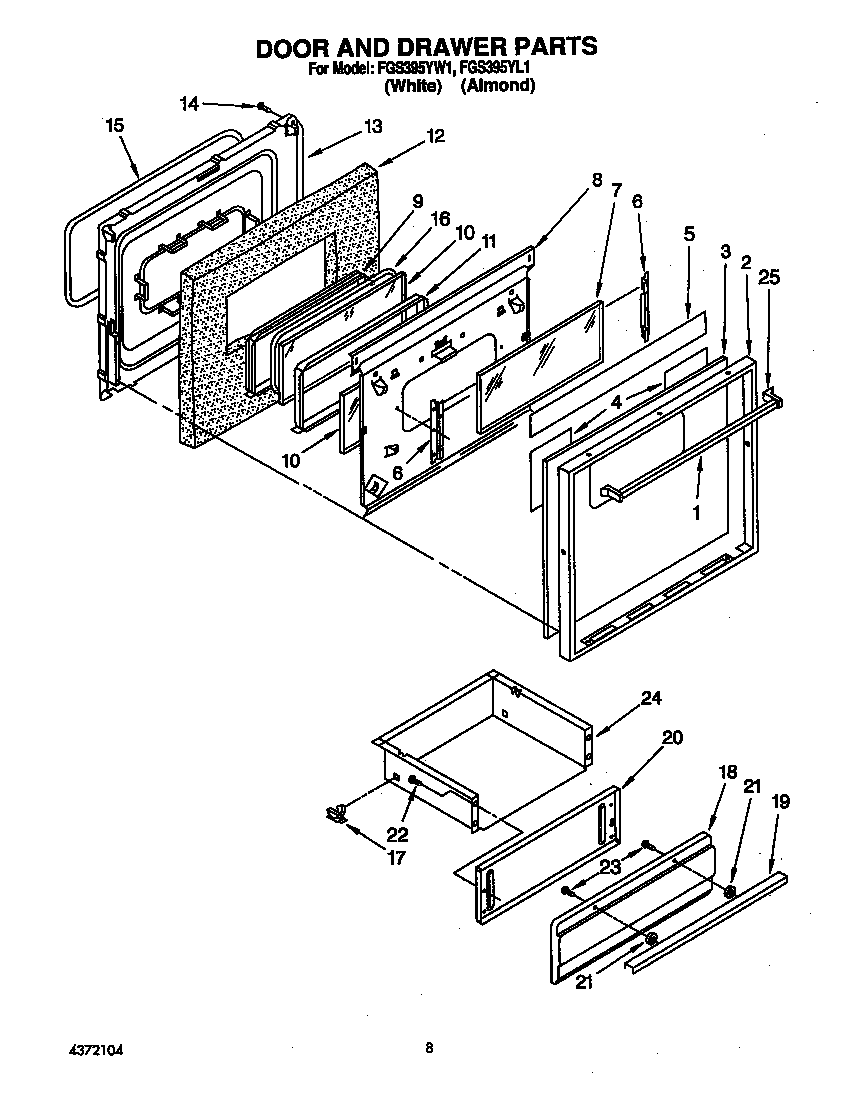

Oven door and drawer diagram

Panel, drawer, white

Part #816754

The manufacturer no longer makes this part, and there's no substitute part

Bracket Clock 4371319
#3

Control panel diagram

Bracket clock

Part #4371319

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Hinge Rh 816721
#3

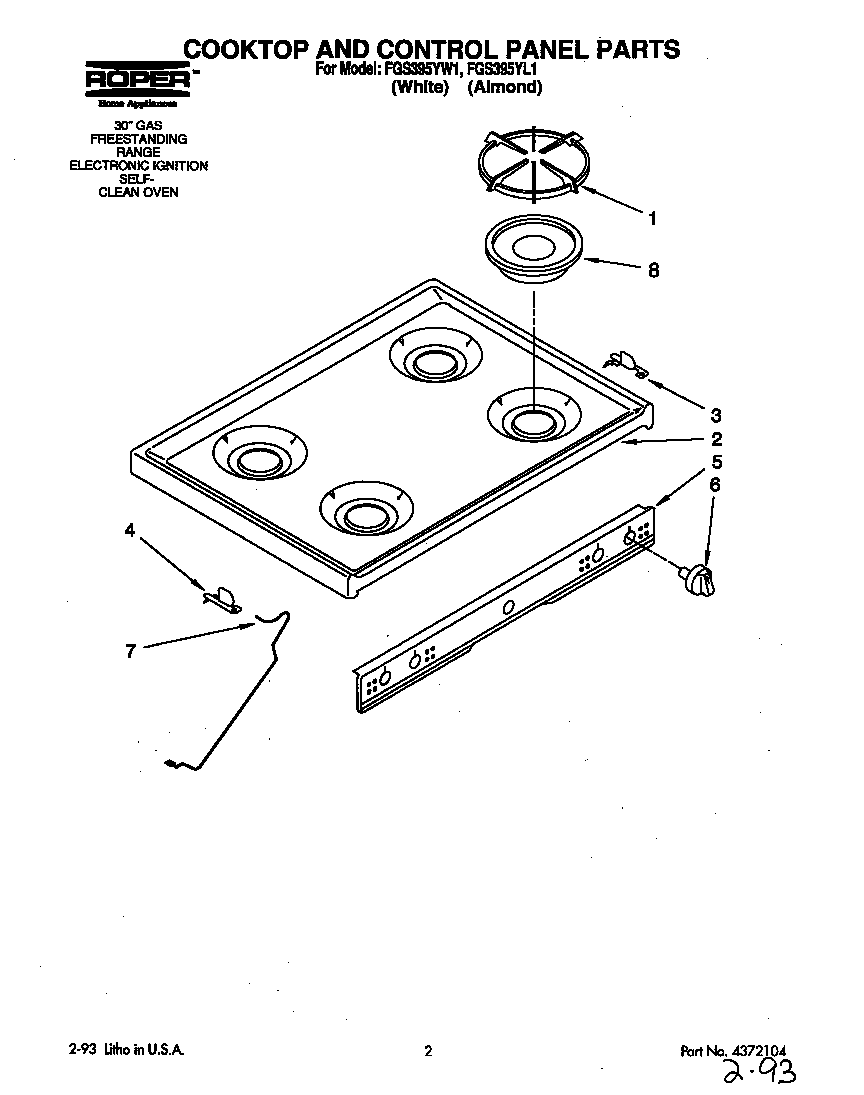

Cooktop and control panel diagram

Bracket, hinge rh

Part #816721

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 4371086
#1

Oven door and drawer diagram

Door handle

Part #4371086

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Broiler Burner 816582
#1

Broiler and oven burner diagram

Baffle, broiler burner

Part #816582

The manufacturer no longer makes this part, and there's no substitute part

Probe, Oven Temp 816645
#15

Oven diagram

Probe, oven temp

Part #816645

The manufacturer no longer makes this part, and there's no substitute part
