Craftsman
Radial Arm Saw

Model # 113197511 Official Craftsman radial saw

Here are the diagrams and repair parts for Official Craftsman 113197511 radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

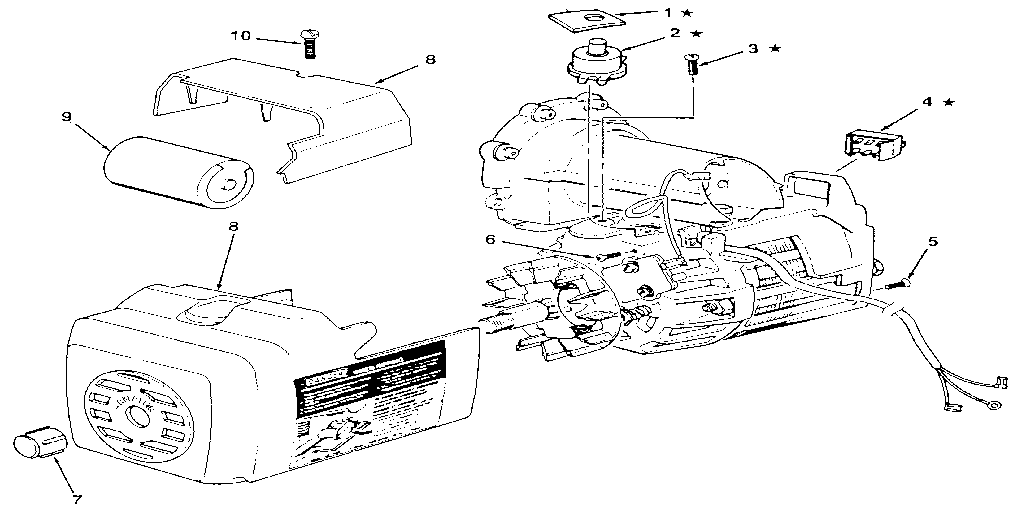

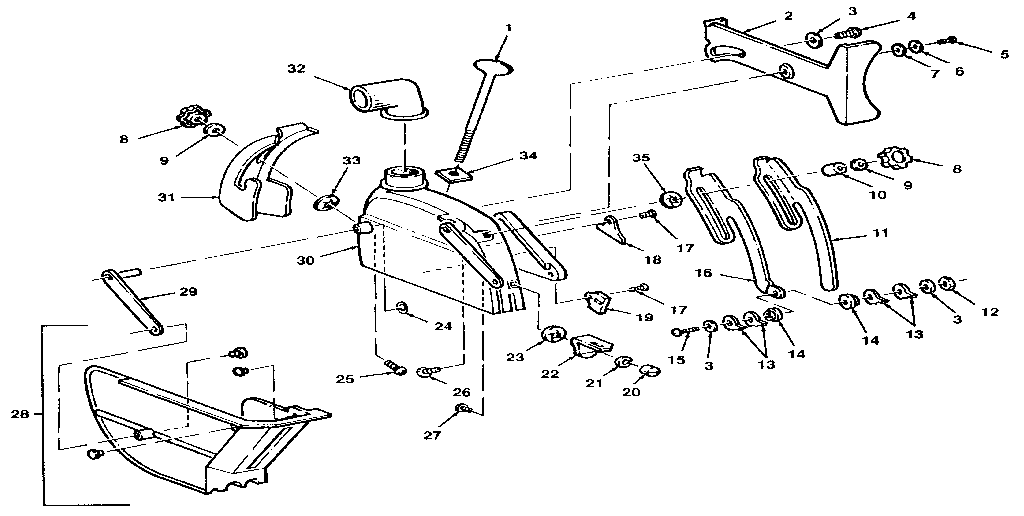

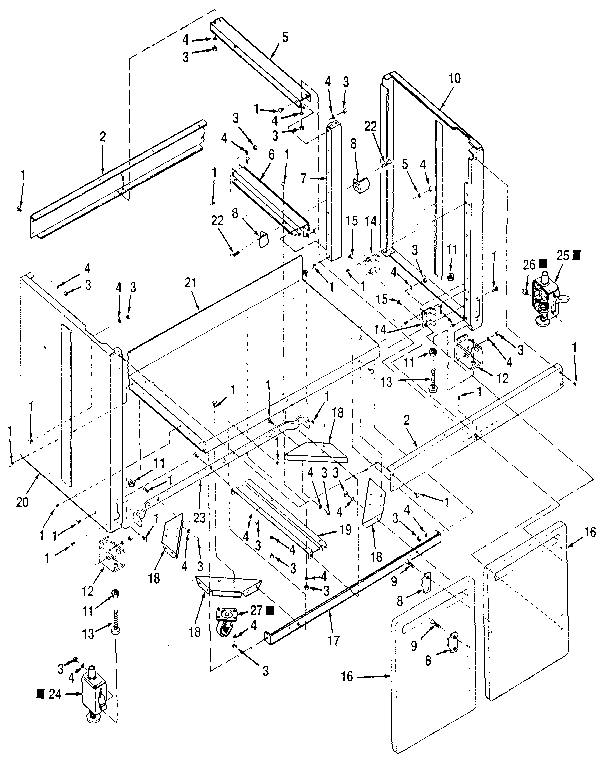

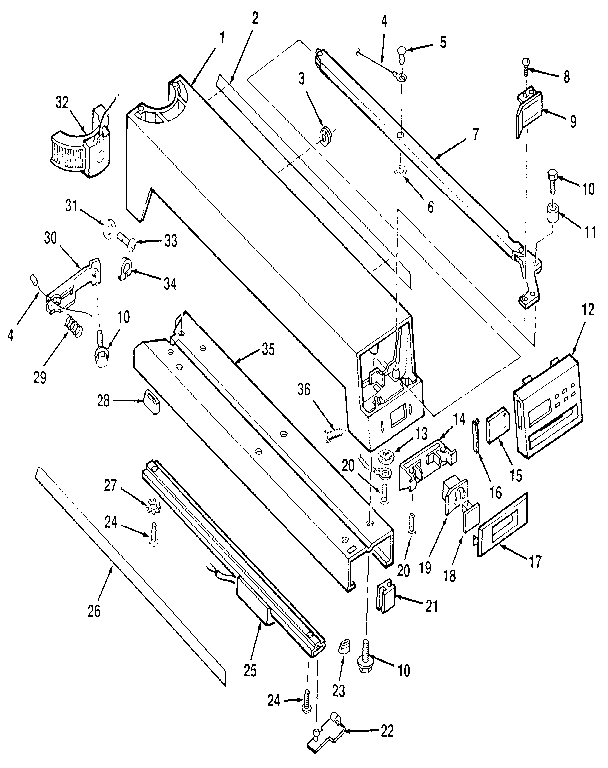

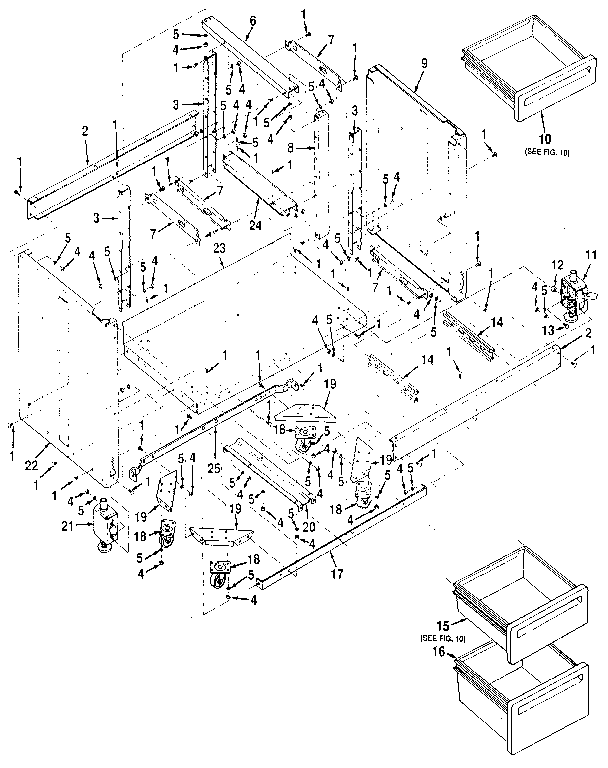

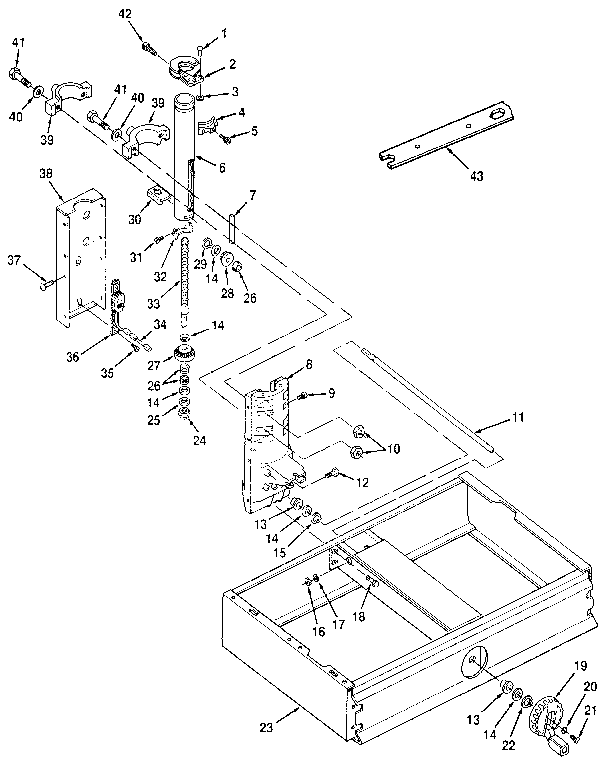

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 282 parts  |
Radial Arm Saw Clip Nut, 1/4 X 20-in 815989
#7

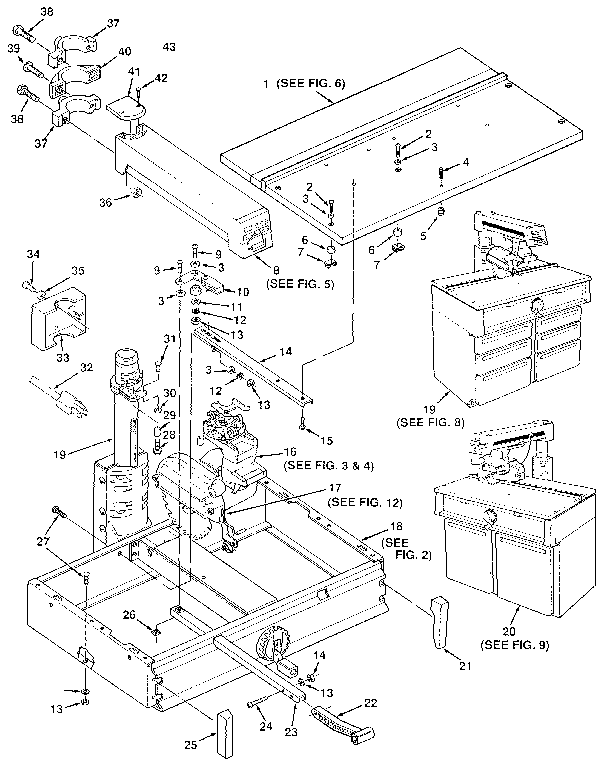

Figure 1 diagram

Radial arm saw clip nut, 1/4 x 20-in

Part #815989

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Screw, 1/4-20 X 5/8-in 817398-1
Radial arm saw screw, 1/4-20 x 5/8-in

Part #817398-1

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Eccentric Screw 810214-3
#34

Figure 4 - yoke assembly diagram

Radial arm saw eccentric screw

Part #810214-3

The manufacturer no longer makes this part, and there's no substitute part

Washer 815875
#9

Figure 7 - foot assembly diagram

Washer

Part #815875

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Rear 818169
Radial arm saw table, rear

Part #818169

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Nut 30495
#24

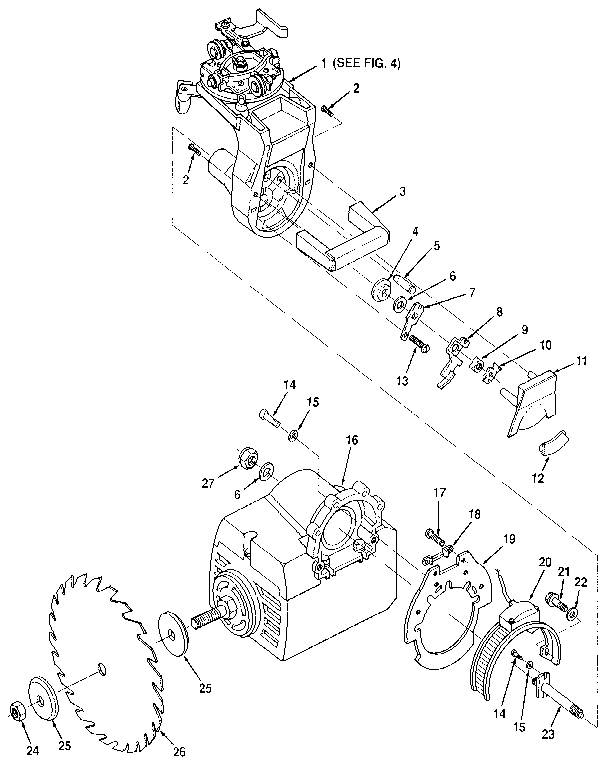

Figure 3 - yoke and motor assembly diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 805839-1
#27

Figure 3 - yoke and motor assembly diagram

Lock nut

Part #805839-1

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table 820572
Radial arm saw table

Part #820572

The manufacturer no longer makes this part, and there's no substitute part

Screw 273229
#9

Figure 4 - yoke assembly diagram

Screw

Part #273229

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Rubber Bushing 815762
#6

Figure 1 diagram

Radial arm saw rubber bushing

Part #815762

The manufacturer no longer makes this part, and there's no substitute part
