Mitsubishi
Air Handler

Model # MSZ-GE06NA Official Mitsubishi split-type air conditioner

Here are the diagrams and repair parts for Official Mitsubishi MSZ-GE06NA split-type air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

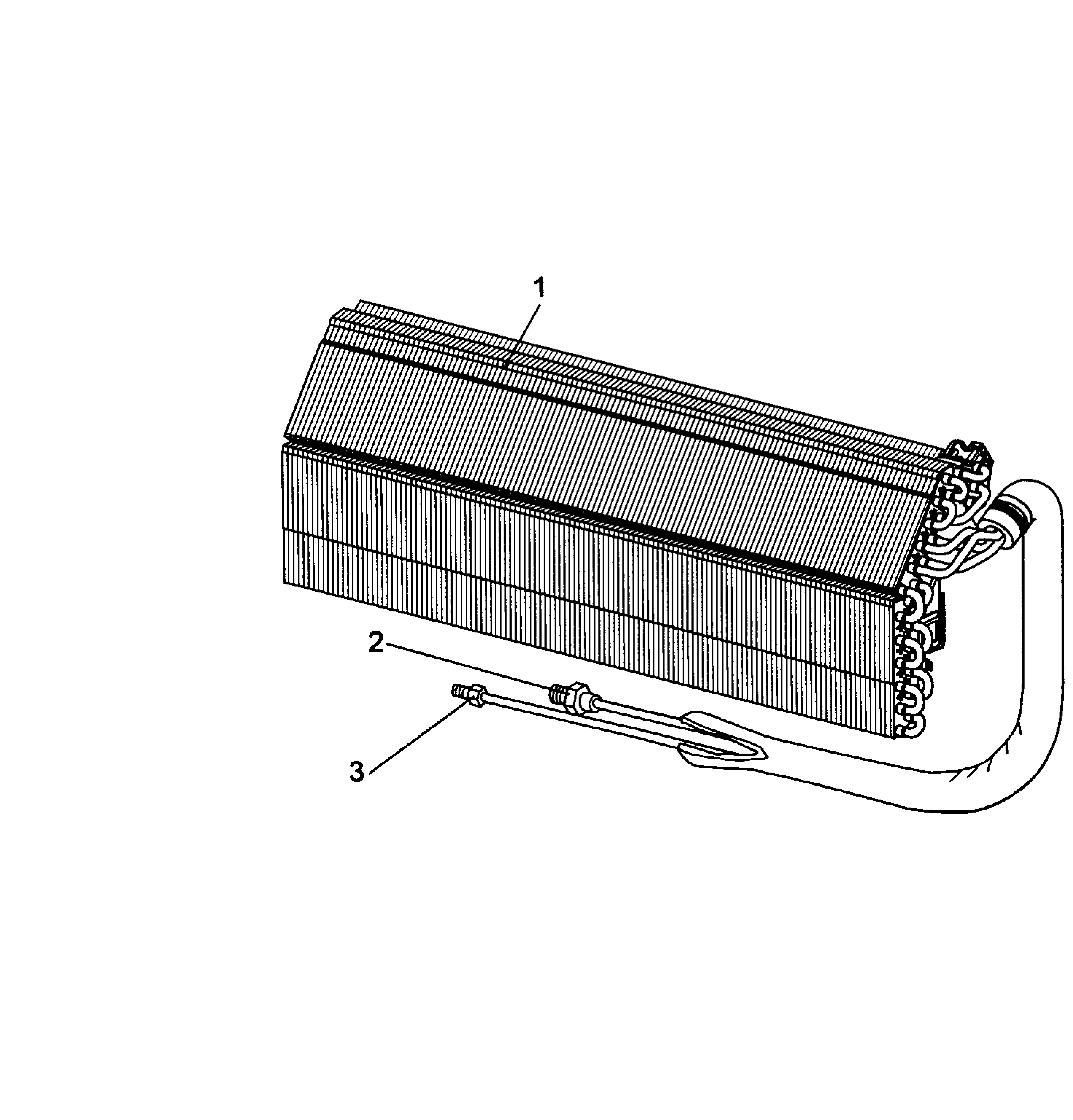

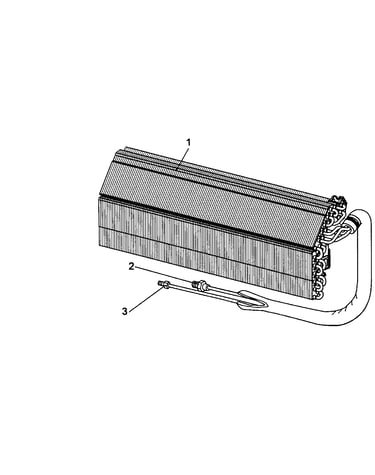

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Room Air Conditioner Blower Wheel E12A89302
#19

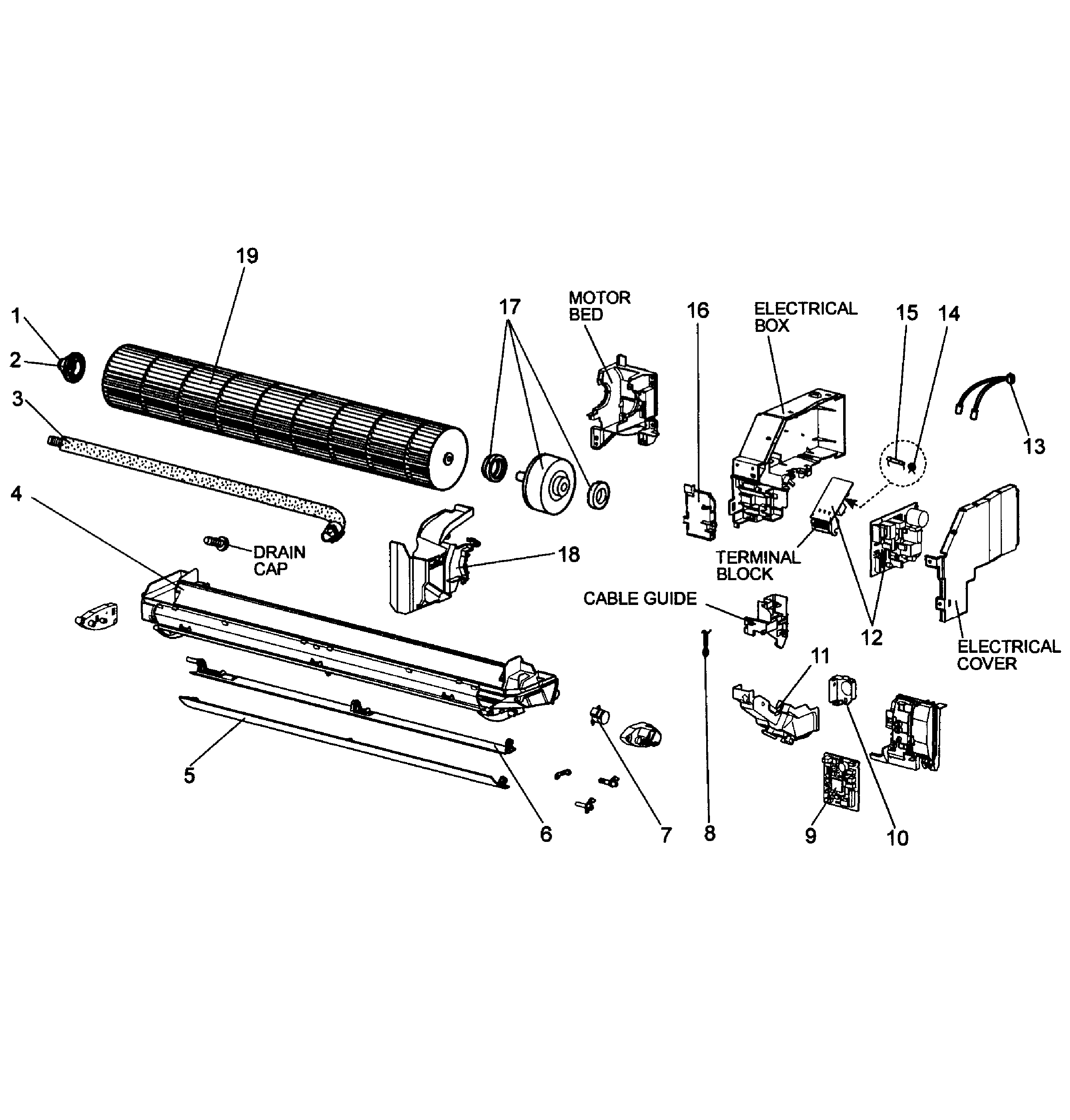

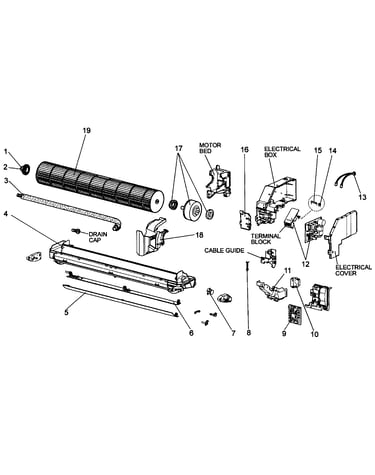

Fan assy diagram

Room air conditioner blower wheel

Part #E12A89302

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Remote Control E12E79426
#9

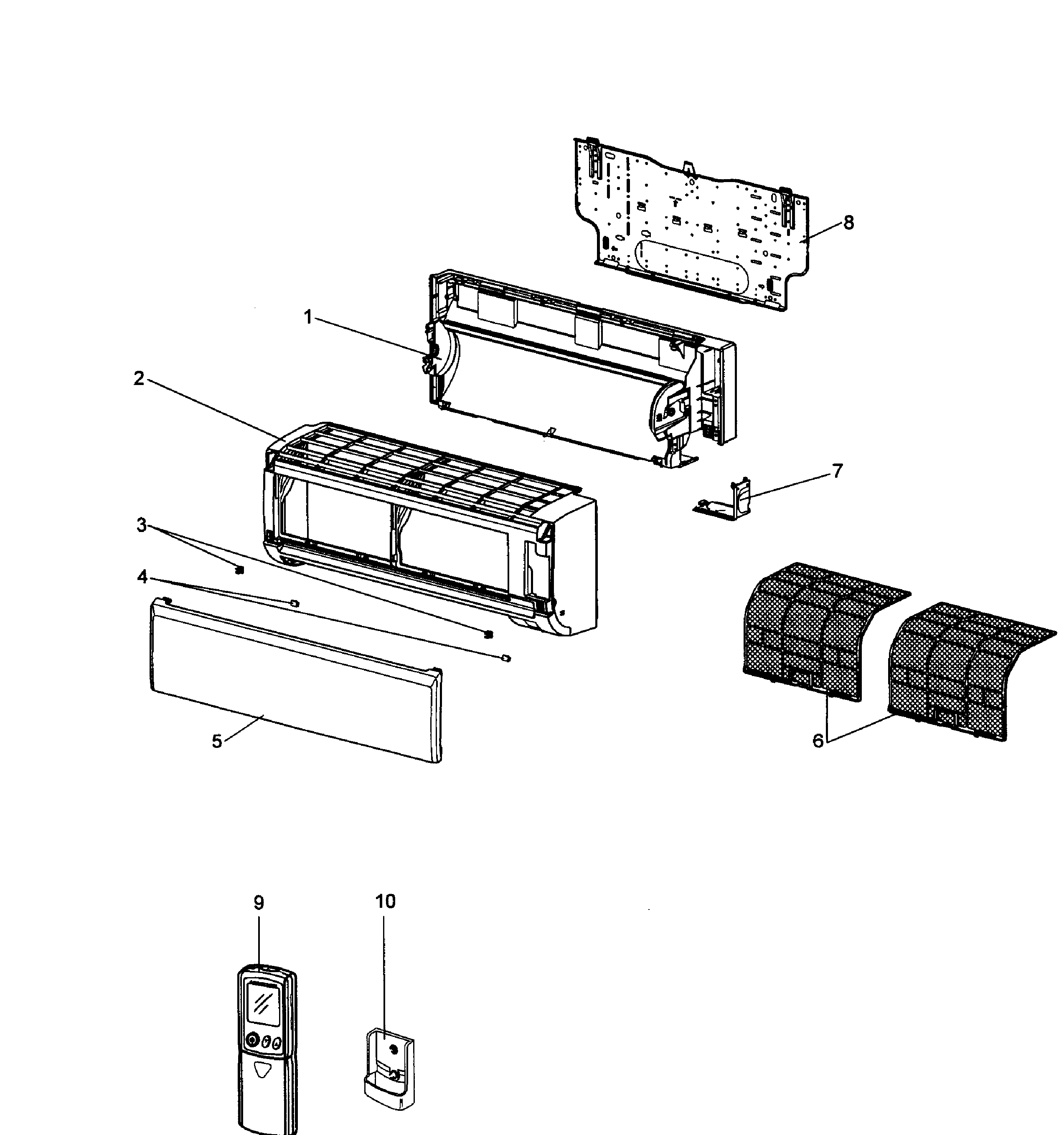

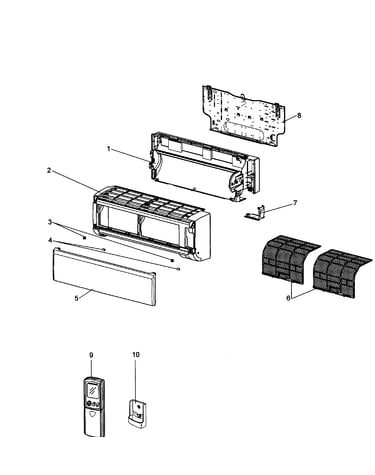

Cabinet parts diagram

Room air conditioner remote control

Part #E12E79426

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Electronic Control Board E12E79440
#12

Fan assy diagram

Central air conditioner electronic control board

Part #E12E79440

The manufacturer no longer makes this part, and there's no substitute part

Sensor E12A89303
#7

Fan assy diagram

Sensor

Part #E12A89303

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Blower Wheel Bearing E12751509
#1

Fan assy diagram

Room air conditioner blower wheel bearing

Part #E12751509

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Remote Control Holder E12527083
#10

Cabinet parts diagram

Room air conditioner remote control holder

Part #E12527083

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Assembly E12E79235
#4

Fan assy diagram

Nozzle assembly

Part #E12E79235

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Front Panel E12E79010
#5

Cabinet parts diagram

Room air conditioner front panel

Part #E12E79010

The manufacturer no longer makes this part, and there's no substitute part

Coil Therm E12D68307
#13

Fan assy diagram

Coil therm

Part #E12D68307

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Air Filter E12D68100
#6

Cabinet parts diagram

Central air conditioner air filter

Part #E12D68100

The manufacturer no longer makes this part, and there's no substitute part
