Roper
Electric Range

Model # D5257X0 Official Roper electric range

Here are the diagrams and repair parts for Official Roper D5257X0 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

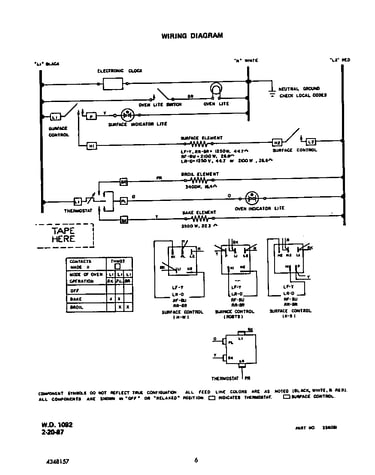

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Lamp Bulb 4338591
#23

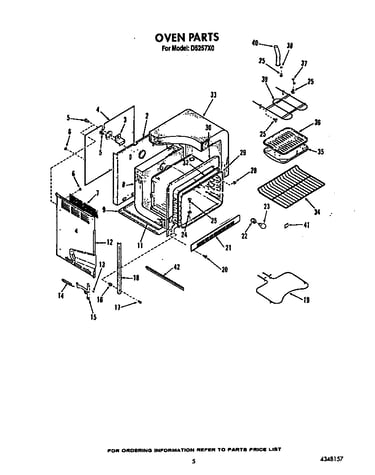

Oven diagram

Lamp bulb

Part #4338591

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4338591. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Bake Element 4337605
#19A

Oven diagram

Bake element

Part #4337605

Replaced by #WB44X237

?
Manufacturer substitution
This part replaces 4337605. Substitute parts can look different from the original.
$46.01 |
12% OFF Phone Price : $52.01
In Stock
Indicator Light 4336633
#25

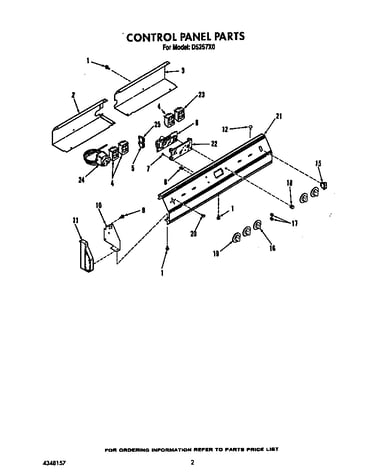

Control panel diagram

Indicator light

Part #4336633

Replaced by #WB25T10039

?
Manufacturer substitution
This part replaces 4336633. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut-hex 10-3 4338637
#23

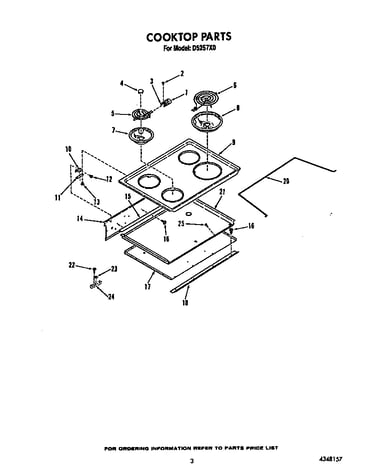

Cooktop diagram

Nut-hex 10-3

Part #4338637

Replaced by #WB1X1259

?
Manufacturer substitution
This part replaces 4338637. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Installation Guide 4348154

#NI

All parts diagram

Installation guide

Part #4348154

This item is not returnable
$2.16
In Stock

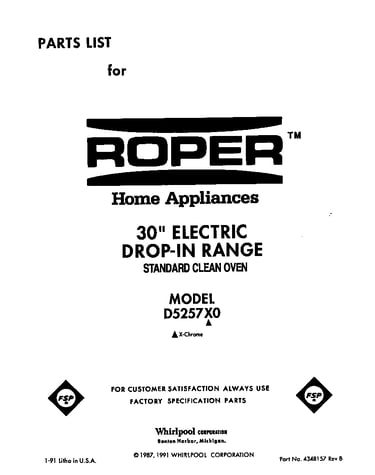

Parts List 4348157
