Maytag
Bottom-Mount Refrigerator

Model # RY4951000W2 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag RY4951000W2 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

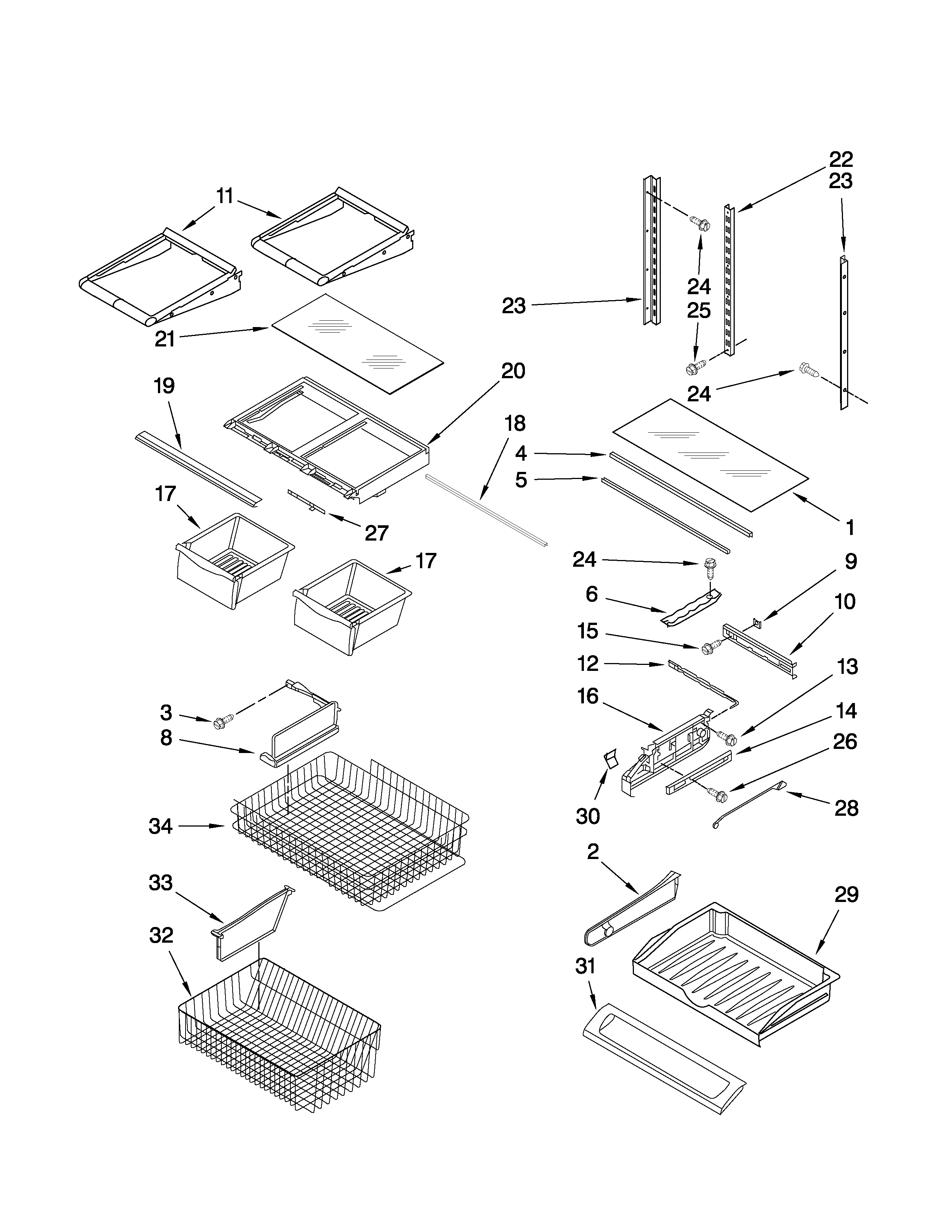

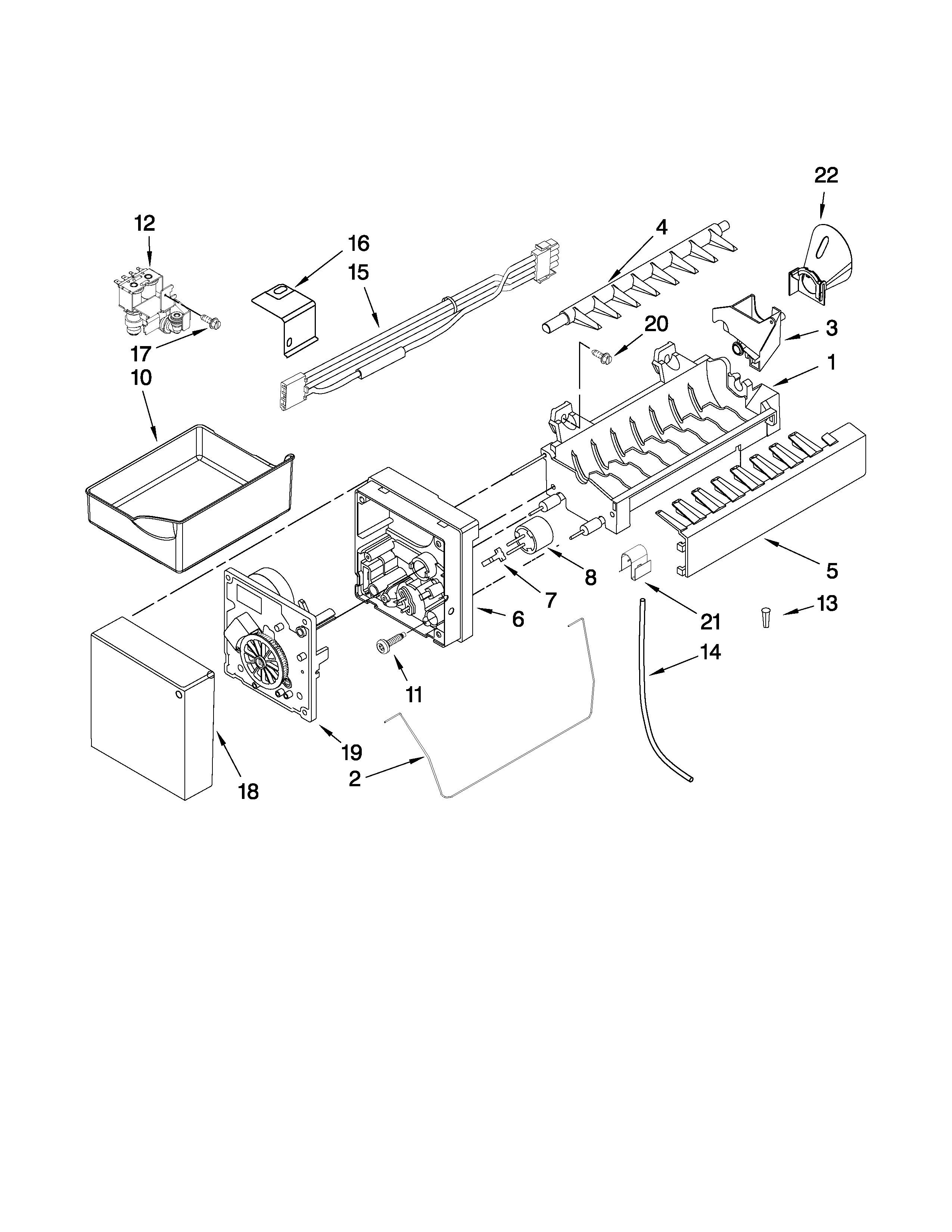

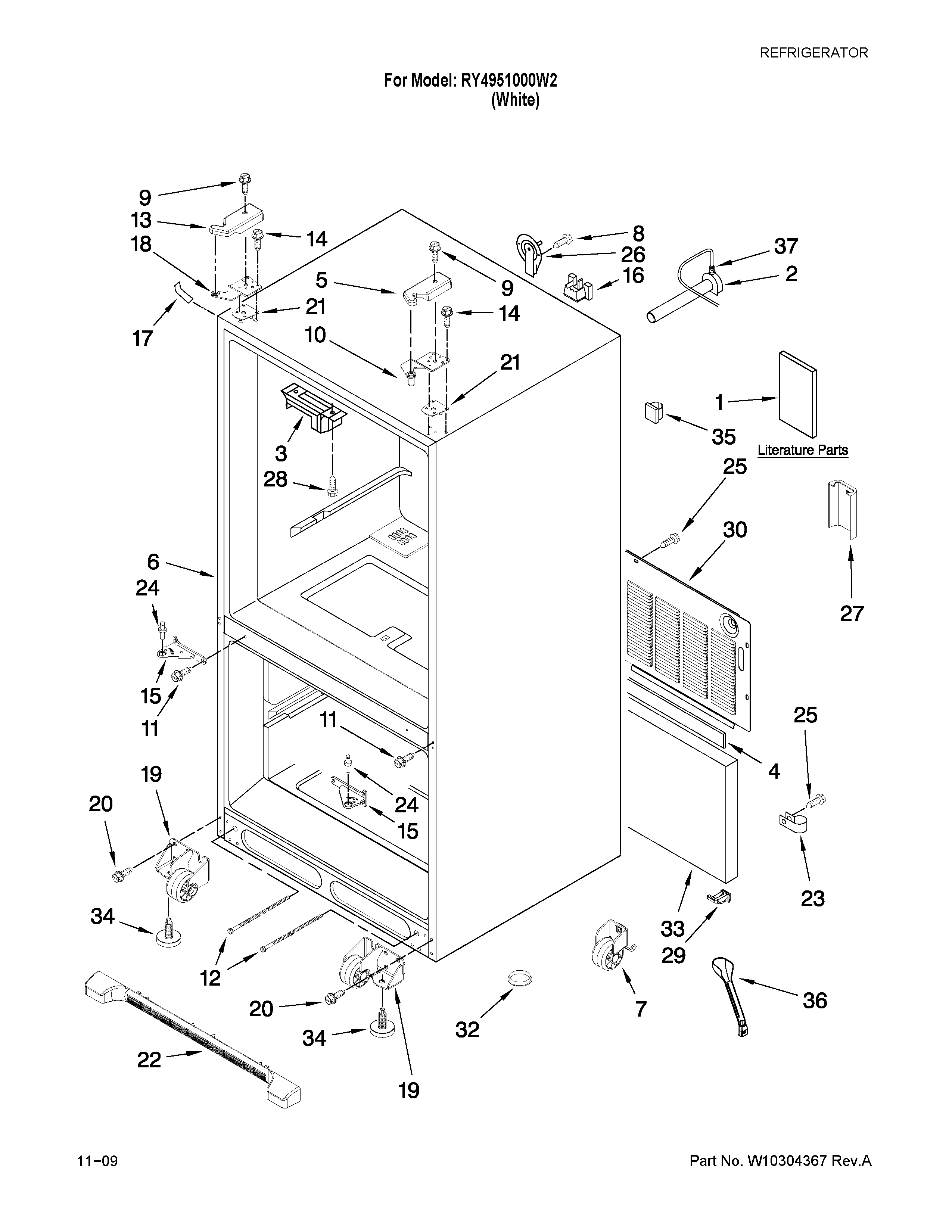

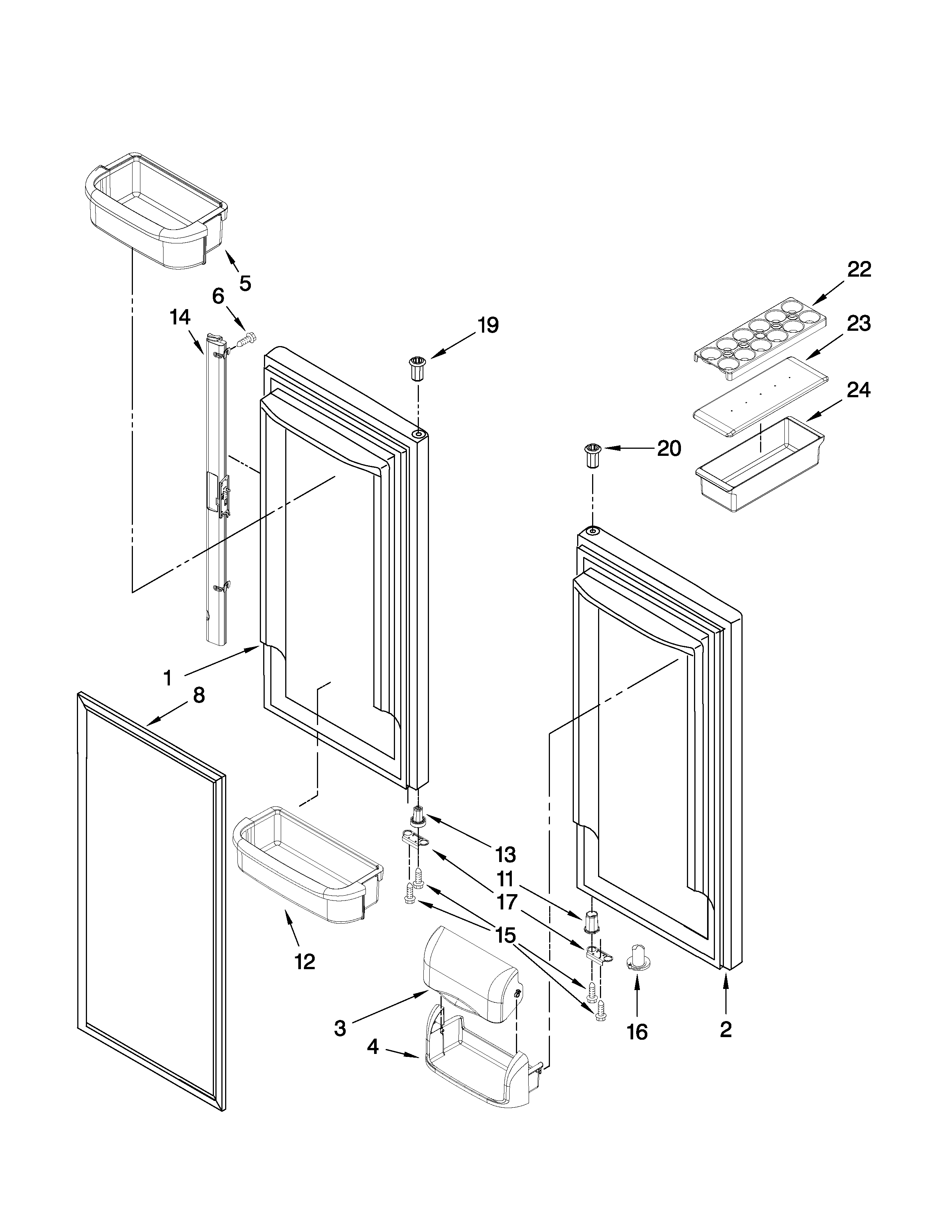

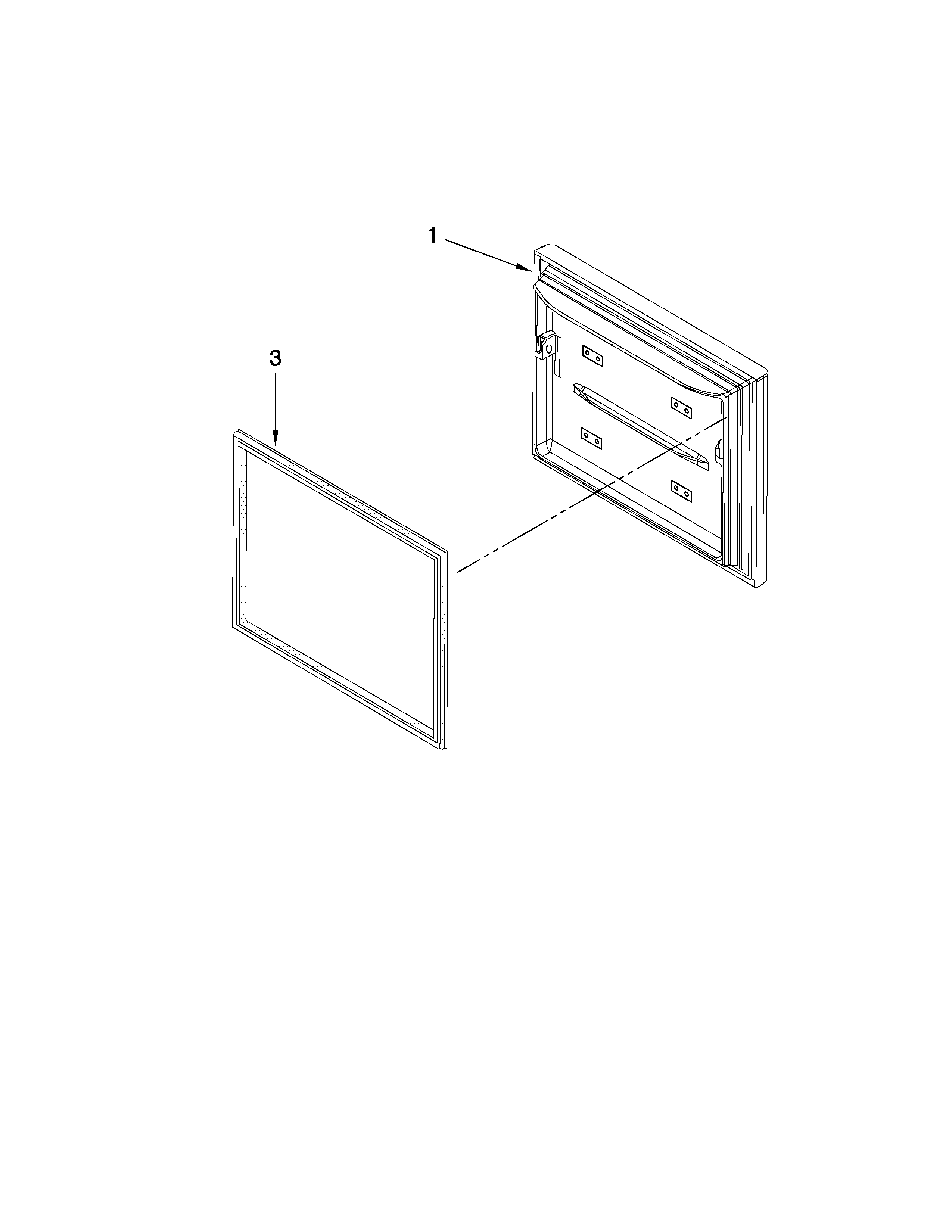

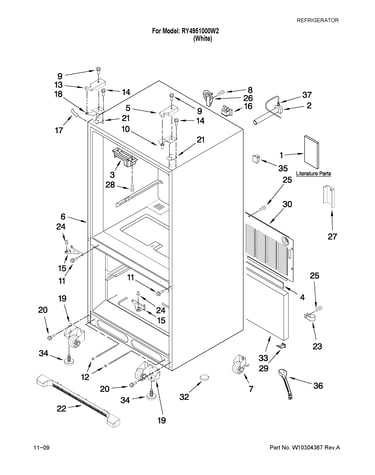

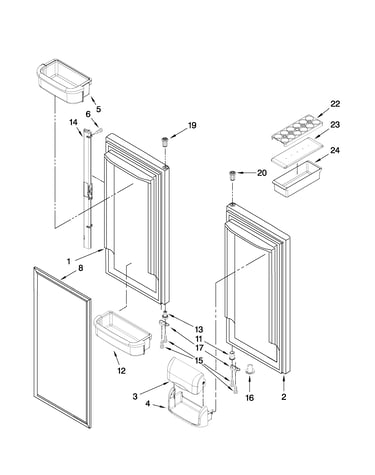

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Refrigerator Uv Filter Dryer W10143759
#27

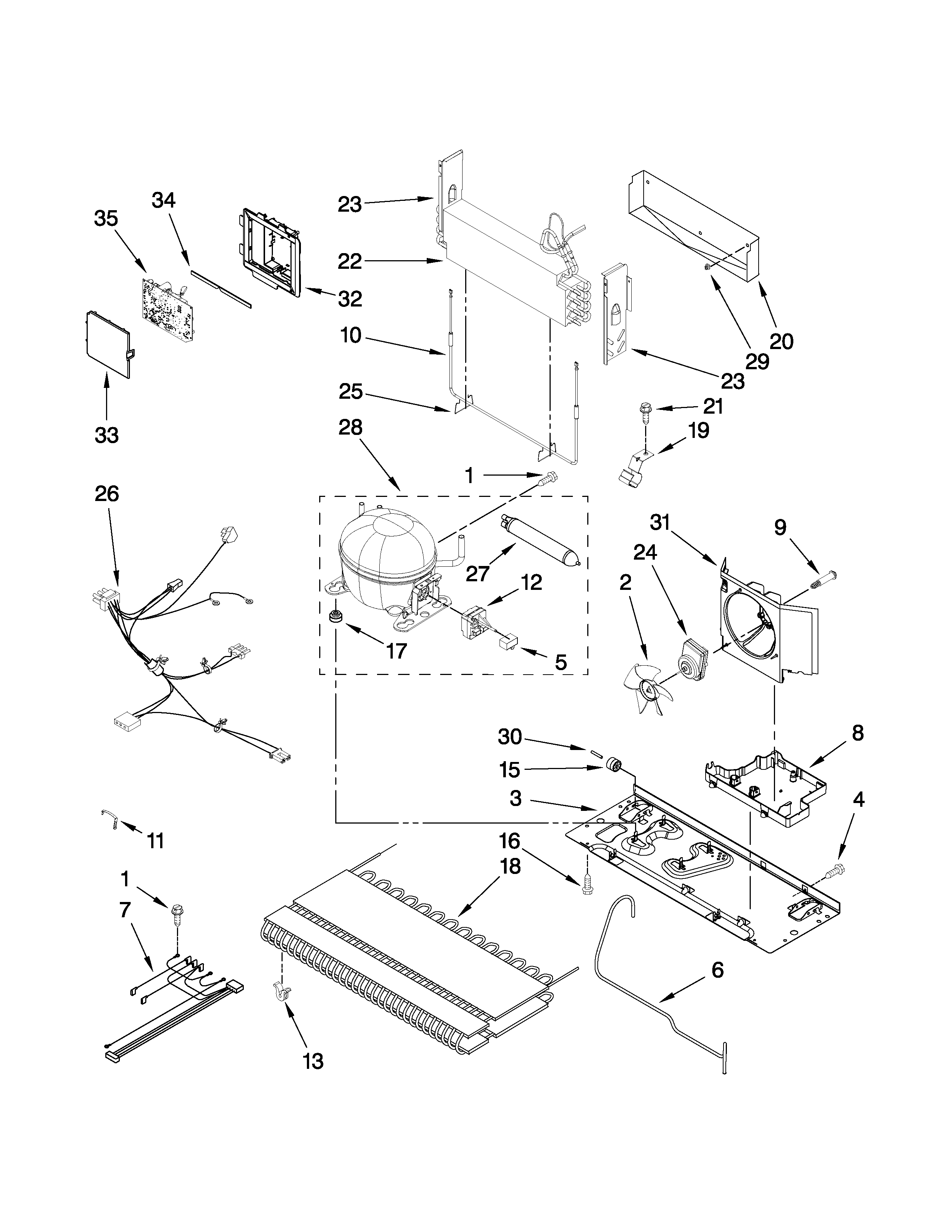

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Switch C3680310V
#6

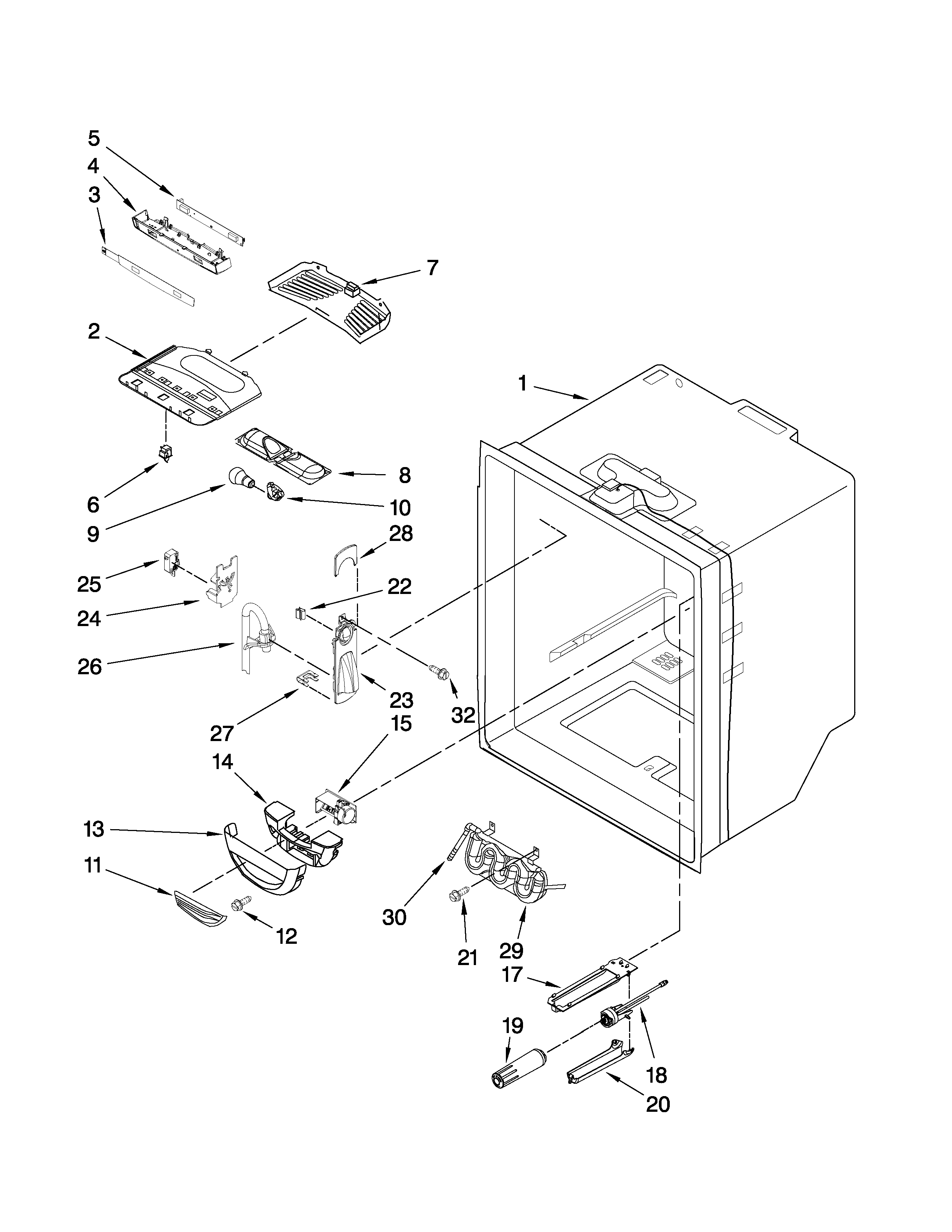

Refrigerator liner parts diagram

Refrigerator switch

Part #C3680310V

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Evaporator Fan Blade 2169142
#24

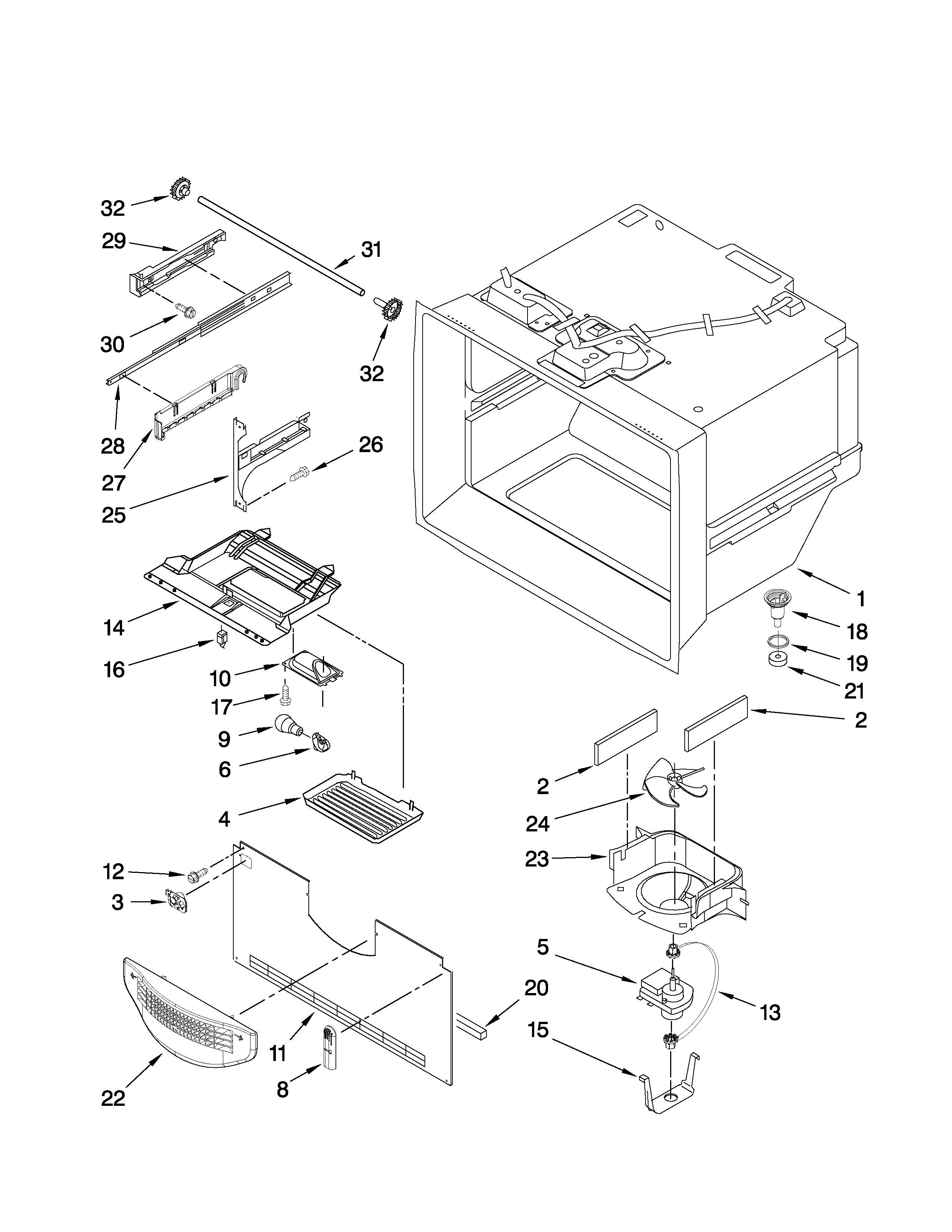

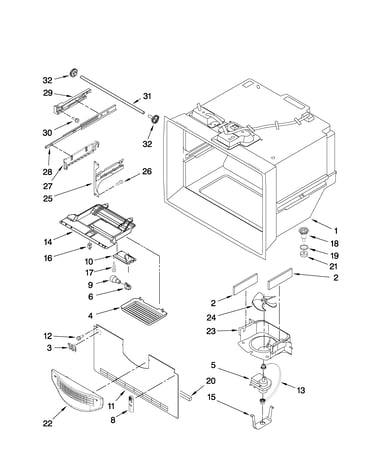

Freezer liner parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Light Swit 12466105
#16

Freezer liner parts diagram

Light swit

Part #12466105

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466105. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Housing 12590622
#18

Refrigerator liner parts diagram

Refrigerator housing

Part #12590622

Replaced by #W11346623

?
Manufacturer substitution
This part replaces 12590622. Substitute parts can look different from the original.
BEST SELLER
$59.02 |
9% OFF Phone Price : $65.02
In Stock
Refrigerator Filter Plate 12704801
#17

Refrigerator liner parts diagram

Refrigerator filter plate

Part #12704801

Replaced by #WP67001668

?
Manufacturer substitution
This part replaces 12704801. Substitute parts can look different from the original.
BEST SELLER
$8.57 |
10% OFF Phone Price : $9.57
In Stock
Refrigerator Water Filter Housing 12568001
#20

Refrigerator liner parts diagram

Refrigerator water filter housing

Part #12568001

Replaced by #WP12568001

?
Manufacturer substitution
This part replaces 12568001. Substitute parts can look different from the original.
BEST SELLER
$52.28 |
10% OFF Phone Price : $58.28
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#NI

Unit parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Spray Paint (white) 350930
#NI

Optional parts (not included) diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
