Kenmore Elite
Electric Range

Model # 79099513304 Official Kenmore Elite electric range

Here are the diagrams and repair parts for Official Kenmore Elite 79099513304 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

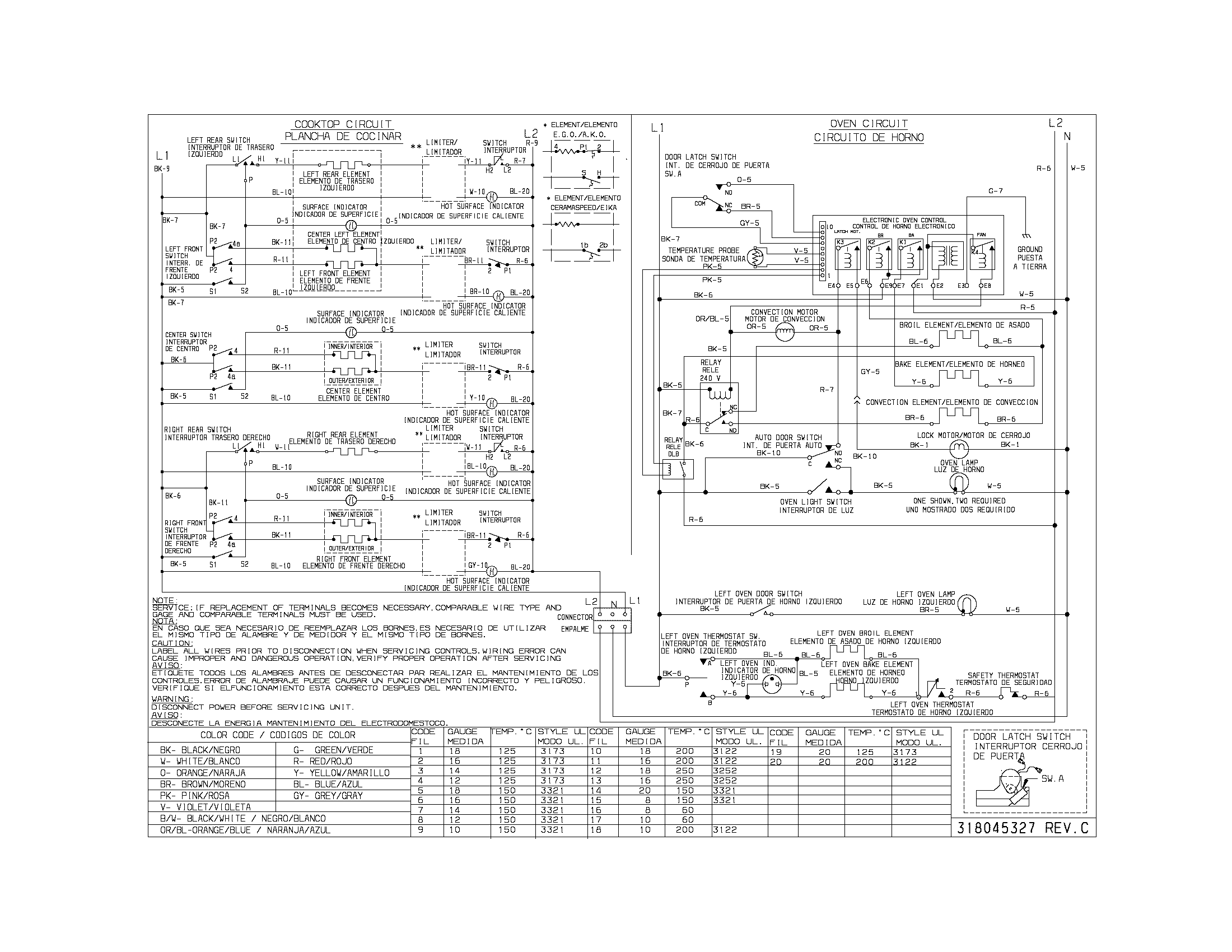

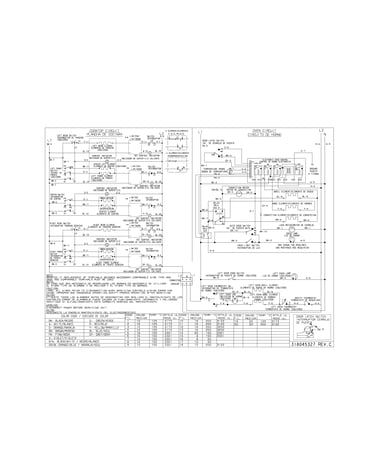

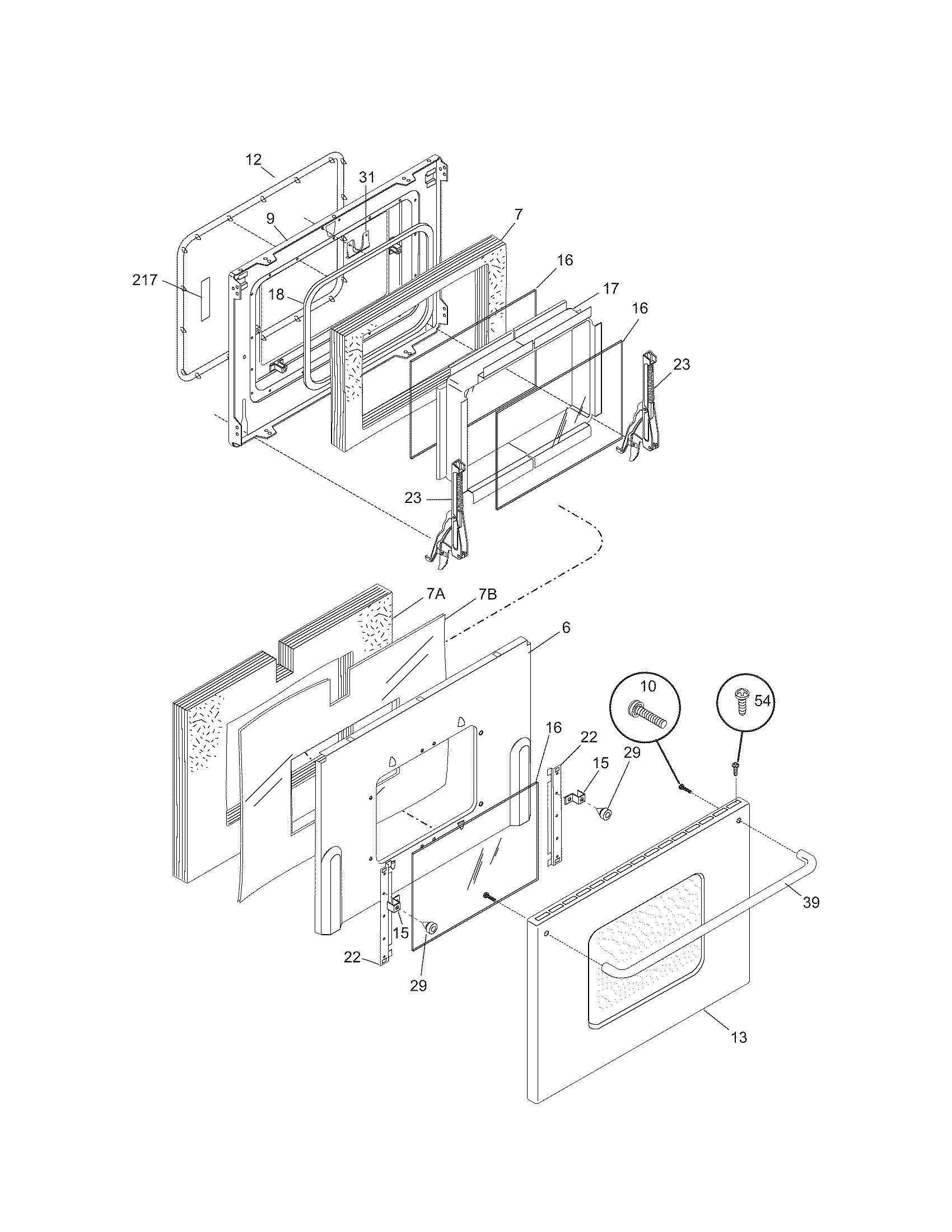

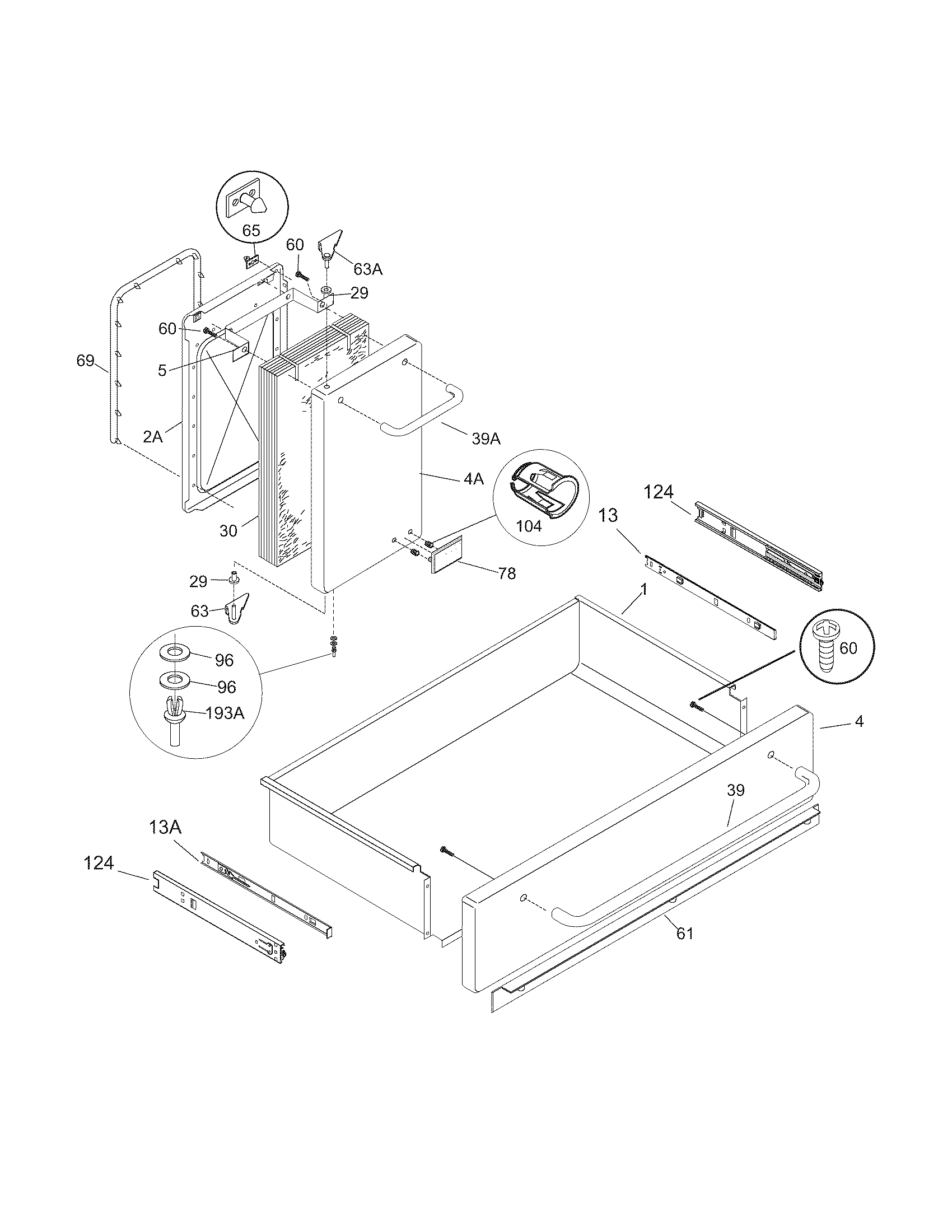

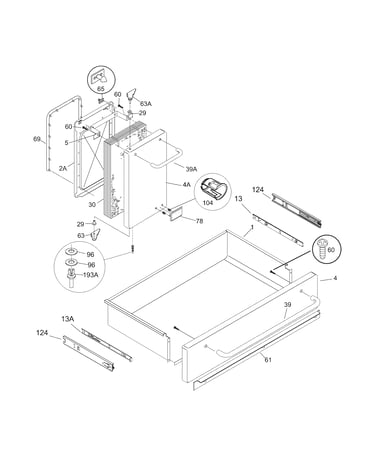

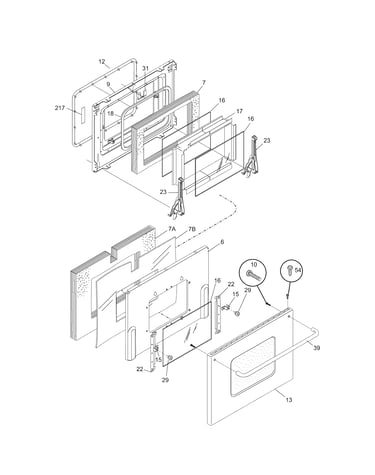

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Range Oven Light Bulb 5303013071
#15

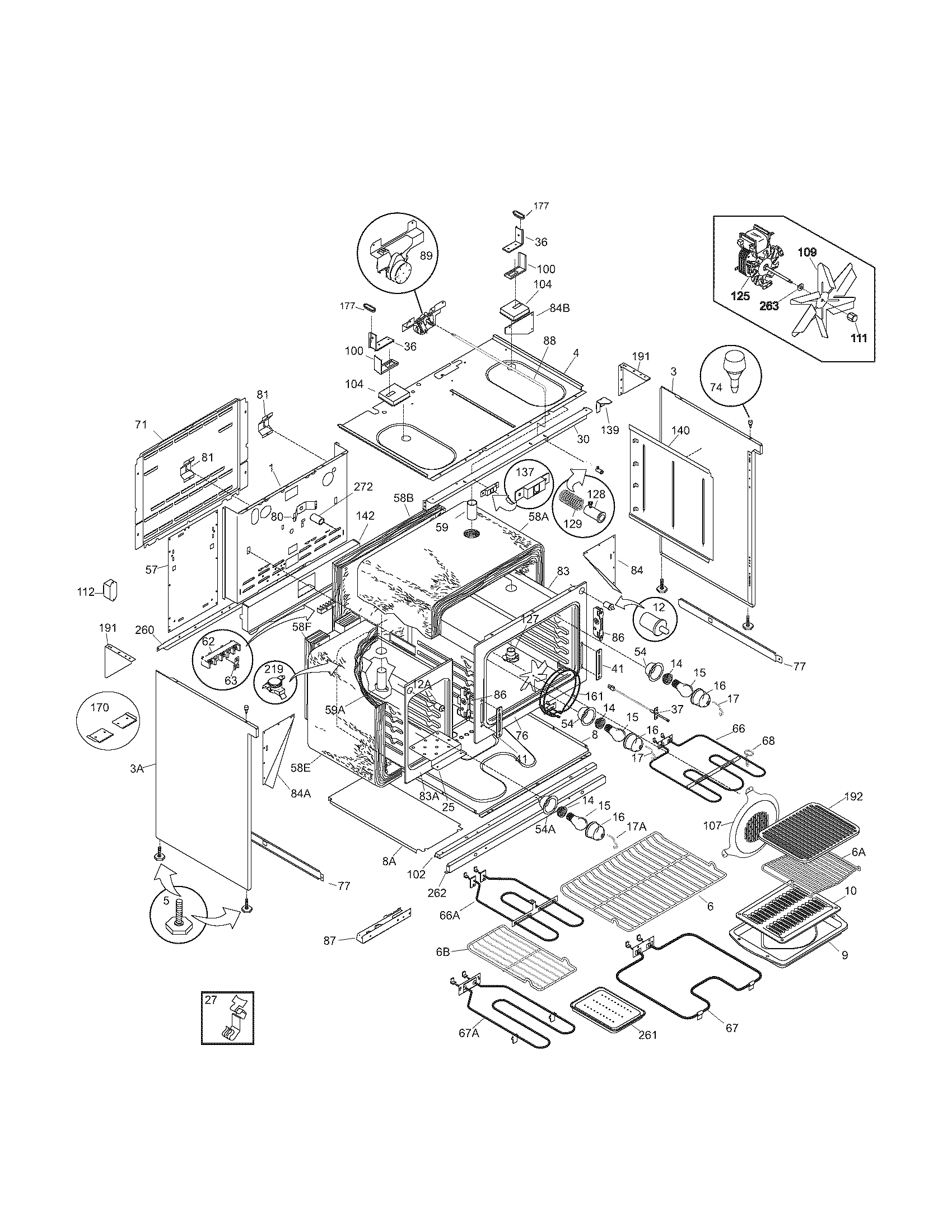

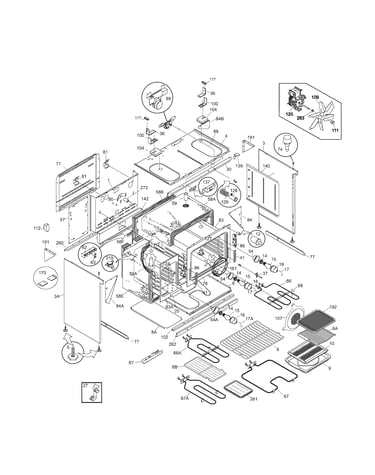

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7 316217002
#37

Body diagram

Frigidaire range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Element 318255000
#67

Body diagram

Element

Part #318255000

Replaced by #318255006

?
Manufacturer substitution
This part replaces 318255000. Substitute parts can look different from the original.
BEST SELLER
$145.64 |
8% OFF Phone Price : $157.64
In Stock
Washer 316136500
#263

Body diagram

Washer

Part #316136500

Replaced by #316008401

?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Element 316216600
#15B

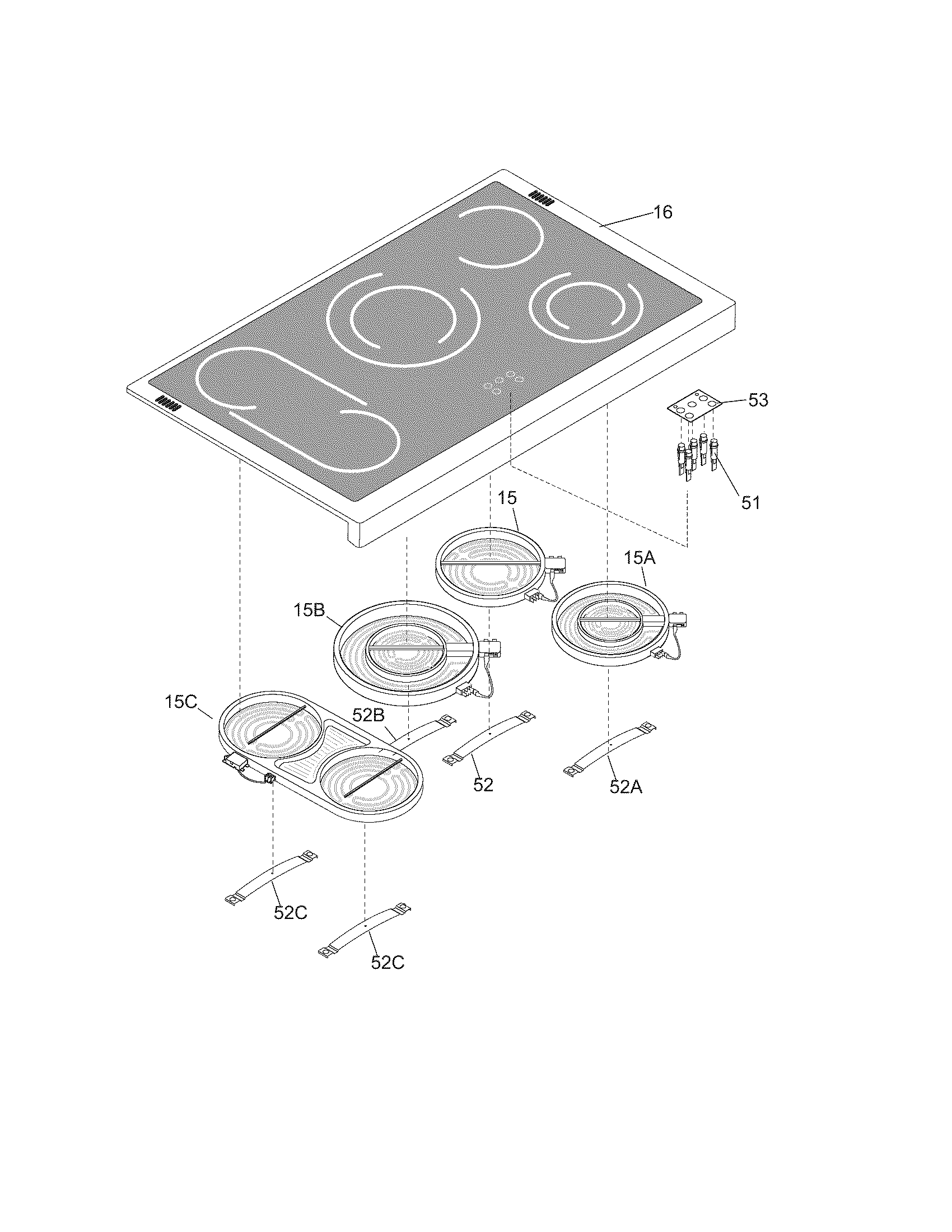

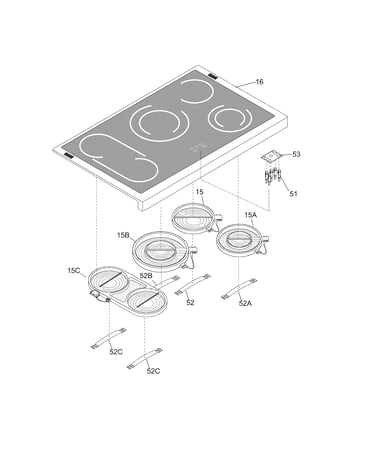

Maintop diagram

Element

Part #316216600

Replaced by #316282100

?
Manufacturer substitution
This part replaces 316216600. Substitute parts can look different from the original.
BEST SELLER
$207.90 |
5% OFF Phone Price : $219.90
In Stock
*infinite 318191001
#54B

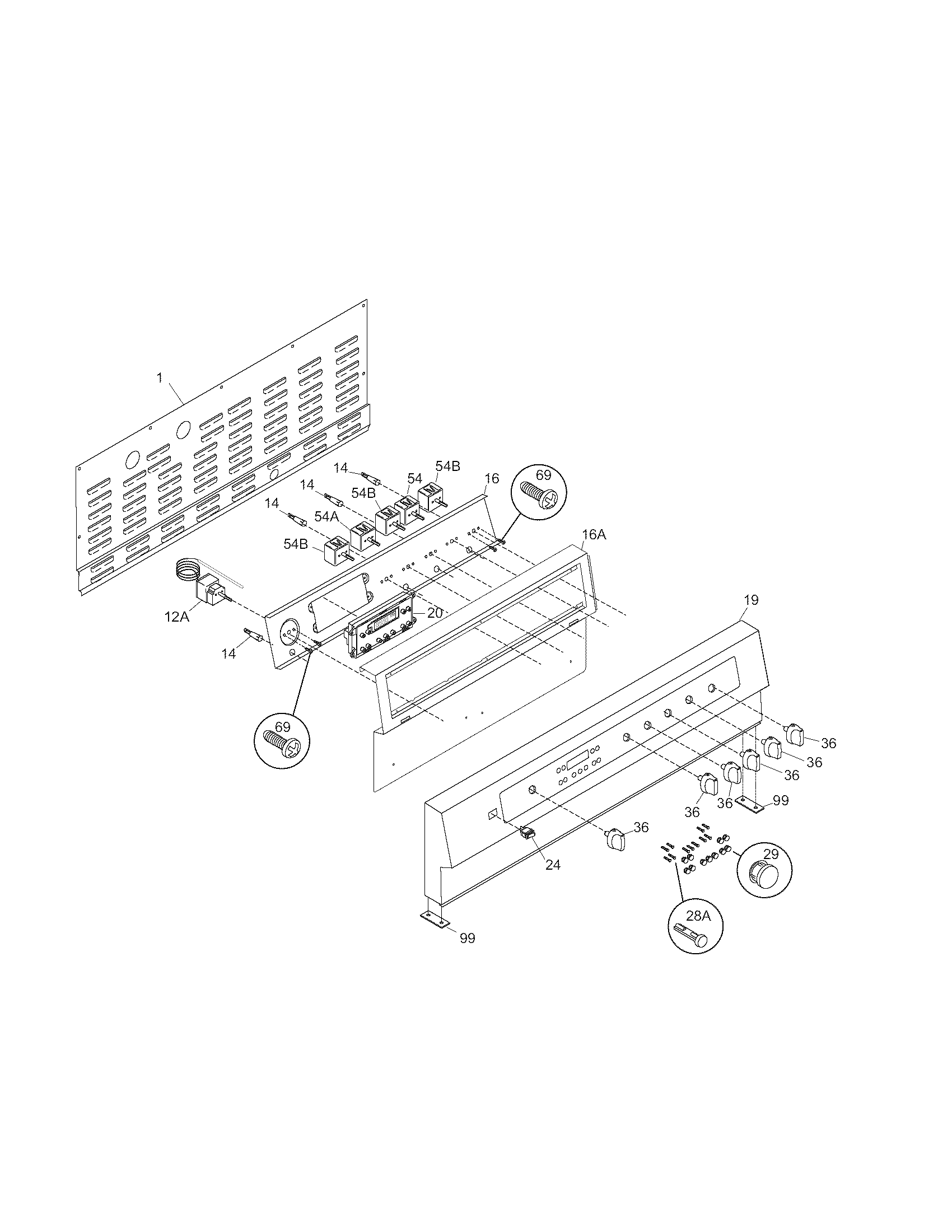

Backguard diagram

*infinite

Part #318191001

Replaced by #903097-9040

?
Manufacturer substitution
This part replaces 318191001. Substitute parts can look different from the original.
BEST SELLER
$62.55 |
9% OFF Phone Price : $68.55
In Stock
Kenmore Pro Range Radiant Bridge Surface Element (replaces 318258200, 318258202) 318258201
#15C

Maintop diagram

Kenmore pro range radiant bridge surface element (replaces 318258200, 318258202)

Part #318258201

$342.13 |
$12.00 OFF Phone Price : $354.13
In Stock
Range Screw 5303323134
#69

Backguard diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Oven Switch 318089913
#12

Body diagram

Oven switch

Part #318089913

Replaced by #318394803

?
Manufacturer substitution
This part replaces 318089913. Substitute parts can look different from the original.
$35.19 |
15% OFF Phone Price : $41.19
In Stock
Kenmore Pro Range Radiant Surface Element, 6-in (replaces 318198810) 318198817
#15

Maintop diagram

Kenmore pro range radiant surface element, 6-in (replaces 318198810)

Part #318198817

$149.91 |
7% OFF Phone Price : $161.91
In Stock
