Model # RMC800E/P1180501M Official Amana convection microwave

Here are the diagrams and repair parts for Official Amana RMC800E-P1180501M convection microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

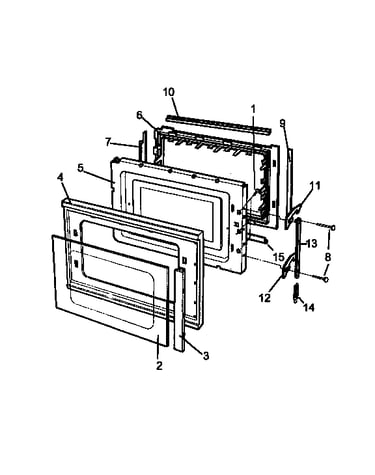

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Microwave Lamp Switch R0654093
#6

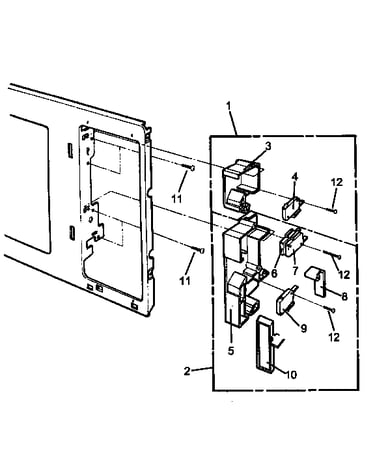

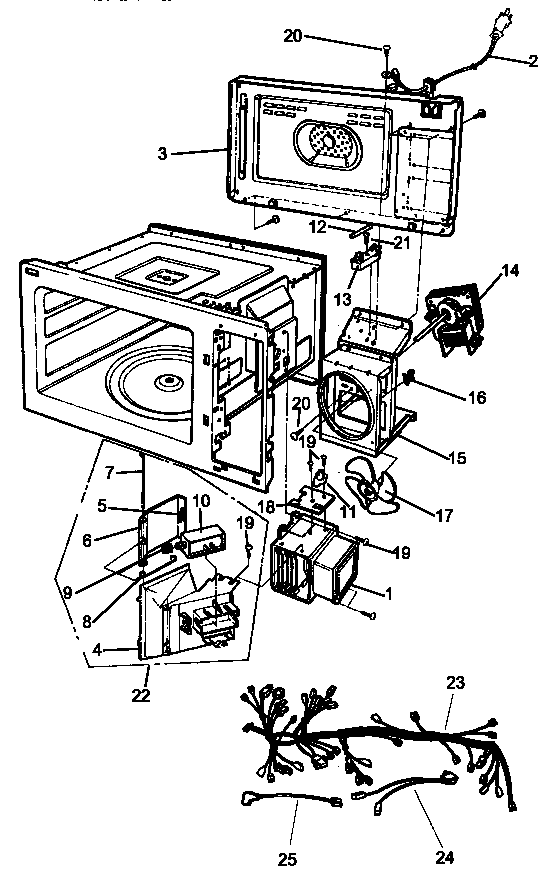

Switch assembly diagram

Microwave lamp switch

Part #R0654093

Replaced by #W10915404

?
Manufacturer substitution
This part replaces R0654093. Substitute parts can look different from the original.
This item is not returnable
$13.09 |
13% OFF Phone Price : $15.09
In Stock
Screw R0654036
#23

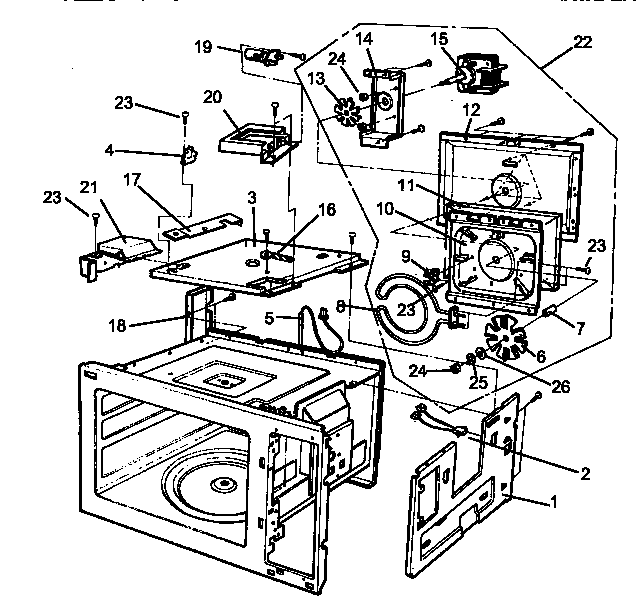

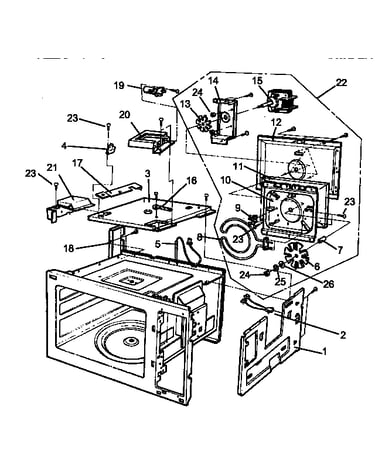

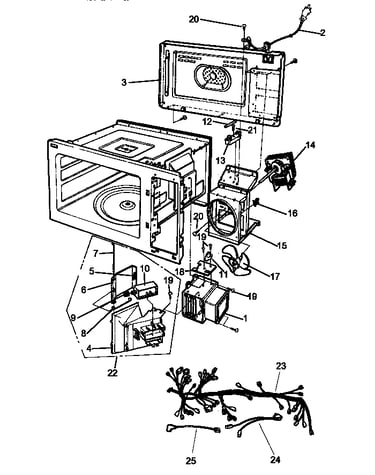

Chassis assembly diagram

Screw

Part #R0654036

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654036. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Screw R0654038
#16

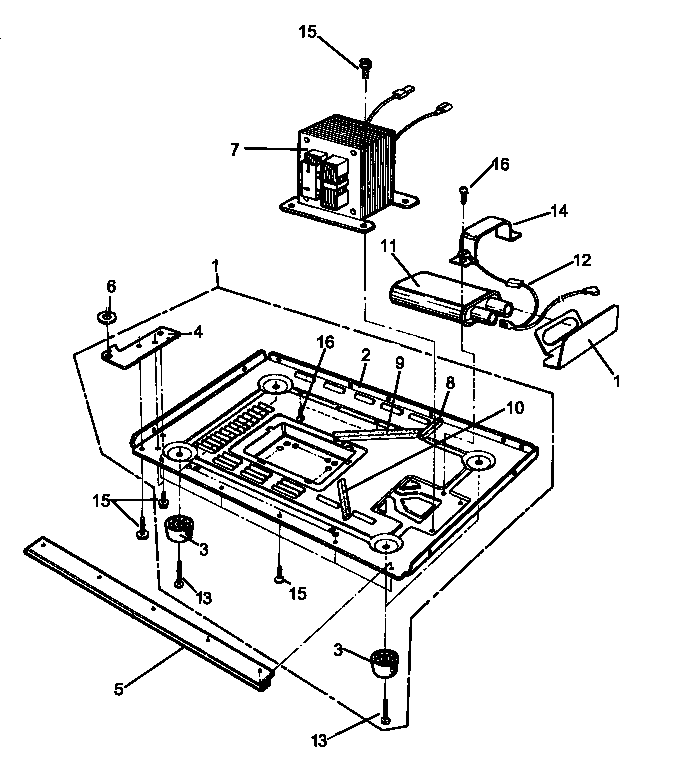

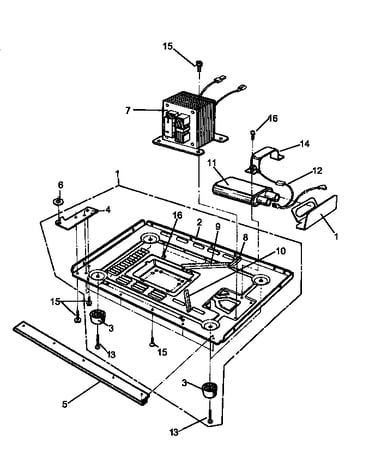

Basepan assembly diagram

Screw

Part #R0654038

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654038. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Screw R0654111
#11

Switch assembly diagram

Screw

Part #R0654111

Replaced by #R0654111

?
Manufacturer substitution
This part replaces R0654111. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Microswitch Primary R0654098
#4

Switch assembly diagram

Microswitch primary

Part #R0654098

The manufacturer no longer makes this part, and there's no substitute part

Chamber Sub Assembly R0654013
#10

Chassis assembly diagram

Chamber sub assembly

Part #R0654013

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer R0654044
#26

Chassis assembly diagram

Plain washer

Part #R0654044

The manufacturer no longer makes this part, and there's no substitute part

Lamp Glass R0654116
#7

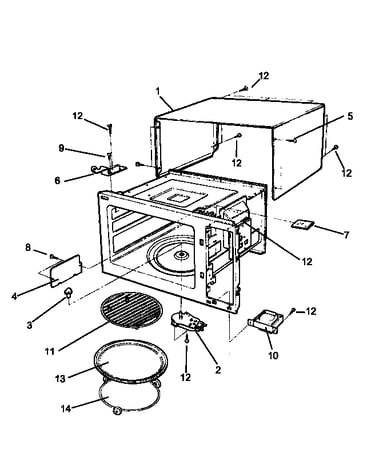

Cavity assembly diagram

Lamp glass

Part #R0654116

The manufacturer no longer makes this part, and there's no substitute part

Screw Tapping-truss Head R0654039
#5

Cavity assembly diagram

Screw tapping-truss head

Part #R0654039

The manufacturer no longer makes this part, and there's no substitute part

Release Button, Black (black Model Only) R0654186
#4A

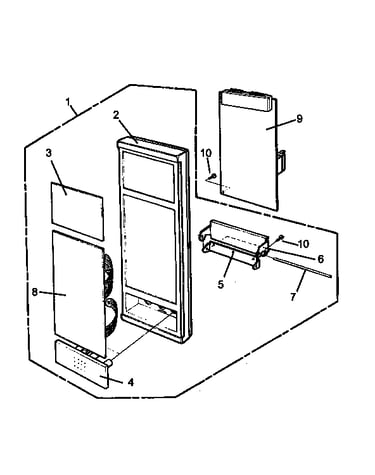

Control panel assembly diagram

Release button, black (black model only)

Part #R0654186

The manufacturer no longer makes this part, and there's no substitute part
