Model # JS760DP1WW Official GE electric range

Here are the diagrams and repair parts for Official GE JS760DP1WW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

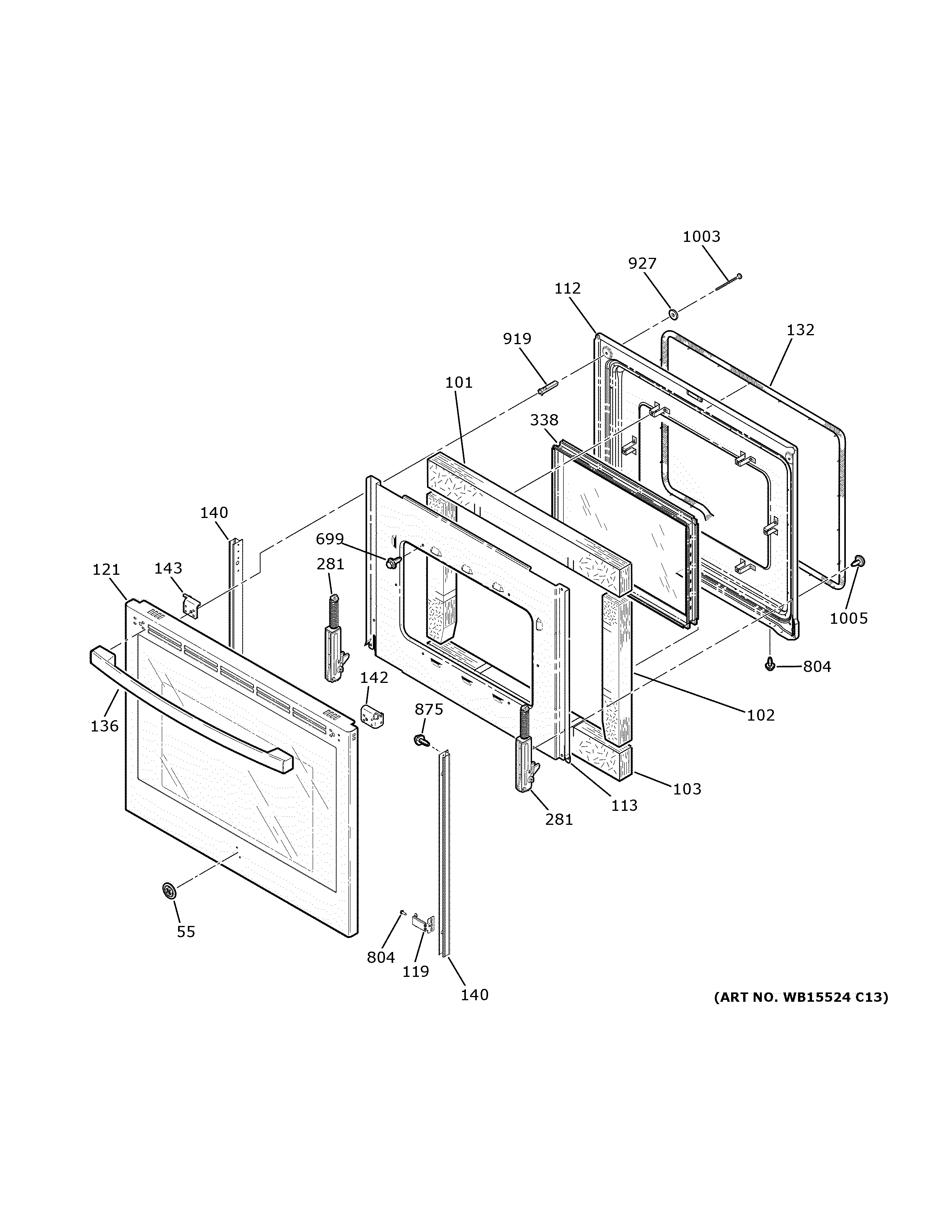

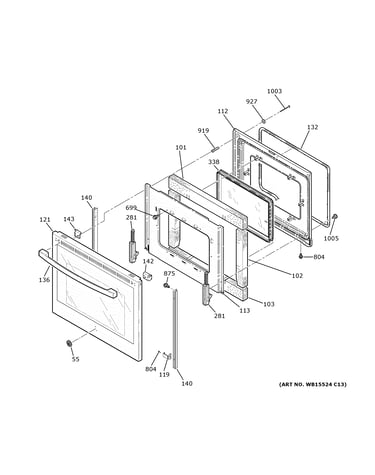

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Range Oven Light Bulb WX12X1510
#257

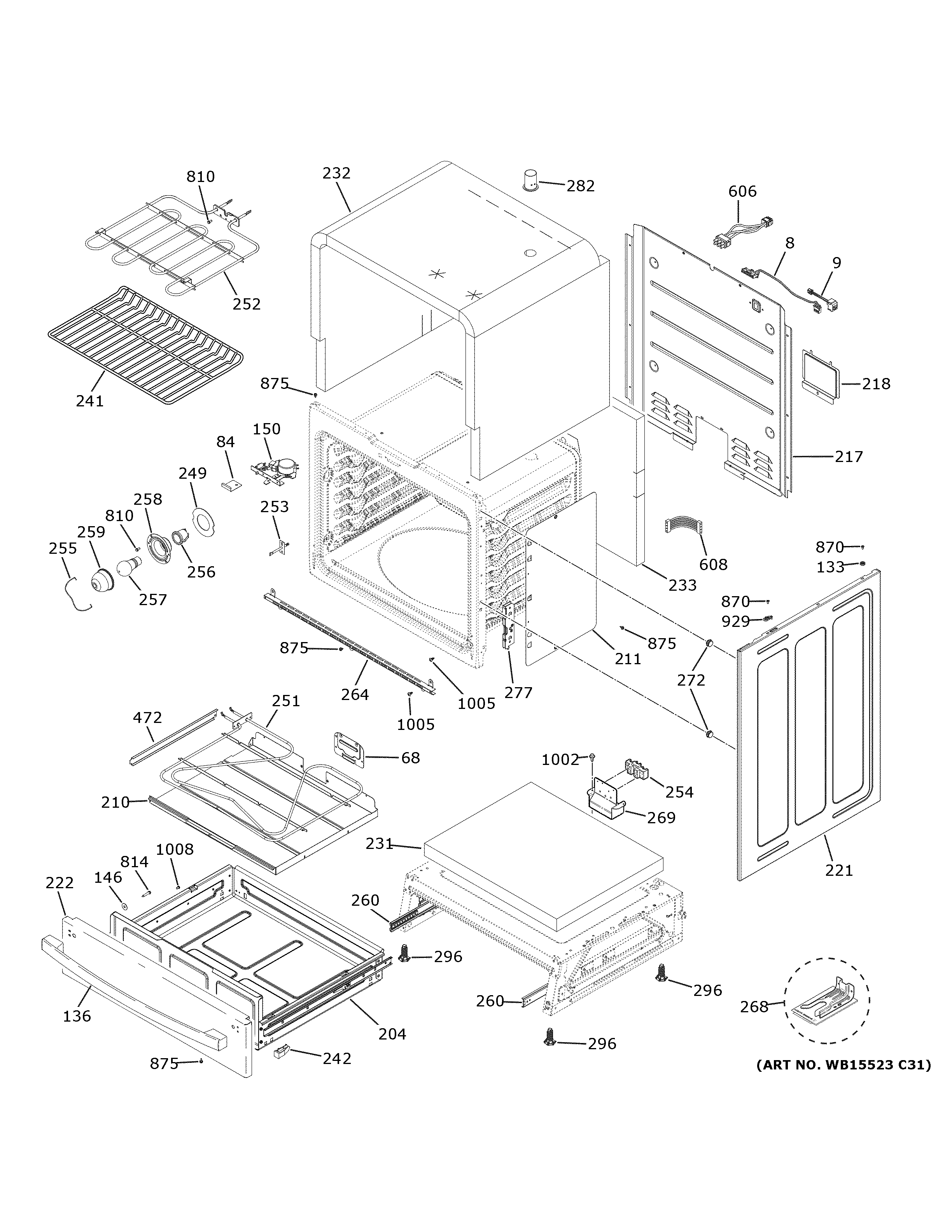

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Halogen Surface Element WB30T10130
#59

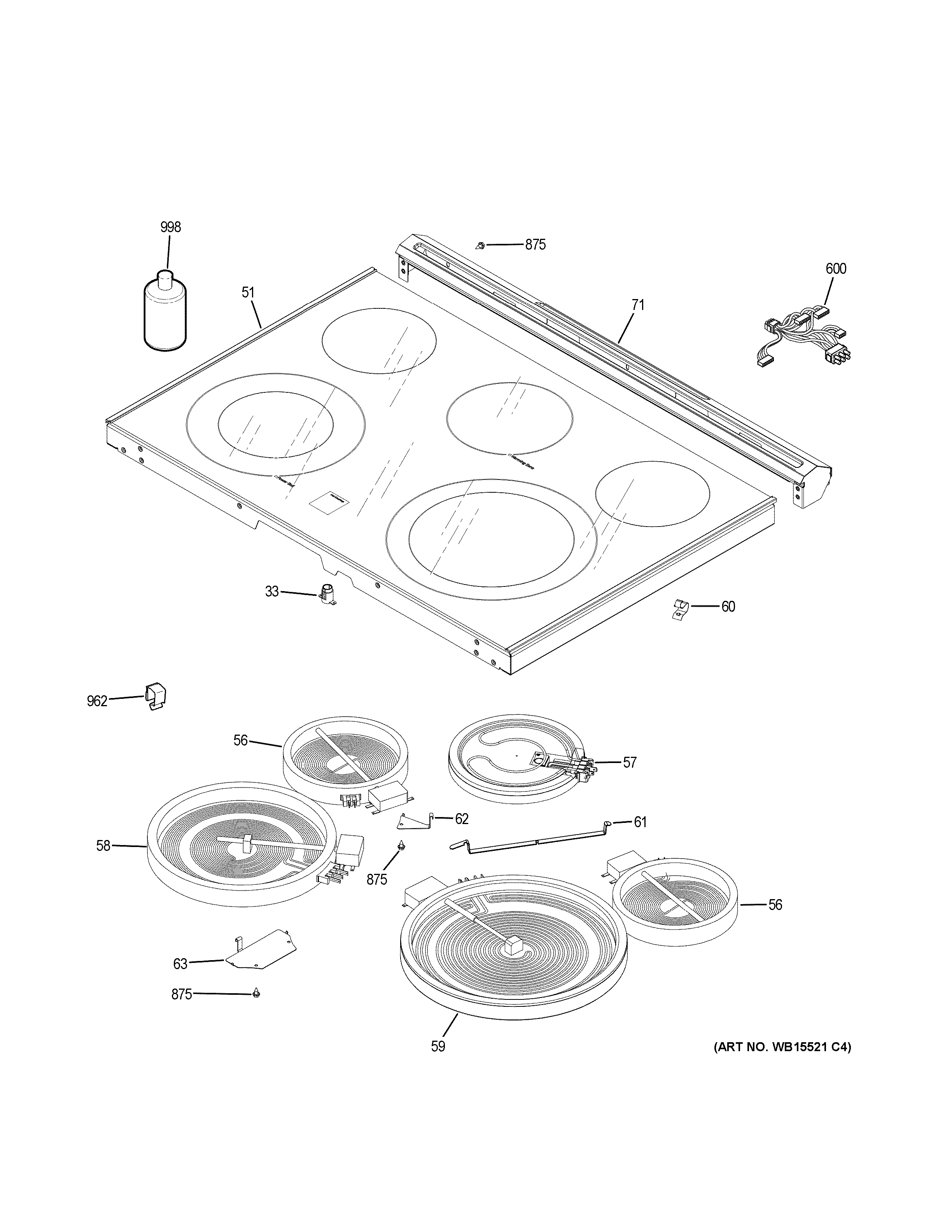

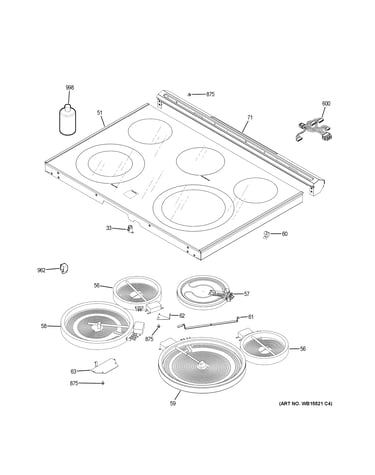

Cooktop diagram

Range halogen surface element

Part #WB30T10130

BEST SELLER
$133.06 |
8% OFF Phone Price : $145.06
In Stock
Kenmore Range Oven Temperature Sensor (replaces Wb21t10007) WB21X22134
#253

Body parts diagram

Kenmore range oven temperature sensor (replaces wb21t10007)

Part #WB21X22134

BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Cooling Fan Sensor Board (replaces Wb27t11451, Wb27x23614) WB27X28659
#599

Cooling fan diagram

Range cooling fan sensor board (replaces wb27t11451, wb27x23614)

Part #WB27X28659

BEST SELLER
This item is not returnable
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Range Control Panel Cooling Fan WB26X29468
#32

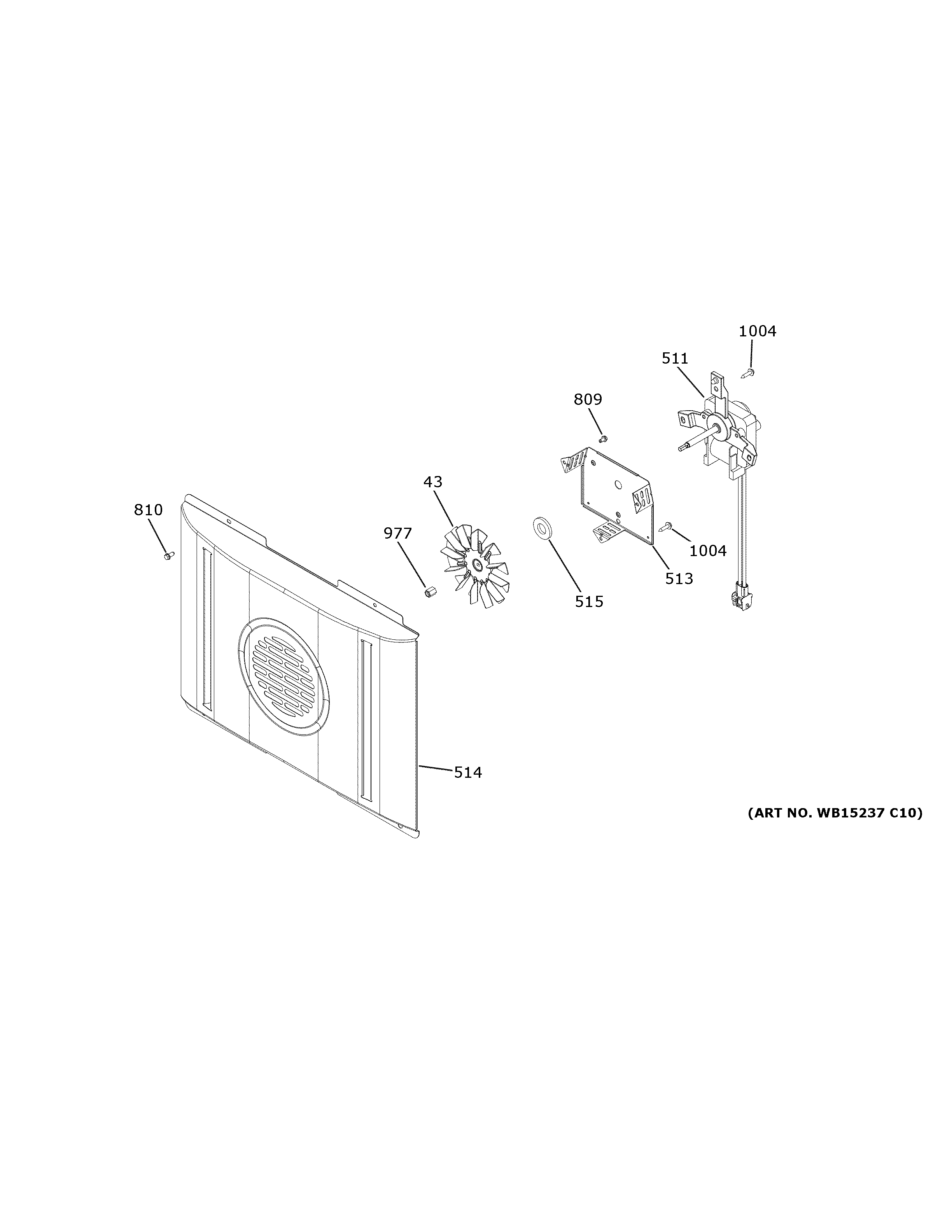

Cooling fan diagram

Range control panel cooling fan

Part #WB26X29468

BEST SELLER
$116.63 |
9% OFF Phone Price : $128.63
In Stock
Range Surface Element Control Switch, 1,500-watt WB24T10011
#19

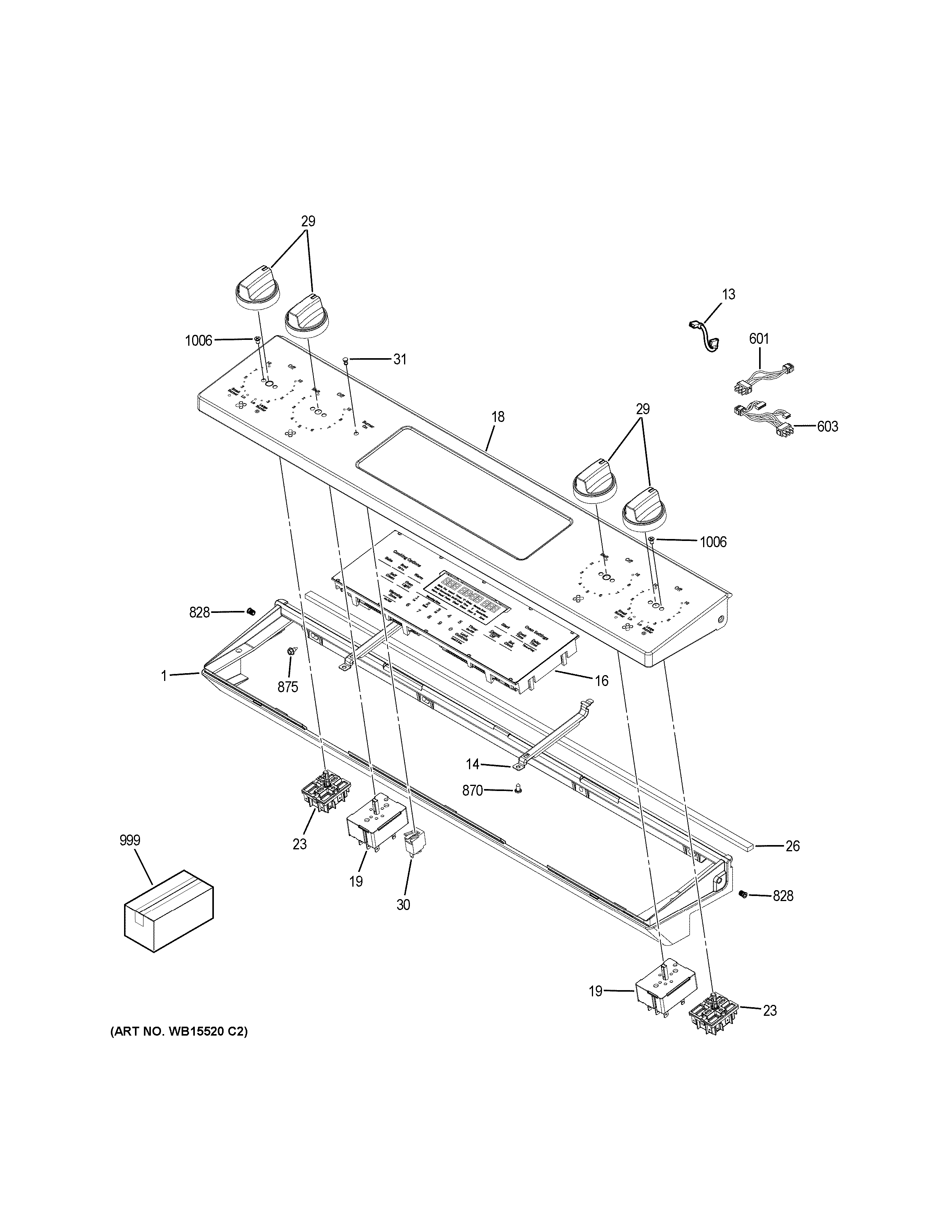

Control panel diagram

Range surface element control switch, 1,500-watt

Part #WB24T10011

BEST SELLER
$42.63 |
12% OFF Phone Price : $48.63
In Stock
Range Bake Element (replaces Wb44t10049) WB44T10104
#251

Body parts diagram

Range bake element (replaces wb44t10049)

Part #WB44T10104

Replaced by #WB44X45499

?
Manufacturer substitution
This part replaces WB44T10104. Substitute parts can look different from the original.
$63.11
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#256

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Lens WB25X24023
#31

Control panel diagram

Lens

Part #WB25X24023

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
