Model # KJ906LV3A Official Hotpoint room air conditioner

Here are the diagrams and repair parts for Official Hotpoint KJ906LV3A room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Screw WZ4X288

#724

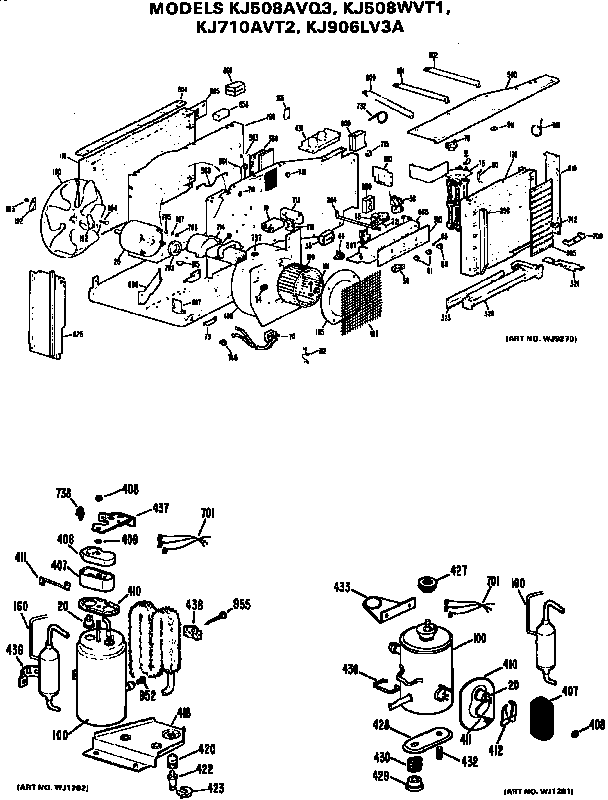

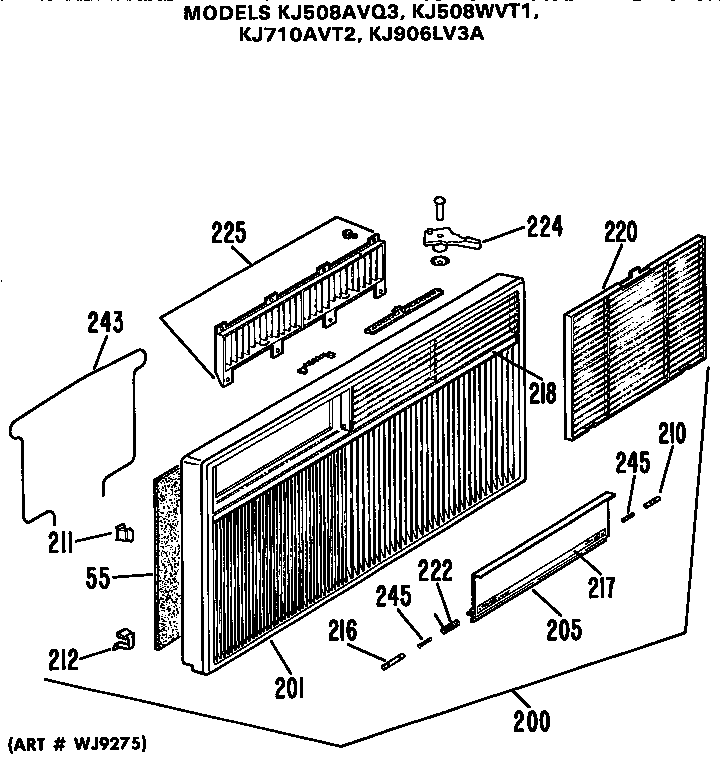

All parts diagram

Screw

Part #WZ4X288

This item is not returnable
$3.49
In Stock
Clamp WJ3X284

#181

All parts diagram

Clamp

Part #WJ3X284

This item is not returnable
$3.99
In Stock
Screw WZ5X153

#983

All parts diagram

Screw

Part #WZ5X153

This item is not returnable
$2.49
In Stock
Retaining Ring WJ2X281

#909

All parts diagram

Retaining ring

Part #WJ2X281

This item is not returnable
$2.29
In Stock
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Rear Grille WJ71X172

#300

All parts diagram

Rear grille

Part #WJ71X172

Replaced by #RAG13A

?
Manufacturer substitution
This part replaces WJ71X172. Substitute parts can look different from the original.
$37.79 |
14% OFF Phone Price : $43.79
In Stock
Gasket WJ43X333

#410

All parts diagram

Gasket

Part #WJ43X333

The manufacturer no longer makes this part, and there's no substitute part

Cord Power WJ35X104

#70

All parts diagram

Cord power

Part #WJ35X104

The manufacturer no longer makes this part, and there's no substitute part

Curtain Asrh WJ69X98

#340

All parts diagram

Curtain asrh

Part #WJ69X98

The manufacturer no longer makes this part, and there's no substitute part

Bracket WJ65X267

#807

All parts diagram

Bracket

Part #WJ65X267

The manufacturer no longer makes this part, and there's no substitute part
