Kenmore
Compact Refrigerator

Model # 56462912700 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 56462912700 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Sanyo Wine Cooler Power Cord 301744
#35

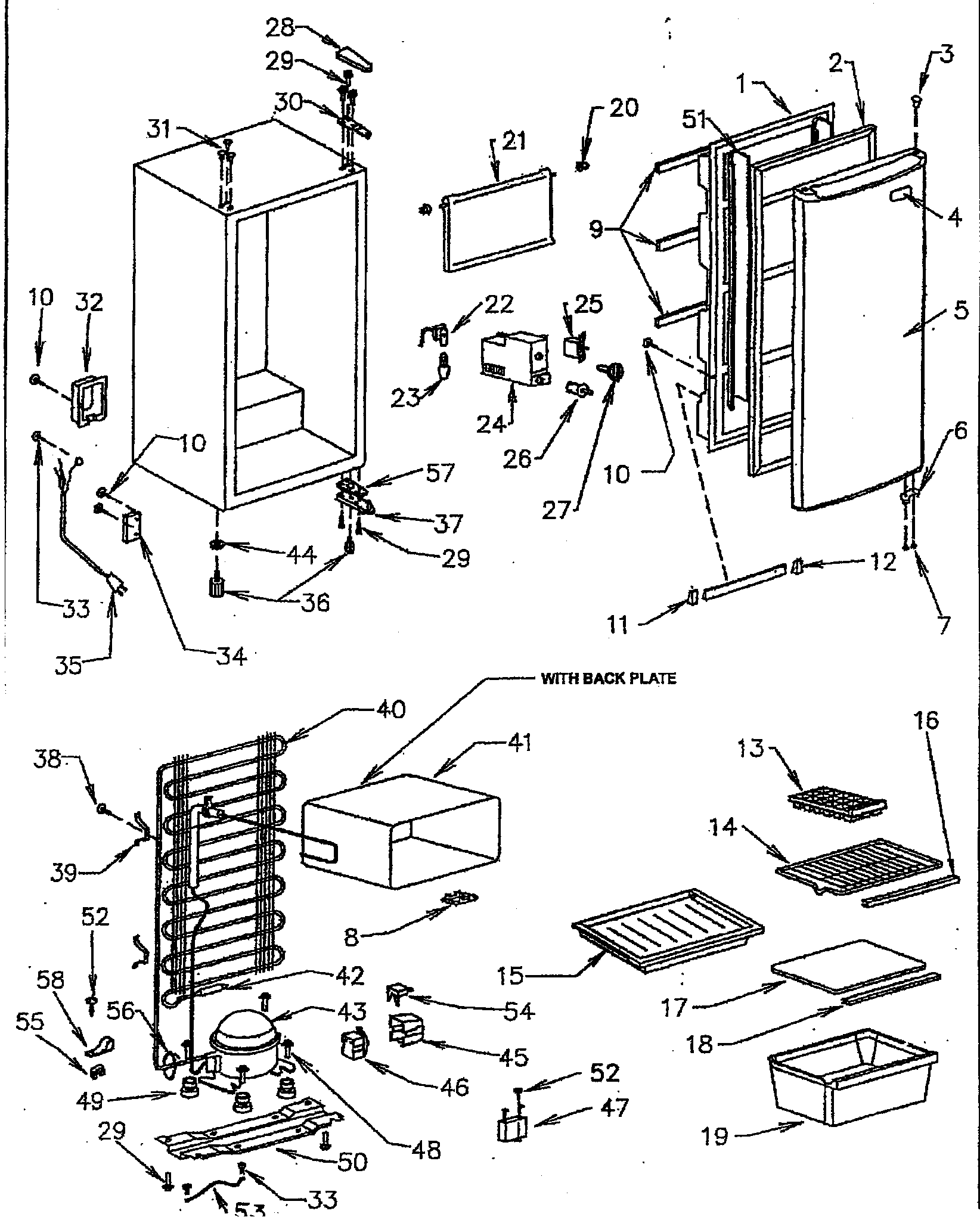

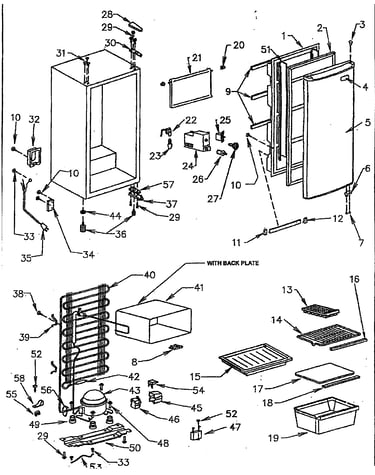

Refrigerator diagram

Sanyo wine cooler power cord

Part #301744

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 300308
#10

Refrigerator diagram

Refrigerator screw

Part #300308

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Hole Plug (white) 302388
#3

Refrigerator diagram

Refrigerator door hole plug (white)

Part #302388

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Elite Freezer Temperature Control Knob 302175
#27

Refrigerator diagram

Kenmore elite freezer temperature control knob

Part #302175

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Leveling Leg 300885
#36

Refrigerator diagram

Refrigerator leveling leg

Part #300885

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Run Capacitor 302759
#47

Refrigerator diagram

Refrigerator run capacitor

Part #302759

The manufacturer no longer makes this part, and there's no substitute part

Wine Cooler Leveling Leg Washer (steel) 302509
#NI

Refrigerator diagram

Wine cooler leveling leg washer (steel)

Part #302509

The manufacturer no longer makes this part, and there's no substitute part

Sanyo Refrigerator Door Stop 300864
#6

Refrigerator diagram

Sanyo refrigerator door stop

Part #300864

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Elite Wine Cooler Door Hinge Screw 302009
#29

Refrigerator diagram

Kenmore elite wine cooler door hinge screw

Part #302009

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Switch 302192
#26

Refrigerator diagram

Refrigerator switch

Part #302192

The manufacturer no longer makes this part, and there's no substitute part
