Whirlpool
Top-Mount Refrigerator

Model # ET25DQRDW01 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool ET25DQRDW01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

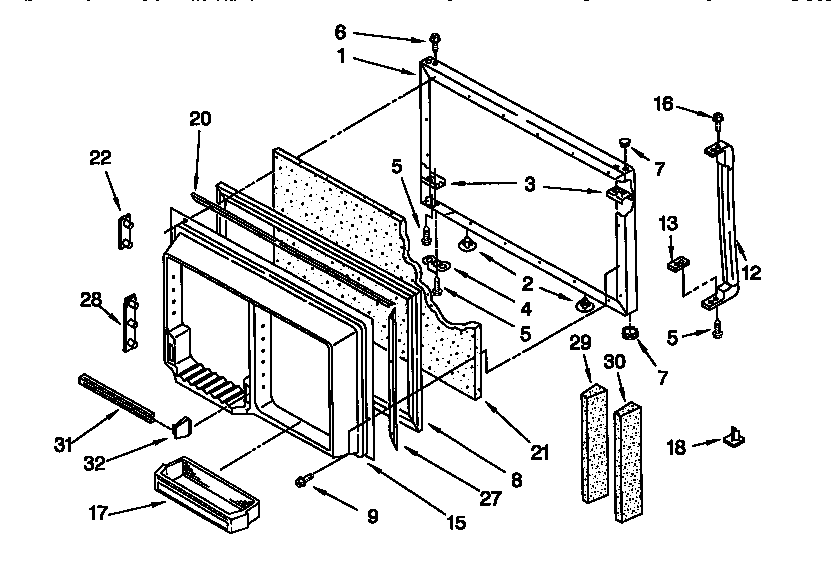

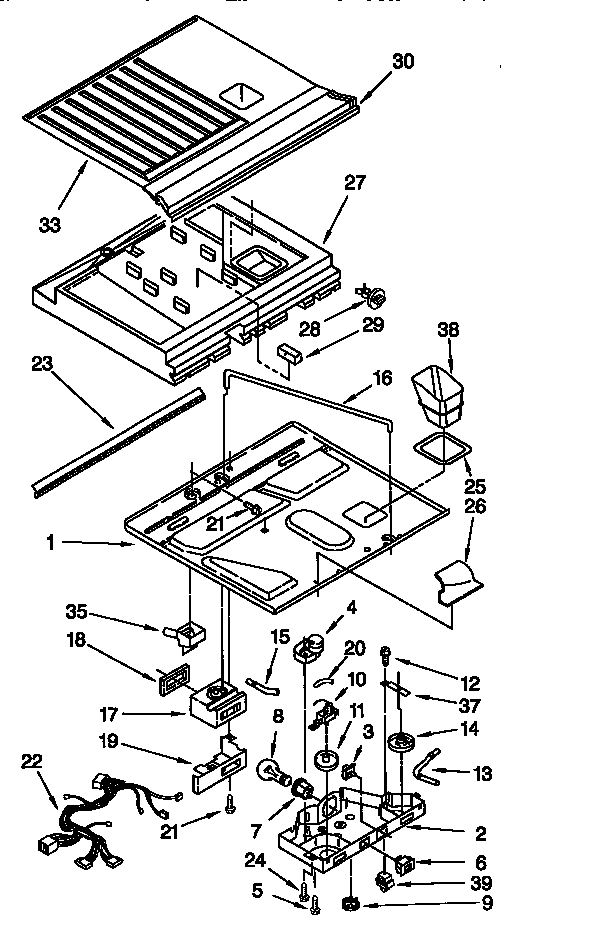

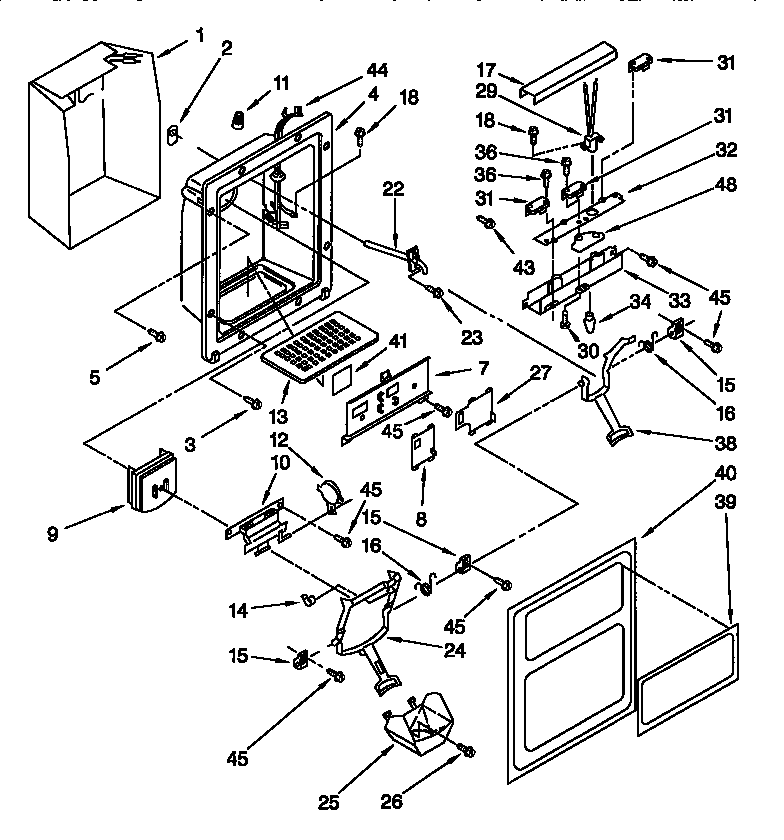

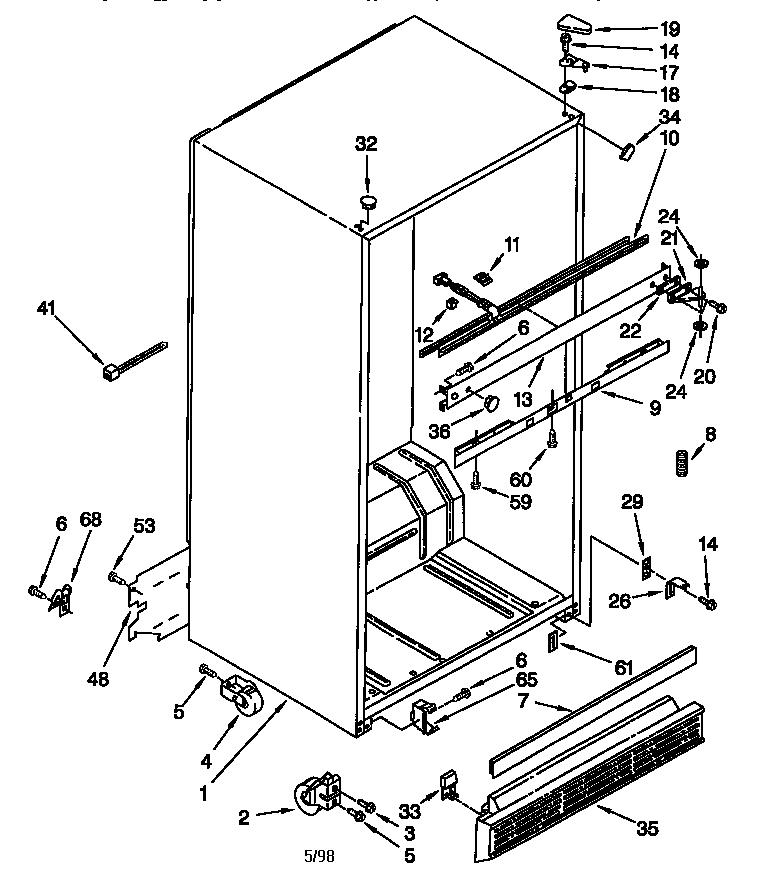

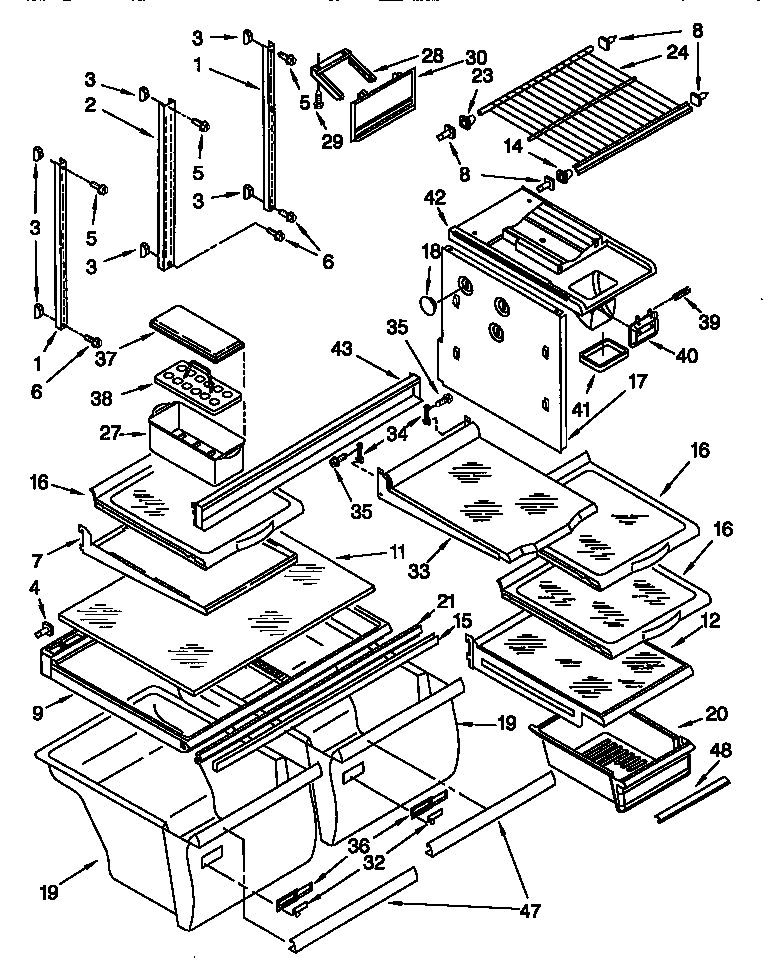

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 420 parts  |
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

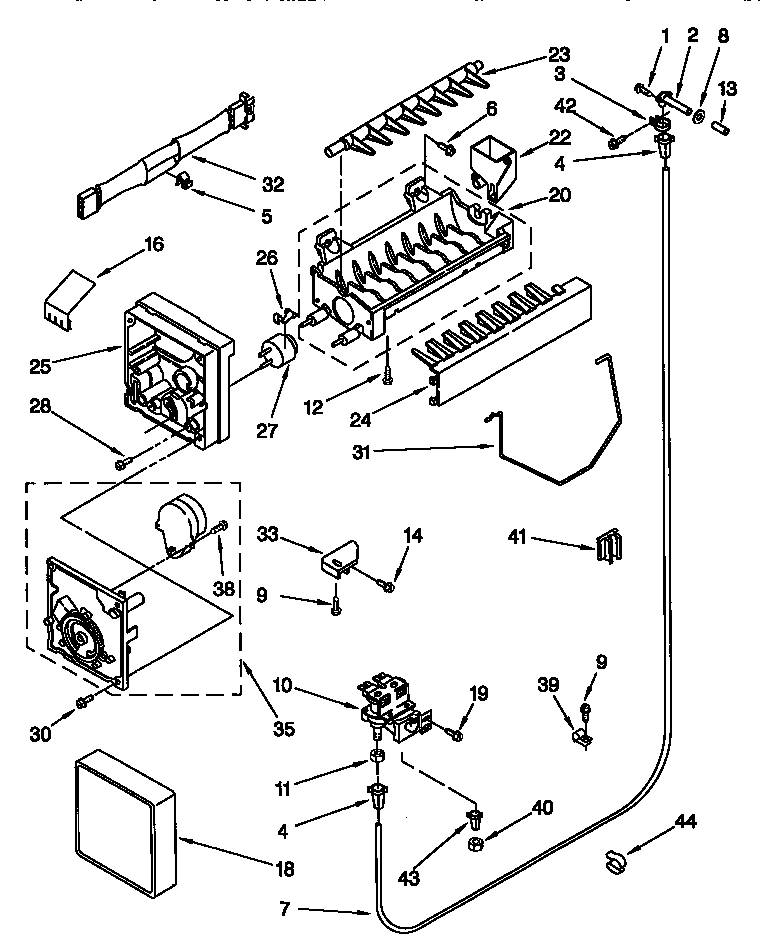

Icemaker diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$96.71 |
11% OFF Phone Price : $108.71
In Stock
Drier Tube 2174865
#27

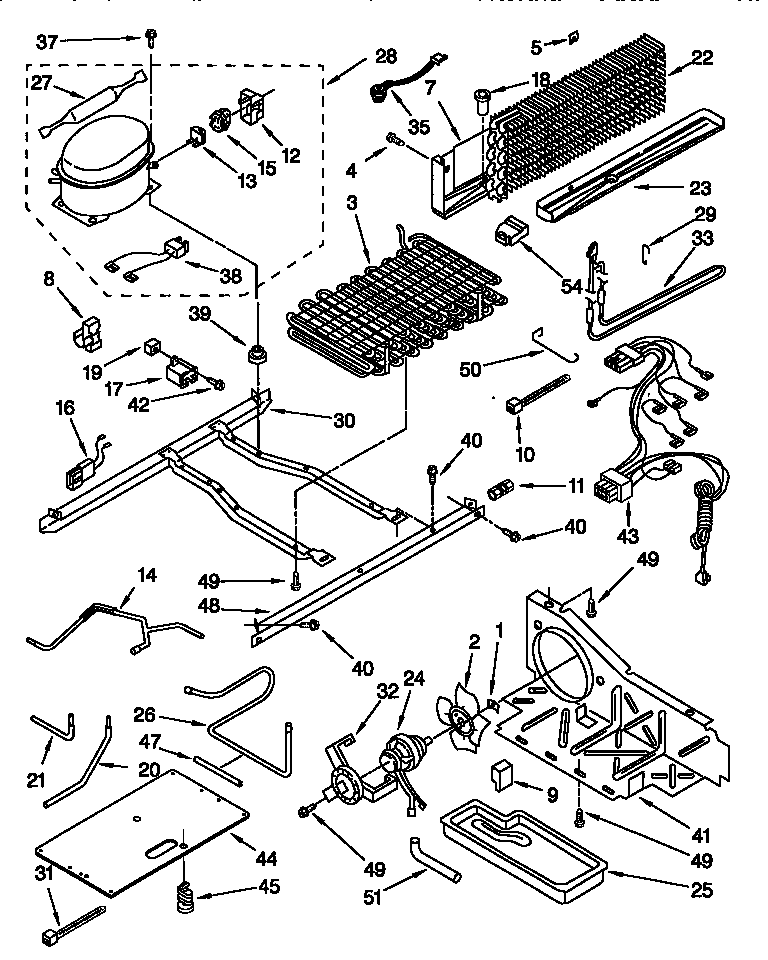

Unit diagram

Drier tube

Part #2174865

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2174865. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Compressor 2169443
#28

Unit diagram

Refrigerator compressor

Part #2169443

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 2169443. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Refrigerator Water Tube 1119096
#7

Icemaker diagram

Refrigerator water tube

Part #1119096

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 1119096. Substitute parts can look different from the original.
BEST SELLER
$32.60 |
16% OFF Phone Price : $38.60
In Stock
Refrigerator Tube 653200
#34

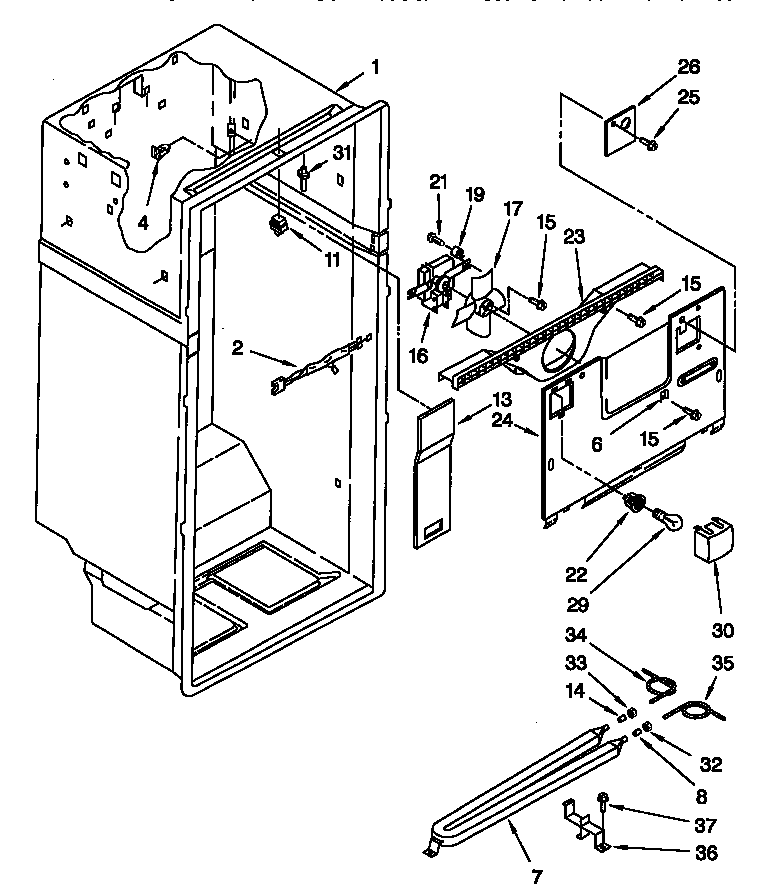

Liner diagram

Refrigerator tube

Part #653200

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 653200. Substitute parts can look different from the original.
BEST SELLER
$32.60 |
16% OFF Phone Price : $38.60
In Stock
Refrigerator Inlet Valve 2181706
#10

Icemaker diagram

Refrigerator inlet valve

Part #2181706

Replaced by #W10853654

?
Manufacturer substitution
This part replaces 2181706. Substitute parts can look different from the original.
BEST SELLER
$82.22 |
7% OFF Phone Price : $88.22
In Stock
Refrigerator Coupling 983663
#9

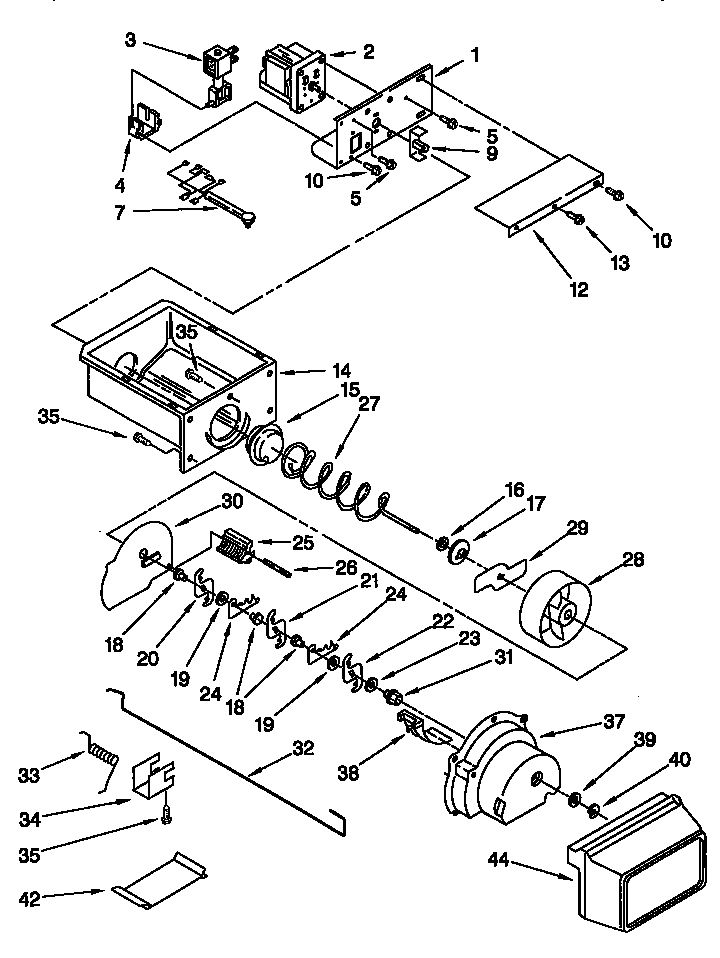

Motor and ice container diagram

Refrigerator coupling

Part #983663

Replaced by #WPW10169511

?
Manufacturer substitution
This part replaces 983663. Substitute parts can look different from the original.
BEST SELLER
$17.03 |
11% OFF Phone Price : $19.03
In Stock
Refrigerator Freeer Door Switch 1115373
#11

Liner diagram

Refrigerator freeer door switch

Part #1115373

Replaced by #W11457217

?
Manufacturer substitution
This part replaces 1115373. Substitute parts can look different from the original.
BEST SELLER
$24.79 |
19% OFF Phone Price : $30.79
In Stock
Refrigerator Arm 2171593
#31

Icemaker diagram

Refrigerator arm

Part #2171593

Replaced by #W11342242

?
Manufacturer substitution
This part replaces 2171593. Substitute parts can look different from the original.
BEST SELLER
$34.31 |
15% OFF Phone Price : $40.31
In Stock
Screw 487909
#17

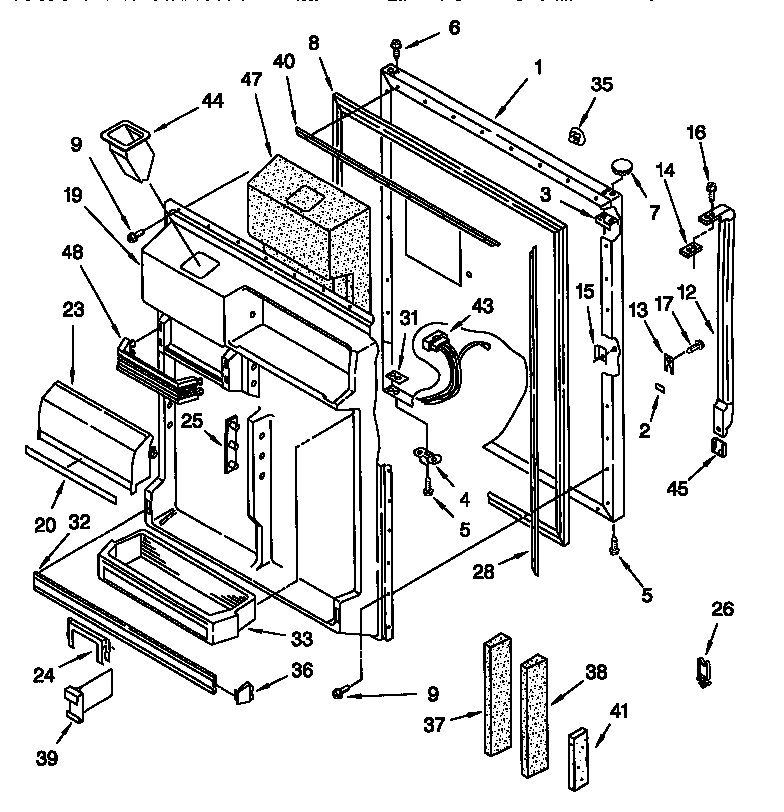

Refrigerator door diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
