Walk-Behind Mower

Model # 536798601 Official Craftsman 26" lawn valet

Here are the diagrams and repair parts for Official Craftsman 536798601 26" lawn valet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Knob (black) 39276
Knob (black)

Part #39276

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 39276. Substitute parts can look different from the original.
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Screw 122077
#4

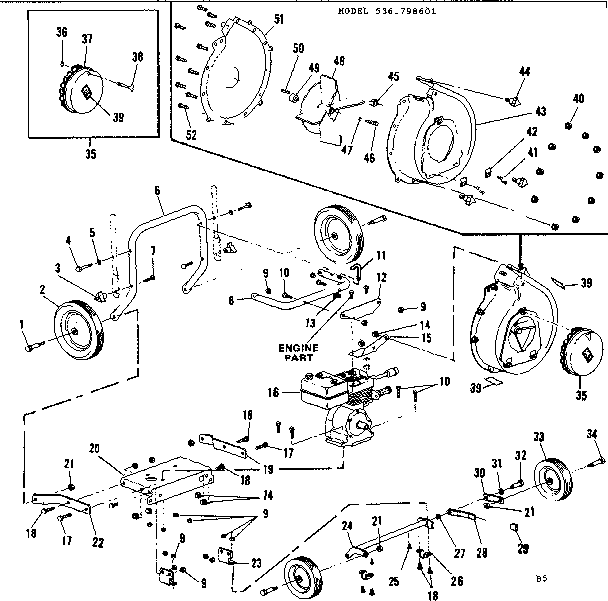

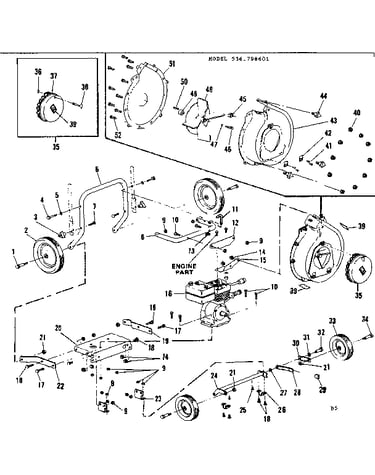

Impeller and wheel assembly diagram

Screw

Part #122077

Replaced by #703868

?
Manufacturer substitution
This part replaces 122077. Substitute parts can look different from the original.
This item is not returnable
$8.69
In Stock
Knob 20252
Knob

Part #20252

Replaced by #20252MA

?
Manufacturer substitution
This part replaces 20252. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Washer 8728
#5

Impeller and wheel assembly diagram

Washer

Part #8728

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
$9.34
In Stock
Spring 25644
#3

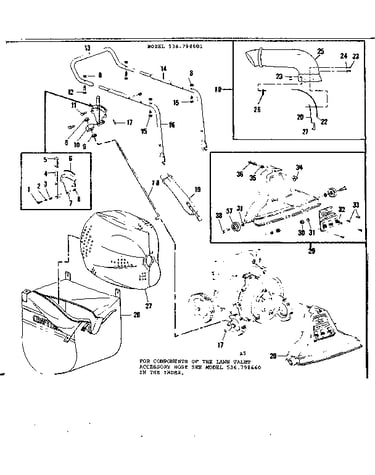

Bag and handle assembly diagram

Spring

Part #25644

Replaced by #25644MA

?
Manufacturer substitution
This part replaces 25644. Substitute parts can look different from the original.
$7.60
In Stock
Hex Nut 271166
#13

Impeller and wheel assembly diagram

Hex nut

Part #271166

Replaced by #308459MA

?
Manufacturer substitution
This part replaces 271166. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
Safety Plate 40767
#22

Bag and handle assembly diagram

Safety plate

Part #40767

The manufacturer no longer makes this part, and there's no substitute part

Impeller Grade Assembly 40915
#35

Impeller and wheel assembly diagram

Impeller grade assembly

Part #40915

The manufacturer no longer makes this part, and there's no substitute part

Plate 39867
#26

Bag and handle assembly diagram

Plate

Part #39867

The manufacturer no longer makes this part, and there's no substitute part

Quadrant 39898
#7

Bag and handle assembly diagram

Quadrant

Part #39898

The manufacturer no longer makes this part, and there's no substitute part
