Model # 465630003 Official Thermos gas grill
Here are the diagrams and repair parts for Official Thermos 465630003 gas grill, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
465630003 Outdoor Grills
#28

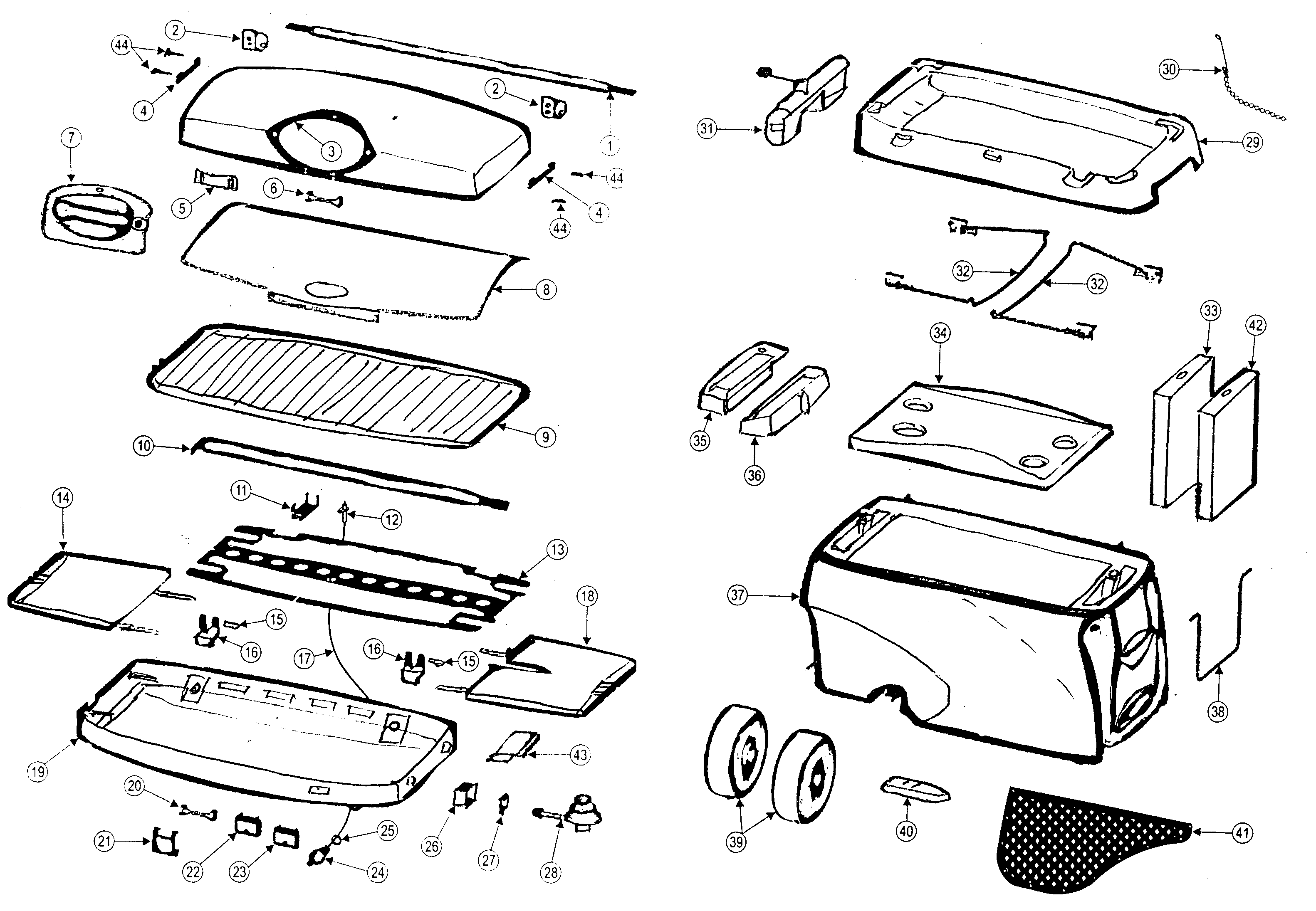

Cabinet parts diagram
Regulator
Part #696047031200
The manufacturer no longer makes this part, and there's no substitute part
#13
Cabinet parts diagram
Lower heat shield
Part #216047023200
The manufacturer no longer makes this part, and there's no substitute part
#25
Cabinet parts diagram
Ignitor nut
Part #439000005000
The manufacturer no longer makes this part, and there's no substitute part
#39
Cabinet parts diagram
Wheel
Part #696048011200
The manufacturer no longer makes this part, and there's no substitute part
#8
Cabinet parts diagram
Up heat shield
Part #216047082200
The manufacturer no longer makes this part, and there's no substitute part
#29
Cabinet parts diagram
Plinth
Part #696048001200
The manufacturer no longer makes this part, and there's no substitute part
#1
Cabinet parts diagram
Torsion bar
Part #216047009200
The manufacturer no longer makes this part, and there's no substitute part
#5
Cabinet parts diagram
Center lid spacer
Part #136047399200
The manufacturer no longer makes this part, and there's no substitute part
#24
Cabinet parts diagram
Igniter
Part #696047014200
The manufacturer no longer makes this part, and there's no substitute part
#26
Cabinet parts diagram
Venturi guard
Part #216047024200
The manufacturer no longer makes this part, and there's no substitute part
Symptoms for gas grills
Choose a symptom to see related gas grill repairs.
Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…
Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…
Main cause: worn wheel…
Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…
Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…
Repair guides for gas grills
These step-by-step repair guides will help you safely fix what’s broken on your gas grill.
How to replace a gas grill wheel
Replace a broken or damaged wheel in less than 15 minutes.…
Repair difficulty
Time required
15 minutes or less
How to replace a gas grill igniter electrode
Replace the igniter electrode on your gas grill if it won’t light the burner.…
Repair difficulty
Time required
15 minutes or less
How to replace a gas grill ignition module
Follow these steps to replace the ignition module if it doesn't produce a spark. …
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your outdoor grills
Use the advice and tips in these articles and videos to get the most out of your gas grill.
Learn about the main parts of gas grills and get DIY tips for replacing gas grill parts.…
