Model # 6527 TYPE B Official Milwaukee super sawzall

Here are the diagrams and repair parts for Official Milwaukee 6527-TYPE-B super sawzall, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

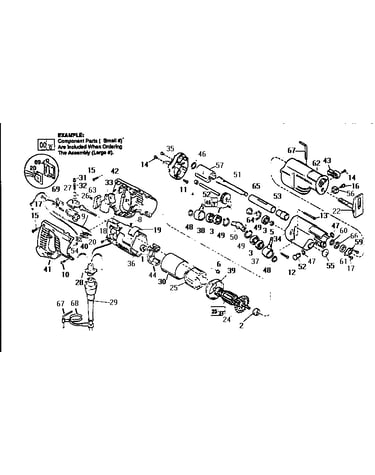

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Ball Bearing 02-04-1510
#3

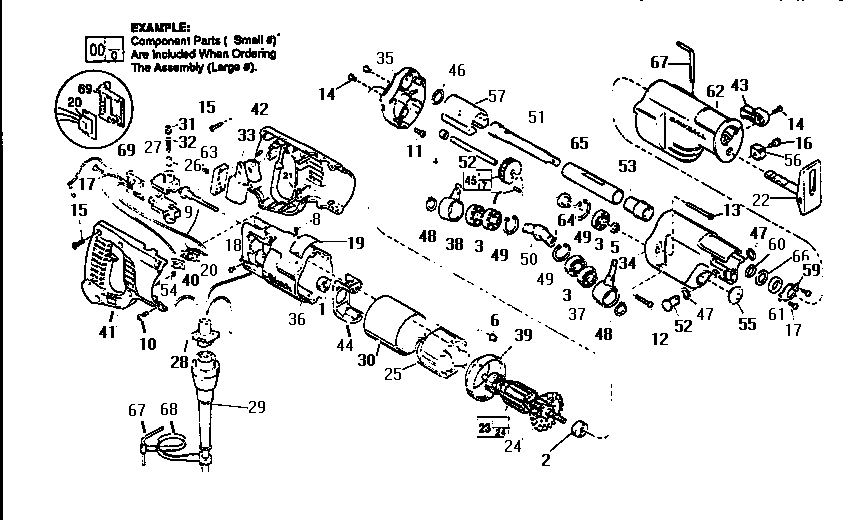

Unit parts diagram

Ball bearing

Part #02-04-1510

The manufacturer no longer makes this part, and there's no substitute part

Switch 23-66-1490
#33

Unit parts diagram

Switch

Part #23-66-1490

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-95-0075
#17

Unit parts diagram

Screw

Part #06-95-0075

The manufacturer no longer makes this part, and there's no substitute part

Holder 22-22-1380
#27

Unit parts diagram

Holder

Part #22-22-1380

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 12-99-0520
#19

Unit parts diagram

Nameplate

Part #12-99-0520

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-95-5150
#18

Unit parts diagram

Screw

Part #06-95-5150

The manufacturer no longer makes this part, and there's no substitute part

Wrench 49-96-0090
#67

Unit parts diagram

Wrench

Part #49-96-0090

The manufacturer no longer makes this part, and there's no substitute part

1-1/4 Oz. Type "g" Grease No. 49-08-4140, In Grease Cavity. 1-1/2 Oz. Type 'b" Grease, No. 49-08-0600, To Build Up Wall Of Grease Around Grease Cavity. N/P
#7

Unit parts diagram

1-1/4 oz. type "g" grease no. 49-08-4140, in grease cavity. 1-1/2 oz. type 'b" grease, no. 49-08-0600, to build up wall of grease around grease cavity.

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-82-5502
#13

Unit parts diagram

Screw

Part #06-82-5502

The manufacturer no longer makes this part, and there's no substitute part

Insulator 23-16-0456
#30

Unit parts diagram

Insulator

Part #23-16-0456

The manufacturer no longer makes this part, and there's no substitute part
