Amana
Countertop Microwave

Model # SA1430.000 Official Amana microwave

Here are the diagrams and repair parts for Official Amana SA1430000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

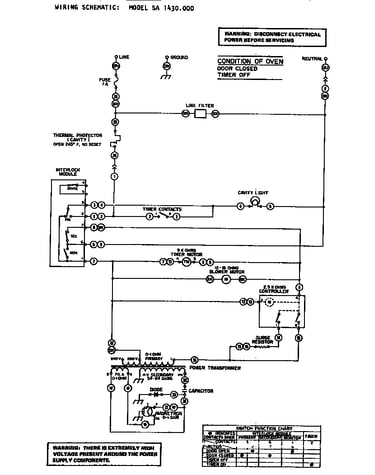

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |

Hinge Assemble, Lower (.000, .003, .004, .a, .b) M8D249
#36A

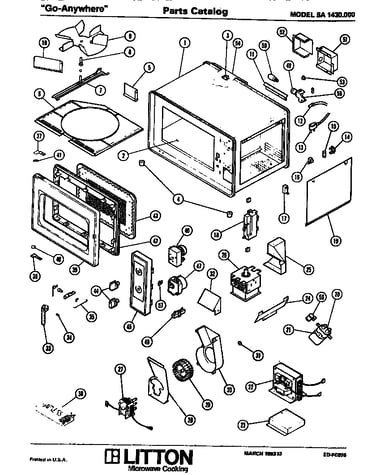

Replacement parts diagram

Hinge assemble, lower (.000, .003, .004, .a, .b)

Part #M8D249

The manufacturer no longer makes this part, and there's no substitute part

Inerlock Switch Module M14D253
#18A

Replacement parts diagram

Inerlock switch module

Part #M14D253

The manufacturer no longer makes this part, and there's no substitute part

Fuse (7 Amp, Type Abc) M4D99
#15

Replacement parts diagram

Fuse (7 amp, type abc)

Part #M4D99

The manufacturer no longer makes this part, and there's no substitute part

Magnetron M57D35
#26A

Replacement parts diagram

Magnetron

Part #M57D35

The manufacturer no longer makes this part, and there's no substitute part

Insert, Stirrer M2D571
#8

Replacement parts diagram

Insert, stirrer

Part #M2D571

The manufacturer no longer makes this part, and there's no substitute part

Door Hook Kit M2D582
#35

Replacement parts diagram

Door hook kit

Part #M2D582

The manufacturer no longer makes this part, and there's no substitute part

H.v. Lead M5D216
#38B

Replacement parts diagram

H.v. lead

Part #M5D216

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Motor M12D80
#27A

Replacement parts diagram

Microwave blower motor

Part #M12D80

The manufacturer no longer makes this part, and there's no substitute part

Shelf M50D39
#2A

Replacement parts diagram

Shelf

Part #M50D39

The manufacturer no longer makes this part, and there's no substitute part

Nut M1D84
#13E

Replacement parts diagram

Nut

Part #M1D84

The manufacturer no longer makes this part, and there's no substitute part
