Model # 48624320 Official Craftsman poly convertible cart

Here are the diagrams and repair parts for Official Craftsman 48624320 poly convertible cart, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#25

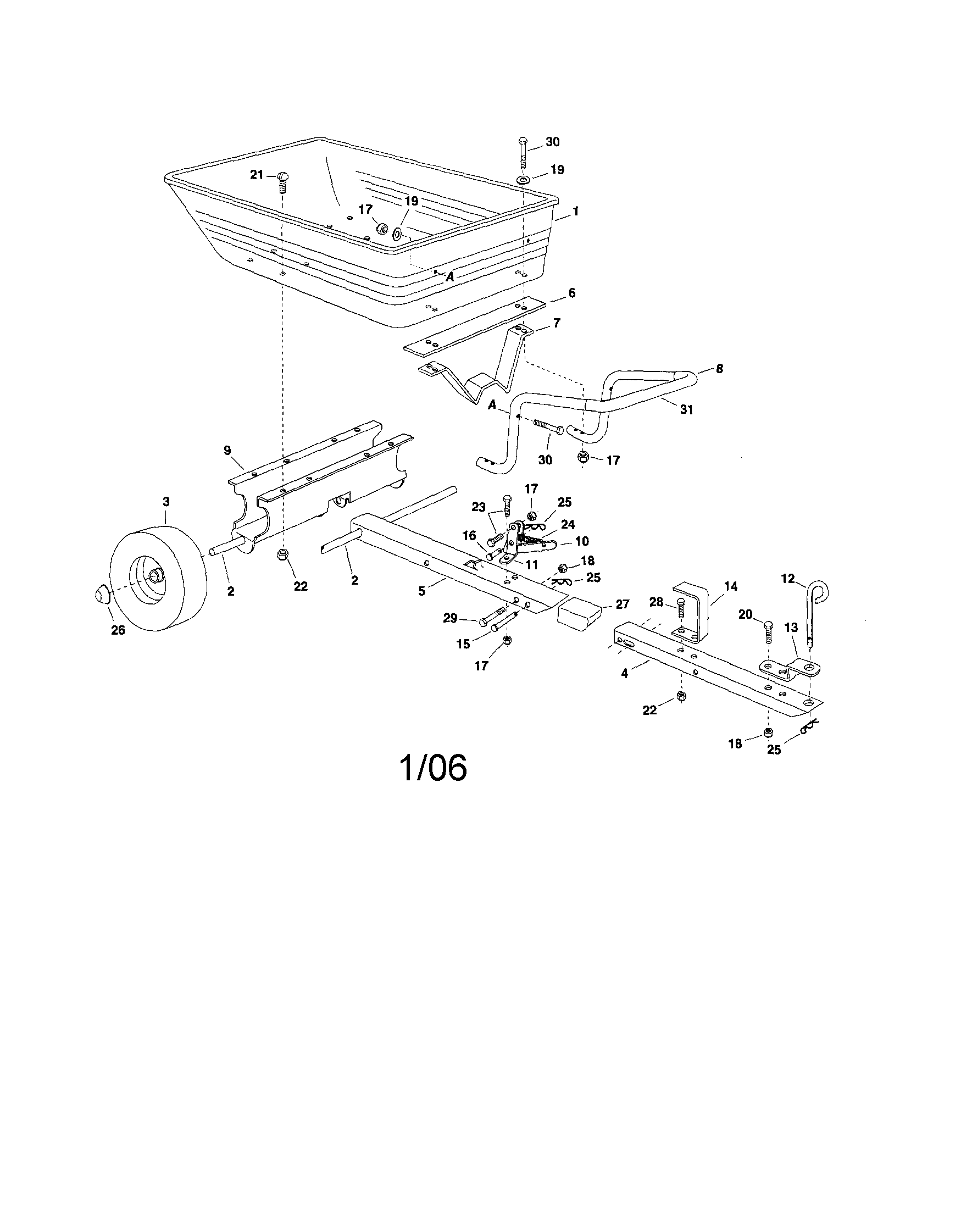

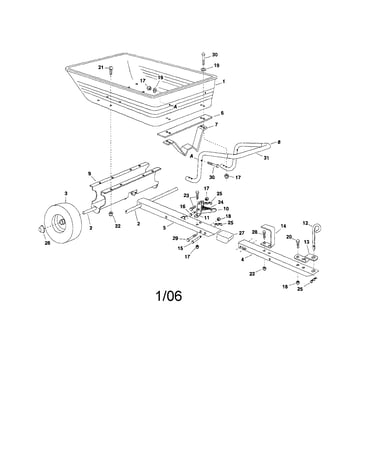

Convertible cart diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
$2.16
Back Order
Lawn & Garden Equipment Nut 47189
#17

Convertible cart diagram

Lawn & garden equipment nut

Part #47189

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Hitch Pin (replaces Af-23353) 23353
#12

Convertible cart diagram

Lawn tractor lawn sweeper attachment hitch pin (replaces af-23353)

Part #23353

This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Hub Cap 48499
#26

Convertible cart diagram

Hub cap

Part #48499

Replaced by #48499B

?
Manufacturer substitution
This part replaces 48499. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Tow Bar Attachment Hitch Bracket 23014
#13

Convertible cart diagram

Lawn tractor tow bar attachment hitch bracket

Part #23014

Replaced by #23014BL1

?
Manufacturer substitution
This part replaces 23014. Substitute parts can look different from the original.
This item is not returnable
$15.80 |
11% OFF Phone Price : $17.80
Back Order
Lawn Tractor Attachment Bolt, 5/16-18 X 1-in 43063
#28

Convertible cart diagram

Lawn tractor attachment bolt, 5/16-18 x 1-in

Part #43063

This item is not returnable
$2.16
In Stock
Lawn Tractor Lawn Vacuum Attachment Wheel Axle 24908
#2

Convertible cart diagram

Lawn tractor lawn vacuum attachment wheel axle

Part #24908

This item is not returnable
$13.22
Back Order
Lawn Tractor Dump Cart Attachment Latch Lock 62020
#10

Convertible cart diagram

Lawn tractor dump cart attachment latch lock

Part #62020

Replaced by #62020BL1

?
Manufacturer substitution
This part replaces 62020. Substitute parts can look different from the original.
$18.15
In Stock
Lawn Tractor Dump Cart Attachment Handle 48834
#8

Convertible cart diagram

Lawn tractor dump cart attachment handle

Part #48834

Replaced by #48834BL3

?
Manufacturer substitution
This part replaces 48834. Substitute parts can look different from the original.
$39.78
In Stock
Lawn Tractor Dump Cart Attachment Latch Bracket 23470
#11

Convertible cart diagram

Lawn tractor dump cart attachment latch bracket

Part #23470

Replaced by #23470BL1

?
Manufacturer substitution
This part replaces 23470. Substitute parts can look different from the original.
$7.69 |
12% OFF Phone Price : $8.69
In Stock
