Kenmore
Canister Vacuum

Model # 1165591290 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 1165591290 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Gasket 747156
#49

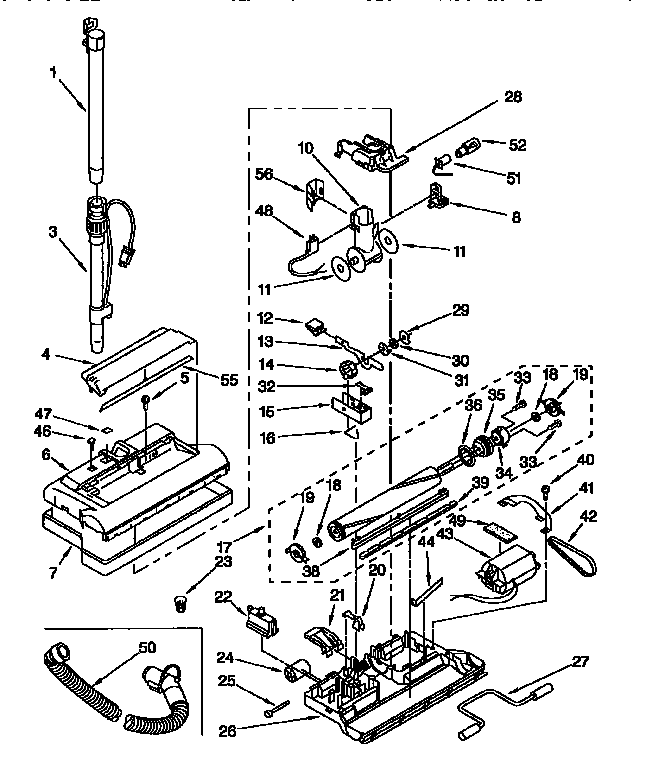

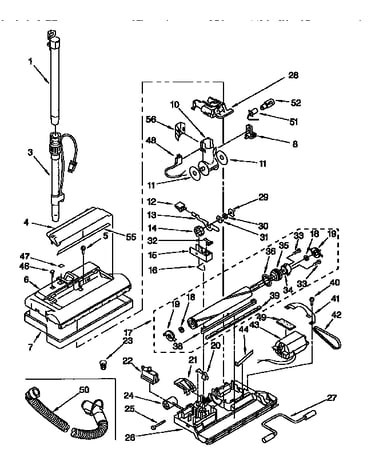

Power mate diagram

Gasket

Part #747156

The manufacturer no longer makes this part, and there's no substitute part

Roller Shaft 742006
#25

Power mate diagram

Roller shaft

Part #742006

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4156162
#10

Power mate diagram

Swivel

Part #4156162

The manufacturer no longer makes this part, and there's no substitute part

Washer, 12 X 5 681424
#18

Power mate diagram

Washer, 12 x 5

Part #681424

The manufacturer no longer makes this part, and there's no substitute part

Bridge 705093
#41

Power mate diagram

Bridge

Part #705093

The manufacturer no longer makes this part, and there's no substitute part

Indicator Cam 747291
#14

Power mate diagram

Indicator cam

Part #747291

The manufacturer no longer makes this part, and there's no substitute part

Bulb Socket 747096
#51

Power mate diagram

Bulb socket

Part #747096

The manufacturer no longer makes this part, and there's no substitute part

Sprocket (black) 742506
#35

Power mate diagram

Sprocket (black)

Part #742506

The manufacturer no longer makes this part, and there's no substitute part

Extension Button 4155355
#46

Power mate diagram

Extension button

Part #4155355

The manufacturer no longer makes this part, and there's no substitute part

Bumper 4155587
#7

Power mate diagram

Bumper

Part #4155587

The manufacturer no longer makes this part, and there's no substitute part
