Model # 13953325 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 13953325 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

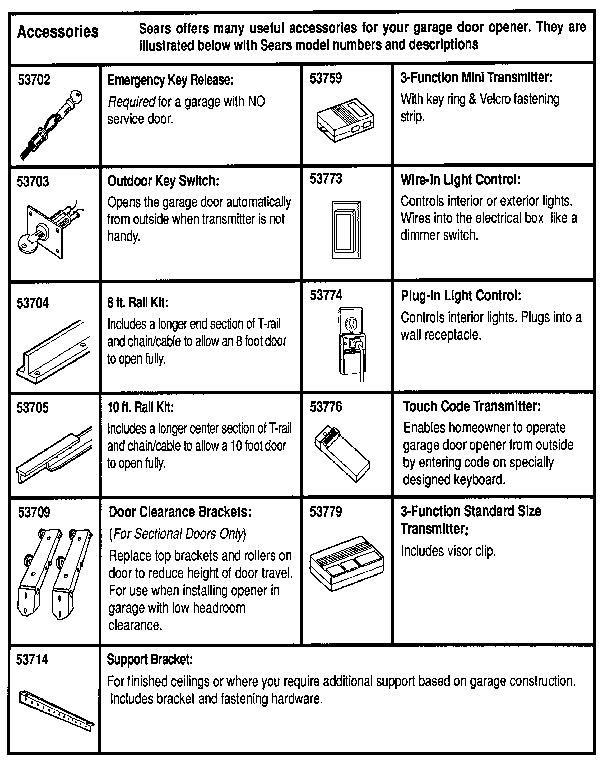

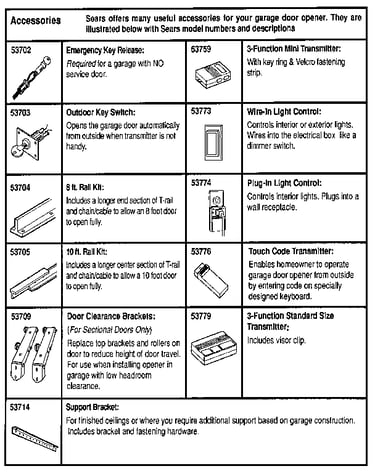

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 45 parts |

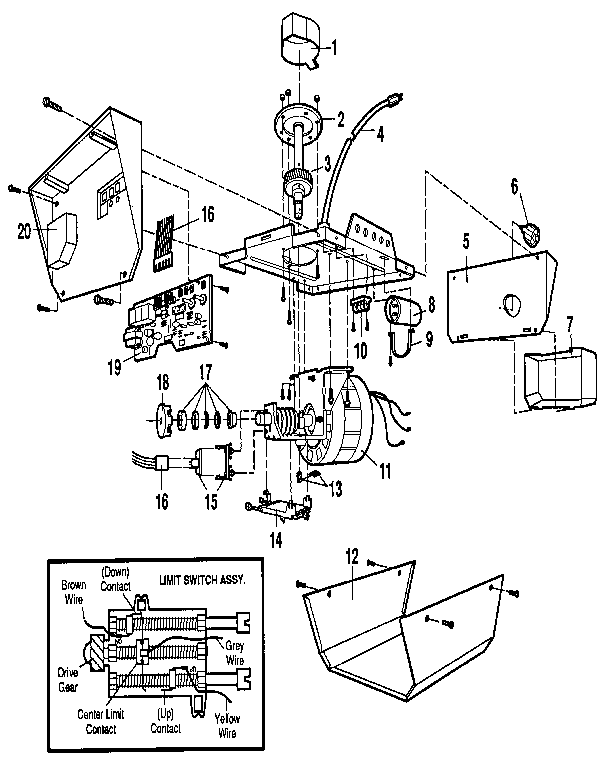

Chassis assembly diagram

Garage door opener drive and worm gear kit (replaces 3002375, 65409)

Part #41A2817

The manufacturer no longer makes this part, and there's no substitute part

Rail assembly diagram

Garage door opener chain and cable assembly (replaces 65410)

Part #41A3473

The manufacturer no longer makes this part, and there's no substitute part

#14

Chassis assembly diagram

Garage door opener limit switch

Part #41D3452

The manufacturer no longer makes this part, and there's no substitute part

#15

Chassis assembly diagram

Rpm assy

Part #41C3005

The manufacturer no longer makes this part, and there's no substitute part

Chassis assembly diagram

Light lens

Part #108D46

The manufacturer no longer makes this part, and there's no substitute part

Chassis assembly diagram

Garage door opener sprocket cover

Part #31D380

The manufacturer no longer makes this part, and there's no substitute part

Installation diagram

Garage door opener emergency release rope and handle

Part #41A2828

The manufacturer no longer makes this part, and there's no substitute part

Chassis assembly diagram

Light socket

Part #175B88

The manufacturer no longer makes this part, and there's no substitute part

#13

Installation diagram

Repair kit

Part #41A4373

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Hanging Bracket 12B350

#12

Installation diagram

Garage door opener hanging bracket

Part #12B350

The manufacturer no longer makes this part, and there's no substitute part
