Frigidaire
Electric Wall Oven

Model # FEB500CEBF Official Frigidaire electric wall oven

Here are the diagrams and repair parts for Official Frigidaire FEB500CEBF electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

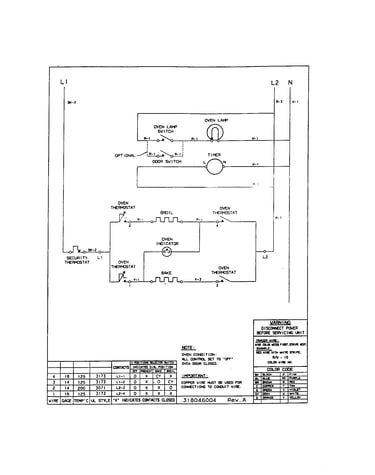

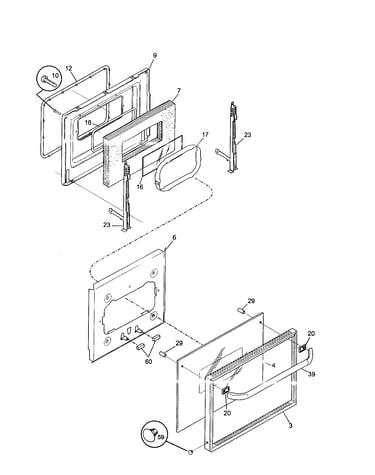

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Bulb 3201908
#15

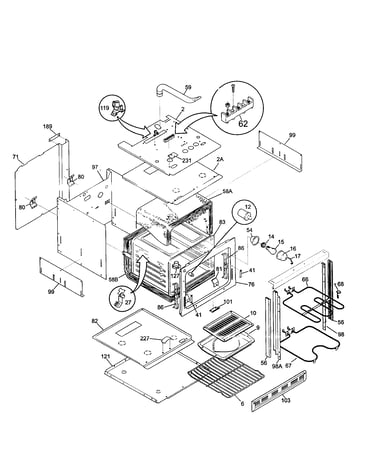

Cavity/elements diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Element 3202440
#67

Cavity/elements diagram

Element

Part #3202440

Replaced by #318255101

?
Manufacturer substitution
This part replaces 3202440. Substitute parts can look different from the original.
BEST SELLER
$132.85 |
8% OFF Phone Price : $144.85
In Stock
Receptacle 5308011085
#14

Cavity/elements diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Range Screw 5303323134
#69

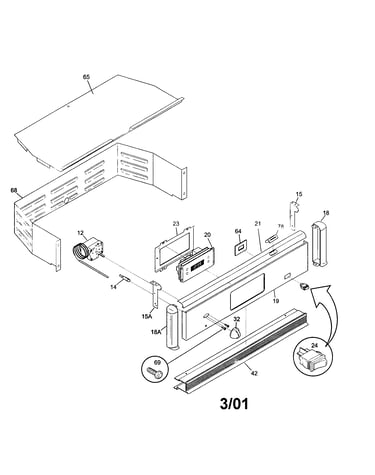

Control panel diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Rocker Switch 316005607
#24

Control panel diagram

Rocker switch

Part #316005607

Replaced by #5304527842

?
Manufacturer substitution
This part replaces 316005607. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Light Switch 316005602
#24A

Control panel diagram

Light switch

Part #316005602

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316005602. Substitute parts can look different from the original.
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Wall Oven Door Switch 5301314211
#12

Cavity/elements diagram

Wall oven door switch

Part #5301314211

$64.33 |
9% OFF Phone Price : $70.33
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616
#27

Cavity/elements diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Wall Oven Broil Element Support Hanger 5304403015
#68

Cavity/elements diagram

Wall oven broil element support hanger

Part #5304403015

$26.80 |
18% OFF Phone Price : $32.80
In Stock
Adapter Assembly 5303310542
#127

Cavity/elements diagram

Adapter assembly

Part #5303310542

Replaced by #318317100

?
Manufacturer substitution
This part replaces 5303310542. Substitute parts can look different from the original.
$61.19 |
9% OFF Phone Price : $67.19
In Stock
