Here are the diagrams and repair parts for Official KitchenAid KOCE500EBS08 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

By Schematic

By Part

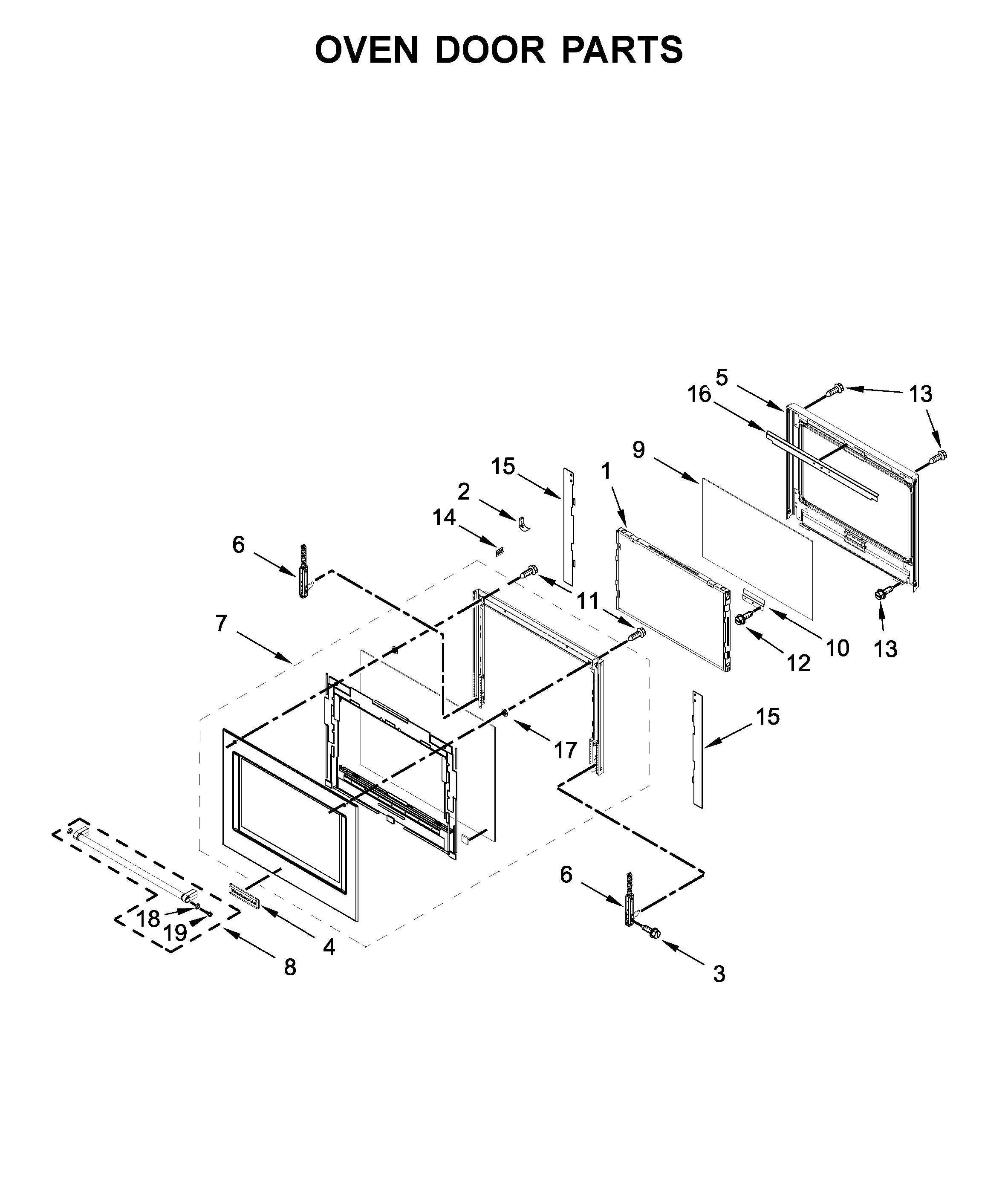

SELECT DIAGRAM

Browse Parts forKOCE500EBS08 Electric Oven/Microwave Combo

#18

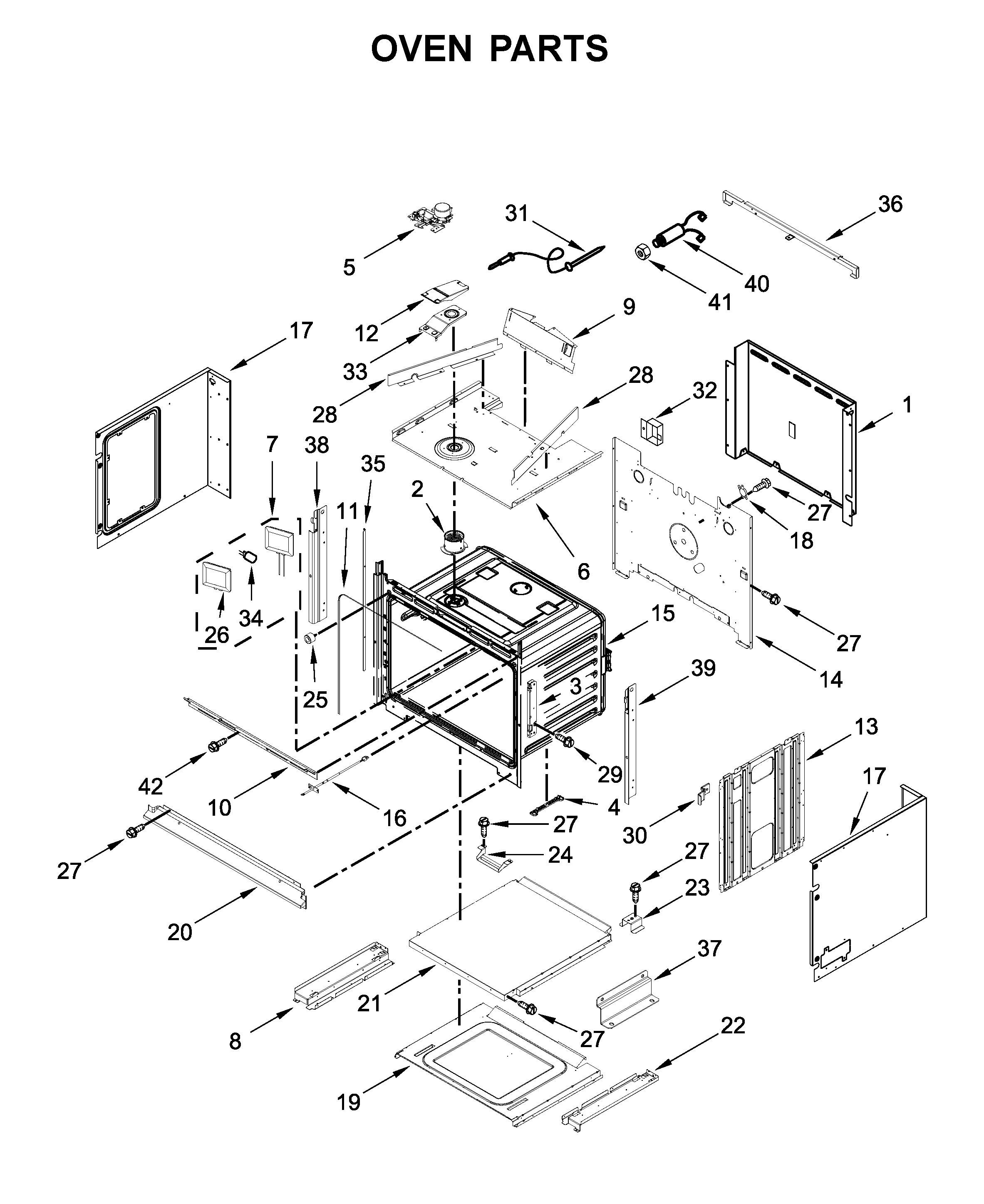

Oven parts diagram
Range high-limit thermostat
Part #4449751
Replaced by #WP4449751
?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
3 (1)
$109.18 |
10% OFF Phone Price : $121.18
In Stock
Qty
#31

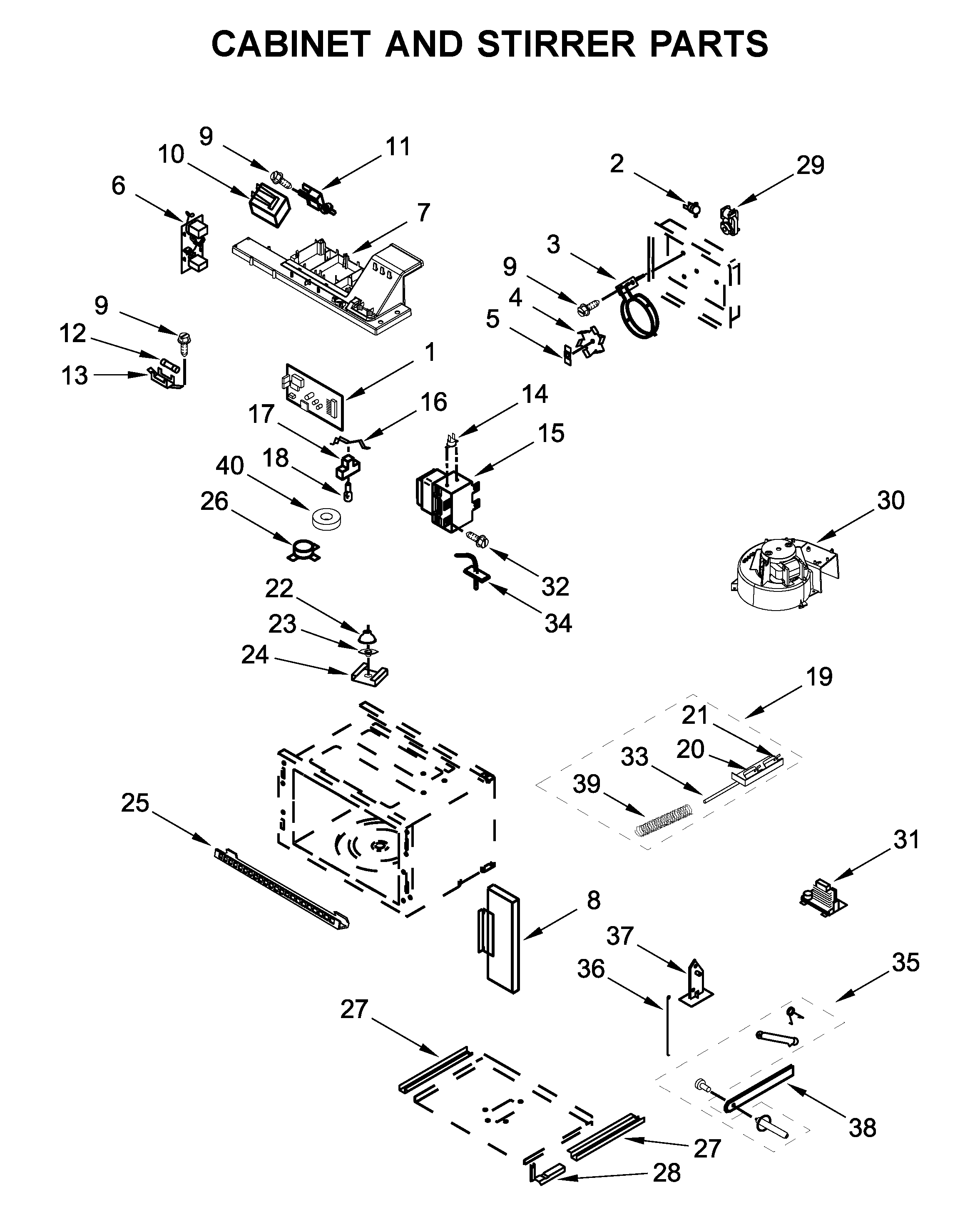

Cabinet and stirrer parts diagram
Inverter
Part #W11237240
Replaced by #W11325604
?
Manufacturer substitution
This part replaces W11237240. Substitute parts can look different from the original.
$146.42 |
8% OFF Phone Price : $158.42
In Stock
Qty
#7

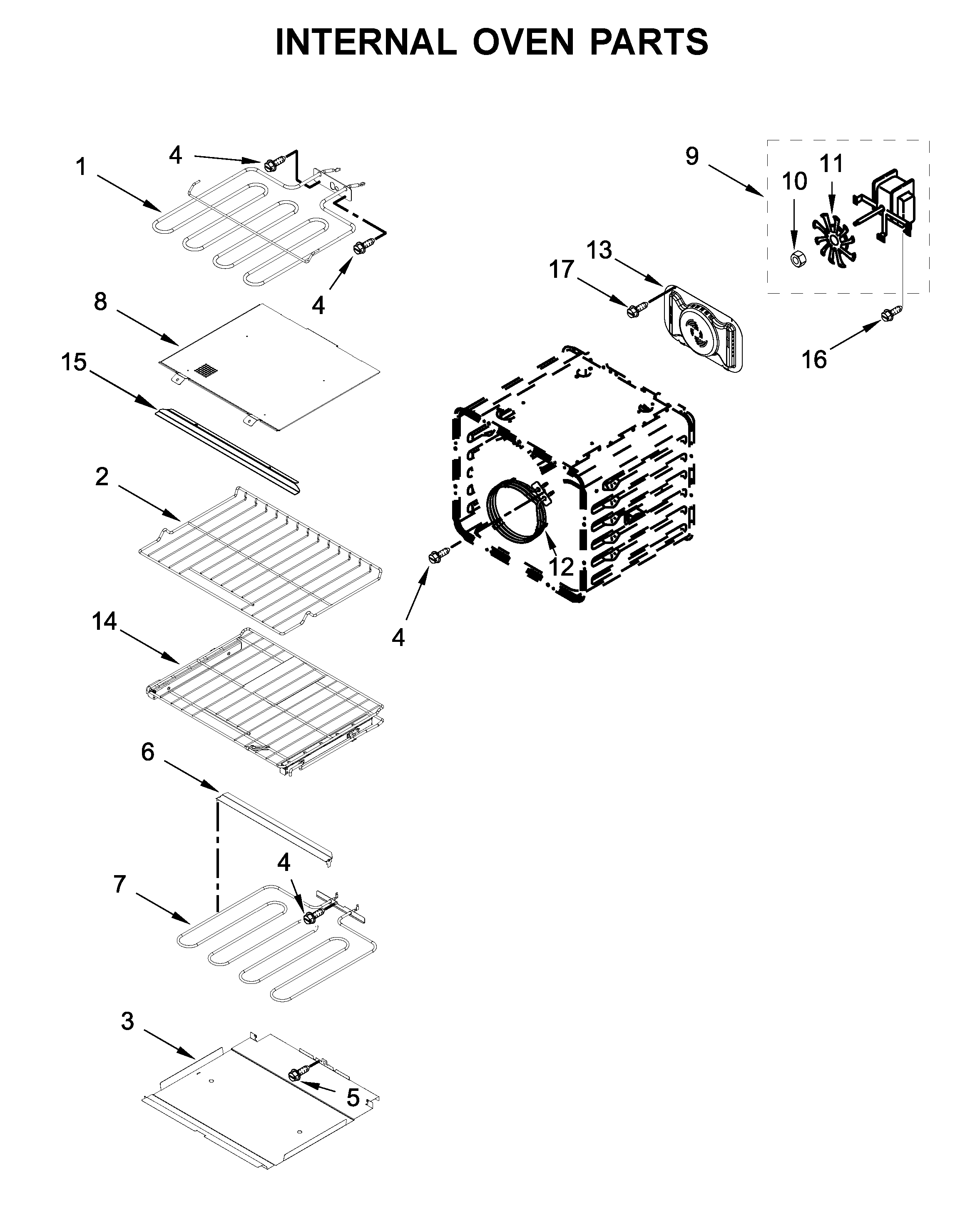

Internal oven parts diagram
Range bake element
Part #W10546517
Replaced by #W11545804
?
Manufacturer substitution
This part replaces W10546517. Substitute parts can look different from the original.
$59.33 |
9% OFF Phone Price : $65.33
In Stock
Qty
#5

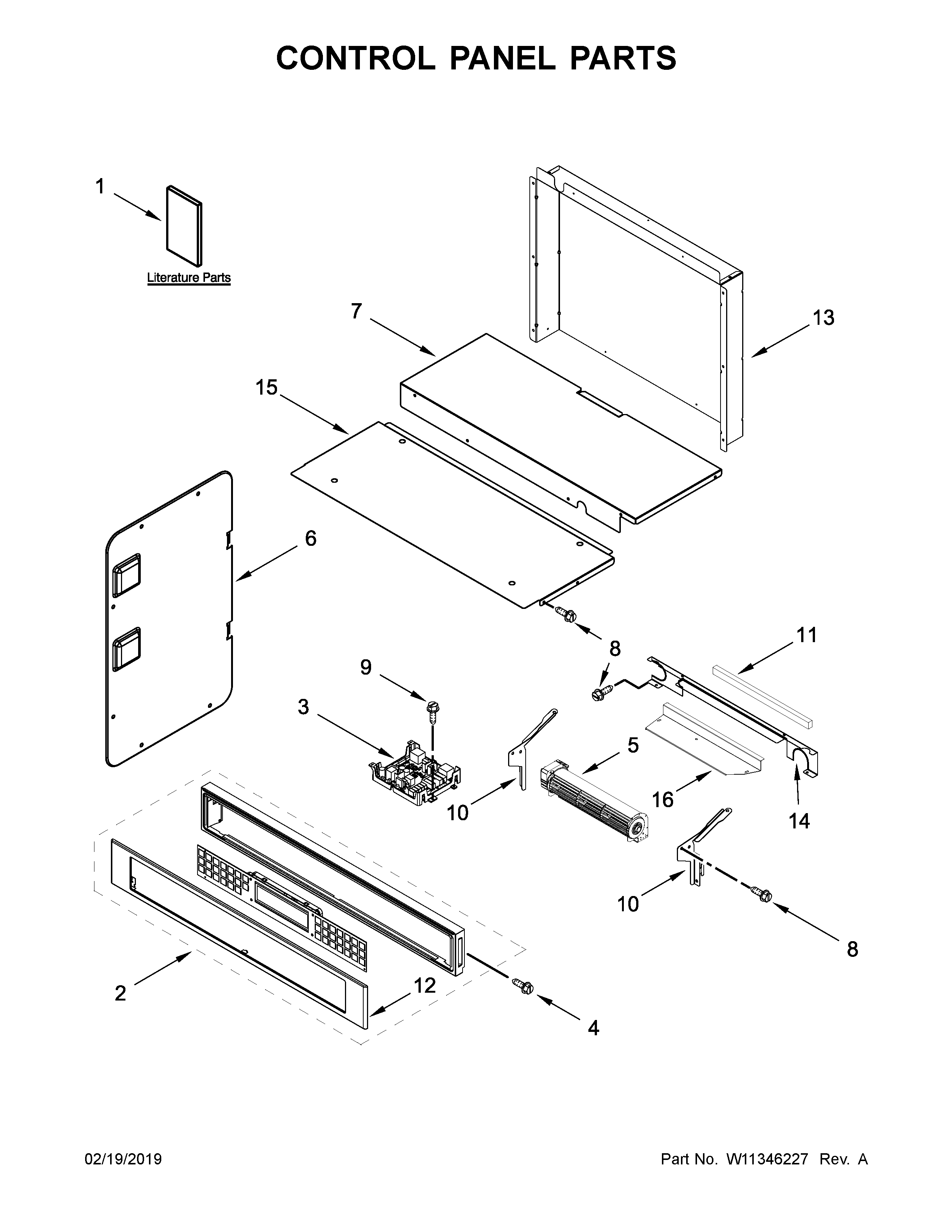

Control panel parts diagram
Blower
Part #W11200130
Replaced by #W11245567
?
Manufacturer substitution
This part replaces W11200130. Substitute parts can look different from the original.
4.7 (3)
$176.81 |
6% OFF Phone Price : $188.81
In Stock
Qty
#6

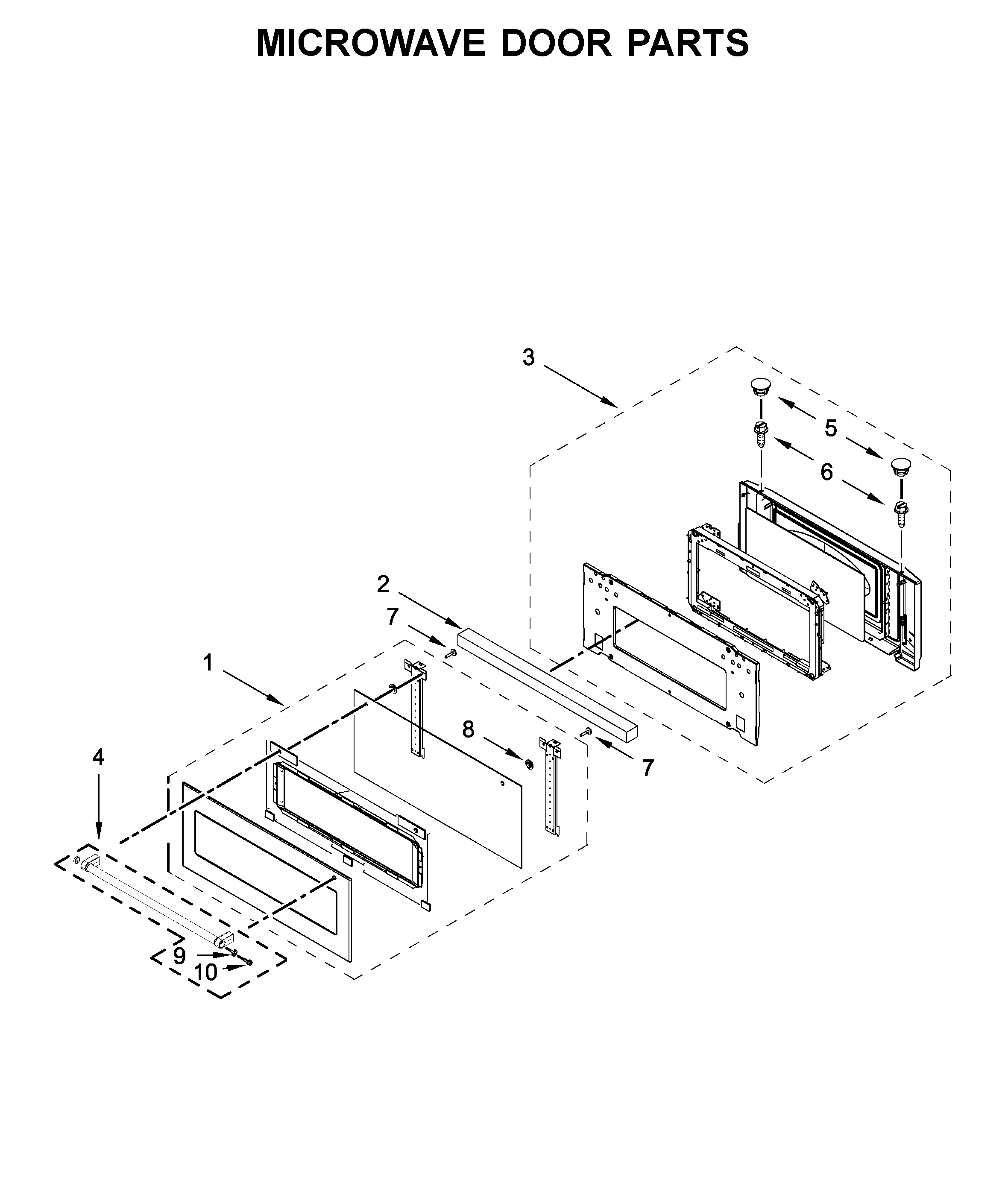

Microwave door parts diagram
Screw
Part #7101P338-60
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.43 |
11% OFF Phone Price : $18.43
In Stock
Qty
#16
Oven parts diagram
Wako minerva
Part #W10622170
Replaced by #W10859573
?
Manufacturer substitution
This part replaces W10622170. Substitute parts can look different from the original.
$96.32 |
11% OFF Phone Price : $108.32
In Stock
Qty
#12
Cabinet and stirrer parts diagram
Fuse mda 20a
Part #241908600053
Replaced by #W11188752
?
Manufacturer substitution
This part replaces 241908600053. Substitute parts can look different from the original.
This item is not returnable
$10.07 |
17% OFF Phone Price : $12.07
In Stock
Qty
#9
Internal oven parts diagram
Convection f
Part #W10722667
Replaced by #W10860984
?
Manufacturer substitution
This part replaces W10722667. Substitute parts can look different from the original.
3 (2)
$91.84 |
6% OFF Phone Price : $97.84
In Stock
Qty
#12

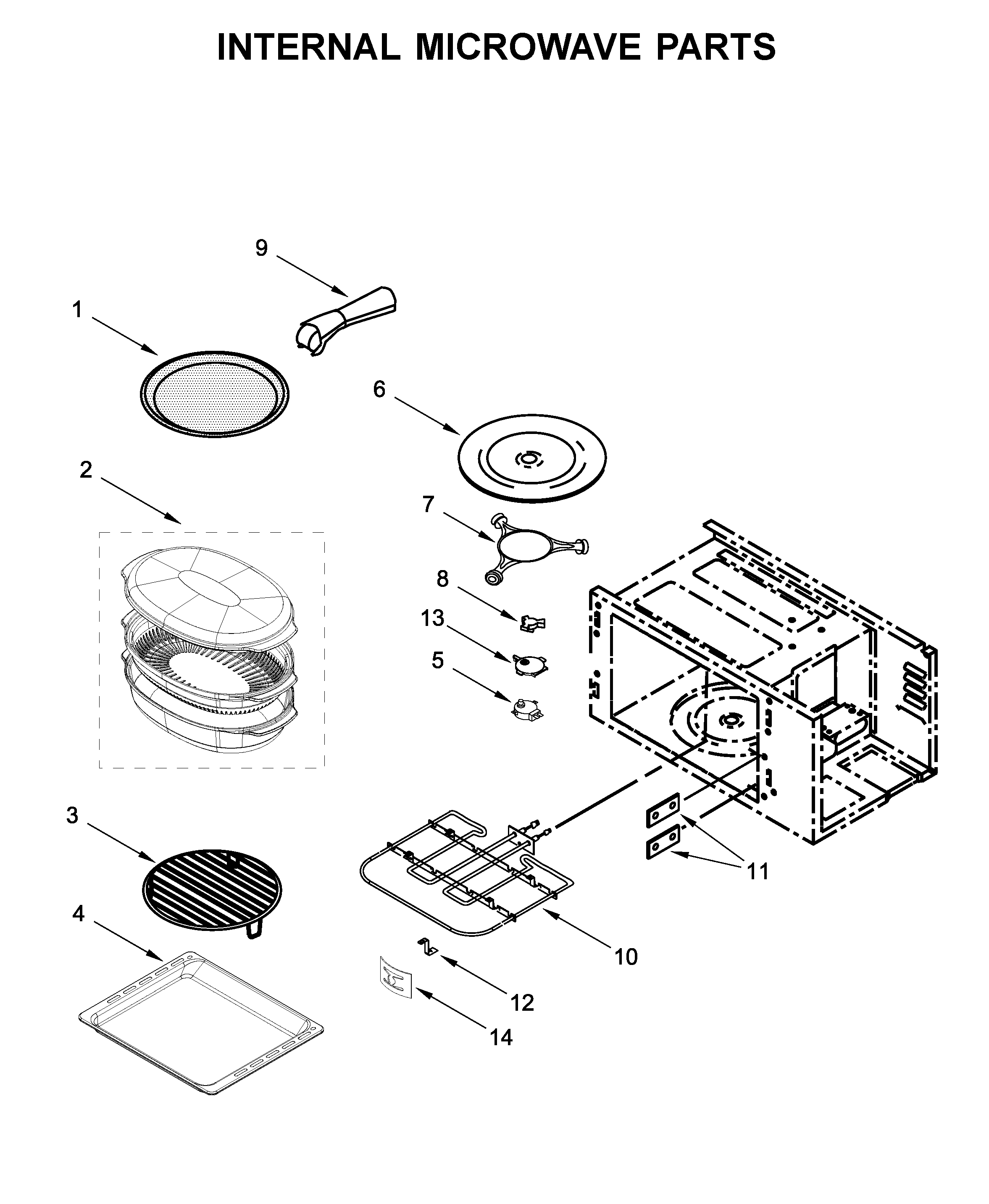

Internal microwave parts diagram
Whirlpool wall oven microwave element clip
Part #461967753871
Replaced by #W11724411
?
Manufacturer substitution
This part replaces 461967753871. Substitute parts can look different from the original.
$64.58
In Stock
Qty
#8
Internal microwave parts diagram
Tt drive ht
Part #W10545578
Replaced by #W11179756
?
Manufacturer substitution
This part replaces W10545578. Substitute parts can look different from the original.
This item is not returnable
$23.29 |
20% OFF Phone Price : $29.29
In Stock
Qty
