Nordyne
Central Air Conditioner

Model # MT3QC048 Official Nordyne heat pump

Here are the diagrams and repair parts for Official Nordyne MT3QC048 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Thermostat 626520
#NI

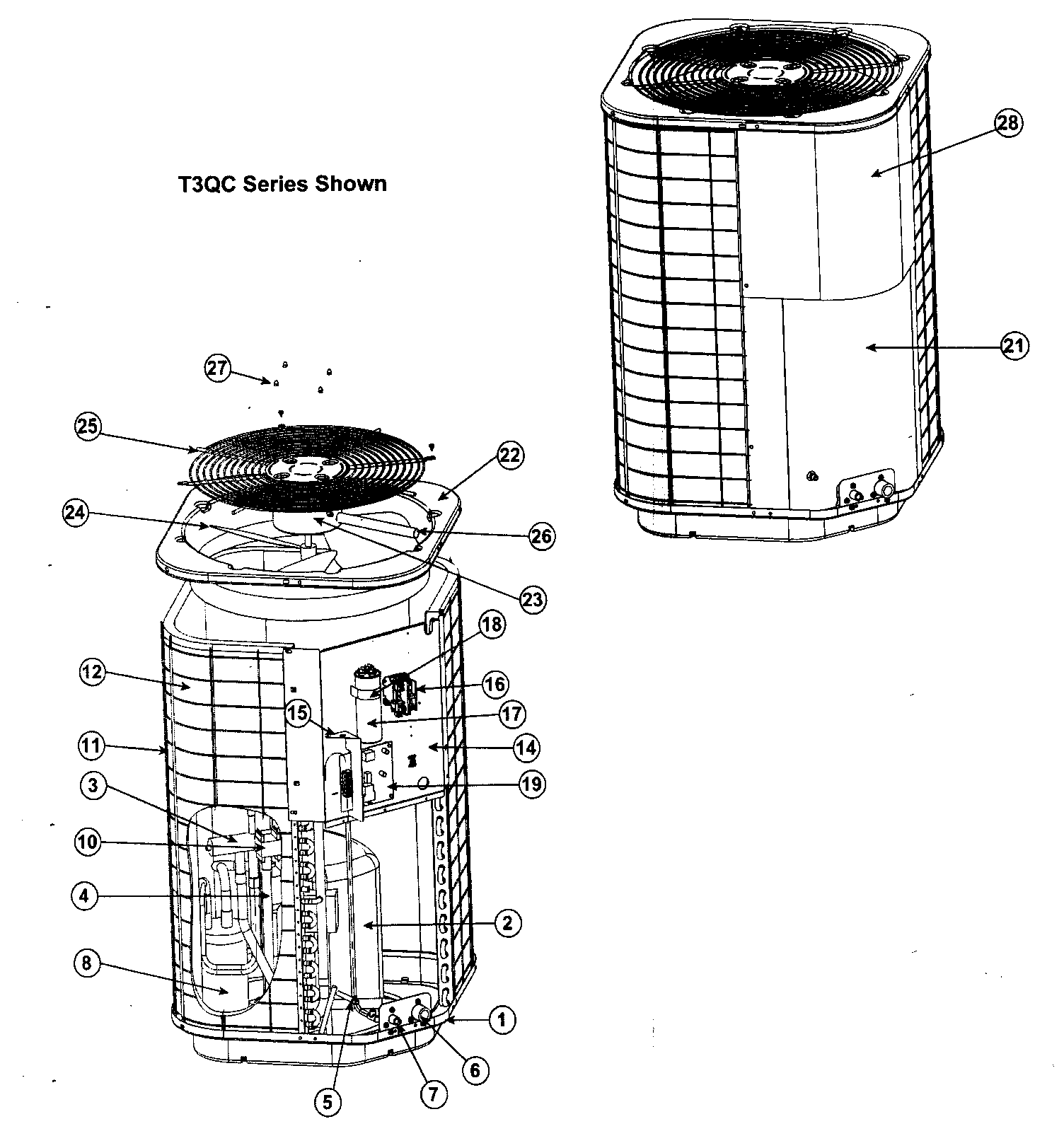

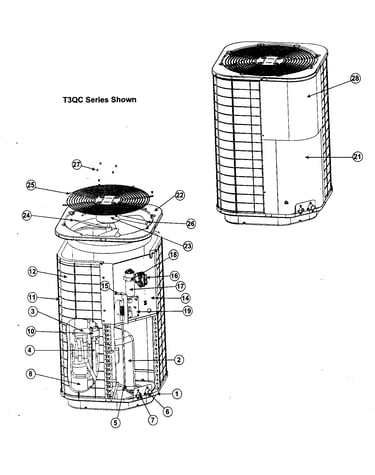

Heat pump diagram

Thermostat

Part #626520

The manufacturer no longer makes this part, and there's no substitute part

Cap Strap 258780
#18

Heat pump diagram

Cap strap

Part #258780

The manufacturer no longer makes this part, and there's no substitute part

Accumulatr 668854
#8

Heat pump diagram

Accumulatr

Part #668854

The manufacturer no longer makes this part, and there's no substitute part

Compressor 917219
#2

Heat pump diagram

Compressor

Part #917219

The manufacturer no longer makes this part, and there's no substitute part

Connector 663394
#NI

Heat pump diagram

Connector

Part #663394

The manufacturer no longer makes this part, and there's no substitute part

Condenser Motor 621912
#23

Heat pump diagram

Condenser motor

Part #621912

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 621841
#17

Heat pump diagram

Capacitor

Part #621841

The manufacturer no longer makes this part, and there's no substitute part

Contactor 621662
#16

Heat pump diagram

Contactor

Part #621662

The manufacturer no longer makes this part, and there's no substitute part

Defrst Therm 626342
#NI

Heat pump diagram

Defrst therm

Part #626342

The manufacturer no longer makes this part, and there's no substitute part

Top Pan 496162
#22

Heat pump diagram

Top pan

Part #496162

The manufacturer no longer makes this part, and there's no substitute part
