Model # (RXHE-CE040YC) Official Rheem auxiliary heater kit
Here are the diagrams and repair parts for Official Rheem (RXHE-CE040YC) auxiliary heater kit, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
(RXHE-CE040YC) Auxiliary Heater Kit
#89

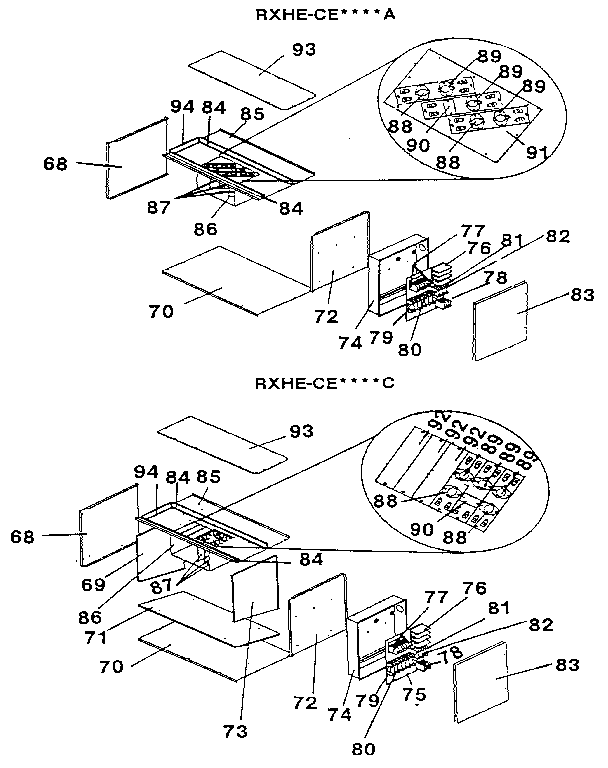

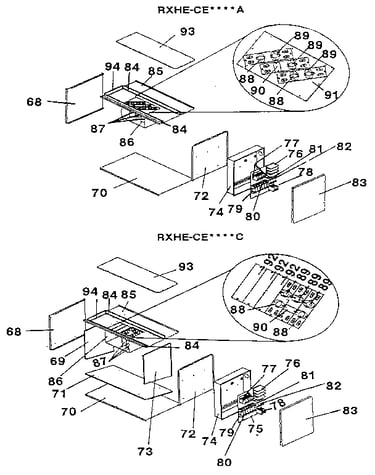

Functional replacement parts diagram
Limit control
Part #47-41590-03
$100.62
In Stock
Contactor
Part #42-17810-83
Replaced by #42-25103-01
?
Manufacturer substitution
This part replaces 42-17810-83. Substitute parts can look different from the original.
$55.33
In Stock
#94
Functional replacement parts diagram
Wireway end
Part #AE-90431-01
The manufacturer no longer makes this part, and there's no substitute part
#75
Functional replacement parts diagram
Control panel
Part #AE-71690-01
The manufacturer no longer makes this part, and there's no substitute part
#74
Functional replacement parts diagram
Control box
Part #AS-71697-01
The manufacturer no longer makes this part, and there's no substitute part
#70
Functional replacement parts diagram
Bottom
Part #AE-90426-01
The manufacturer no longer makes this part, and there's no substitute part
#88
Functional replacement parts diagram
Limit control (2)
Part #47-19554-40
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Hot water coil (rxhc-c76w) replacement hot water coil
Part #65-41548-01
The manufacturer no longer makes this part, and there's no substitute part
#86
Functional replacement parts diagram
Element support
Part #AE-71694-01
The manufacturer no longer makes this part, and there's no substitute part
#69
Functional replacement parts diagram
Inner duct side - left
Part #AE-90427-02
The manufacturer no longer makes this part, and there's no substitute part
