Thermador
Electric Wall Oven

Model # MEW301ES01 Official Thermador oven/warming drawer combo

Here are the diagrams and repair parts for Official Thermador MEW301ES01 oven/warming drawer combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

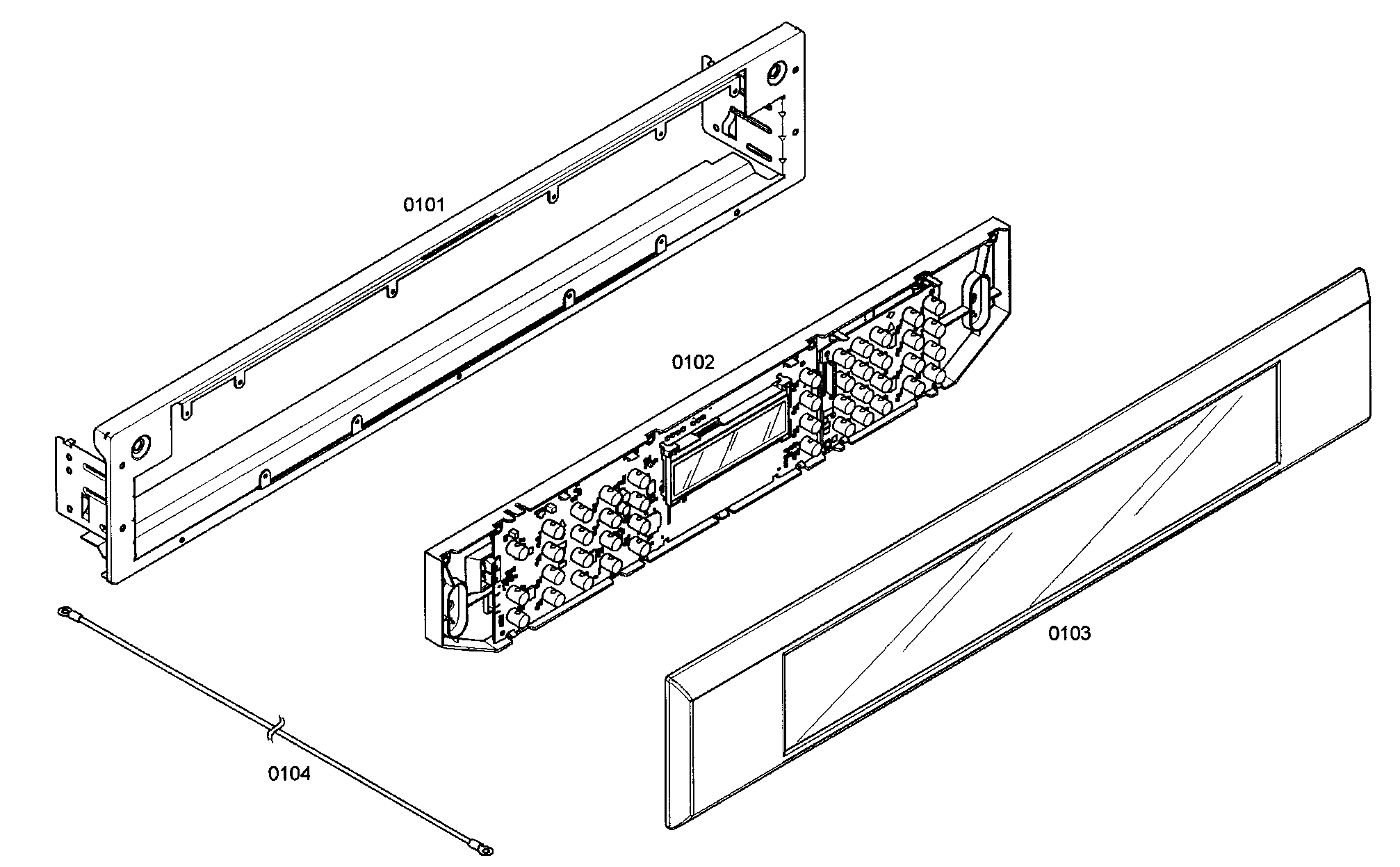

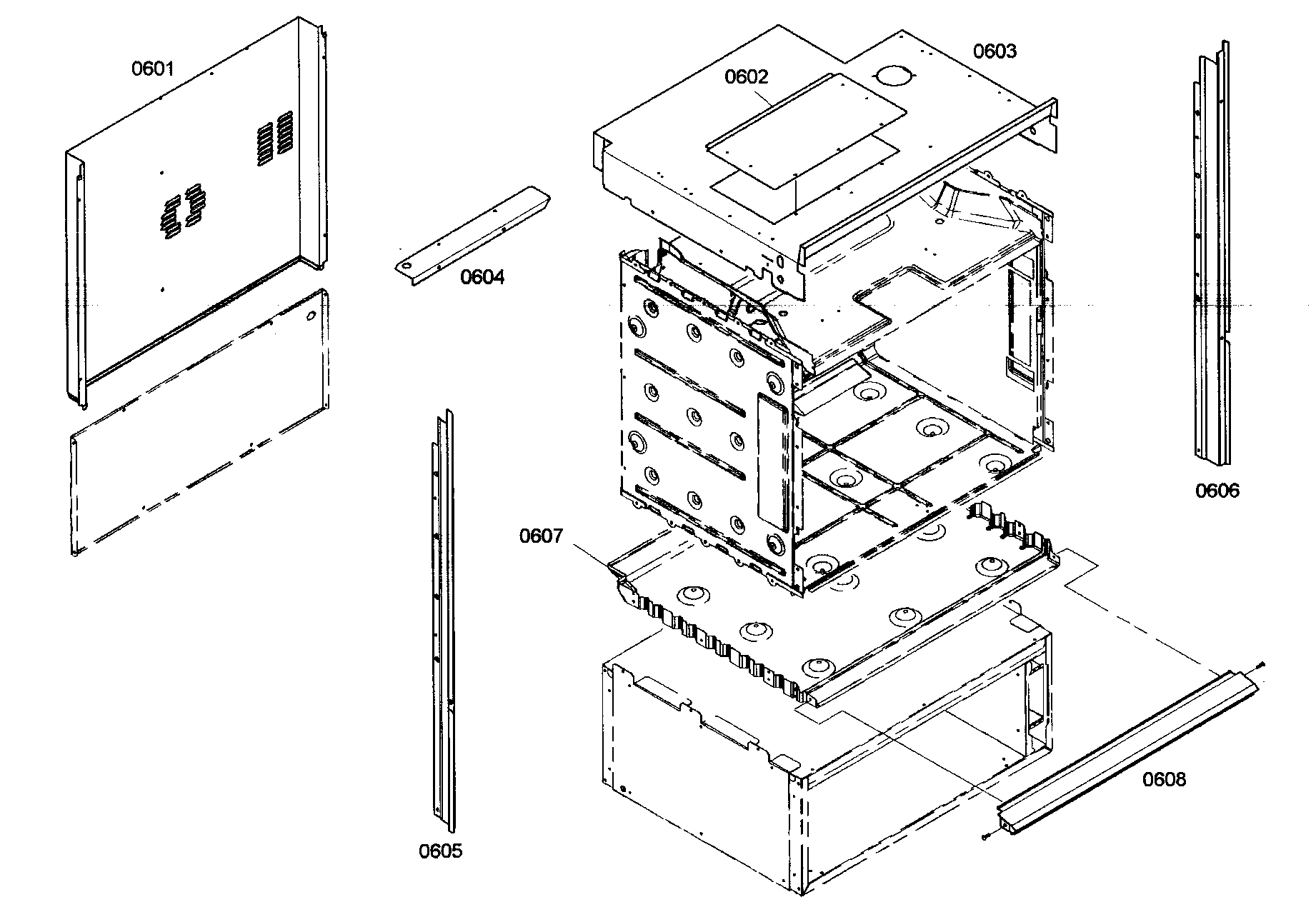

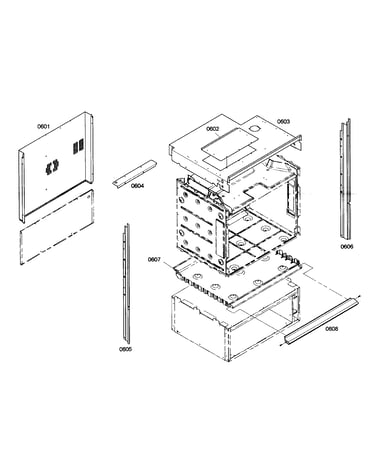

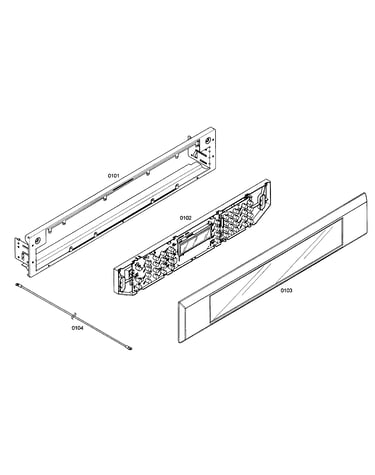

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Shelf 478316
#702

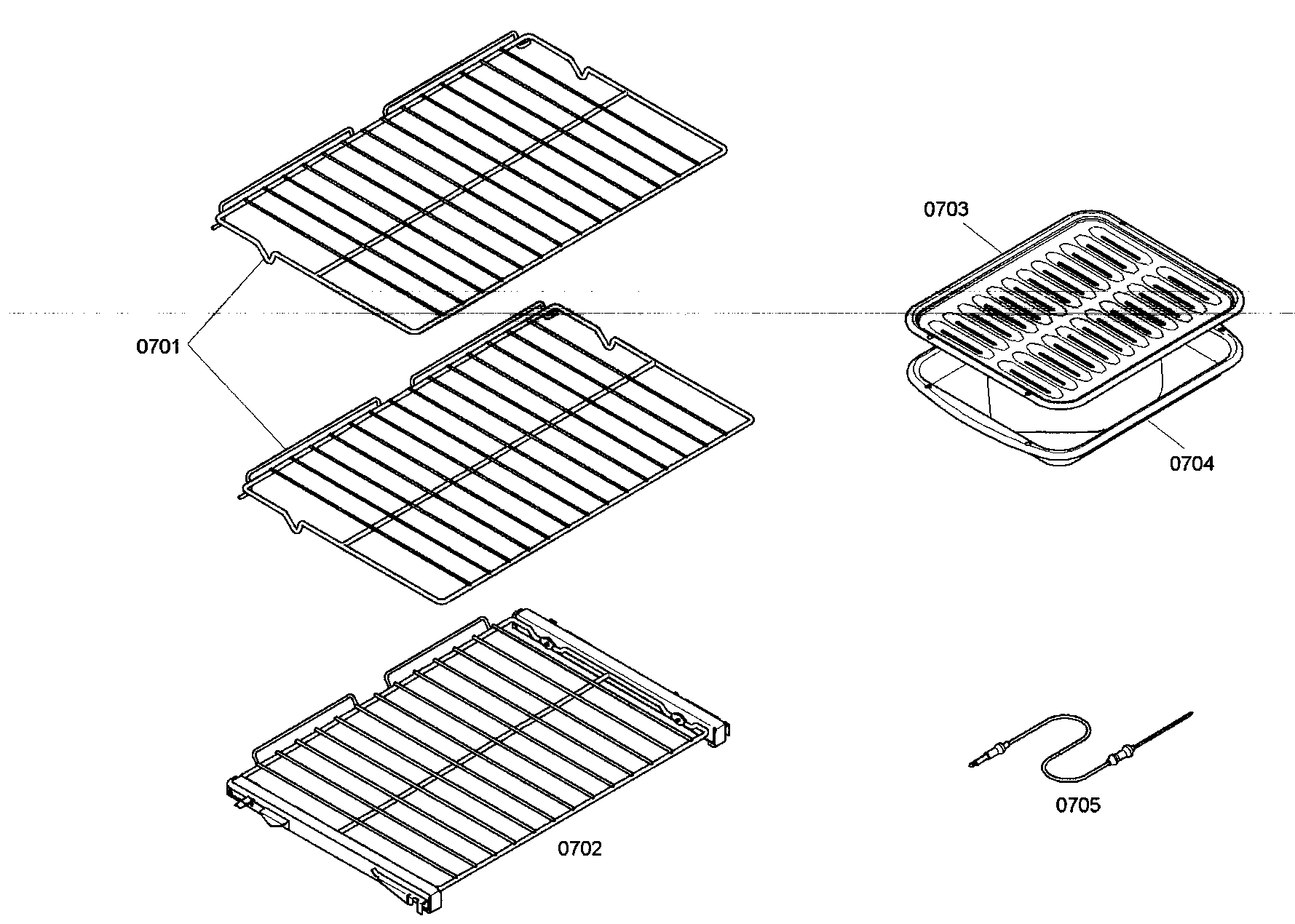

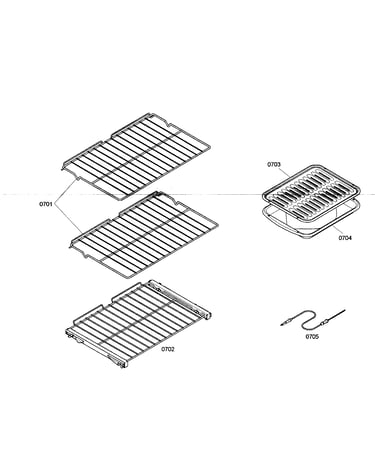

Racks diagram

Shelf

Part #478316

Replaced by #00478316

?
Manufacturer substitution
This part replaces 478316. Substitute parts can look different from the original.
$394.03 |
$12.00 OFF Phone Price : $406.03
In Stock
Glass Panel 478309

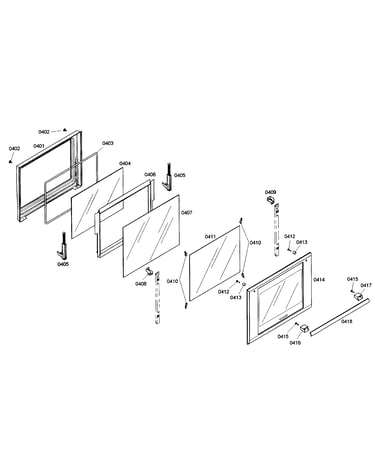

#404

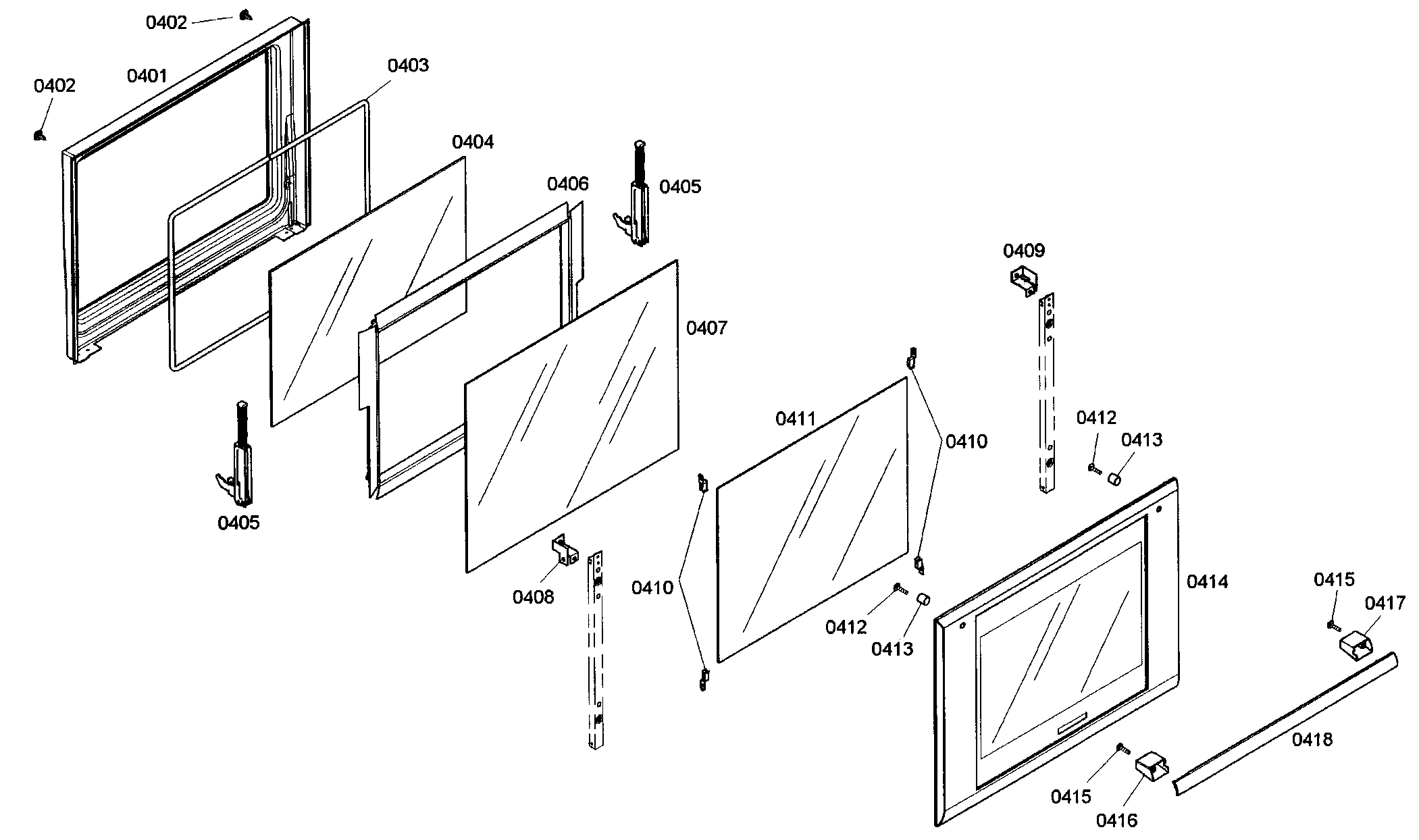

Oven door diagram

Glass panel

Part #478309

Replaced by #00770023

?
Manufacturer substitution
This part replaces 478309. Substitute parts can look different from the original.
$182.39 |
6% OFF Phone Price : $194.39
In Stock
Seal 144652
#403

Oven door diagram

Seal

Part #144652

Replaced by #00144652

?
Manufacturer substitution
This part replaces 144652. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock

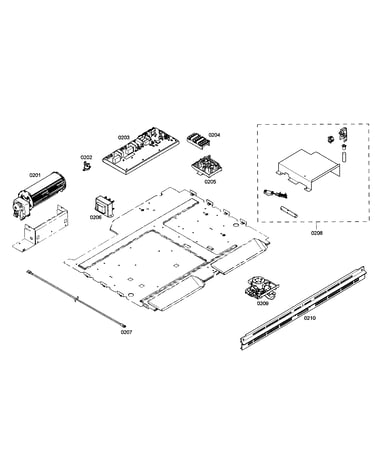

Limiter 642844
#202

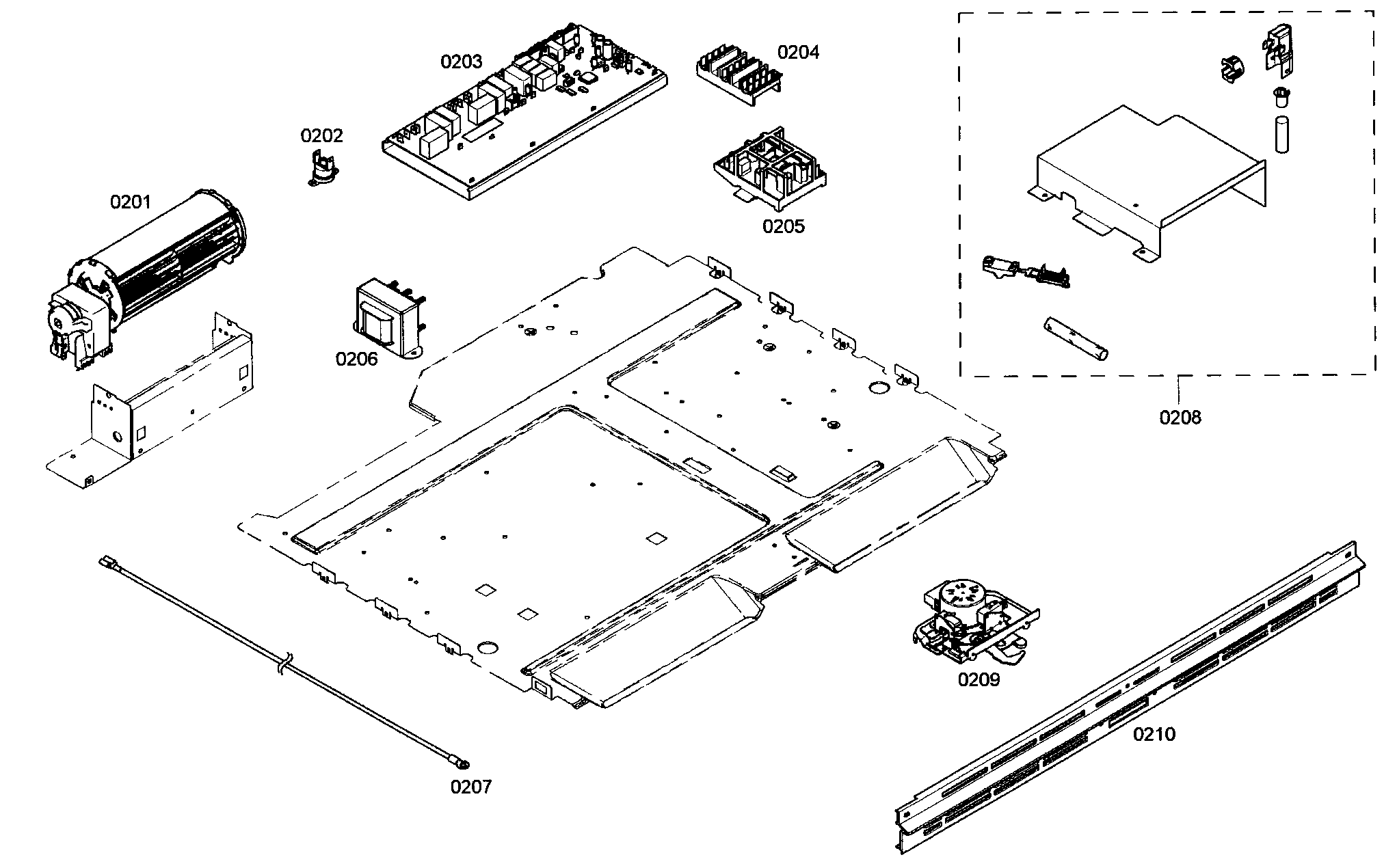

Control assy diagram

Limiter

Part #642844

Replaced by #00617877

?
Manufacturer substitution
This part replaces 642844. Substitute parts can look different from the original.
$29.36
In Stock
Glass Panel 478310
#407

Oven door diagram

Glass panel

Part #478310

Replaced by #00478310

?
Manufacturer substitution
This part replaces 478310. Substitute parts can look different from the original.
$137.56 |
8% OFF Phone Price : $149.56
In Stock
Bracket 608096
#409

Oven door diagram

Bracket

Part #608096

Replaced by #00613179

?
Manufacturer substitution
This part replaces 608096. Substitute parts can look different from the original.
$23.49
In Stock
Catalyzer 491572
#302

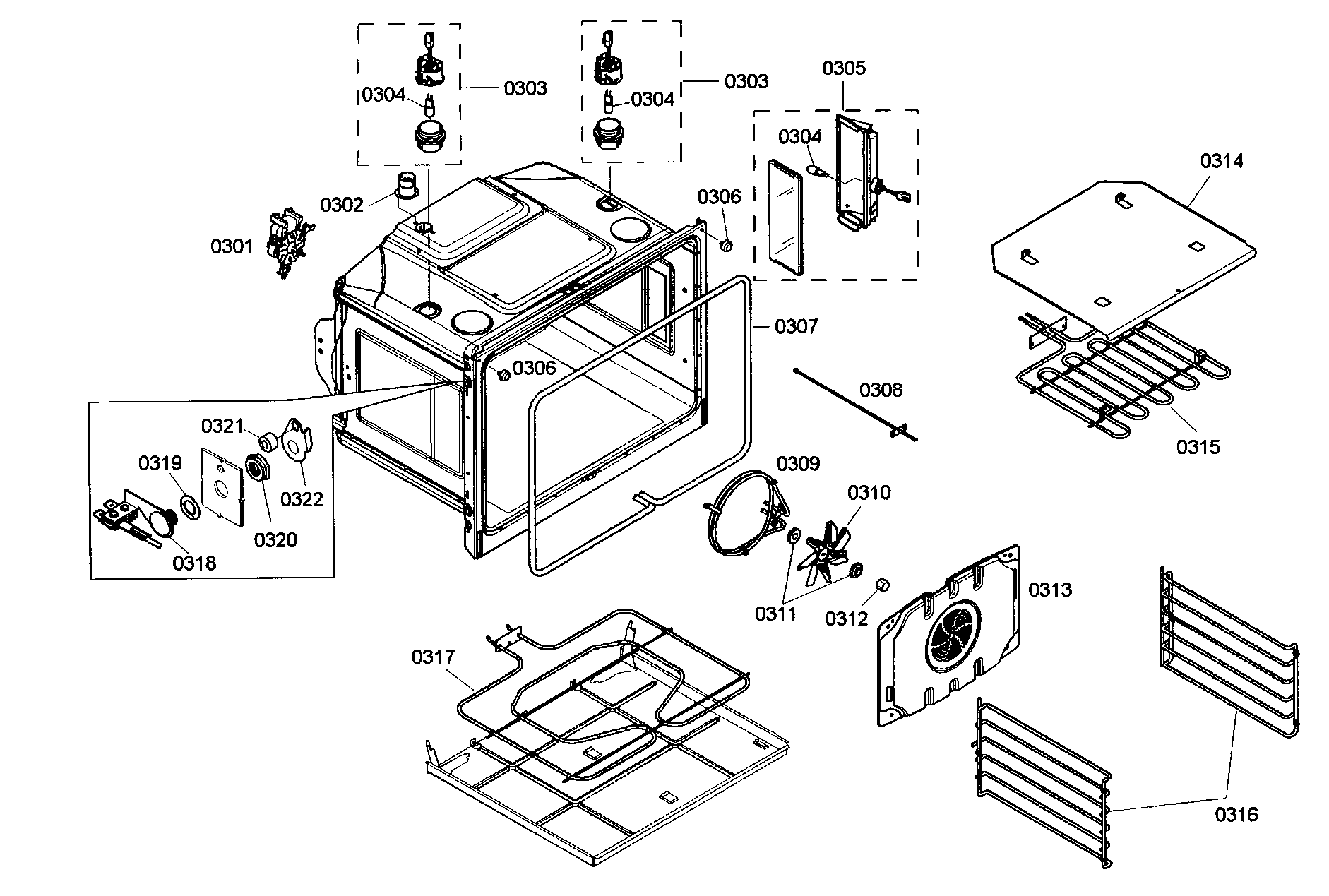

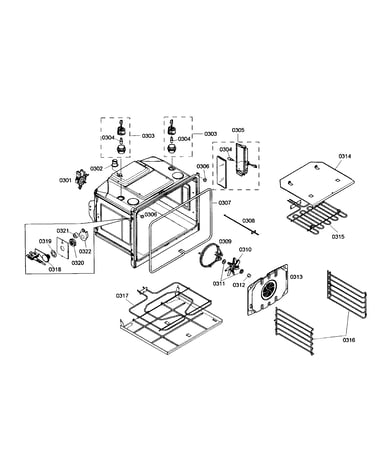

Oven cabinet diagram

Catalyzer

Part #491572

Replaced by #00491572

?
Manufacturer substitution
This part replaces 491572. Substitute parts can look different from the original.
$59.36
In Stock
Knob 608297
#510

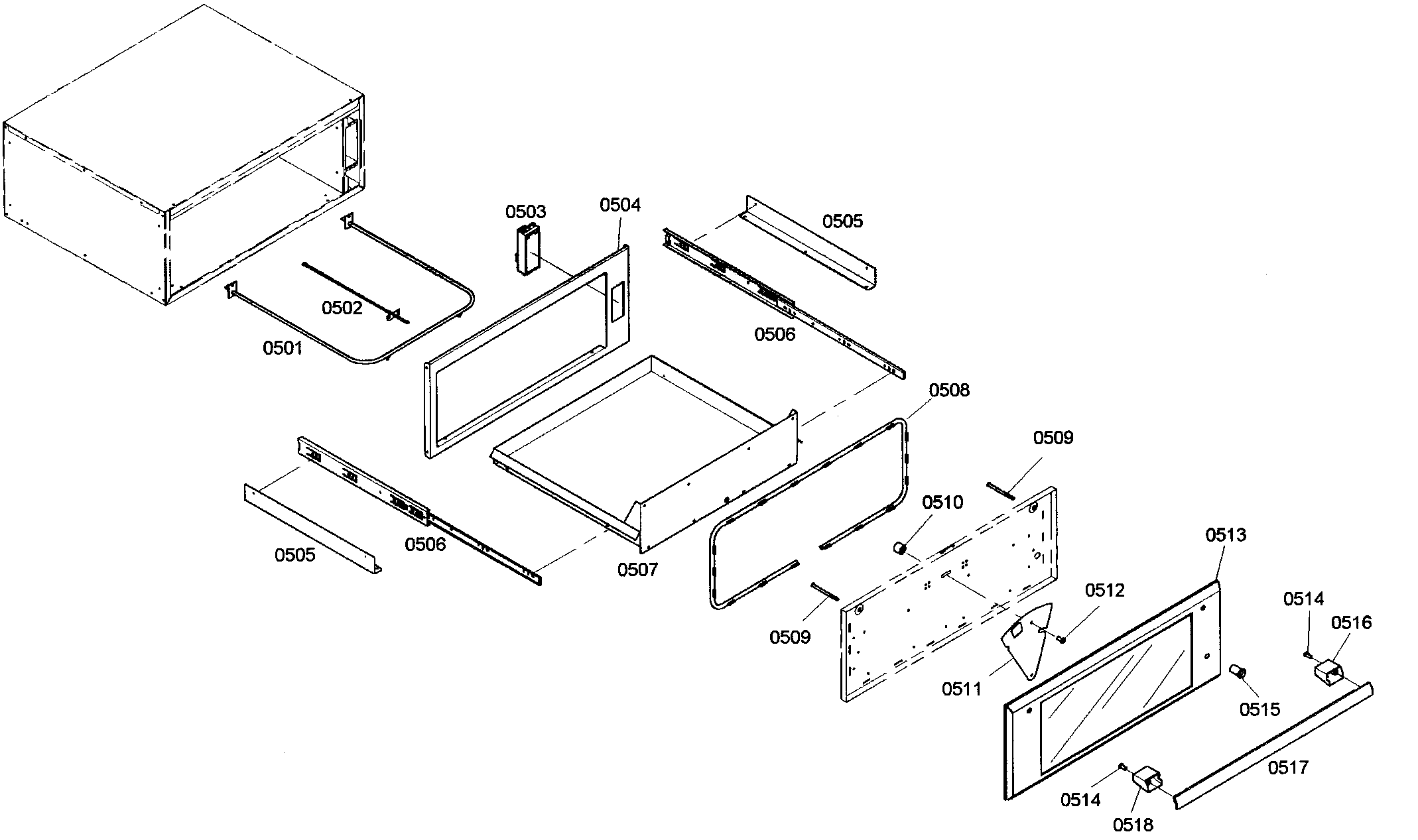

Warming drawer diagram

Knob

Part #608297

Replaced by #00608297

?
Manufacturer substitution
This part replaces 608297. Substitute parts can look different from the original.
$15.20
In Stock
Handle 664079
#418

Oven door diagram

Handle

Part #664079

Replaced by #00741598

?
Manufacturer substitution
This part replaces 664079. Substitute parts can look different from the original.
$211.20
In Stock
Door Gasket 491569
#307

Oven cabinet diagram

Door gasket

Part #491569

Replaced by #00491569

?
Manufacturer substitution
This part replaces 491569. Substitute parts can look different from the original.
$84.95 |
7% OFF Phone Price : $90.95
In Stock
