Model # DSC-TX20/G Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-TX20-G digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

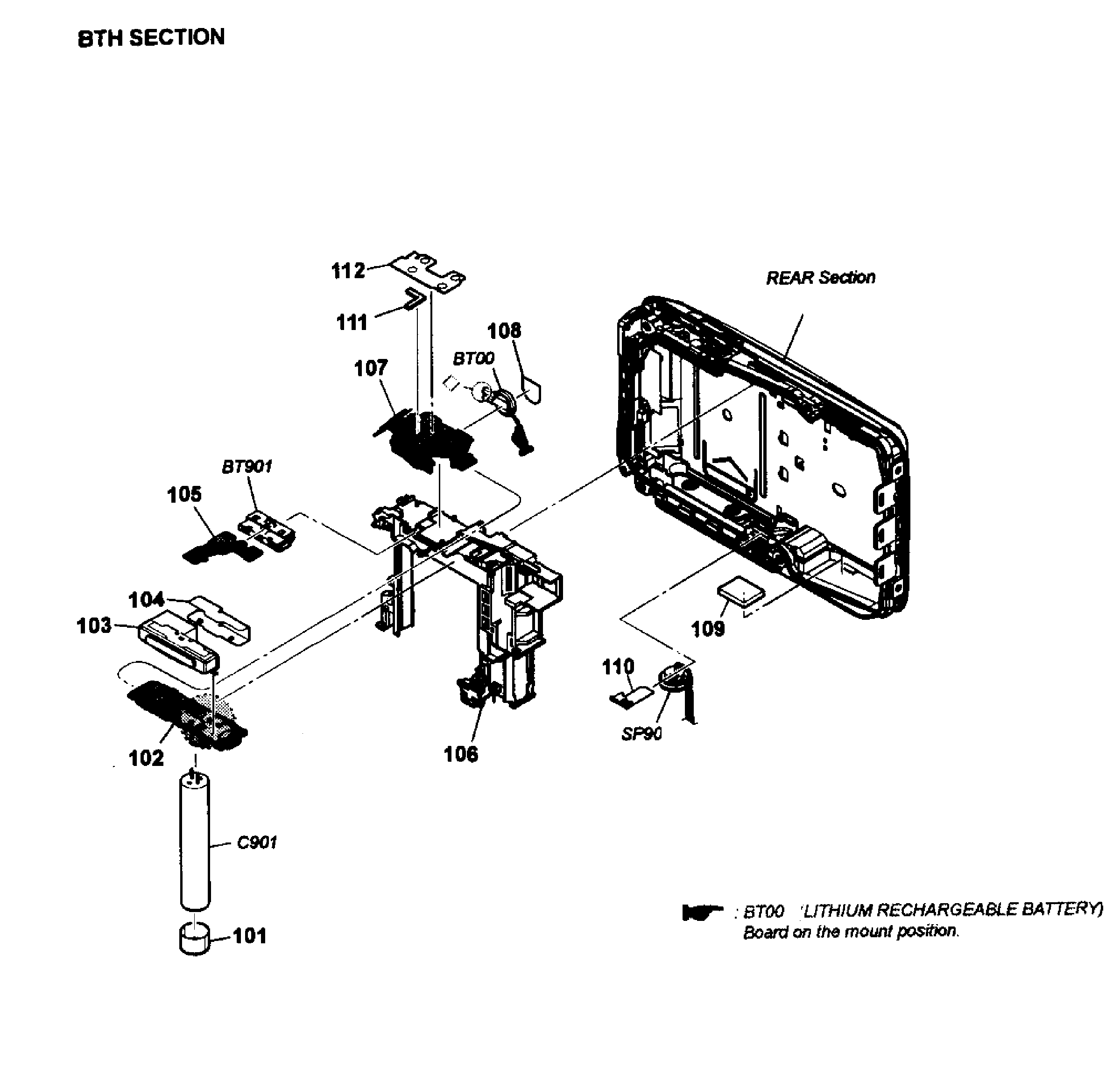

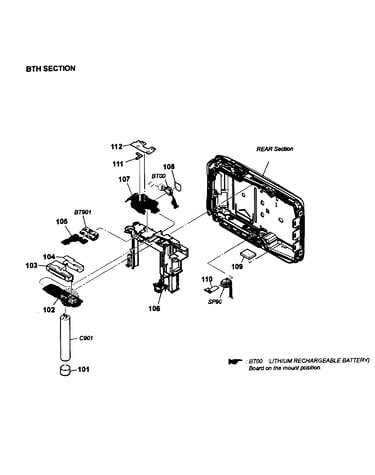

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Screw 417898711
#225

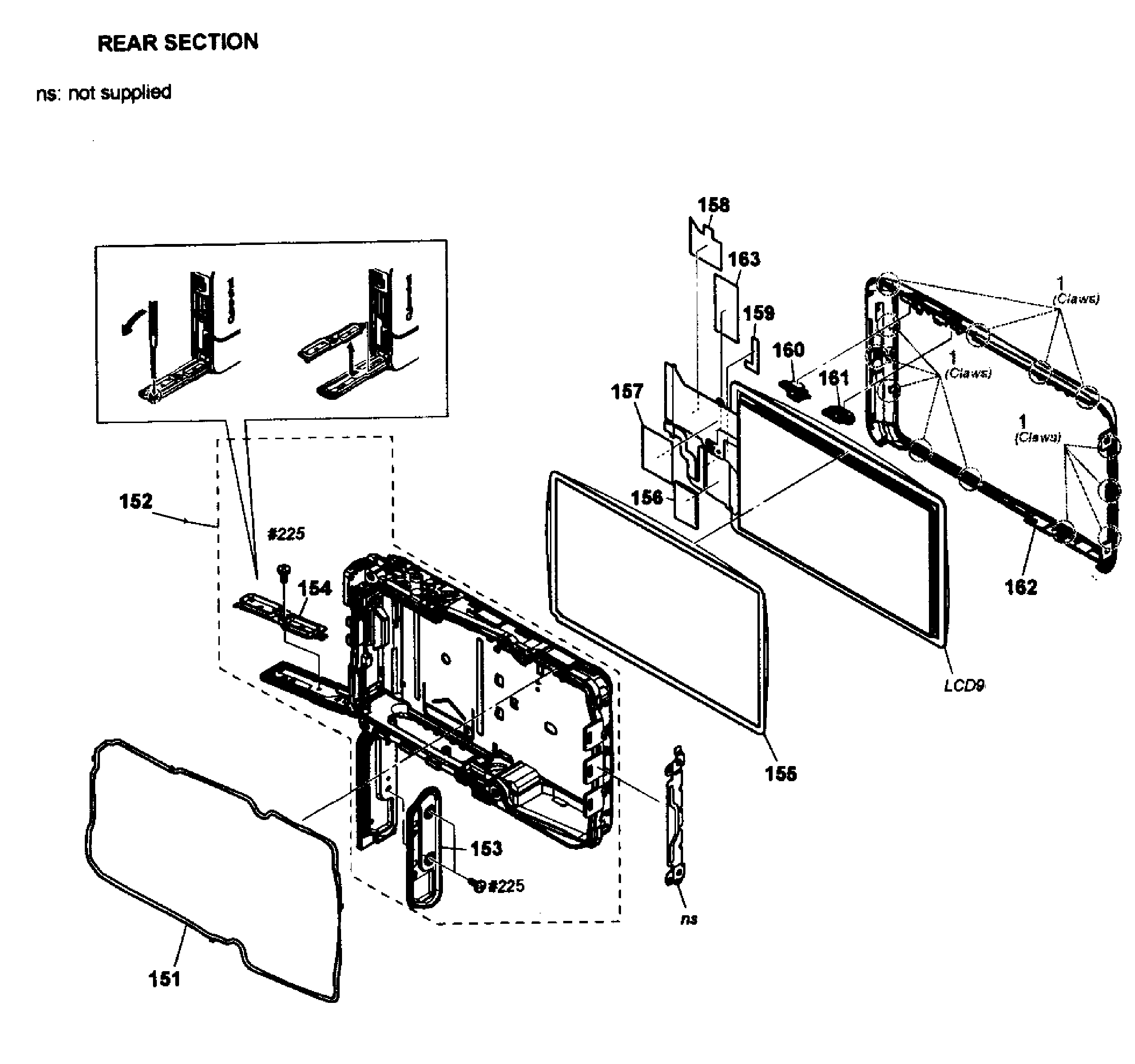

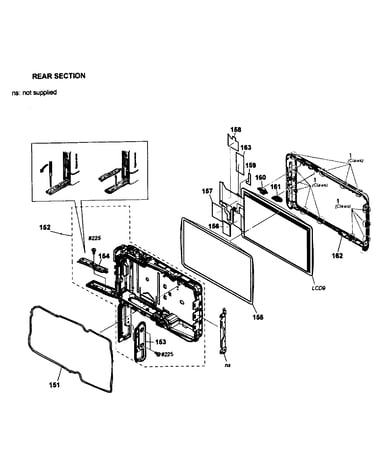

Rear assy diagram

Screw

Part #417898711

This item is not returnable
$2.25
In Stock
Cd843 Pcb A1871437A
#68

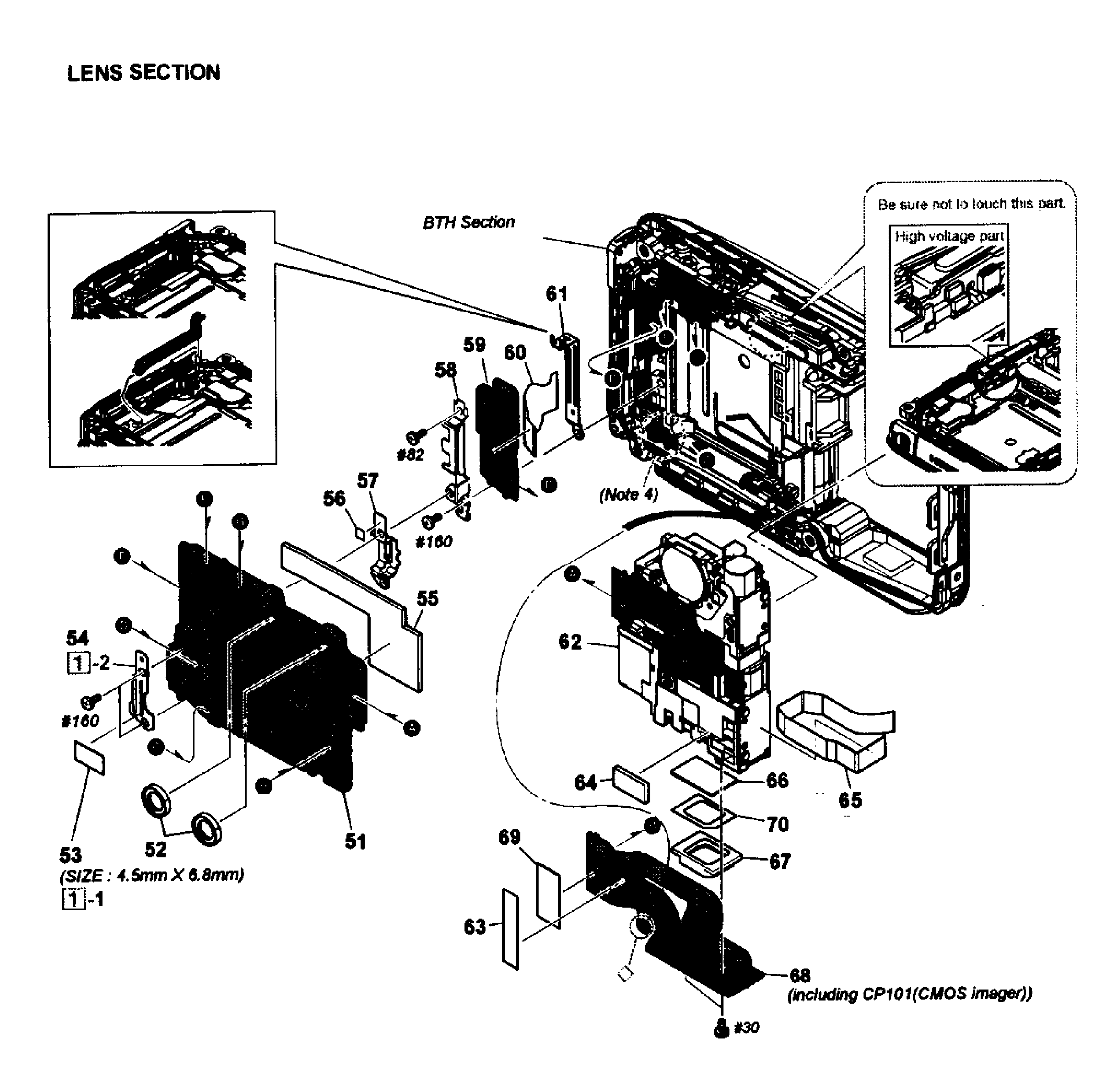

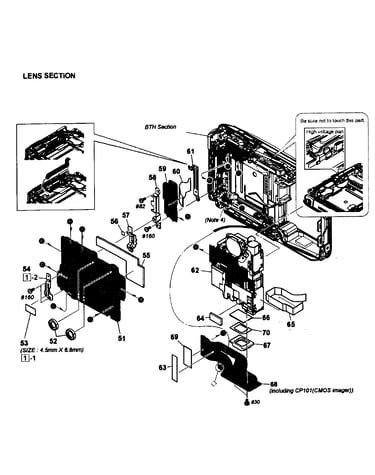

Lens assy diagram

Cd843 pcb

Part #A1871437A

$164.49
In Stock
Guide (lower), Light 427578211
#9

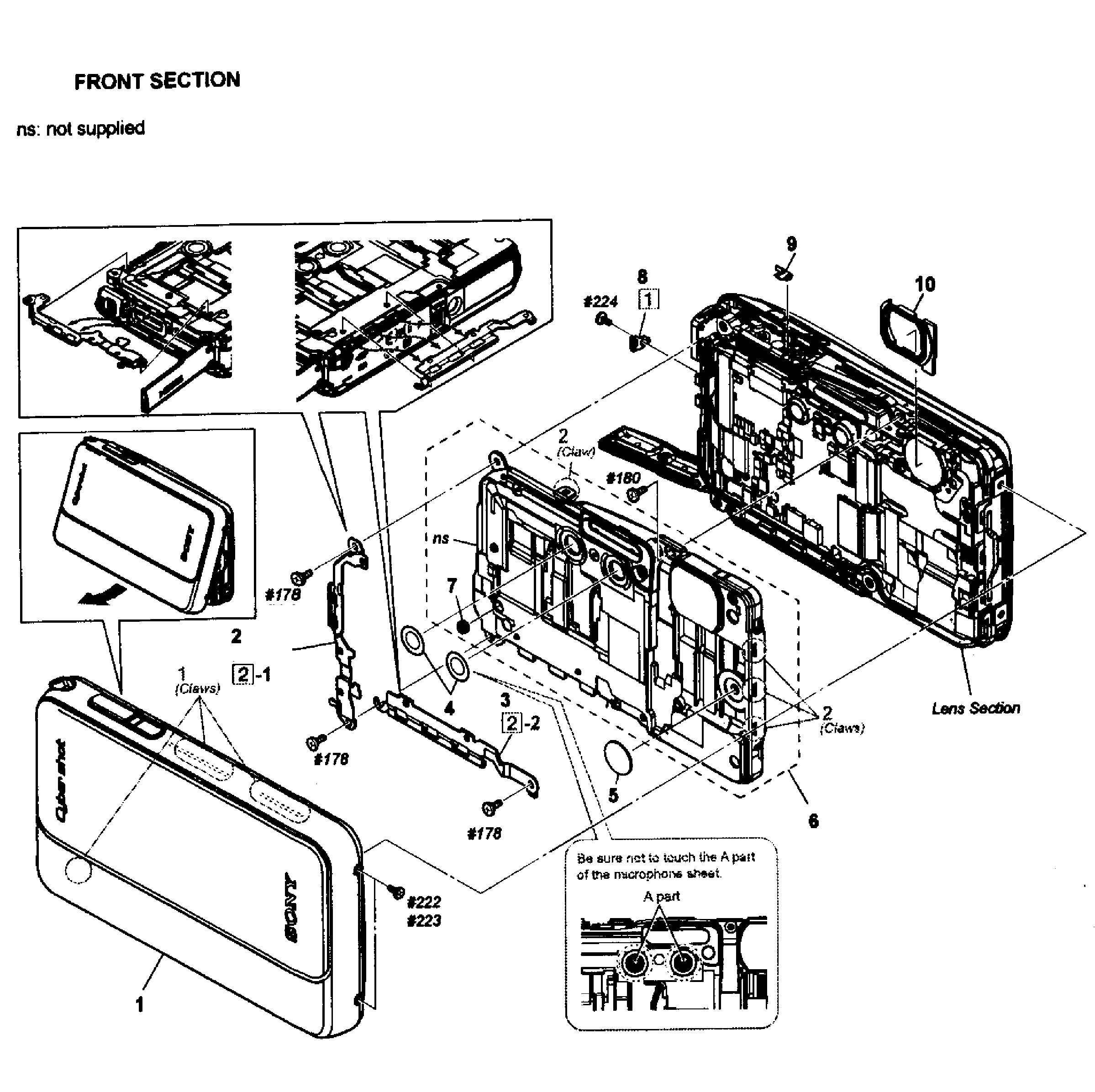

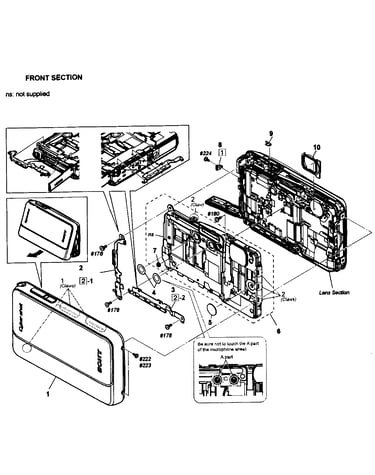

Front assy diagram

Guide (lower), light

Part #427578211

This item is not returnable
$5.88
In Stock
Record Button 442125131
#160

Rear assy diagram

Record button

Part #442125131

$9.37
In Stock
Fltr Block 185605811
#66

Lens assy diagram

Fltr block

Part #185605811

$13.87
In Stock
Lens 427577801
#10

Front assy diagram

Lens

Part #427577801

This item is not returnable
$3.93
In Stock
Sheet,lcdh 443083801
#158

Rear assy diagram

Sheet,lcdh

Part #443083801

$50.37
In Stock
Plate 427576801
#8

Front assy diagram

Plate

Part #427576801

This item is not returnable
$2.65
In Stock
Play,butto 442125231
#161

Rear assy diagram

Play,butto

Part #442125231

$11.76
In Stock
Cushion 442125301
#69

Lens assy diagram

Cushion

Part #442125301

This item is not returnable
$4.83
In Stock
