Side-By-Side Refrigerator

Model # TFG22ZATCWH Official GE side-by-side refrigerator

Here are the diagrams and repair parts for Official GE TFG22ZATCWH side-by-side refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forTFG22ZATCWH Refrigerators

  • Dryer Assembly WR86X86
    #740

    Compressor diagram

    Dryer assembly

    Part #WR86X86

    Replaced by #WR86X25269

    ?
    Manufacturer substitution
    This part replaces WR86X86. Substitute parts can look different from the original.
    BEST SELLER
    $74.11
    7% OFF Phone Price : $80.11
    In Stock
  • Refrigerator Defrost Bi-metal Thermostat WR50X122
    #240

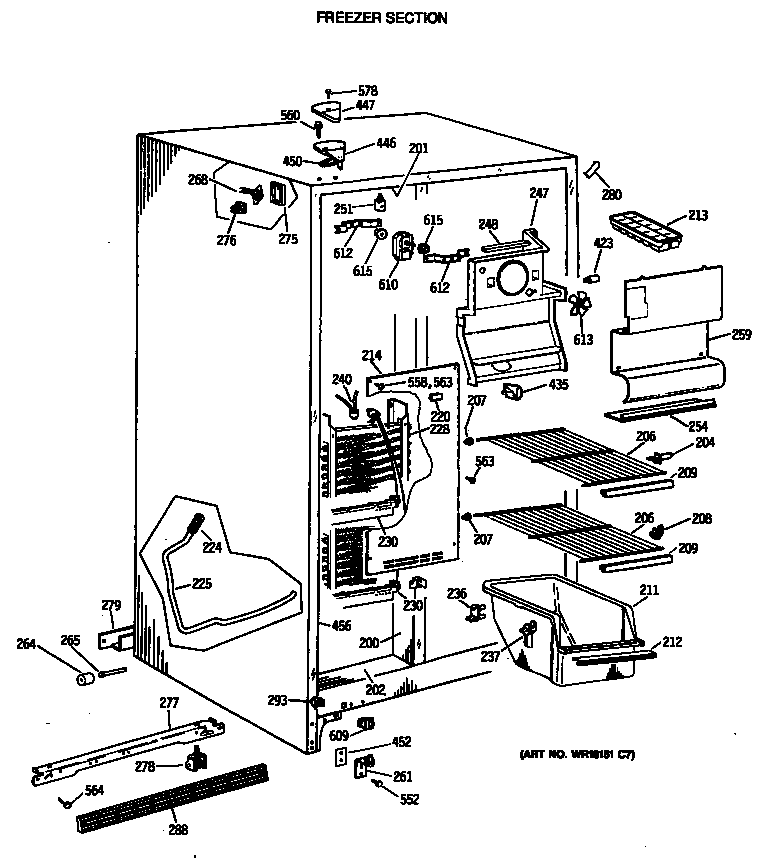

    Freezer section diagram

    Refrigerator defrost bi-metal thermostat

    Part #WR50X122

    BEST SELLER
    $48.87
    11% OFF Phone Price : $54.87
    In Stock
  • Door Hinge Pin, Lower WR13X614
    #451

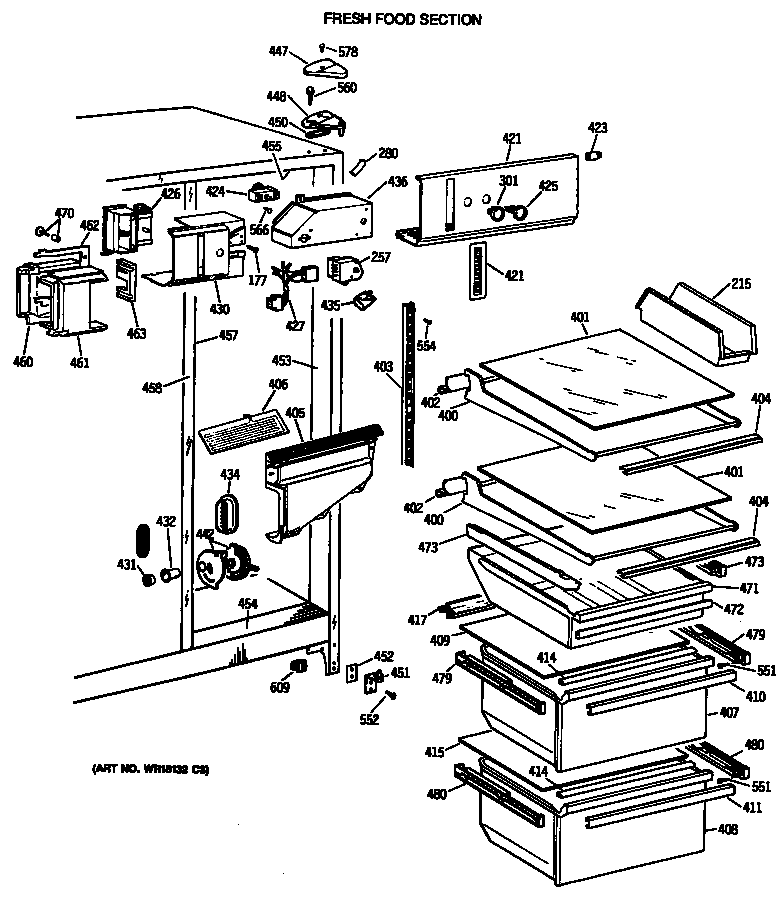

    Fresh food section diagram

    Door hinge pin, lower

    Part #WR13X614

    Replaced by #WR13X10020

    ?
    Manufacturer substitution
    This part replaces WR13X614. Substitute parts can look different from the original.
    BEST SELLER
    $42.20
    12% OFF Phone Price : $48.20
    In Stock
  • Door Hinge Pin, Lower WR13X615
    #261

    Freezer section diagram

    Door hinge pin, lower

    Part #WR13X615

    Replaced by #WR13X10020

    ?
    Manufacturer substitution
    This part replaces WR13X615. Substitute parts can look different from the original.
    BEST SELLER
    $42.20
    12% OFF Phone Price : $48.20
    In Stock
  • Refrigerator Door Closer Cam WR2X4901
    #16

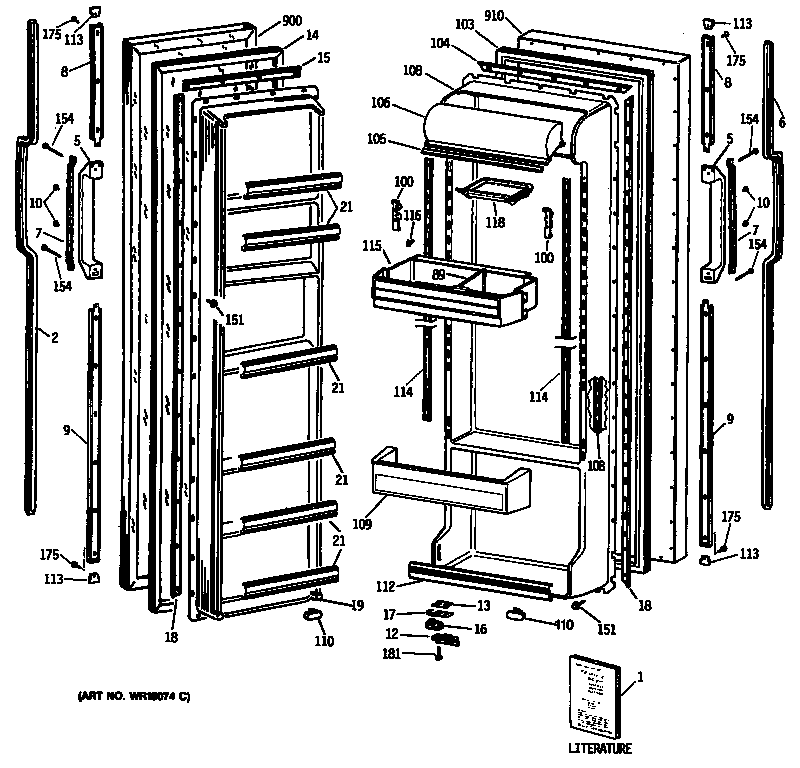

    Doors diagram

    Refrigerator door closer cam

    Part #WR2X4901

    BEST SELLER
    $20.00
    23% OFF Phone Price : $26.00
    In Stock
  • Refrigerator Crisper Drawer Slide Rail, Left WR72X207
    #479B

    Fresh food section diagram

    Refrigerator crisper drawer slide rail, left

    Part #WR72X207

    $39.08
    13% OFF Phone Price : $45.08
    In Stock
  • Lo-side Kit WR85X282
    #228

    Freezer section diagram

    Lo-side kit

    Part #WR85X282

    Replaced by #WR87X28949

    ?
    Manufacturer substitution
    This part replaces WR85X282. Substitute parts can look different from the original.
    In Stock
  • Refrigerator Slide Assembly, Left WR72X231
    #479D

    Fresh food section diagram

    Refrigerator slide assembly, left

    Part #WR72X231

    Replaced by #WR72X207

    ?
    Manufacturer substitution
    This part replaces WR72X231. Substitute parts can look different from the original.
    $39.08
    13% OFF Phone Price : $45.08
    In Stock
  • Dryer Screw WH2X930

    #NI

    All parts diagram

    Dryer screw

    Part #WH2X930

    This item is not returnable
    $7.95
    11% OFF Phone Price : $8.95
    In Stock
  • Refrigerator Screw, 2-pack WR1X1466

    #NI

    All parts diagram

    Refrigerator screw, 2-pack

    Part #WR1X1466

    Replaced by #WZ5X158D

    ?
    Manufacturer substitution
    This part replaces WR1X1466. Substitute parts can look different from the original.
    $32.90
    15% OFF Phone Price : $38.90
    In Stock
