Kenmore
Electric Wall Oven

Model # 9114703991 Official Kenmore built-in convection oven

Here are the diagrams and repair parts for Official Kenmore 9114703991 built-in convection oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

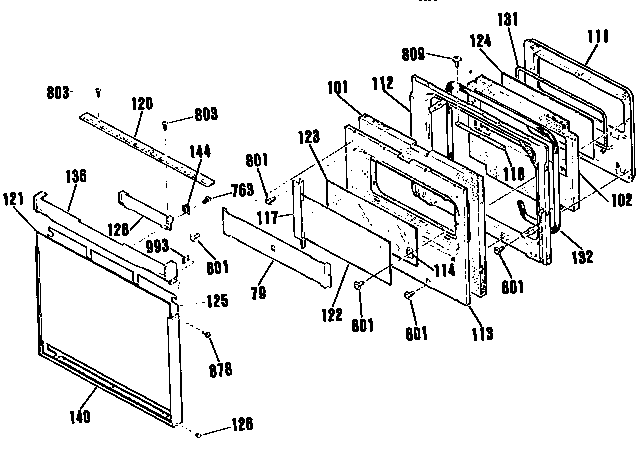

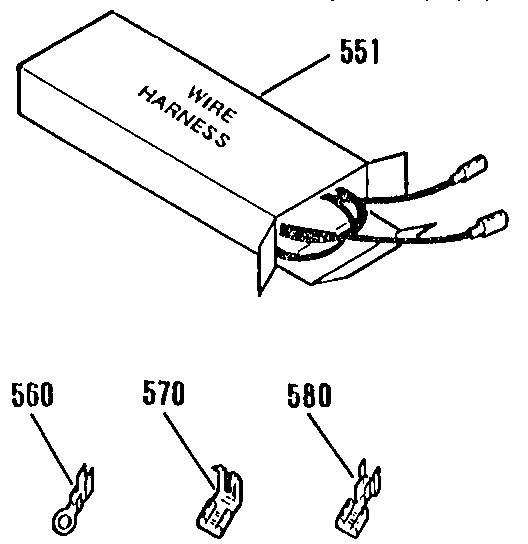

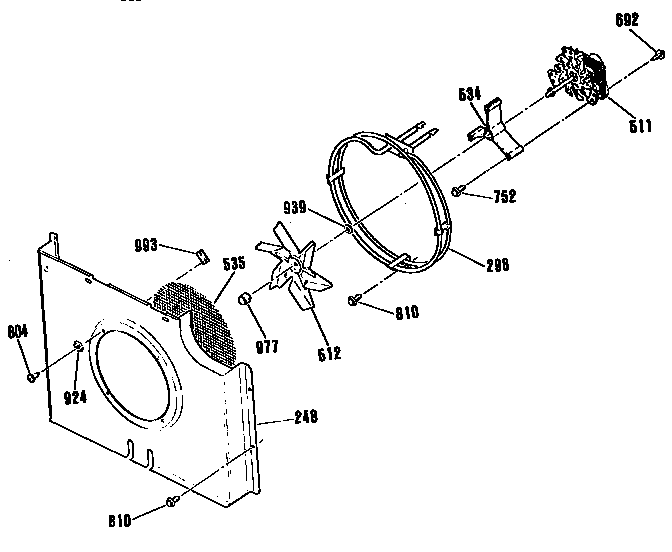

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
40a15 Bulb STD372401
#257

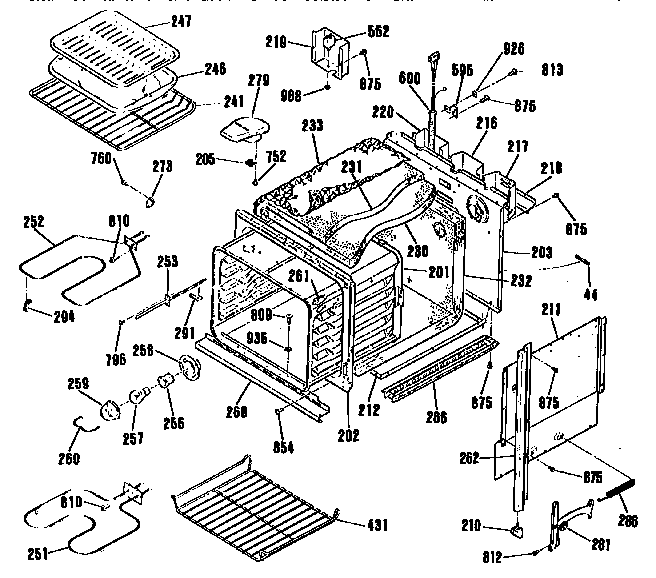

Body section diagram

40a15 bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Sensor WB20X0106
#253

Body section diagram

Sensor

Part #WB20X0106

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB20X0106. Substitute parts can look different from the original.
BEST SELLER
$147.17 |
8% OFF Phone Price : $159.17
In Stock
Bake Element WB44K5013
#251

Body section diagram

Bake element

Part #WB44K5013

Replaced by #WB44K5013

?
Manufacturer substitution
This part replaces WB44K5013. Substitute parts can look different from the original.
BEST SELLER
$69.19 |
8% OFF Phone Price : $75.19
In Stock
Broil Support WB02X9719
#294

Body section diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Cover WB36X0389
#259

Body section diagram

Cover

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Limit Switch WB24K5033
#158

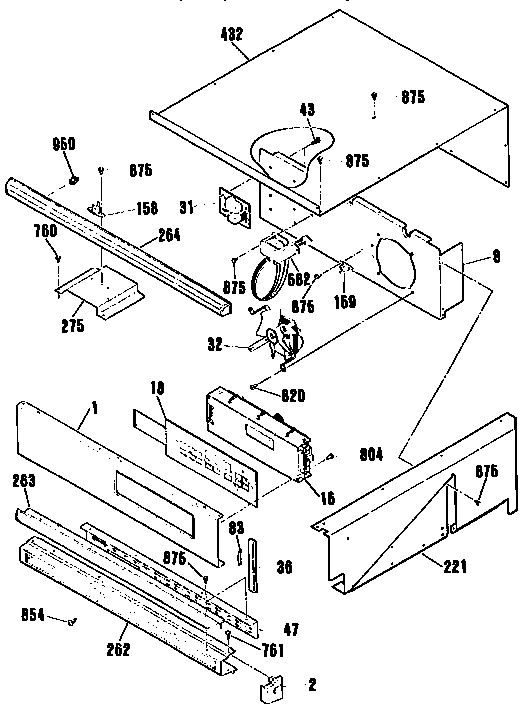

Control panel section diagram

Limit switch

Part #WB24K5033

Replaced by #WB24K5033

?
Manufacturer substitution
This part replaces WB24K5033. Substitute parts can look different from the original.
$23.29 |
20% OFF Phone Price : $29.29
In Stock
Wall Oven Thermal Fuse (replaces Wb24k5034) WB24K5085
#159

Control panel section diagram

Wall oven thermal fuse (replaces wb24k5034)

Part #WB24K5085

$48.47 |
11% OFF Phone Price : $54.47
In Stock
Screw-10ab WB01X1137
#809

Body section diagram

Screw-10ab

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Drive Lock Plate WB34K5079
#184

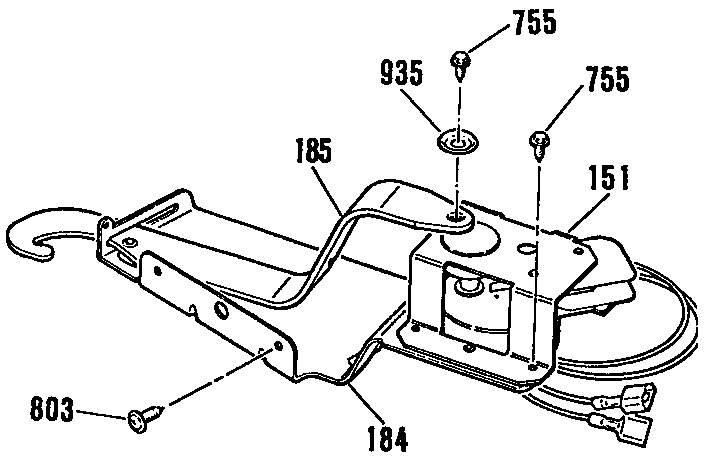

Door lock section diagram

Drive lock plate

Part #WB34K5079

Replaced by #WB34K5228

?
Manufacturer substitution
This part replaces WB34K5079. Substitute parts can look different from the original.
$105.14
In Stock
Screw WB01K5028
Screw

Part #WB01K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
