Craftsman
Reciprocating Saw

Model # 315172310 Official Craftsman variable-speed sabre saw

Here are the diagrams and repair parts for Official Craftsman 315172310 variable-speed sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Logo Plate 976455-001
#3

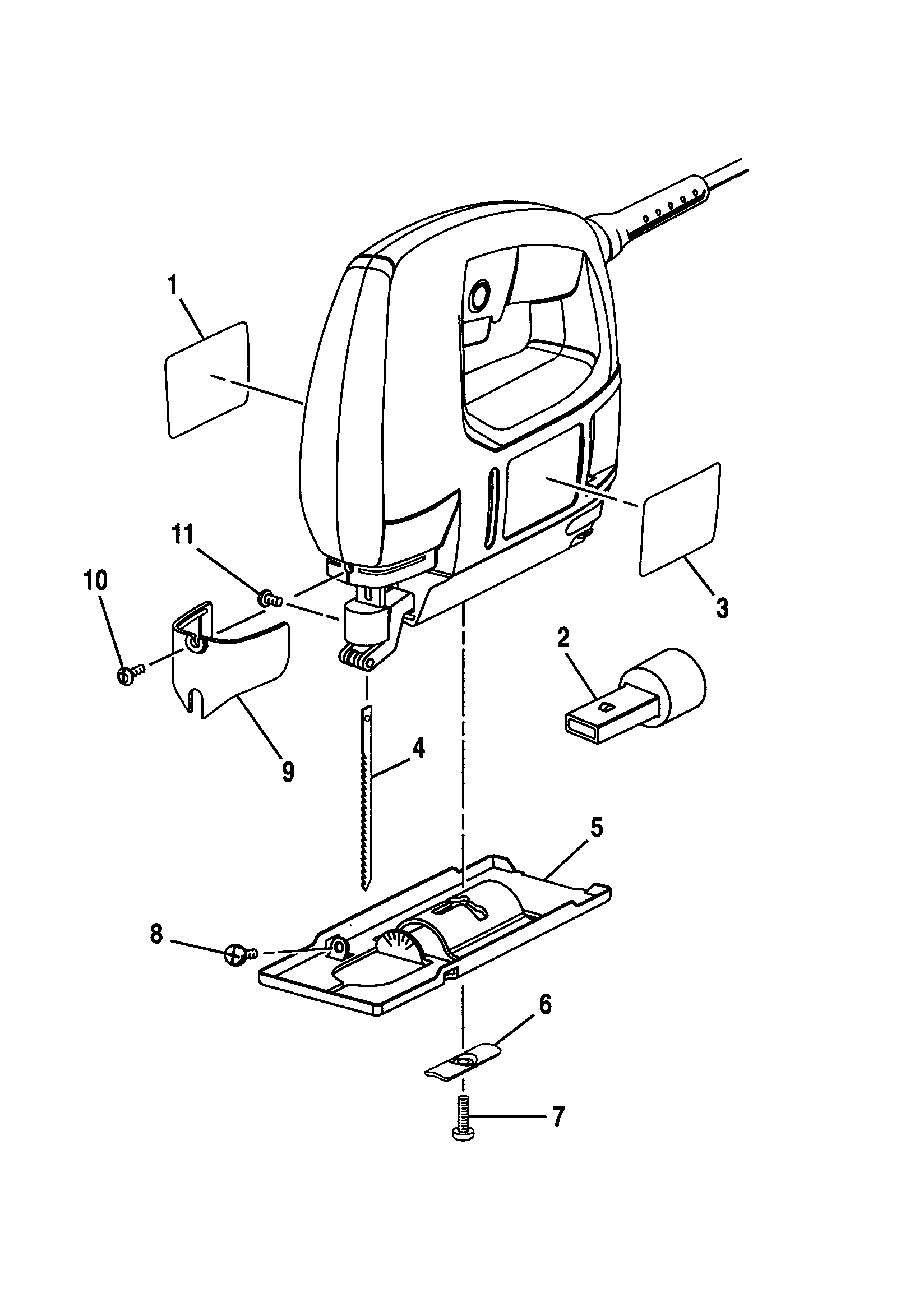

Craftsman sabre saw diagram

Logo plate

Part #976455-001

The manufacturer no longer makes this part, and there's no substitute part

Support 981515-000
#22

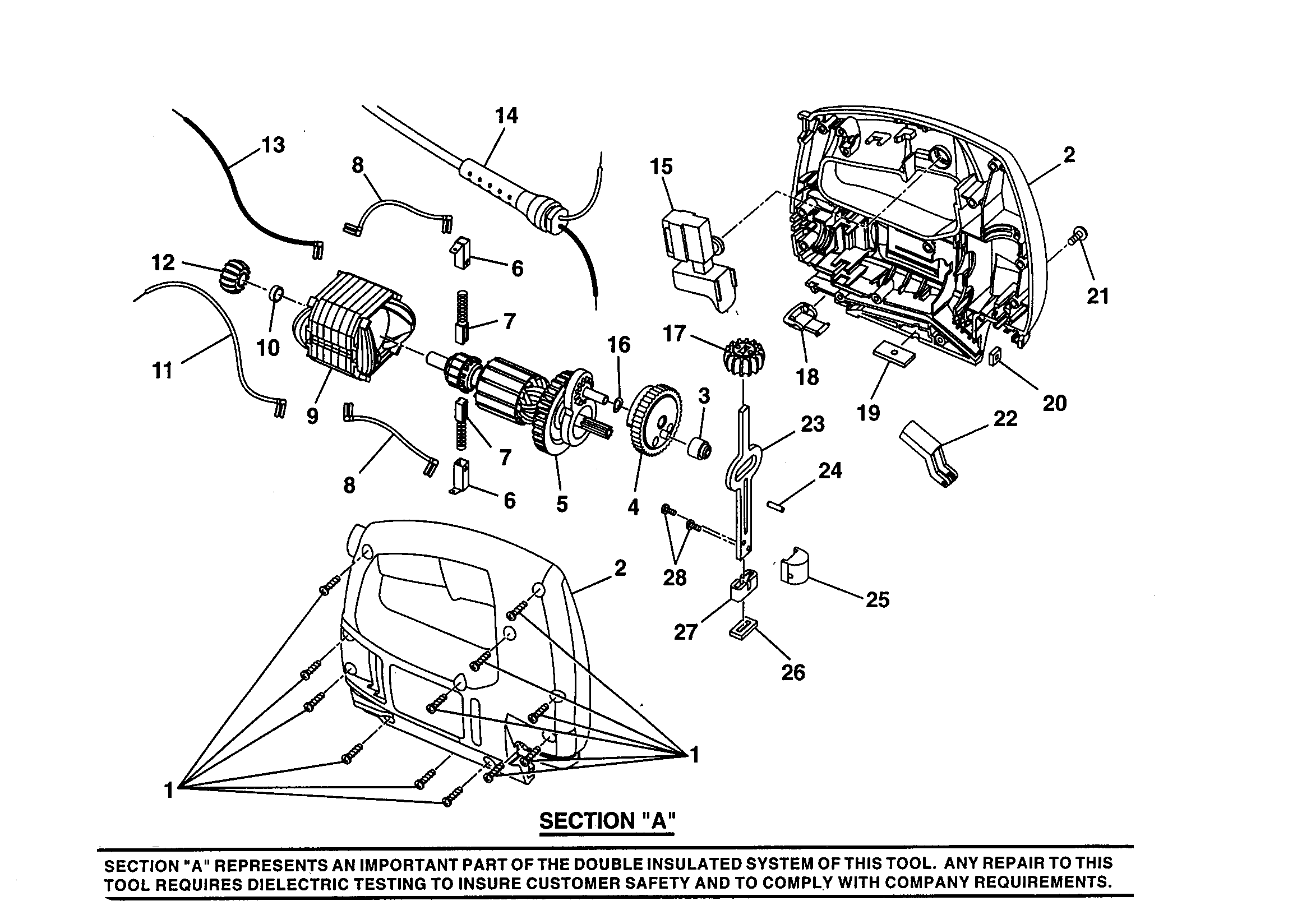

Motor assembly diagram

Support

Part #981515-000

The manufacturer no longer makes this part, and there's no substitute part

Lead White 979611-002
#11

Motor assembly diagram

Lead white

Part #979611-002

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink 998044-001
#12

Motor assembly diagram

Heat sink

Part #998044-001

The manufacturer no longer makes this part, and there's no substitute part

Switch 974490-002
#15

Motor assembly diagram

Switch

Part #974490-002

The manufacturer no longer makes this part, and there's no substitute part

Bushing 713513-837
#10

Motor assembly diagram

Bushing

Part #713513-837

The manufacturer no longer makes this part, and there's no substitute part

Housing 981512-000
#2

Motor assembly diagram

Housing

Part #981512-000

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly 974753-001
#5

Craftsman sabre saw diagram

Base assembly

Part #974753-001

The manufacturer no longer makes this part, and there's no substitute part

Field 967928-021
#9

Motor assembly diagram

Field

Part #967928-021

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 981821-001
#1

Craftsman sabre saw diagram

Data plate

Part #981821-001

The manufacturer no longer makes this part, and there's no substitute part
