Kenmore
Electric Range

Model # 1039378110 Official Kenmore 30" electric range with glass cooktop

Here are the diagrams and repair parts for Official Kenmore 1039378110 30" electric range with glass cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

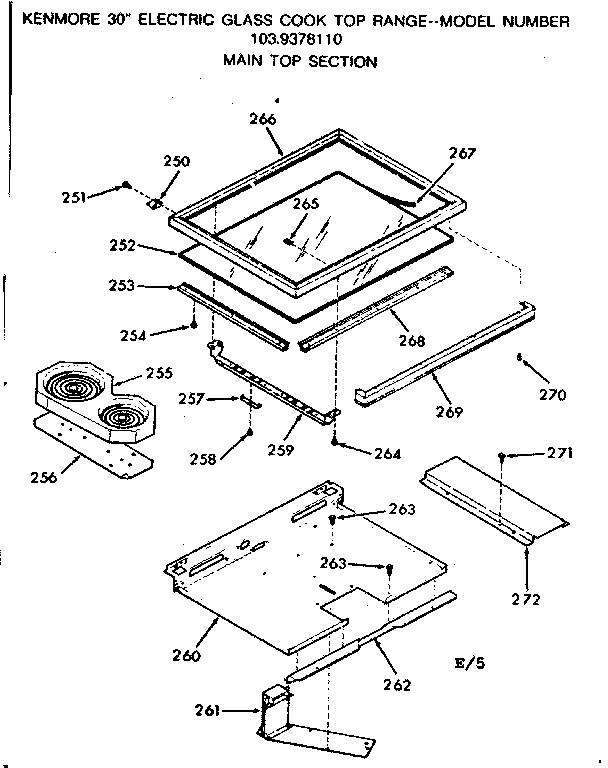

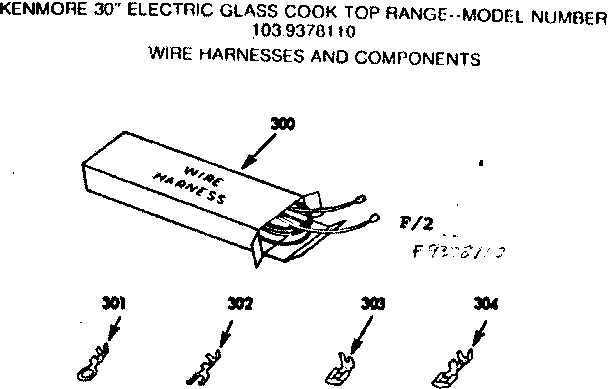

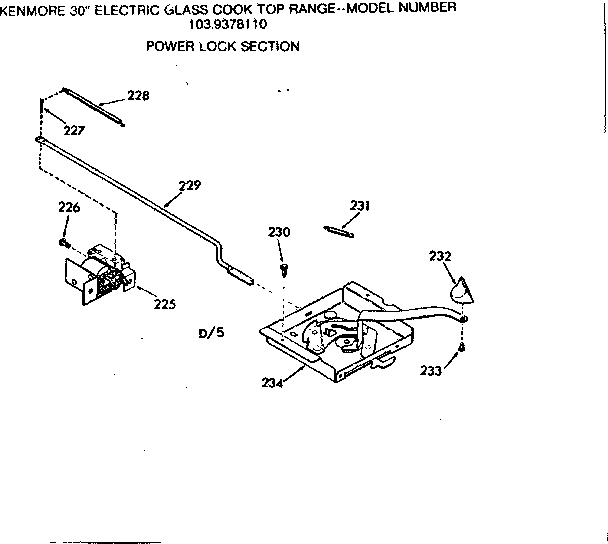

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Lamp Bulb STD372401
#99

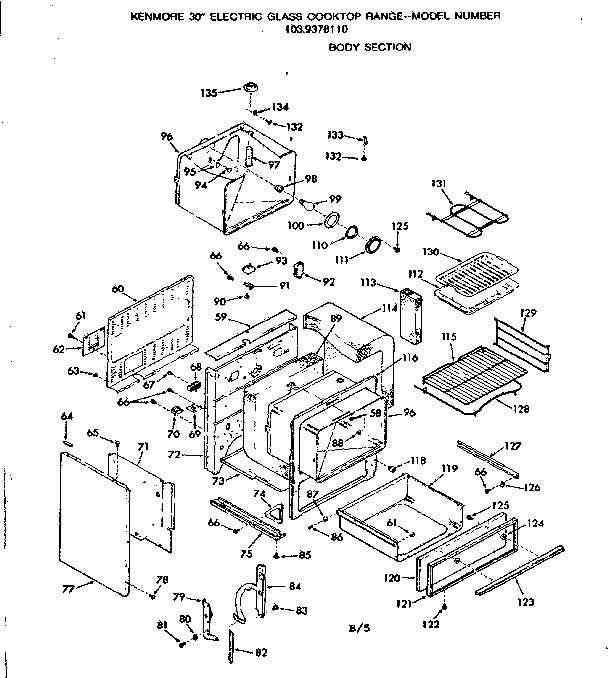

Body section diagram

Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 105771
Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Gasket 292244
#161

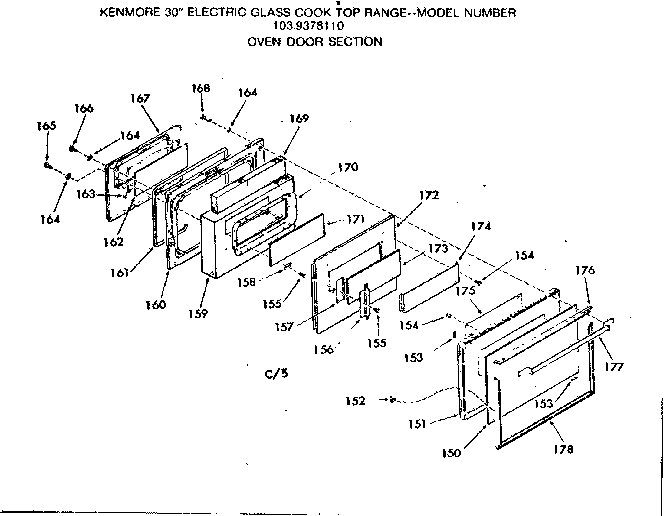

Oven door section diagram

Gasket

Part #292244

Replaced by #WB2X9373

?
Manufacturer substitution
This part replaces 292244. Substitute parts can look different from the original.
$79.27 |
7% OFF Phone Price : $85.27
In Stock
Vent Tube 312501
#97

Body section diagram

Vent tube

Part #312501

$26.49
In Stock
Wire Cover 281938
#60

Body section diagram

Wire cover

Part #281938

$14.49
In Stock
Trim Clip 70588
Trim clip

Part #70588

Replaced by #WB2X9573

?
Manufacturer substitution
This part replaces 70588. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Bake Element 301472
#128B

Body section diagram

Bake element

Part #301472

The manufacturer no longer makes this part, and there's no substitute part

Infinite Switch 301442
#13

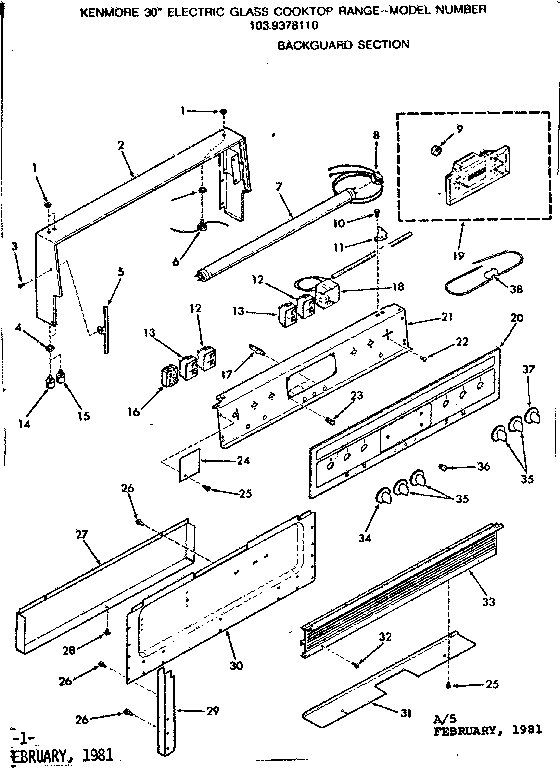

Backguard section diagram

Infinite switch

Part #301442

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces 301442. Substitute parts can look different from the original.
$42.68 |
12% OFF Phone Price : $48.68
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
