Snapper
Gas Snowblower

Model # I55223 Official Snapper snow thrower

Here are the diagrams and repair parts for Official Snapper I55223 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

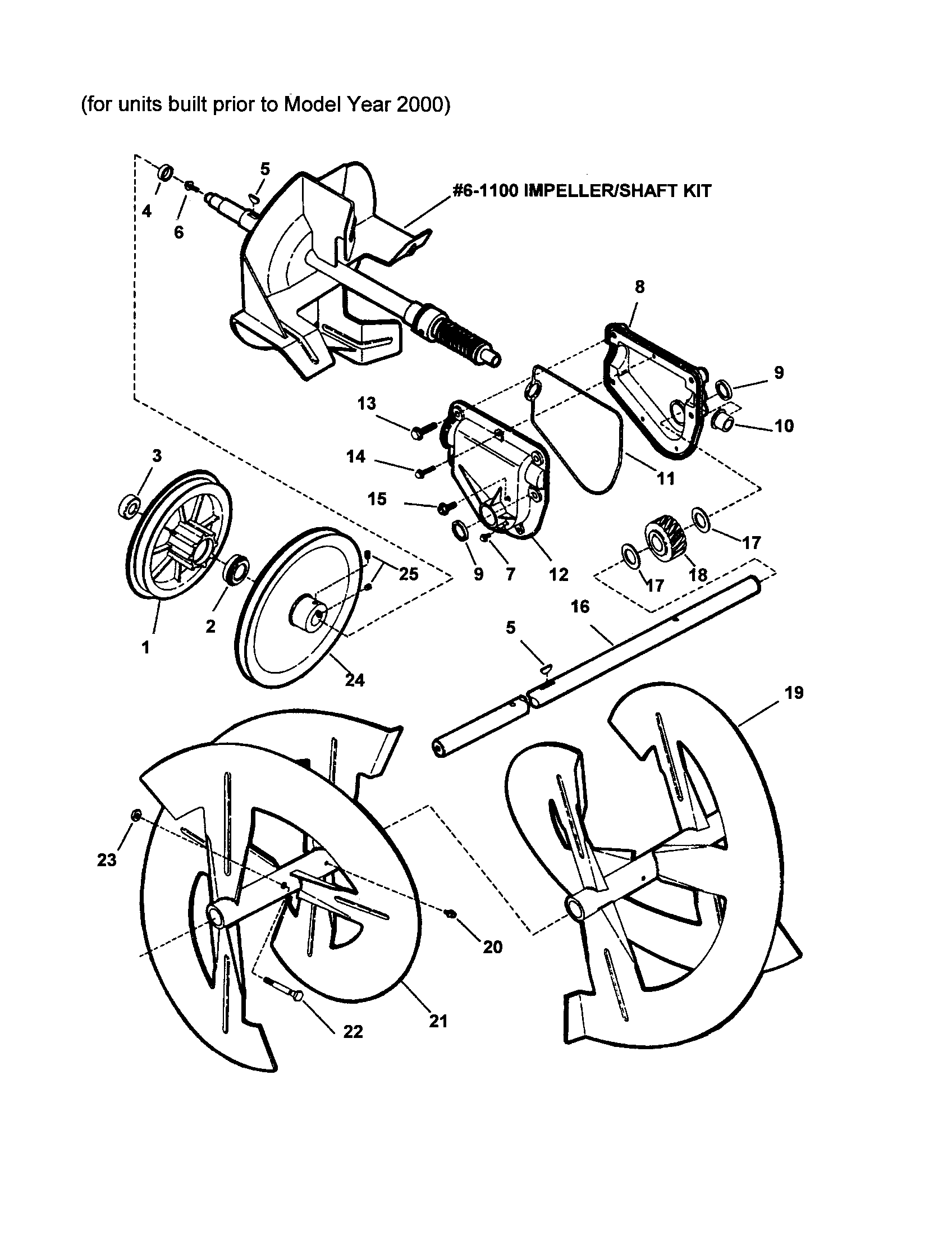

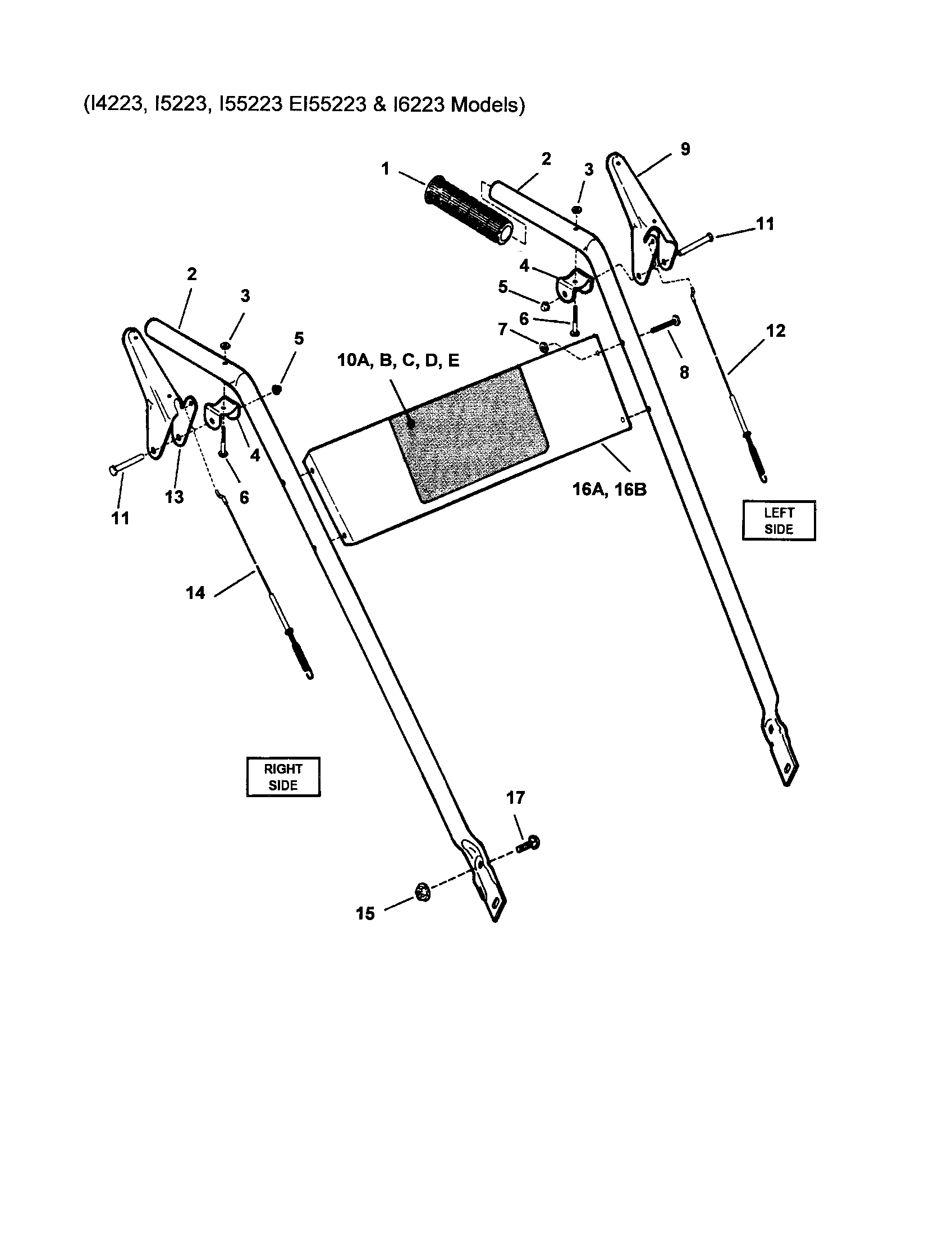

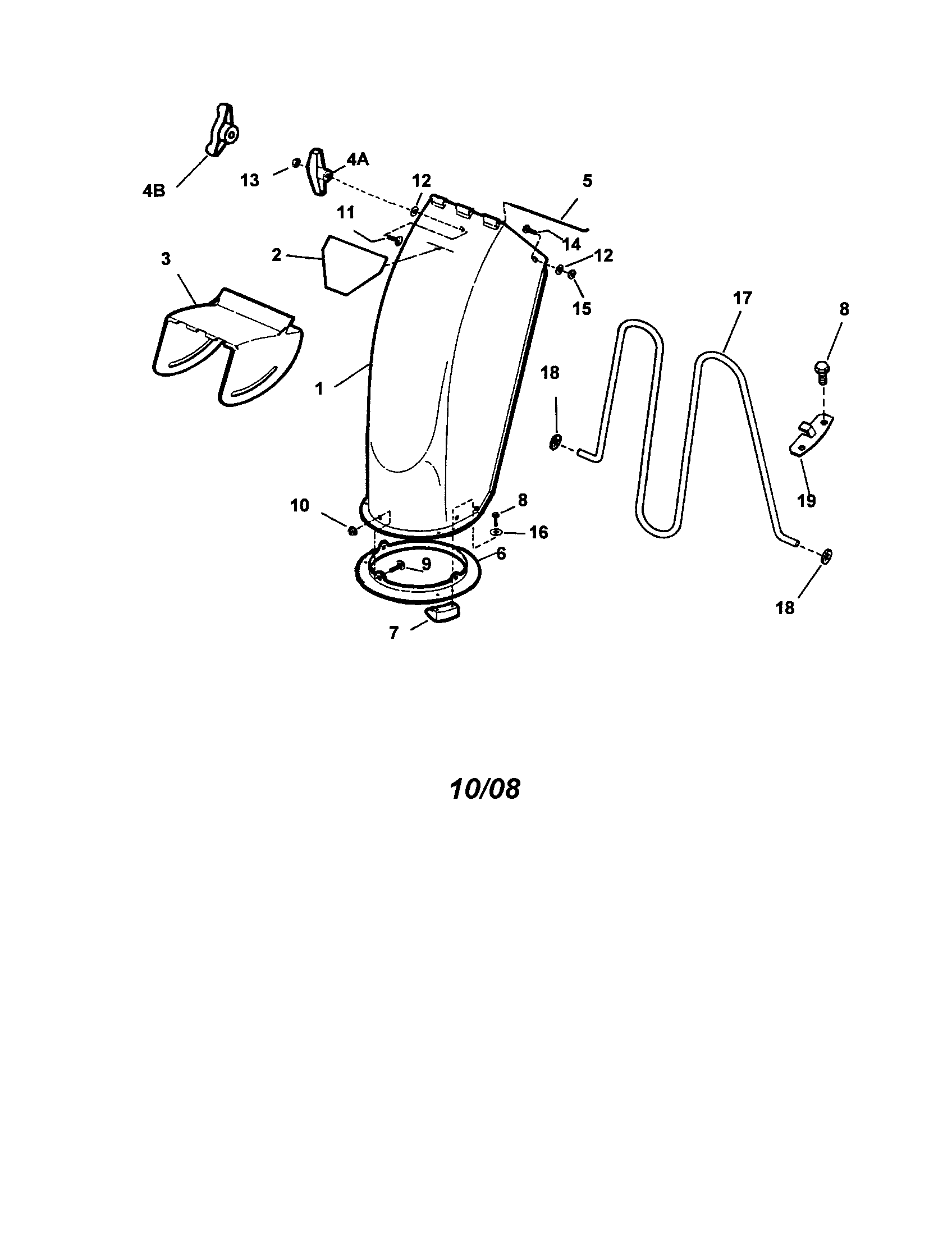

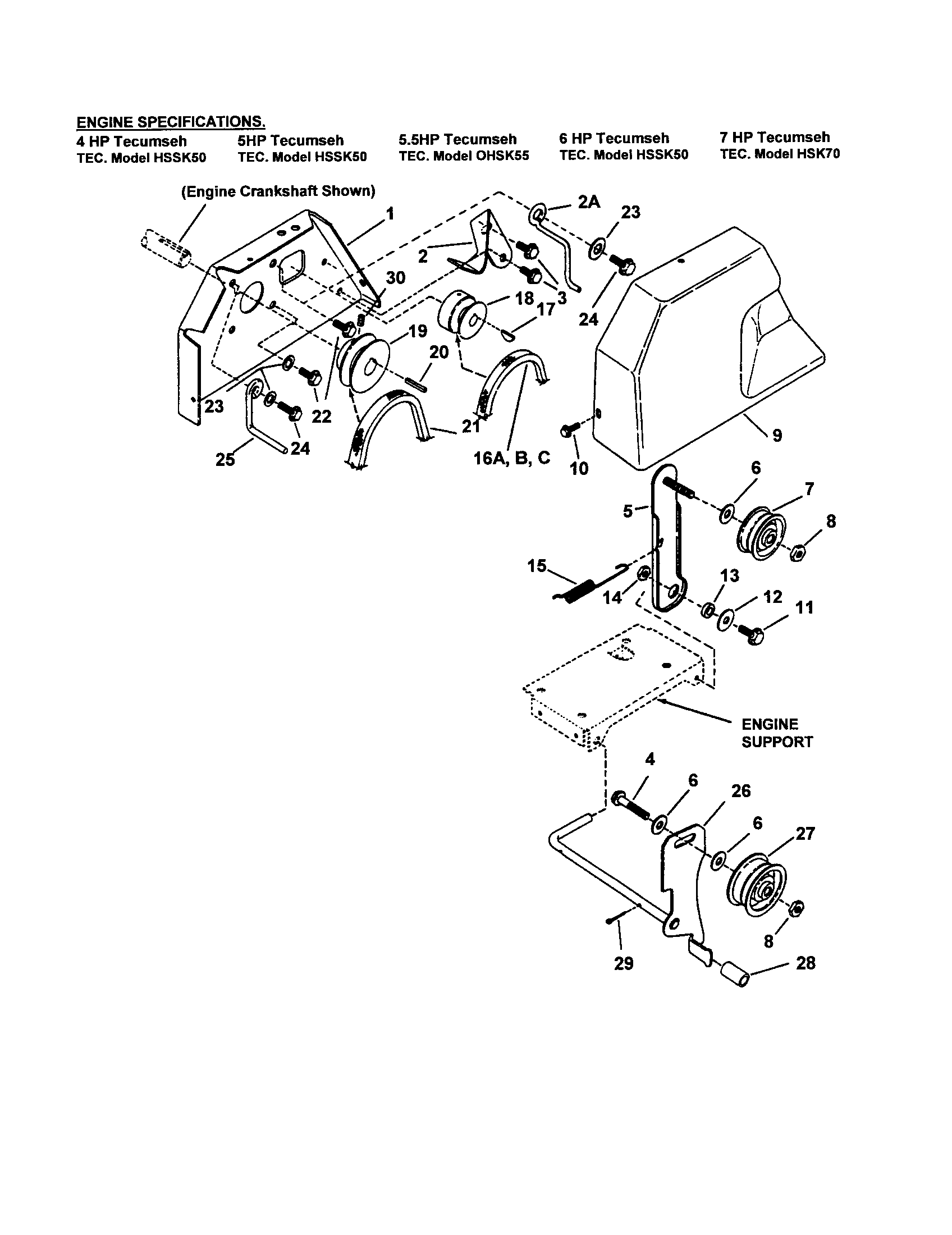

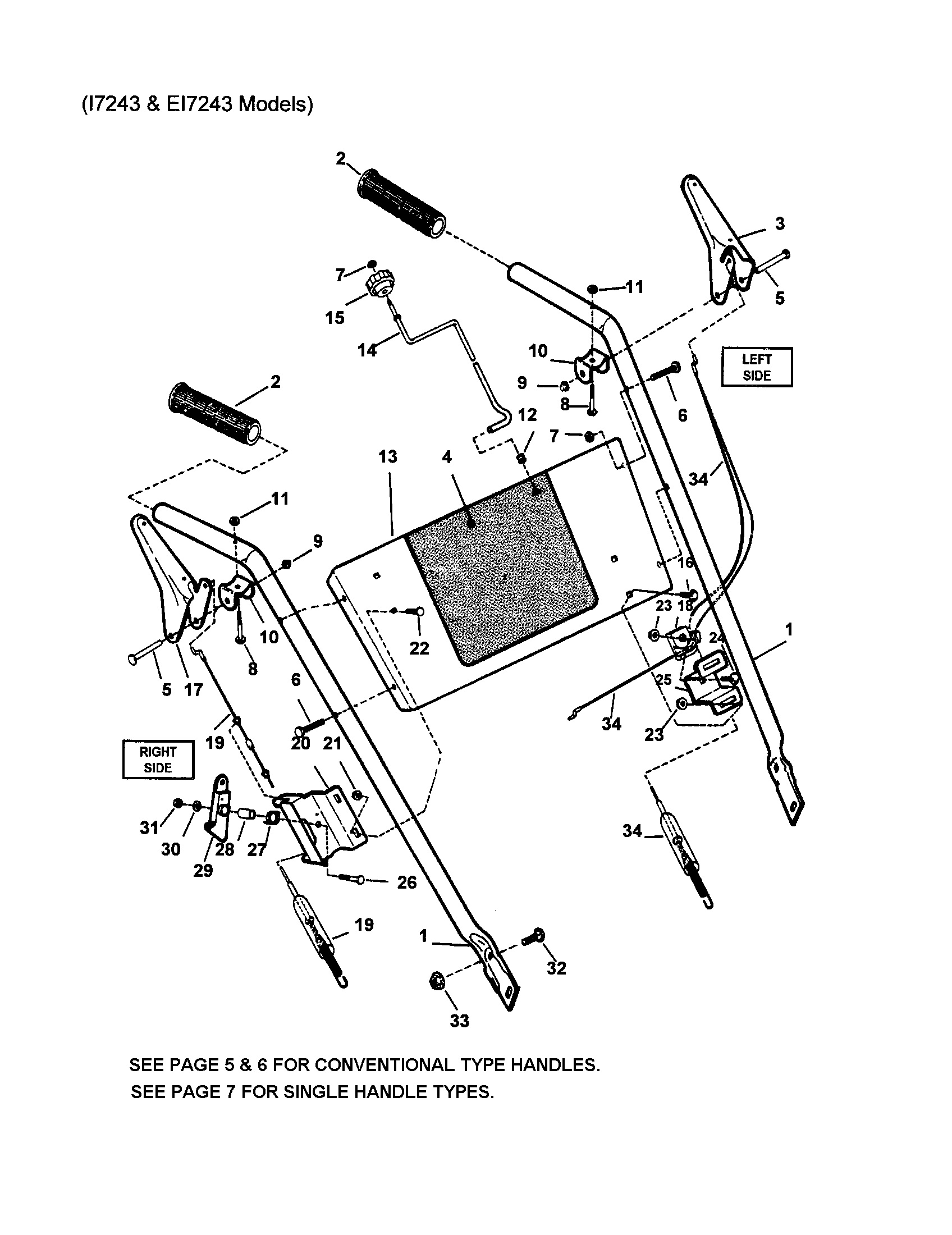

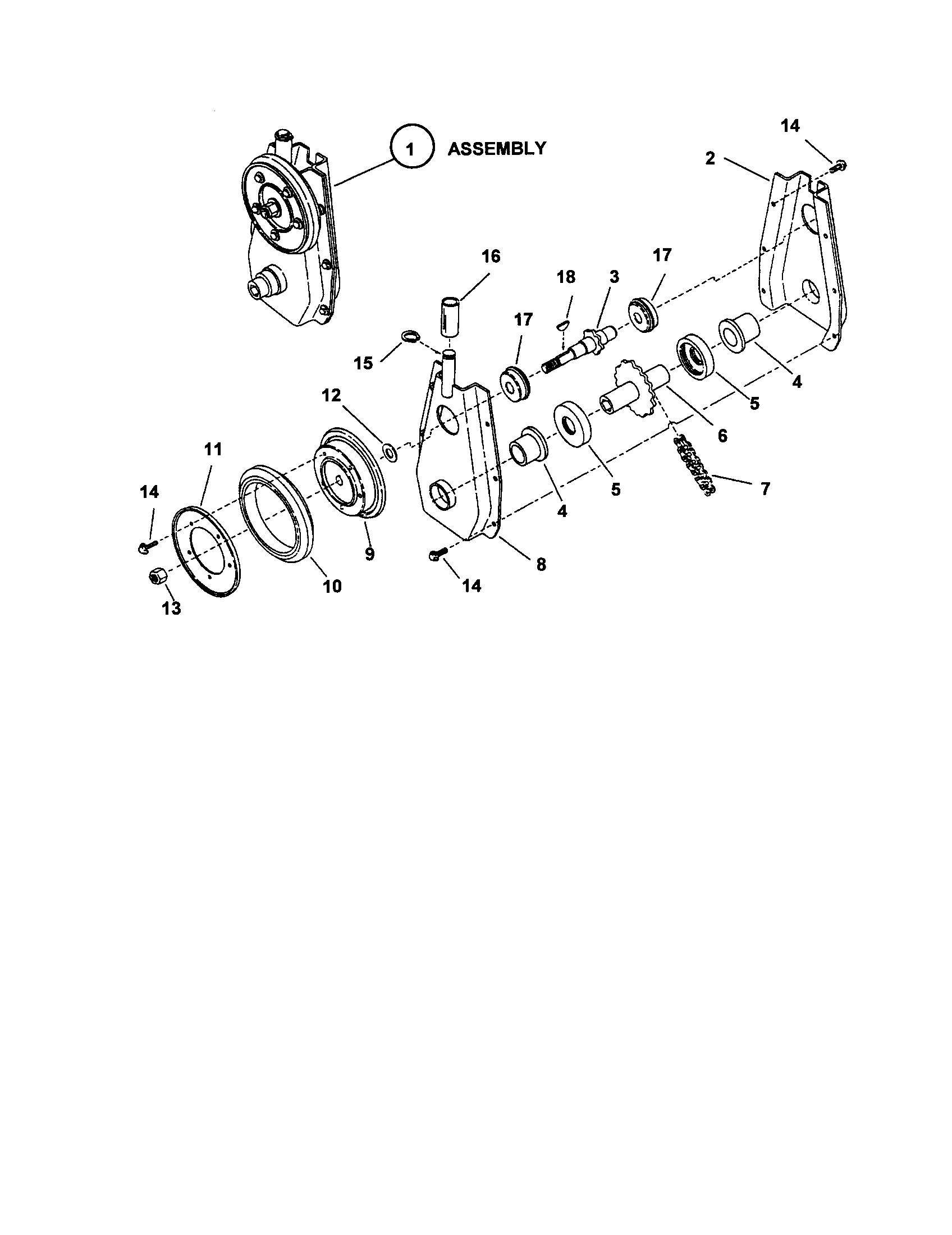

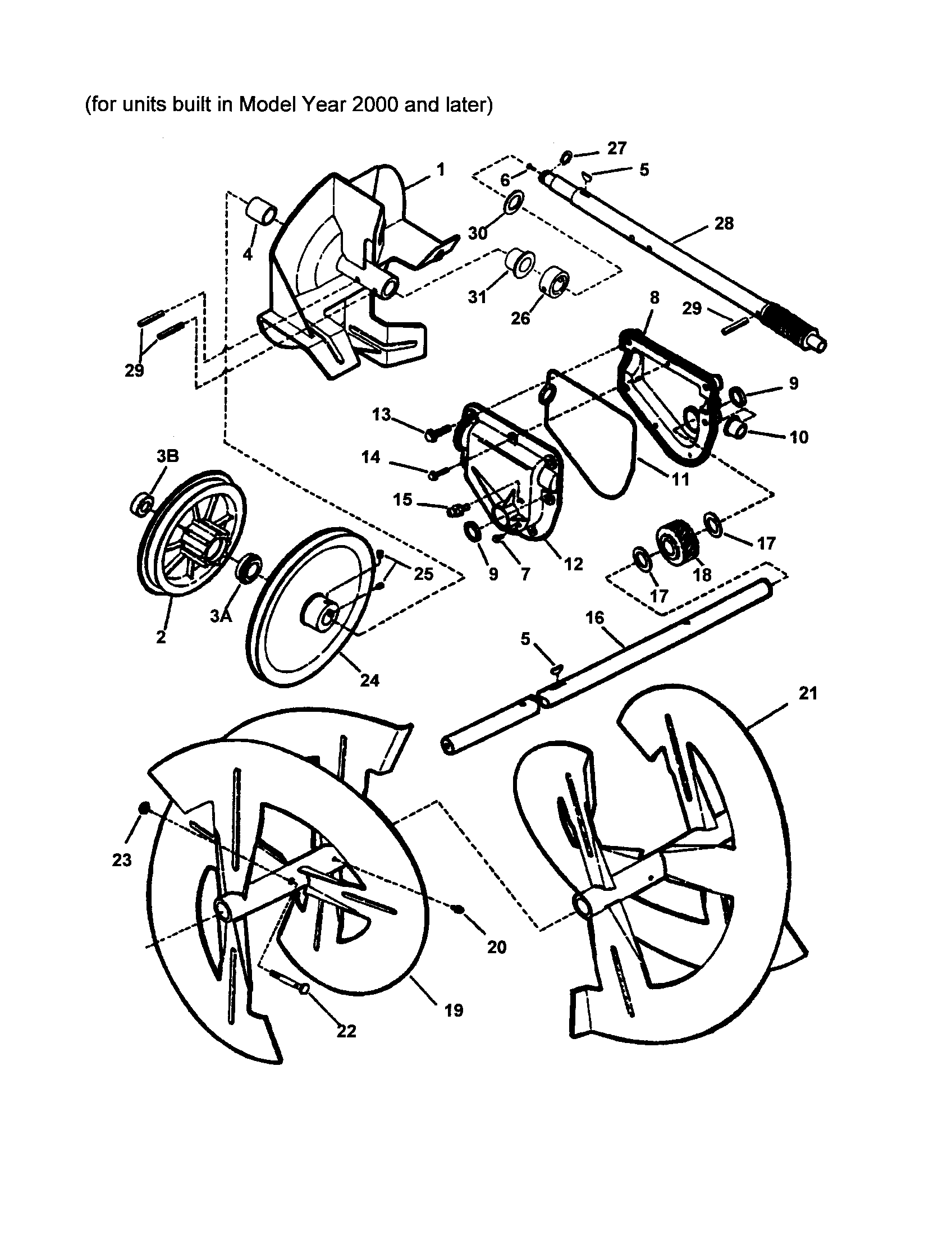

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 281 parts  |
Lube Fitting 1-3864
Lube fitting

Part #1-3864

Replaced by #7013864SM

?
Manufacturer substitution
This part replaces 1-3864. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
Shaft, Worm (model I7243 & Ei7243) 2-8181
#15A

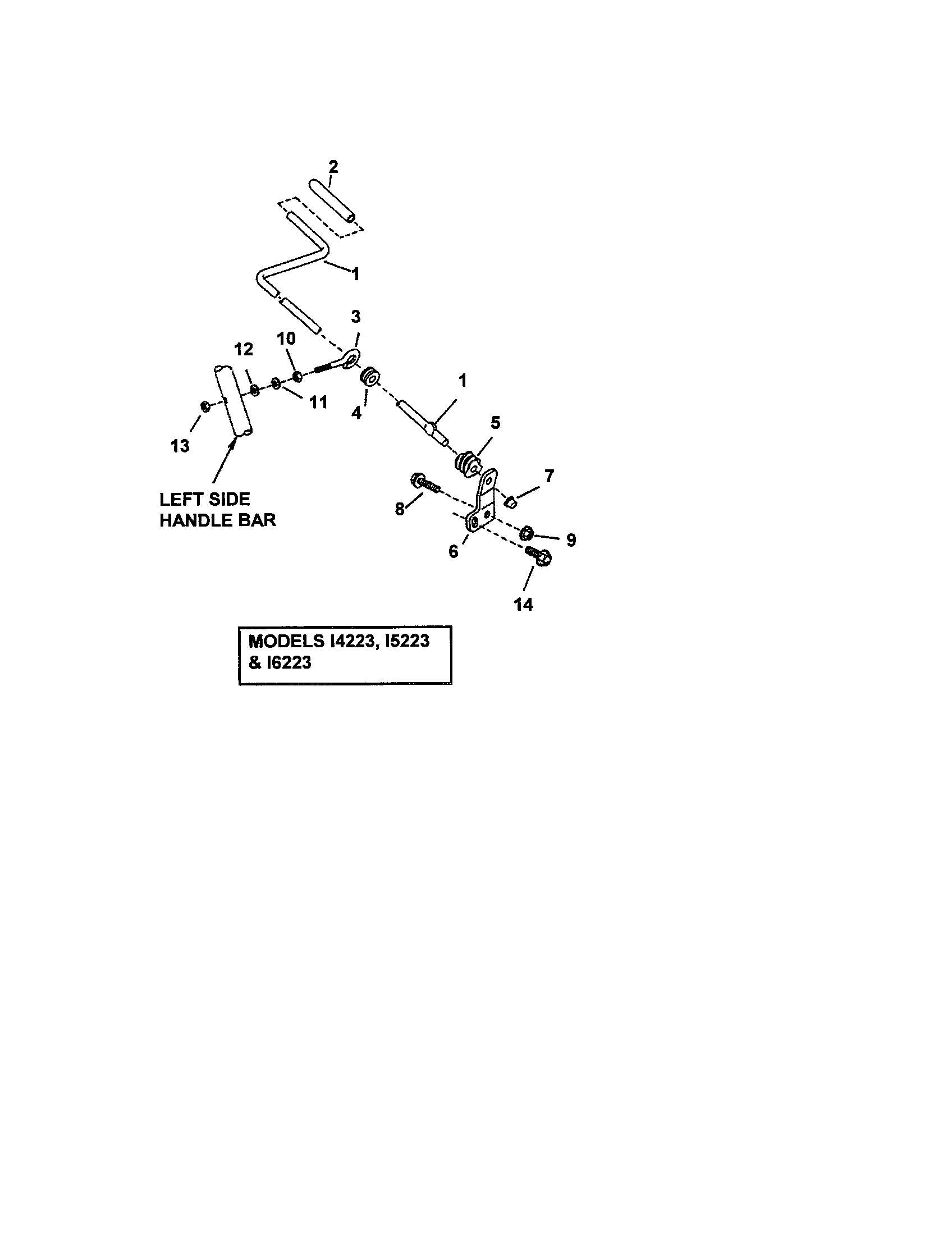

Chute crank control diagram

Shaft, worm (model i7243 & ei7243)

Part #2-8181

The manufacturer no longer makes this part, and there's no substitute part

Pin, 1/4 X 1-7/8" Clevis 1-6297
Pin, 1/4 x 1-7/8" clevis

Part #1-6297

The manufacturer no longer makes this part, and there's no substitute part

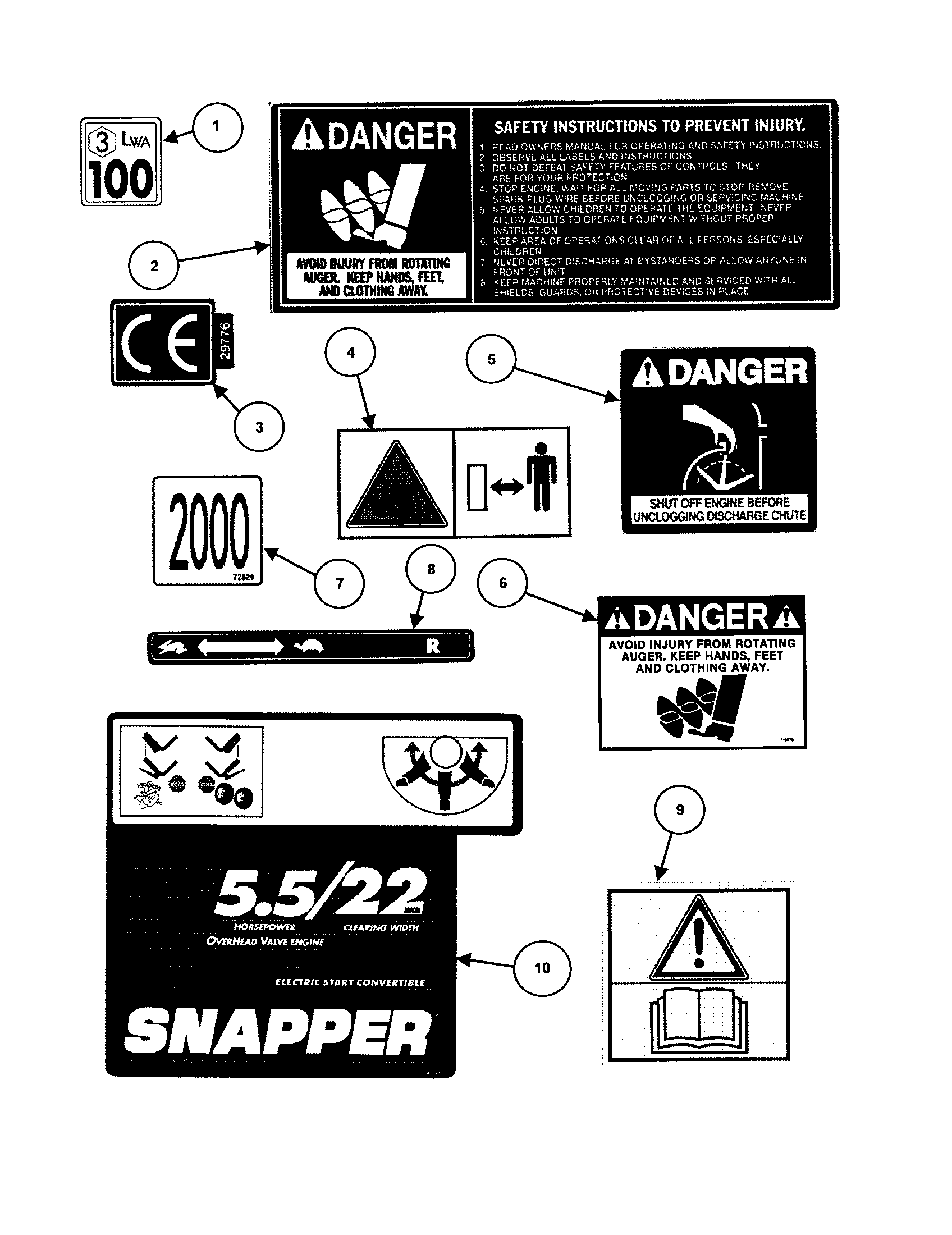

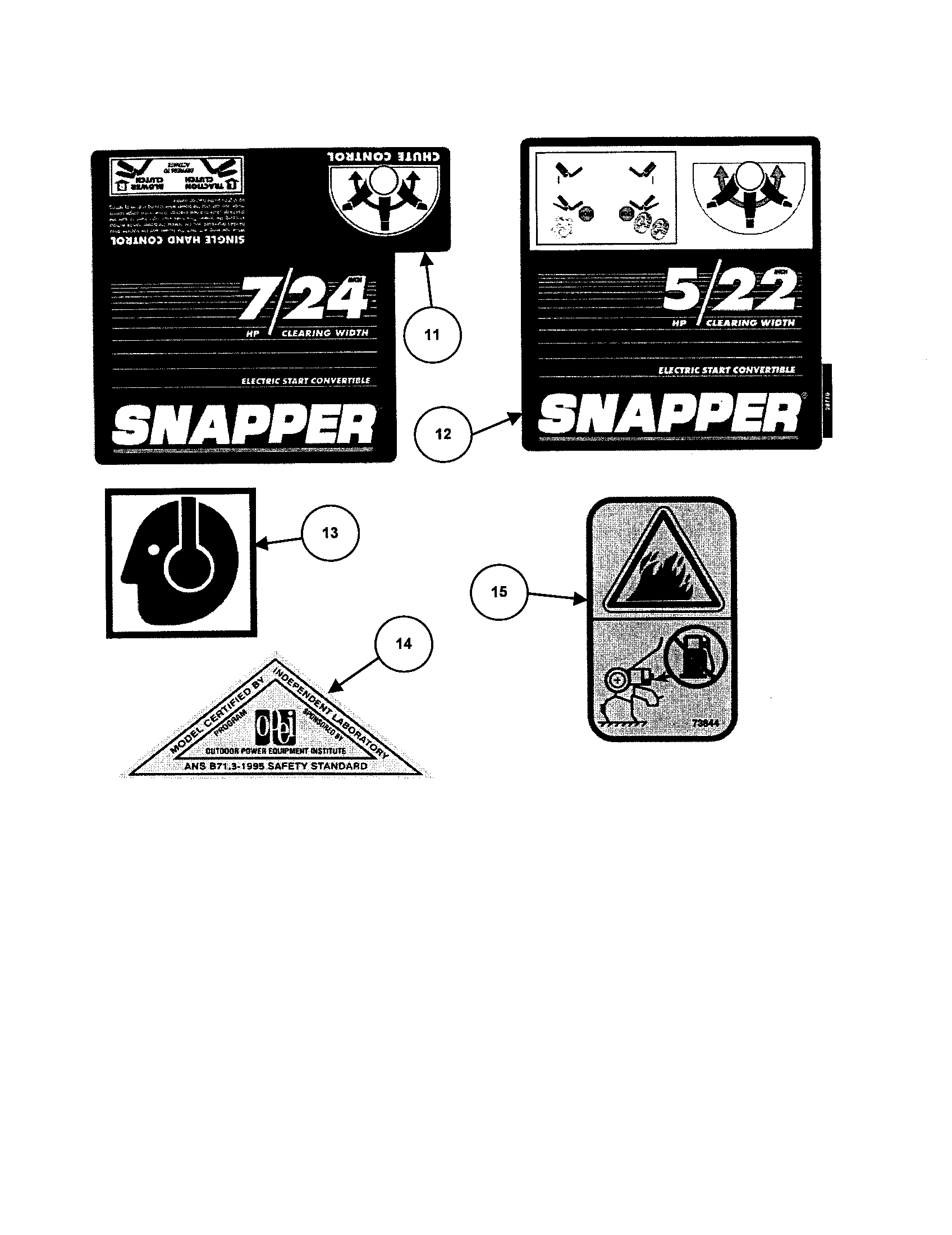

Decal, Control Model E7/24 2-8713
Decal, control model e7/24

Part #2-8713

The manufacturer no longer makes this part, and there's no substitute part

Decal, Danger (collector) 1-6578
Decal, danger (collector)

Part #1-6578

The manufacturer no longer makes this part, and there's no substitute part

Assembly, Wheels & Tire (kenda)(includes Items 2b, 3b & 4)(used On Units Built In 2000 For Model Year 2001) 5-8919
#1A

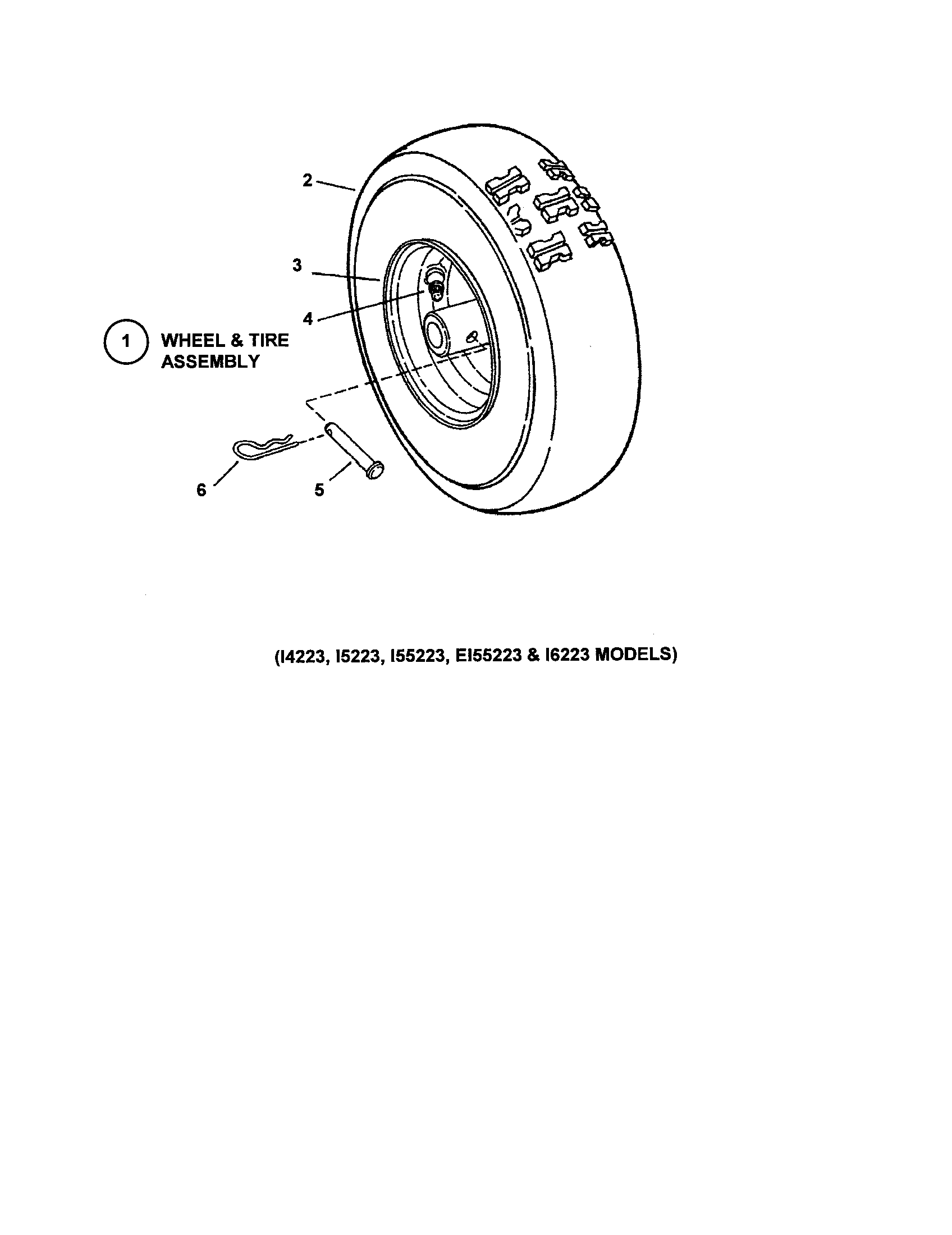

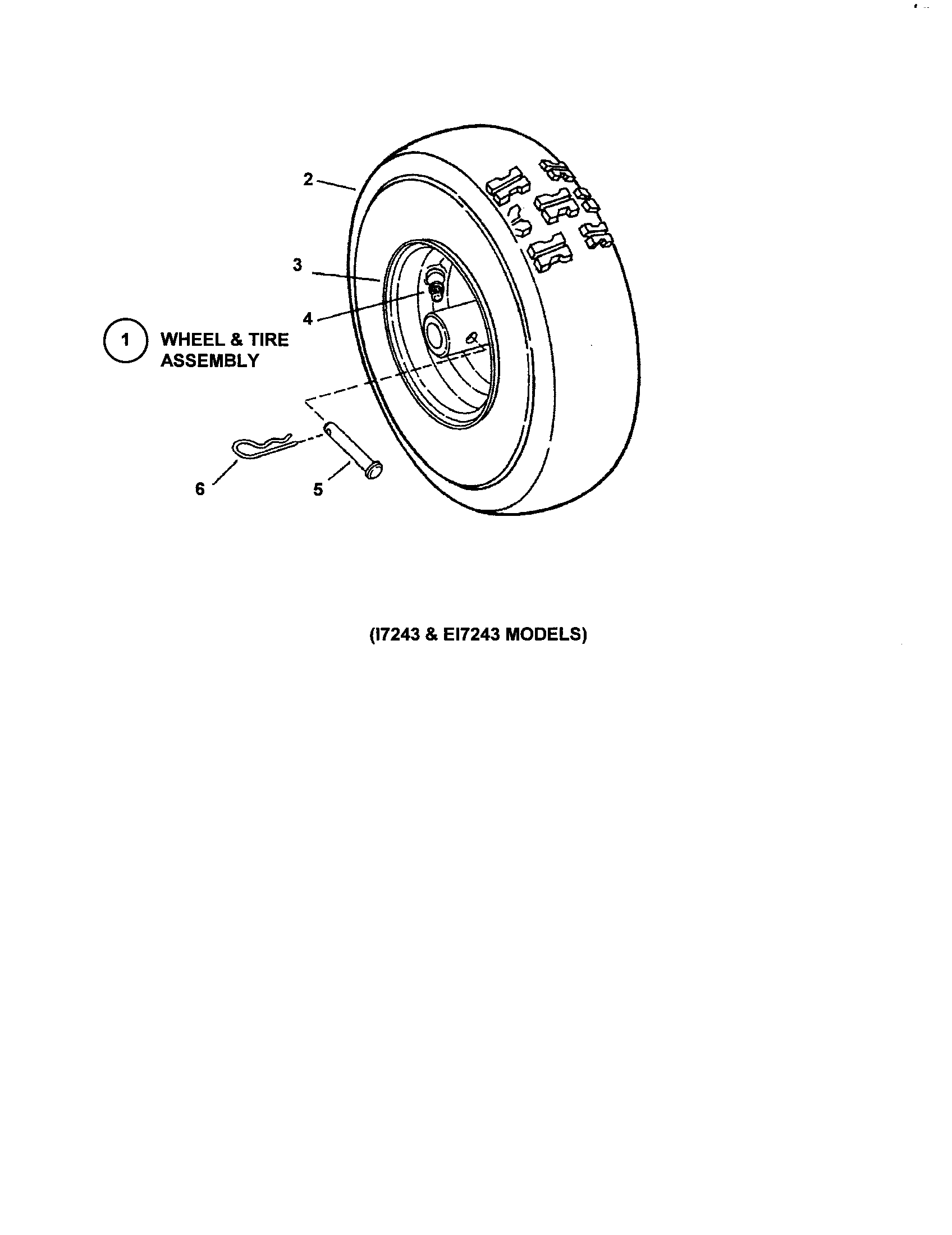

Wheels diagram

Assembly, wheels & tire (kenda)(includes items 2b, 3b & 4)(used on units built in 2000 for model year 2001)

Part #5-8919

The manufacturer no longer makes this part, and there's no substitute part

Bracket 3-2466
#44

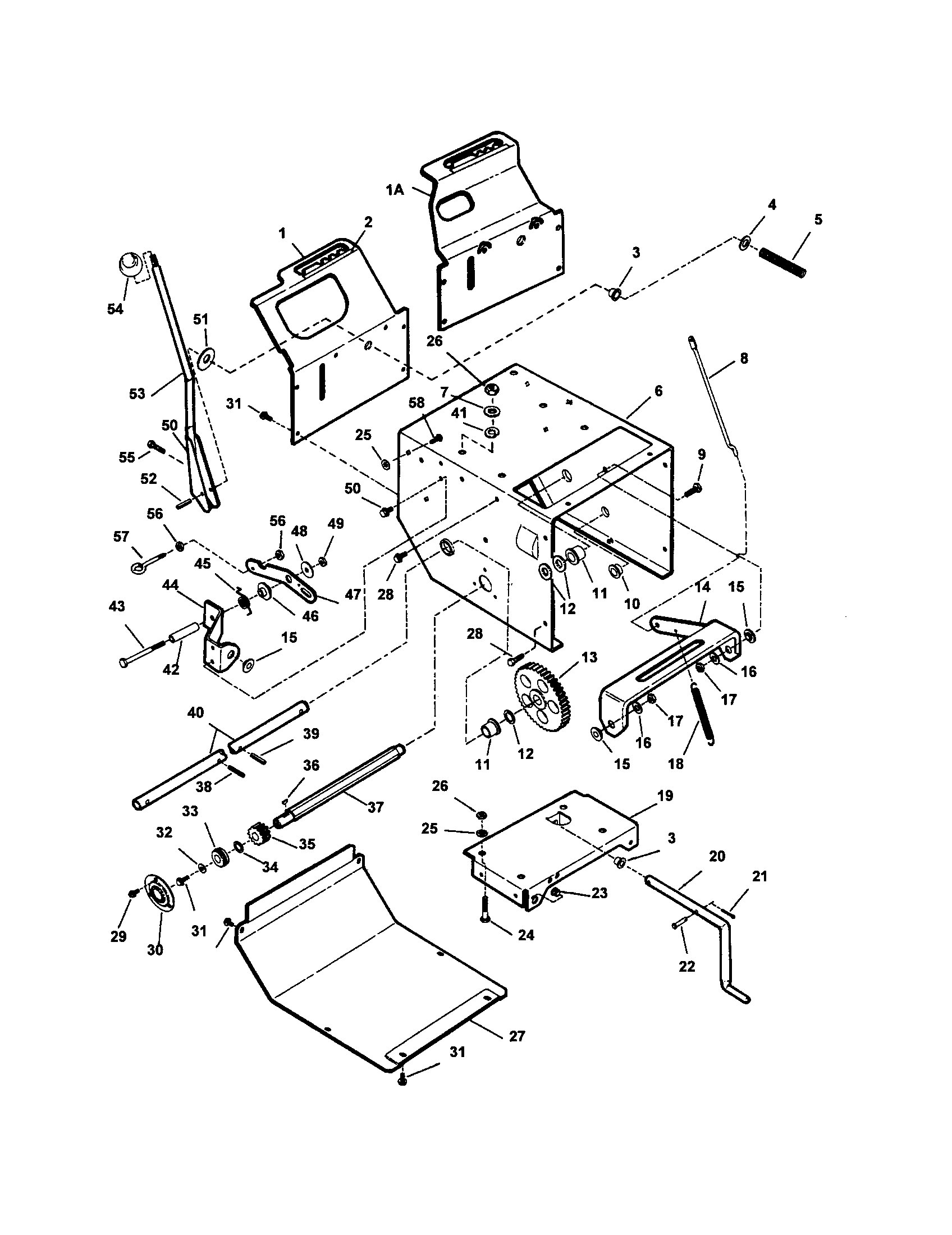

Frame, traction drive diagram

Bracket

Part #3-2466

The manufacturer no longer makes this part, and there's no substitute part

Hub 3-4283
#50

Frame, traction drive diagram

Hub

Part #3-4283

The manufacturer no longer makes this part, and there's no substitute part

Cable, Auger Drive (incl. Hardware Bag Kit #6-1364) 2-8194
Cable, auger drive (incl. hardware bag kit #6-1364)

Part #2-8194

The manufacturer no longer makes this part, and there's no substitute part

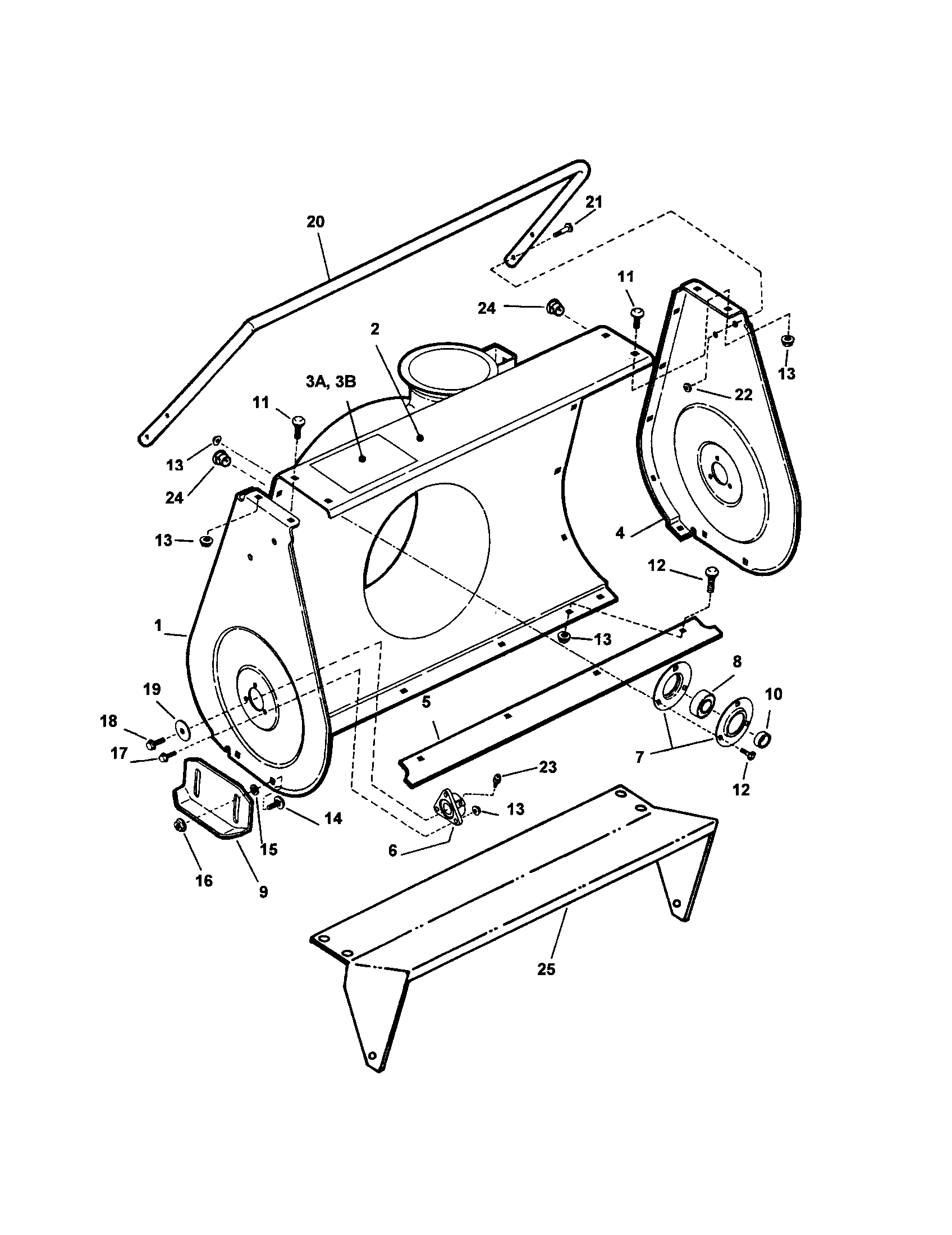

Drift-cutter (i55223 & Ei55223 Models Only) 3-8201
Drift-cutter (i55223 & ei55223 models only)

Part #3-8201

The manufacturer no longer makes this part, and there's no substitute part
