Model # AEM14ASL1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEM14ASL1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

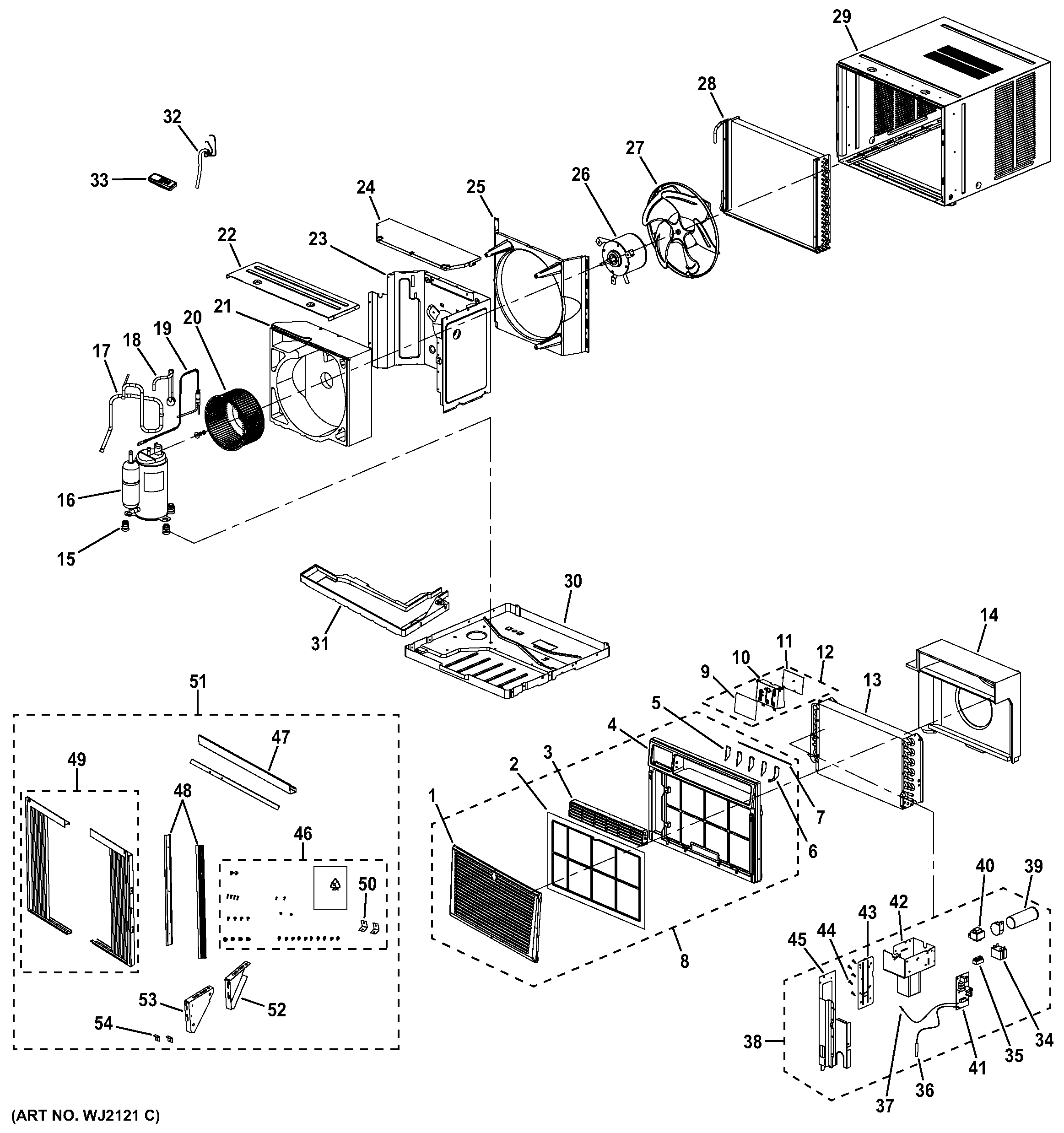

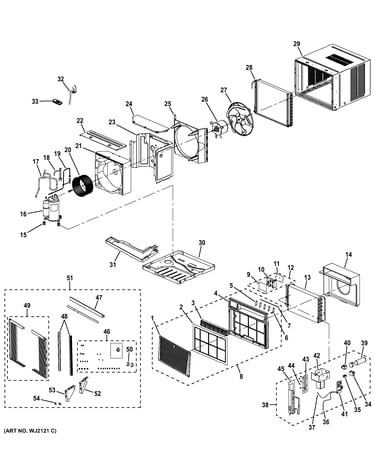

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |

Room Air Conditioner Ambient Thermistor WJ27X10139
#37

Room air conditioner diagram

Room air conditioner ambient thermistor

Part #WJ27X10139

Replaced by #WJ26X25108

?
Manufacturer substitution
This part replaces WJ27X10139. Substitute parts can look different from the original.
This item is not returnable
$17.00
11% OFF Phone Price : $19.00
In Stock
Cabinet Assembly WJ90X10126
#29

Room air conditioner diagram

Cabinet assembly

Part #WJ90X10126

In Stock
Power Cord WJ35X10170
#32

Room air conditioner diagram

Power cord

Part #WJ35X10170

$53.34
10% OFF Phone Price : $59.34
In Stock
Top Cover Bo WJ05X20182
#22

Room air conditioner diagram

Top cover bo

Part #WJ05X20182

In Stock
Curtain Assembly WJ69X10018
#49

Room air conditioner diagram

Curtain assembly

Part #WJ69X10018

$62.21
9% OFF Phone Price : $68.21
In Stock
Pcb Support WJ01X10354
#44

Room air conditioner diagram

Pcb support

Part #WJ01X10354

This item is not returnable
In Stock
Foam (air Ou WJ76X10307
#14

Room air conditioner diagram

Foam (air ou

Part #WJ76X10307

In Stock
Compressor WJ98X20165
#16

Room air conditioner diagram

Compressor

Part #WJ98X20165

In Stock
Fan Motor WJ94X10334
#26

Room air conditioner diagram

Fan motor

Part #WJ94X10334

In Stock
Room Air Conditioner Air Filter WJ71X10668
#2

Room air conditioner diagram

Room air conditioner air filter

Part #WJ71X10668

$30.33
17% OFF Phone Price : $36.33
In Stock
