Microwave/Hood Combo

Model # JVM1650CB004 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1650CB004 microwave, as well as links to manuals and error code tables, if available.

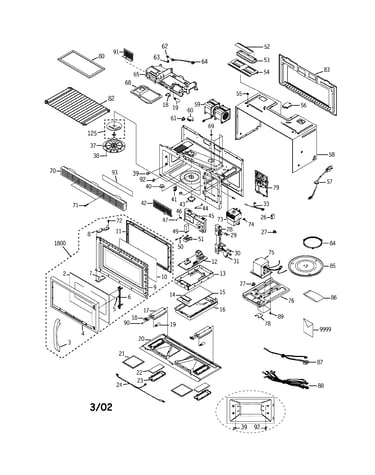

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JVM1650CB004 Microwave
Switch-micro WB24X0829
#29

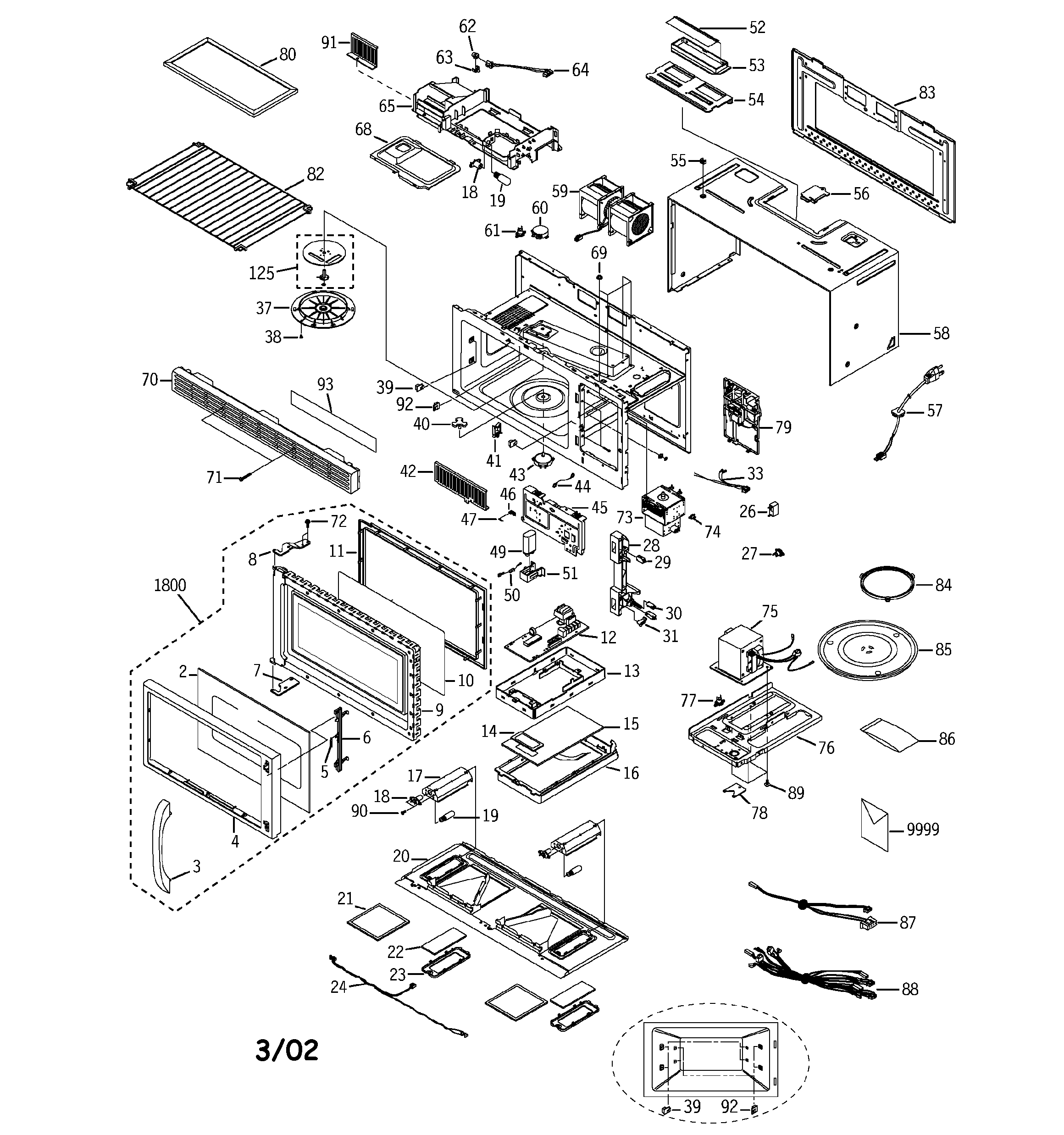

Microwave diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
4.57 (7)
BEST SELLER
$35.62 |
14% OFF Phone Price : $41.62
In Stock
Monitor Switch WB24X0830
#30

Microwave diagram

Monitor switch

Part #WB24X0830

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
2.67 (3)
BEST SELLER
$32.81 |
12% OFF Phone Price : $37.09
In Stock
Microwave High-voltage Diode (replaces Wb27x608) WB27X1160
#50

Microwave diagram

Microwave high-voltage diode (replaces wb27x608)

Part #WB27X1160

5 (1)
BEST SELLER
$91.95
In Stock
Microwave Door Interlock Switch Lever (replaces Wb6x10128) WB06X10128
#31

Microwave diagram

Microwave door interlock switch lever (replaces wb6x10128)

Part #WB06X10128

3 (1)
BEST SELLER
$10.67 |
16% OFF Phone Price : $12.67
In Stock
Microwave High-voltage Capacitor (replaces Wb27x598) WB27X10240
#49

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x598)

Part #WB27X10240

$98.06
In Stock
Magnetron WB27X10475
#73

Microwave diagram

Magnetron

Part #WB27X10475

Replaced by #WB27X10735

?
Manufacturer substitution
This part replaces WB27X10475. Substitute parts can look different from the original.
$99.20 |
15% OFF Phone Price : $116.42
In Stock
Microwave Surface Light Lens (replaces Wb36x945) WB36X10071
#22

Microwave diagram

Microwave surface light lens (replaces wb36x945)

Part #WB36X10071

This item is not returnable
$18.07 |
13% OFF Phone Price : $20.84
In Stock
Cooking Tray WB49X10002
#85

Microwave diagram

Cooking tray

Part #WB49X10002

Replaced by #WB39X10003

?
Manufacturer substitution
This part replaces WB49X10002. Substitute parts can look different from the original.
1 (1)
$83.49 |
11% OFF Phone Price : $93.88
In Stock
Holder Sensor WB06X0549
#63

Microwave diagram

Holder sensor

Part #WB06X0549

Replaced by #WB6X549

?
Manufacturer substitution
This part replaces WB06X0549. Substitute parts can look different from the original.
This item is not returnable
$7.40 |
12% OFF Phone Price : $8.40
In Stock
Air Filter WB06X10125
#21

Microwave diagram

Air filter

Part #WB06X10125

Replaced by #WB6X486

?
Manufacturer substitution
This part replaces WB06X10125. Substitute parts can look different from the original.
$69.90
In Stock
