Kenmore
Gas Grill

Model # 141162231 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 141162231 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Gas Grill Grease Draining Tray P02705095B
#19

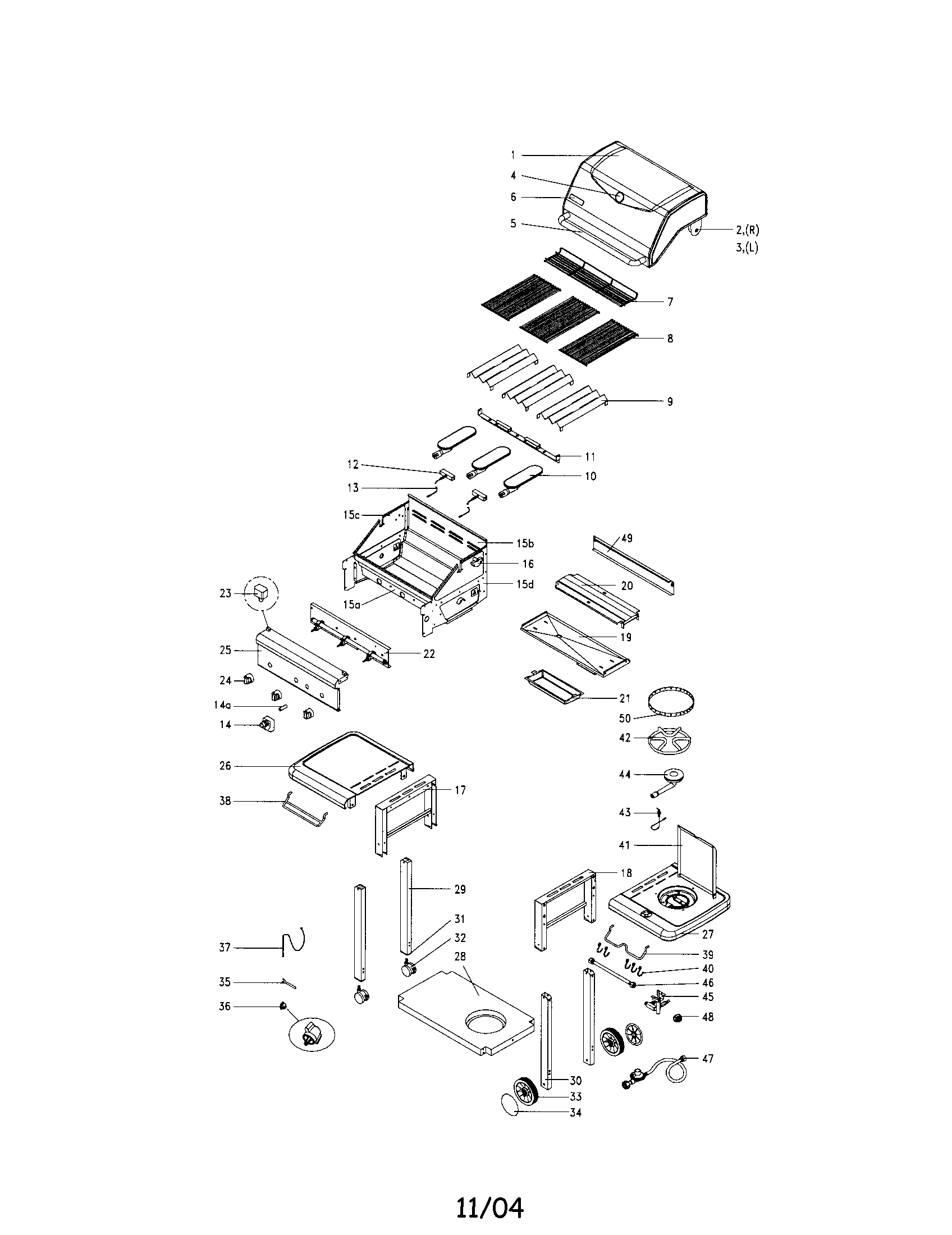

Gas grill assembly diagram

Gas grill grease draining tray

Part #P02705095B

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Temperature Gauge P00601174A
#4

Gas grill assembly diagram

Gas grill temperature gauge

Part #P00601174A

The manufacturer no longer makes this part, and there's no substitute part

Side Burner Gas Valve P03218003G
#45

Gas grill assembly diagram

Side burner gas valve

Part #P03218003G

The manufacturer no longer makes this part, and there's no substitute part

Control Panel P02906017B
#25

Gas grill assembly diagram

Control panel

Part #P02906017B

The manufacturer no longer makes this part, and there's no substitute part

Bowl Window Shield P0073701IB
#49

Gas grill assembly diagram

Bowl window shield

Part #P0073701IB

The manufacturer no longer makes this part, and there's no substitute part

Electric Wire Set 02615003A
#13

Gas grill assembly diagram

Electric wire set

Part #02615003A

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Side Burner Gas Hose P03705002A
#46

Gas grill assembly diagram

Gas grill side burner gas hose

Part #P03705002A

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Side Burner Pot Support P00805014B
#42

Gas grill assembly diagram

Gas grill side burner pot support

Part #P00805014B

The manufacturer no longer makes this part, and there's no substitute part

Protective Pad P05518003I
#23

Gas grill assembly diagram

Protective pad

Part #P05518003I

The manufacturer no longer makes this part, and there's no substitute part

Tool Hook P05514053A
#40

Gas grill assembly diagram

Tool hook

Part #P05514053A

The manufacturer no longer makes this part, and there's no substitute part
