Model # DS18DVF3 Official Hitachi cordless drill

Here are the diagrams and repair parts for Official Hitachi DS18DVF3 cordless drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Hitachi Gear 324348
#12

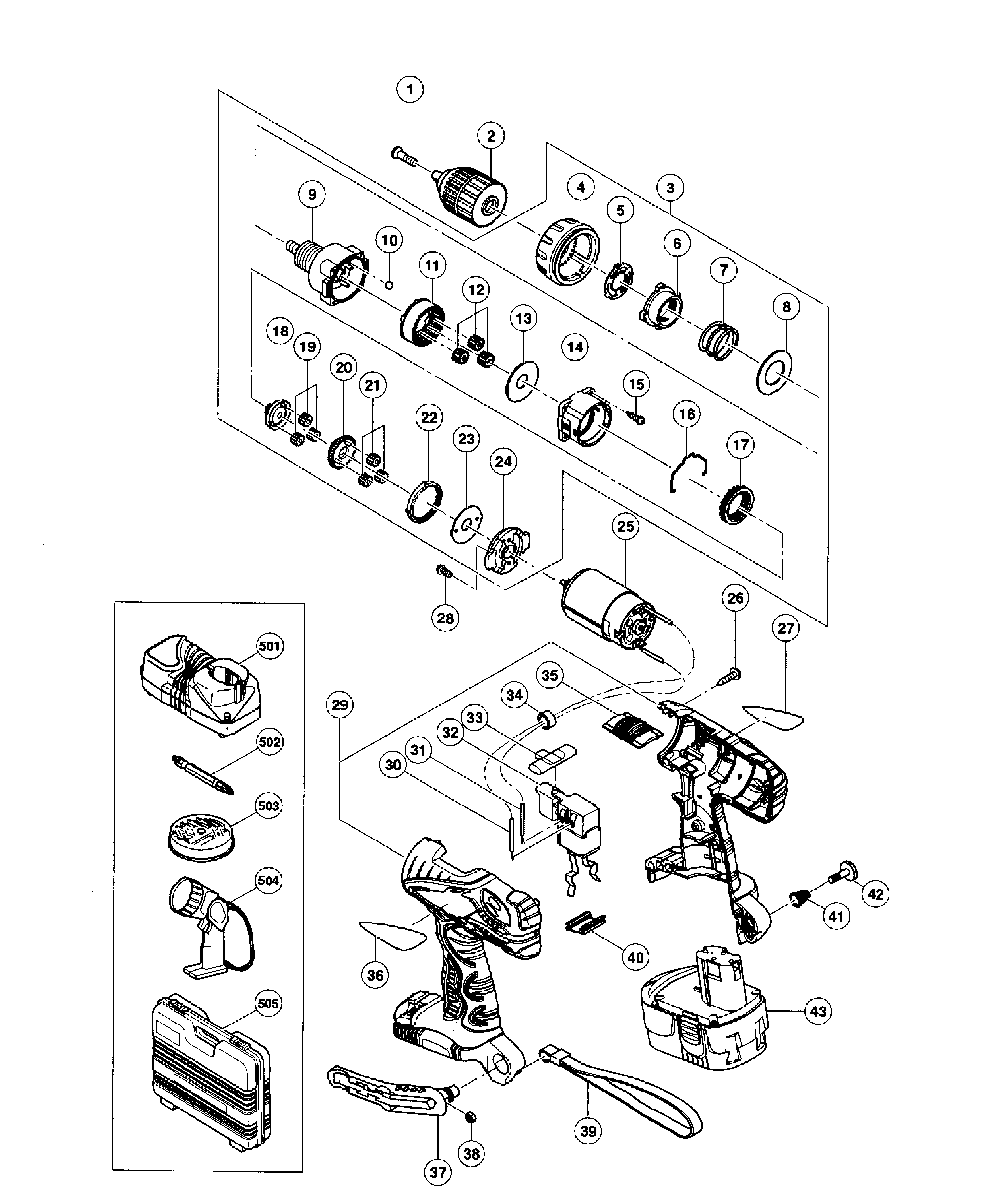

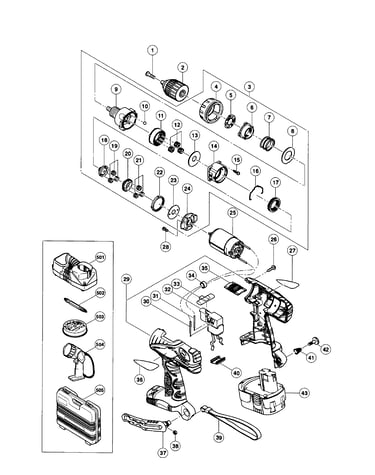

Drill diagram

Hitachi gear

Part #324348

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Button 324117
#33

Drill diagram

Hitachi button

Part #324117

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Wire 319759
#30

Drill diagram

Hitachi wire

Part #319759

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Gear 324494
#21

Drill diagram

Hitachi gear

Part #324494

The manufacturer no longer makes this part, and there's no substitute part

Spring 324110
#7

Drill diagram

Spring

Part #324110

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Support 315141
#40

Drill diagram

Hitachi support

Part #315141

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Front Case 324491
#9

Drill diagram

Hitachi front case

Part #324491

The manufacturer no longer makes this part, and there's no substitute part

Inter Wire 324499
#31

Drill diagram

Inter wire

Part #324499

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Switch 324498
#32

Drill diagram

Hitachi switch

Part #324498

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Case 324512
#NI

Drill diagram

Hitachi case

Part #324512

The manufacturer no longer makes this part, and there's no substitute part
