Model # GM3510PRW Official Maytag electric range
Here are the diagrams and repair parts for Official Maytag GM3510PRW electric range, as well as links to manuals and error code tables, if available.

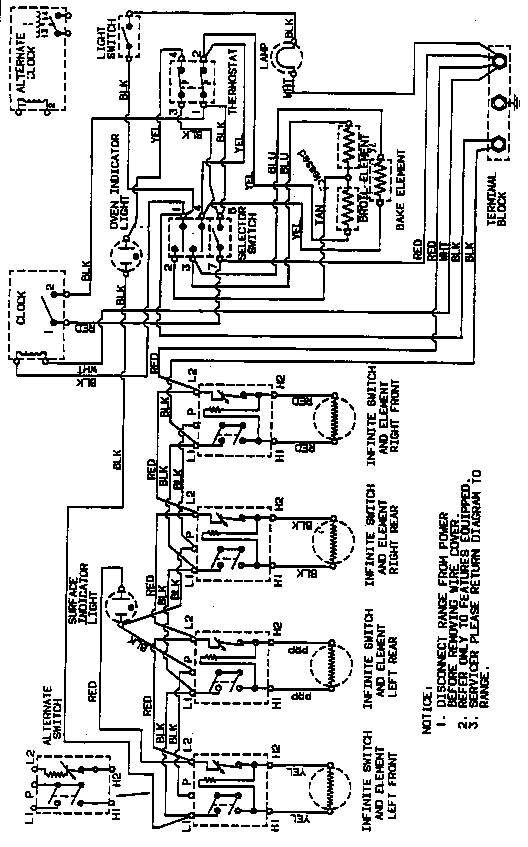

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forGM3510PRW Ranges
- #18

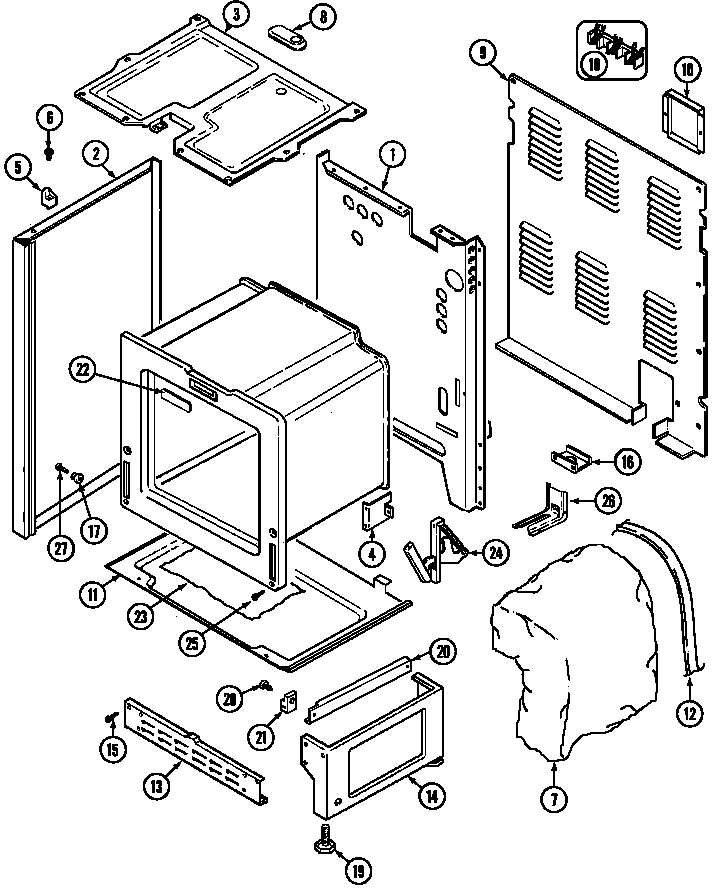

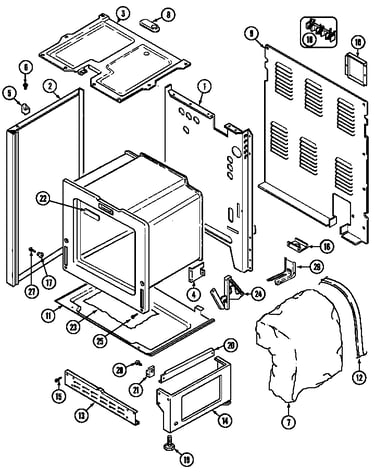

Body diagram
Terminal blockPart #7401P039-60
Replaced by #WPW10245259
?Manufacturer substitutionThis part replaces 7401P039-60. Substitute parts can look different from the original.$24.63 |24% OFF Was : $32.40In Stock - #7

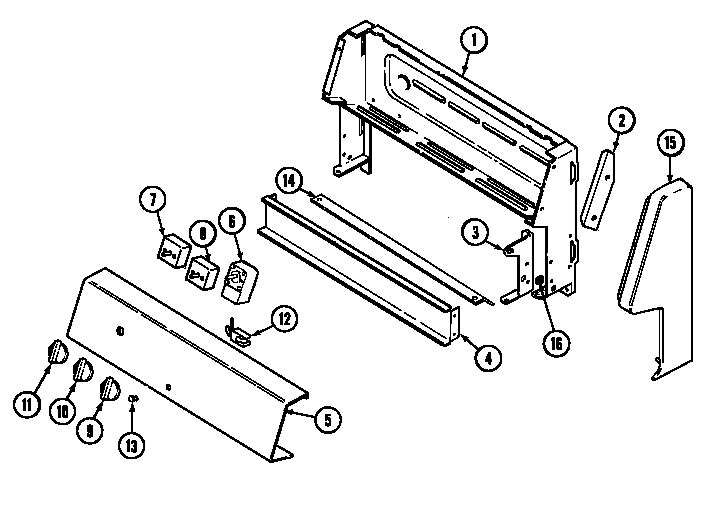

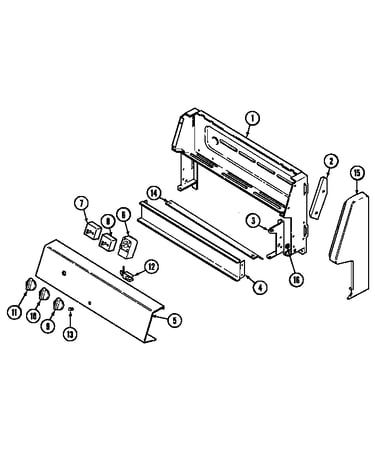

Control panel diagram
Range surface element control switchPart #7403P238-60
Replaced by #WP7403P238-60
?Manufacturer substitutionThis part replaces 7403P238-60. Substitute parts can look different from the original.$47.39 |11% OFF Phone Price : $53.39In Stock - #7A
Control panel diagram
Range surface element control switchPart #7403P239-60
Replaced by #WP7403P239-60
?Manufacturer substitutionThis part replaces 7403P239-60. Substitute parts can look different from the original.$45.10 |12% OFF Phone Price : $51.10In Stock - #4

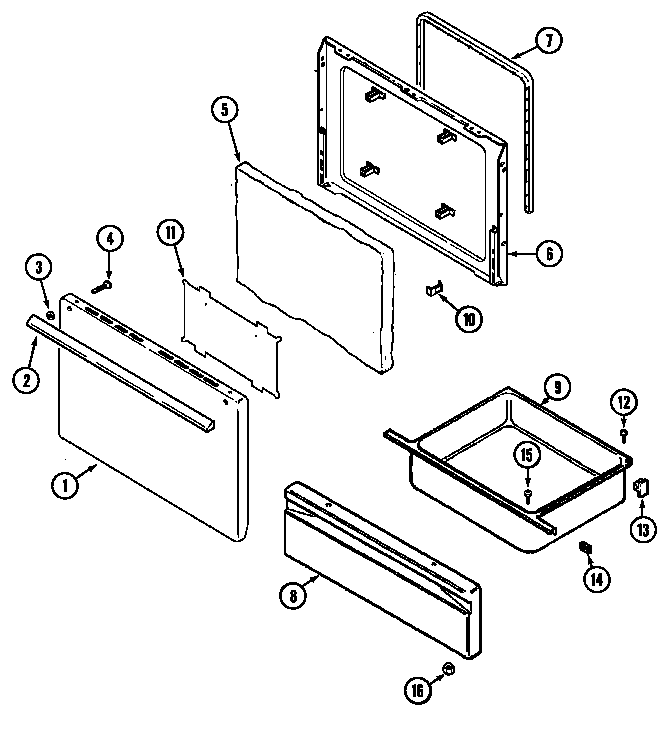

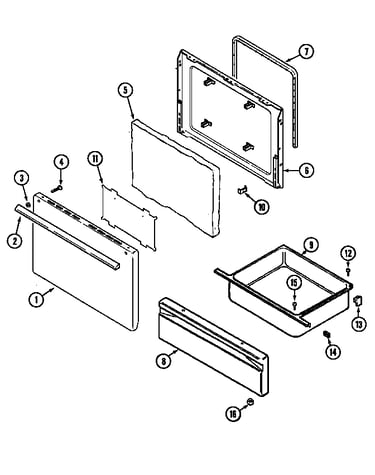

Door/drawer diagram
Clamp screwPart #7101P080-60
Replaced by #WP3387230
?Manufacturer substitutionThis part replaces 7101P080-60. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #6

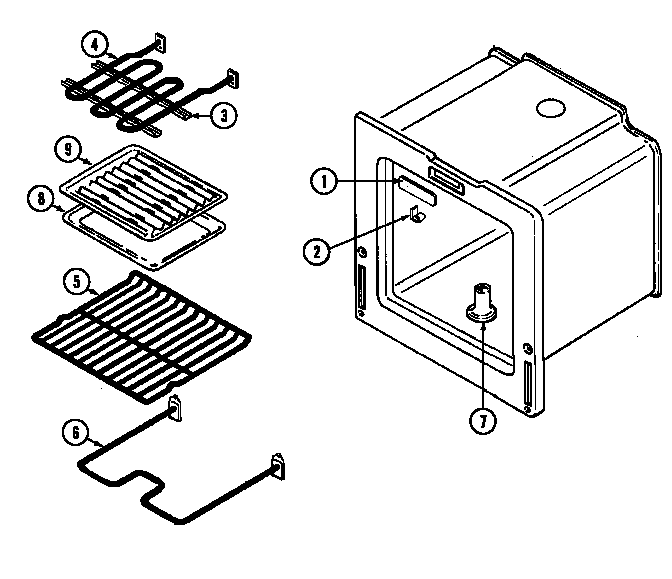

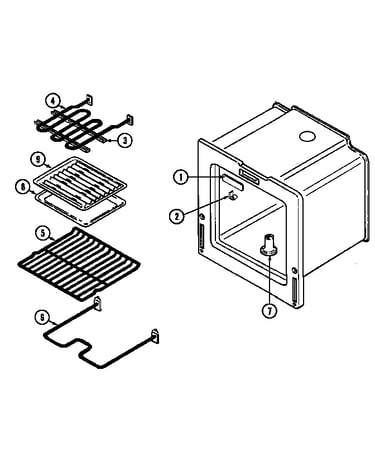

Oven diagram
Bake elementPart #04000058
Replaced by #WP74003019
?Manufacturer substitutionThis part replaces 04000058. Substitute parts can look different from the original.$42.65 |12% OFF Phone Price : $48.65In Stock - #2

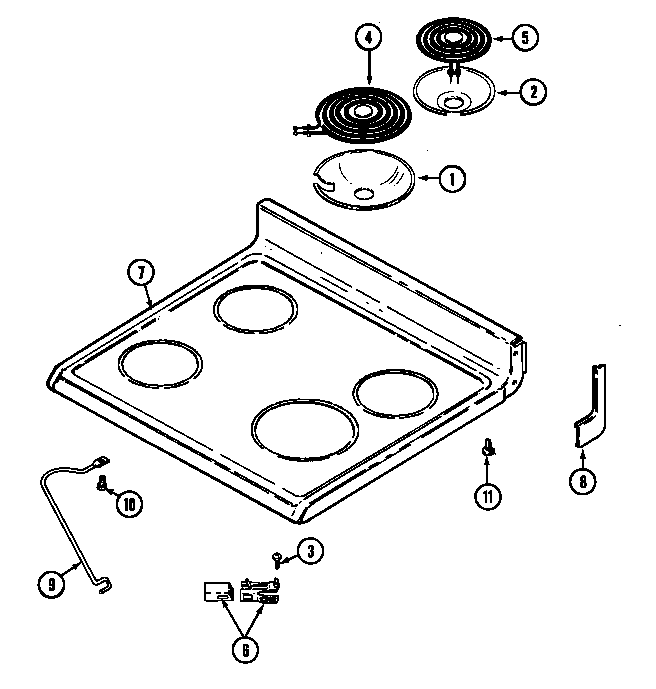

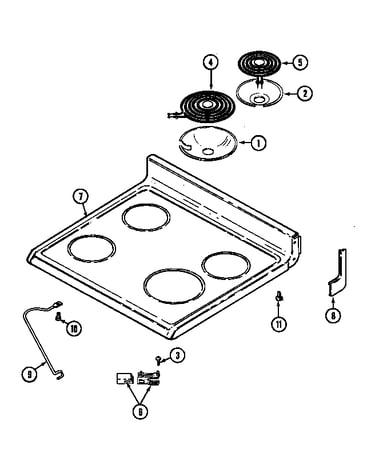

Top assembly diagram
Drip bowlPart #7725P015-60
Replaced by #WPW10196406
?Manufacturer substitutionThis part replaces 7725P015-60. Substitute parts can look different from the original.This item is not returnable$5.43 |27% OFF Was : $7.46In Stock - #15B
Control panel diagram
Bracket screwPart #7101P040-60
Replaced by #WP98008545
?Manufacturer substitutionThis part replaces 7101P040-60. Substitute parts can look different from the original.This item is not returnable$4.67 |18% OFF Phone Price : $5.67In Stock - #2A
Top assembly diagram
Drip bowlPart #7725P048-60
Replaced by #W10196406RW
?Manufacturer substitutionThis part replaces 7725P048-60. Substitute parts can look different from the original.$10.49 |19% OFF Was : $12.95In Stock - #25
Body diagram
ScrewPart #7101P282-60
Replaced by #WP4159193
?Manufacturer substitutionThis part replaces 7101P282-60. Substitute parts can look different from the original.This item is not returnable$5.29 |16% OFF Phone Price : $6.29In Stock - #15
Door/drawer diagram
ScrewPart #7101P115-60
Replaced by #WP4159193
?Manufacturer substitutionThis part replaces 7101P115-60. Substitute parts can look different from the original.This item is not returnable$5.29 |16% OFF Phone Price : $6.29In Stock
