Model # 328375000 Official Craftsman front throw reel mower

Here are the diagrams and repair parts for Official Craftsman 328375000 front throw reel mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |

Bolt 1044
#18

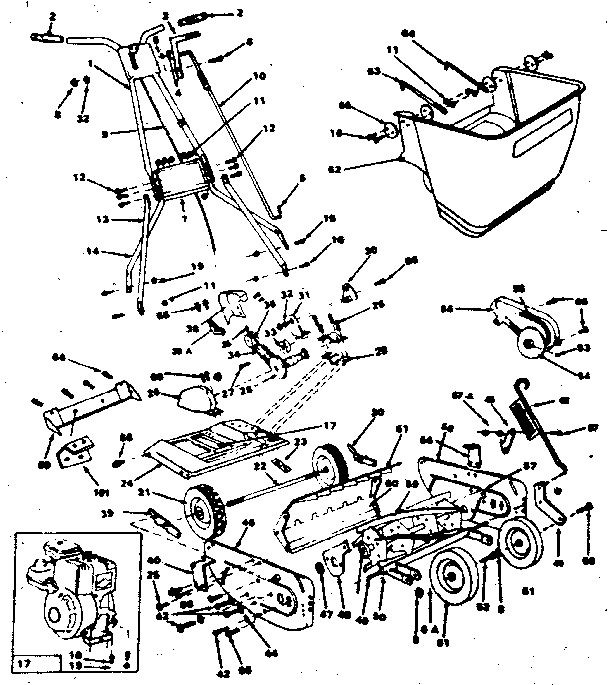

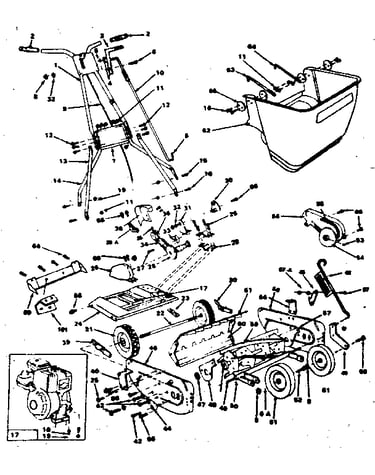

Front throw reel mower parts diagram

Bolt

Part #1044

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1028
#25

Front throw reel mower parts diagram

Bolt

Part #1028

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1033
Bolt

Part #1033

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Bolt 3066
#68

Front throw reel mower parts diagram

Lawn & garden equipment bolt

Part #3066

The manufacturer no longer makes this part, and there's no substitute part

Nut 1015
#11

Front throw reel mower parts diagram

Nut

Part #1015

The manufacturer no longer makes this part, and there's no substitute part

Reel Lawn Mower Reel Bearing 1108
#47

Front throw reel mower parts diagram

Reel lawn mower reel bearing

Part #1108

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard 3026
#26

Front throw reel mower parts diagram

Belt guard

Part #3026

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 1008
#8

Front throw reel mower parts diagram

Lock nut

Part #1008

The manufacturer no longer makes this part, and there's no substitute part

Chain Connecting Link 1057

#NI

All parts diagram

Chain connecting link

Part #1057

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 1065
#35

Front throw reel mower parts diagram

Lawn & garden equipment screw

Part #1065

The manufacturer no longer makes this part, and there's no substitute part
