GE
Electric Range

Model # L3B355GL0 Official GE freestanding range

Here are the diagrams and repair parts for Official GE L3B355GL0 freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Sensor WB20X106

#253

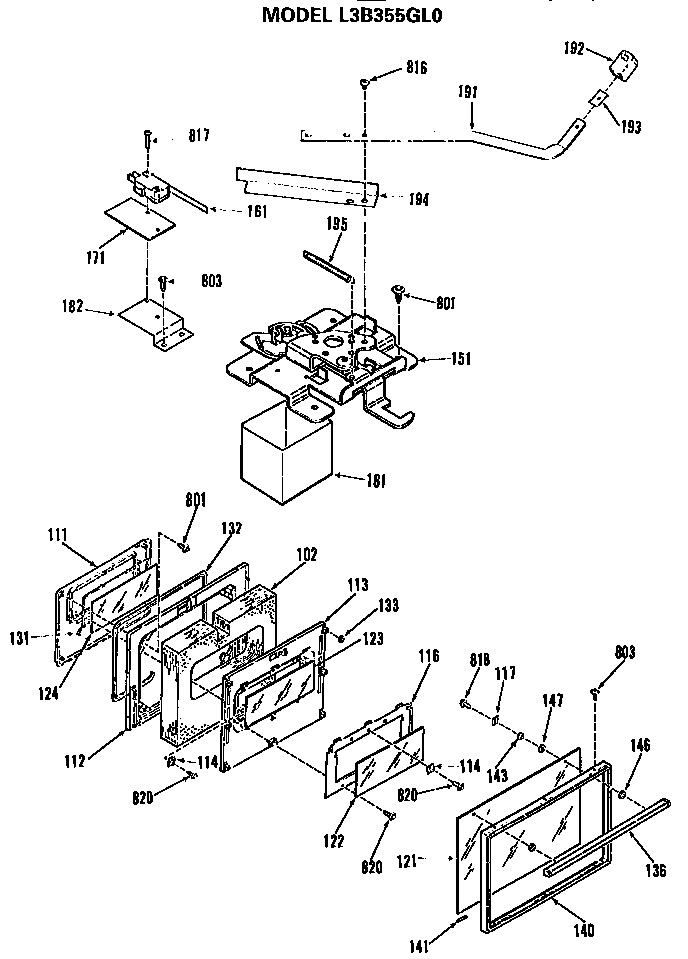

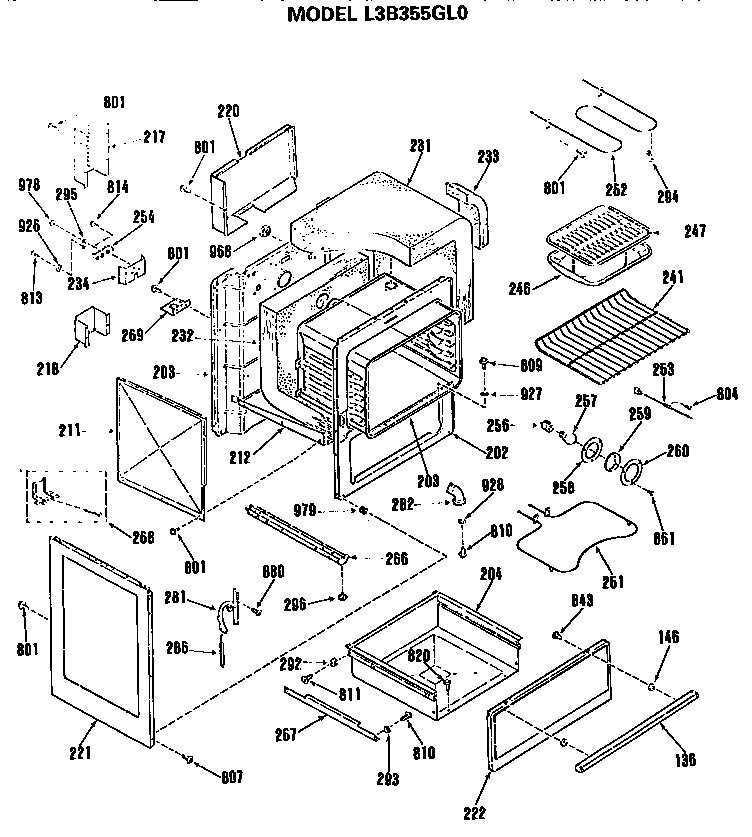

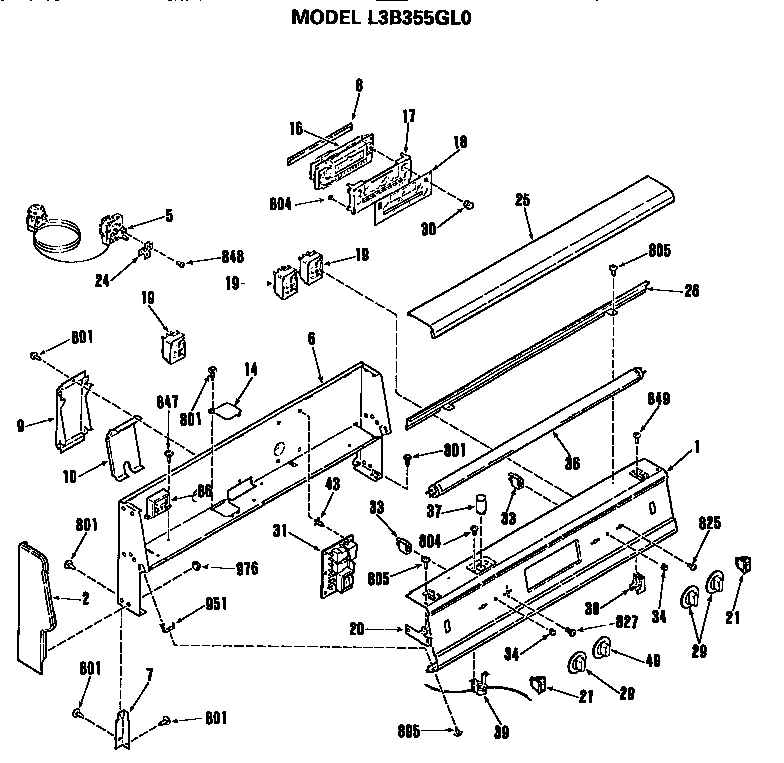

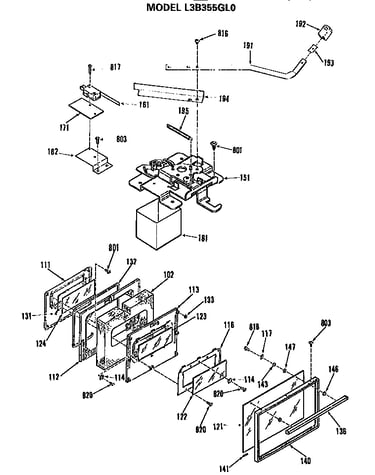

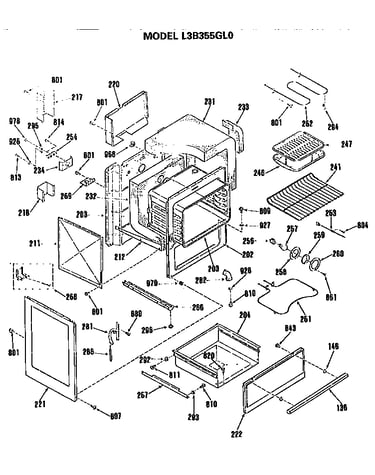

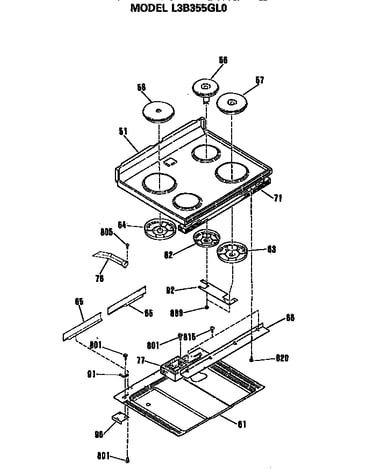

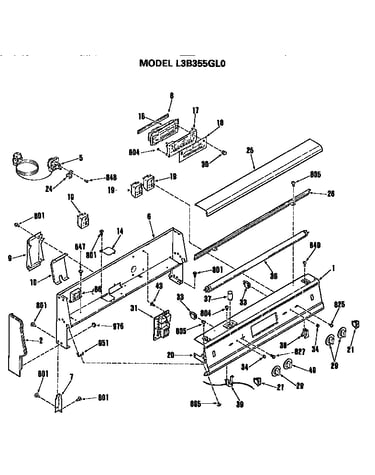

All parts diagram

Sensor

Part #WB20X106

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB20X106. Substitute parts can look different from the original.
BEST SELLER
$144.49 |
8% OFF Phone Price : $156.49
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719

#294

All parts diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Hinge, Left (replaces Wb14x0103, Wb14x113) WB14X103

#281

All parts diagram

Range oven door hinge, left (replaces wb14x0103, wb14x113)

Part #WB14X103

BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Range Oven Door Hinge, Right (replaces Wb14x0104, Wb14x114) WB14X104

#281

All parts diagram

Range oven door hinge, right (replaces wb14x0104, wb14x114)

Part #WB14X104

BEST SELLER
$32.83 |
15% OFF Phone Price : $38.83
In Stock
Screw-4-pk WB1M01

#801

All parts diagram

Screw-4-pk

Part #WB1M01

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1M01. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw-10-32 WB1X1253

#810

All parts diagram

Screw-10-32

Part #WB1X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB1X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Griddle Broil WB49X627

#247

All parts diagram

Griddle broil

Part #WB49X627

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X627. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Knob-inf Ht WB3X812

#29

All parts diagram

Knob-inf ht

Part #WB3X812

Replaced by #WB3K5069

?
Manufacturer substitution
This part replaces WB3X812. Substitute parts can look different from the original.
$27.39 |
18% OFF Phone Price : $33.39
In Stock
Range Oven Door Outer Panel WB56X1902

#121

All parts diagram

Range oven door outer panel

Part #WB56X1902

$215.34 |
5% OFF Phone Price : $227.34
In Stock
Range Screw WB1X1180

#847

All parts diagram

Range screw

Part #WB1X1180

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces WB1X1180. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
