Model # U30YX Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP U30YX evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Valve Exp 1062741
#5

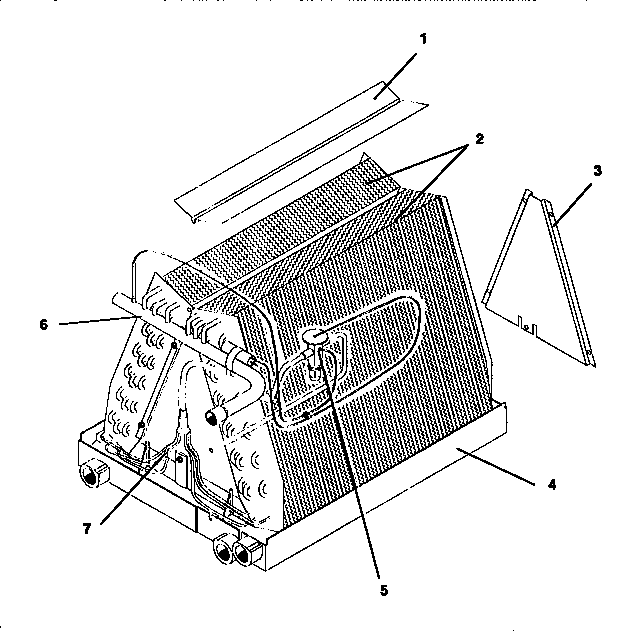

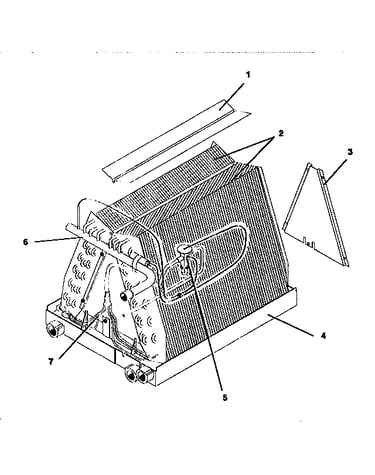

Functional replacement parts diagram

Valve exp

Part #1062741

Replaced by #1066006

?
Manufacturer substitution
This part replaces 1062741. Substitute parts can look different from the original.
$248.60
In Stock
Baffle Coil 1062505
#1

Functional replacement parts diagram

Baffle coil

Part #1062505

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 1063841
#2

Functional replacement parts diagram

Evaporator

Part #1063841

The manufacturer no longer makes this part, and there's no substitute part

Distributor 1062727
#7

Functional replacement parts diagram

Distributor

Part #1062727

The manufacturer no longer makes this part, and there's no substitute part

Tube Manfld 1062724
#6

Functional replacement parts diagram

Tube manfld

Part #1062724

The manufacturer no longer makes this part, and there's no substitute part

Manual 1 And 0 1069169

#NI

All parts diagram

Manual 1 and 0

Part #1069169

The manufacturer no longer makes this part, and there's no substitute part

Plate Galv 1062506
#3

Functional replacement parts diagram

Plate galv

Part #1062506

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 1062478
#4

Functional replacement parts diagram

Drain pan

Part #1062478

The manufacturer no longer makes this part, and there's no substitute part
