Model # 25357510790 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 25357510790 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 46 parts |

#28A

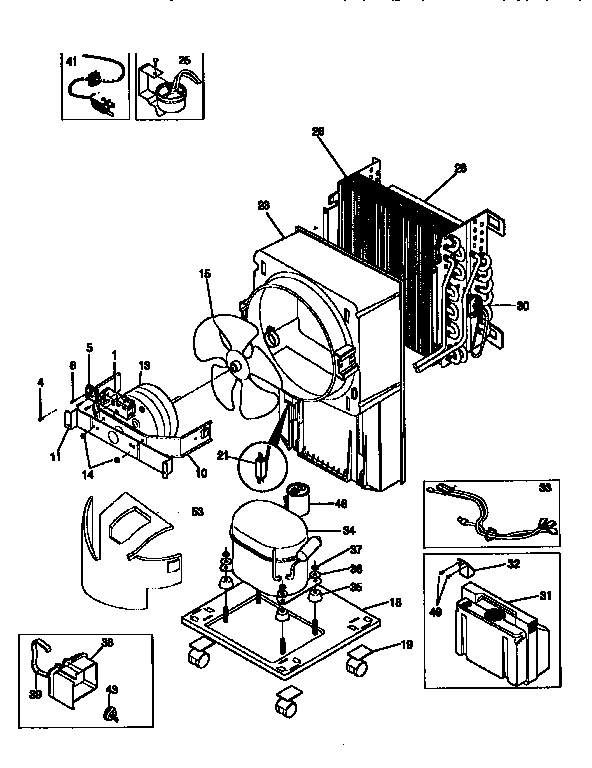

Unit diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

$14.69

In Stock

Qty

Kelvinator Room Air Conditioner Lock Nut 08007481

#14

Unit diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable

$5.74

In Stock

Qty

Unit diagram

Switch

Part #5303012345

$39.35

In Stock

Qty

#46

Unit diagram

Kelvinator capacitor

Part #5303001902

$115.24

In Stock

Qty

#23

Unit diagram

Fan housing

Part #327650001

The manufacturer no longer makes this part, and there's no substitute part

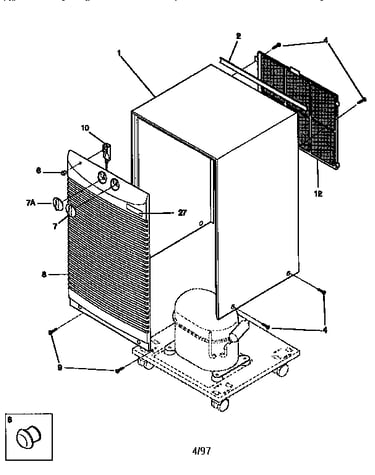

Cabinet diagram

Light lens

Part #08012705

The manufacturer no longer makes this part, and there's no substitute part

#34

Unit diagram

Compressor

Part #5303323302

The manufacturer no longer makes this part, and there's no substitute part

#43

Unit diagram

Overload

Part #5303322582

The manufacturer no longer makes this part, and there's no substitute part

Unit diagram

Screw

Part #3017805

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Water Bucket Float 5303306080

#32

Unit diagram

Dehumidifier water bucket float

Part #5303306080

The manufacturer no longer makes this part, and there's no substitute part
