Kenmore
Canister Vacuum

Model # 11629272 Official Kenmore vacuum cleaner & attachment set

Here are the diagrams and repair parts for Official Kenmore 11629272 vacuum cleaner & attachment set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

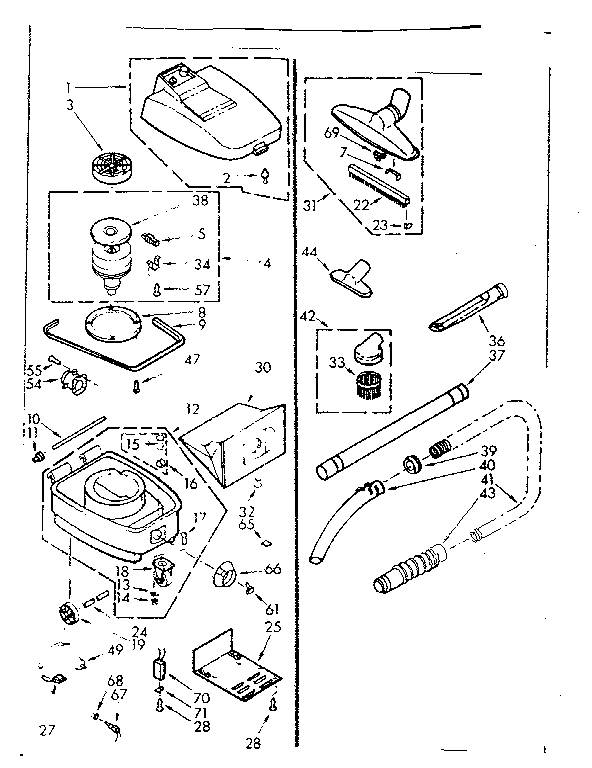

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |

Gasket 750523
#9

Kenmore vacuum cleaner and attachment set diagram

Gasket

Part #750523

The manufacturer no longer makes this part, and there's no substitute part

Filtr-sfty 700334
#3

Kenmore vacuum cleaner and attachment set diagram

Filtr-sfty

Part #700334

The manufacturer no longer makes this part, and there's no substitute part

Spring 762916
#65

Kenmore vacuum cleaner and attachment set diagram

Spring

Part #762916

The manufacturer no longer makes this part, and there's no substitute part

Relief 668379
#49

Kenmore vacuum cleaner and attachment set diagram

Relief

Part #668379

The manufacturer no longer makes this part, and there's no substitute part

Cord 723286
#27

Kenmore vacuum cleaner and attachment set diagram

Cord

Part #723286

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Spring 720732
#7

Kenmore vacuum cleaner and attachment set diagram

Nozzle spring

Part #720732

The manufacturer no longer makes this part, and there's no substitute part

Clip 721323
#23

Kenmore vacuum cleaner and attachment set diagram

Clip

Part #721323

The manufacturer no longer makes this part, and there's no substitute part

Brush Clamp 568924
#34

Kenmore vacuum cleaner and attachment set diagram

Brush clamp

Part #568924

The manufacturer no longer makes this part, and there's no substitute part

Catch 762672
#61

Kenmore vacuum cleaner and attachment set diagram

Catch

Part #762672

The manufacturer no longer makes this part, and there's no substitute part

Wheel 761842
#19

Kenmore vacuum cleaner and attachment set diagram

Wheel

Part #761842

The manufacturer no longer makes this part, and there's no substitute part
