Craftsman
Reciprocating Saw

Model # 31527943 Official Craftsman sabre saw

Here are the diagrams and repair parts for Official Craftsman 31527943 sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Screw 1-620725-01
#1

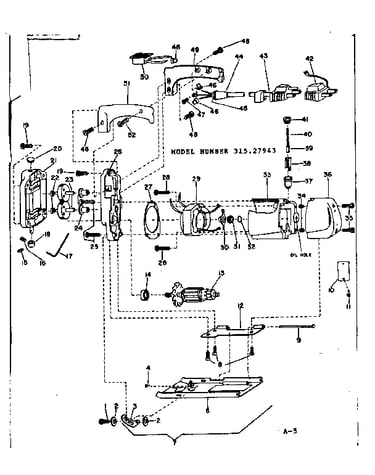

Unit parts diagram

Screw

Part #1-620725-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-930993-01
#47

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Tube Holder 1-930520-06
#34

Unit parts diagram

Tube holder

Part #1-930520-06

The manufacturer no longer makes this part, and there's no substitute part

Guide Plate 2-886316-00
#6

Unit parts diagram

Guide plate

Part #2-886316-00

The manufacturer no longer makes this part, and there's no substitute part

Guide Plate 2-886324-00
#7

Unit parts diagram

Guide plate

Part #2-886324-00

The manufacturer no longer makes this part, and there's no substitute part

Handle 4-621109-01
#49

Unit parts diagram

Handle

Part #4-621109-01

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 4-621105-01
#33

Unit parts diagram

Motor housing

Part #4-621105-01

The manufacturer no longer makes this part, and there's no substitute part

Baffle 2-885976-00
#27

Unit parts diagram

Baffle

Part #2-885976-00

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#31

Unit parts diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-940049-11
#48

Unit parts diagram

Screw

Part #1-940049-11

The manufacturer no longer makes this part, and there's no substitute part
